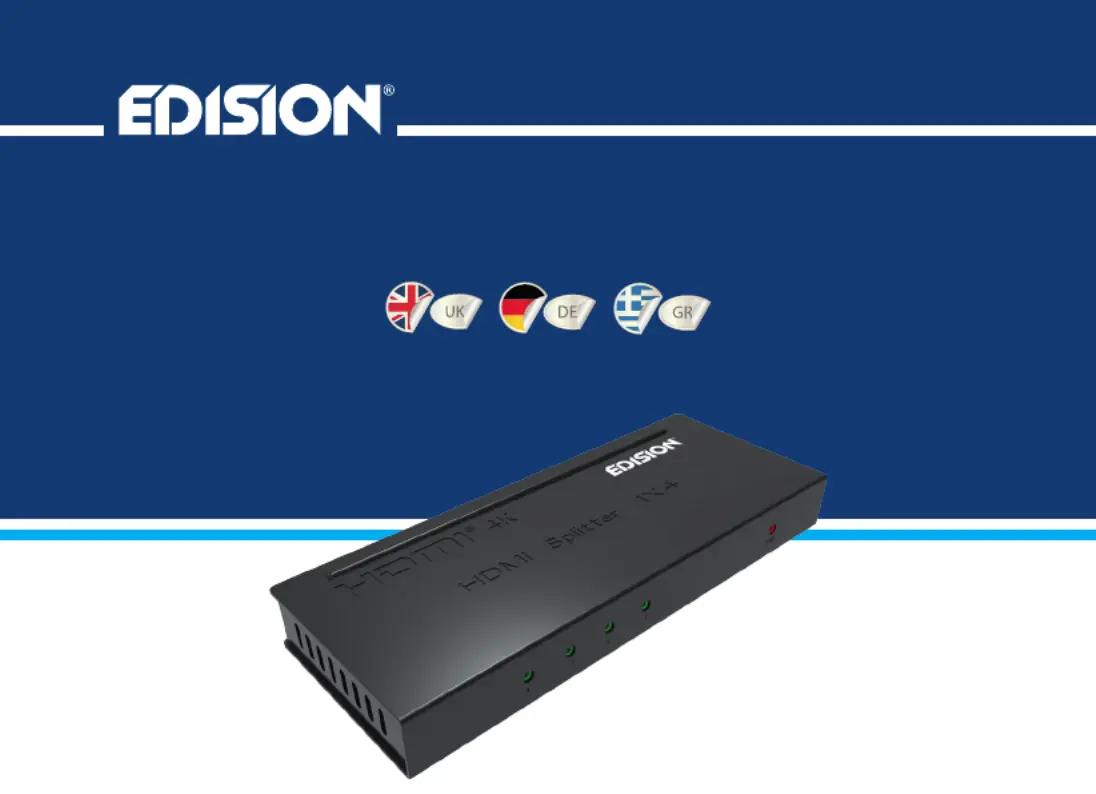

4K HDMI Splitter 1x4
User’s Guide / Bedienungsanleitung / Εγχειρίδιο Χρήστη
►INTRODUCTION
The EDISION 4K HDMI Splitter 1x4 uses a single HDMI input source, to distribute it to 4
HDMI outputs. The splitter allows one HDMI device to be split easily to two HDMI compatible
monitors or projectors. It can also be placed at the end of a long HDMI cable to regenerate
the HDMI signal. The resolution is up to 3840x2160/30HZ.
►FEATURES
• HDMI 1 IN / 4 OUT
• Plug and Play
• Supports HDMI 1.4b
• Supports 3D
• Supports HDCP
• Supports High Resolution up to 2160p/30Hz
• Supports Depth Color 8/10/12bit
• Supports Max Bandwidth 340MHz
• Supports Max Baud Rate 3.4Gbps
• Supports Audio Format DTS-HD/Dolby
trueHD/DTS/Dolby-AC3/DSD
• Supports Max Cable Length Output 10m,
without Amplication. For HDMI cable more
than 10 meters an ACTIVE HDMI cable is
necessary or HDMI amplier.
• With external Power Supply 5V
►SPECIFICATIONS

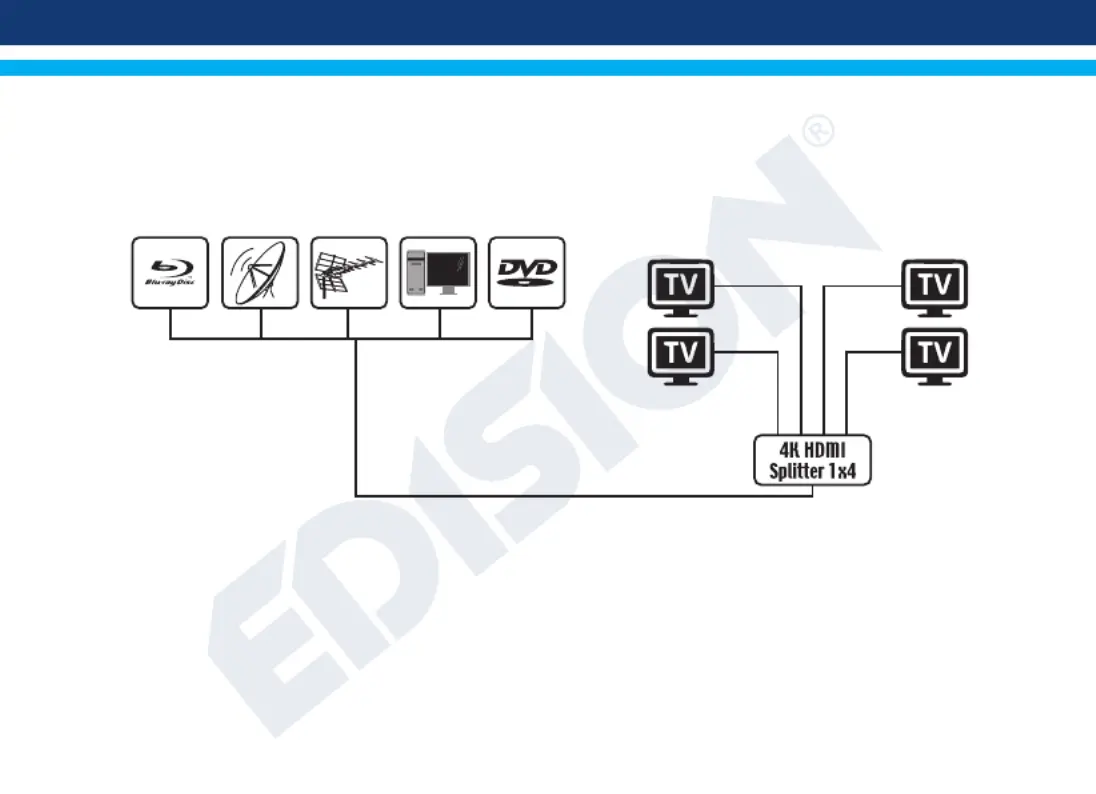

►CONNECTIΟΝ & OPERATION
1. Connect 1 HDMI cable from HDMI
source device into HDMI Splitter input.
2. Connect 4 HDMI cables from displays
(monitors or projectors) into the HDMI
Splitter outputs.
3. Connect 5V power supply to the HDMI
1x4 Splitter.
►PACKAGE INCLUDES
1. 4K HDMI Splitter 1x4
2. Power Adapter
3. User Manual
HDMI version
HDMI resolution
Support video color format
Support audio format
Max bandwidth
Max baud rate
Input cable distance
Output cable distance
HDMI input
HDMI output
Max working current
Specications of power adapter
Operating Temperature range
Operating Humidity range
Dimension (L x W x H)
Weight
HDMI 1.4b
UP TO 3840x2160/30Hz
8/10/12bit Depth Color
DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
340MHz
3.4Gbps
≤10m AWG26 HDMI standard cable
≤10m AWG26 HDMI standard cable
1 HDMI
4 HDMI
500mA
Input:AC (50HZ, 60HZ) 100V-240V;output: DC5V
-15 to +55
O
5 to 90%RH (No Condensation)
141x55x16mm
200g
