Installation and mounting manual for EK-FC780 GTX Ti Backplate
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

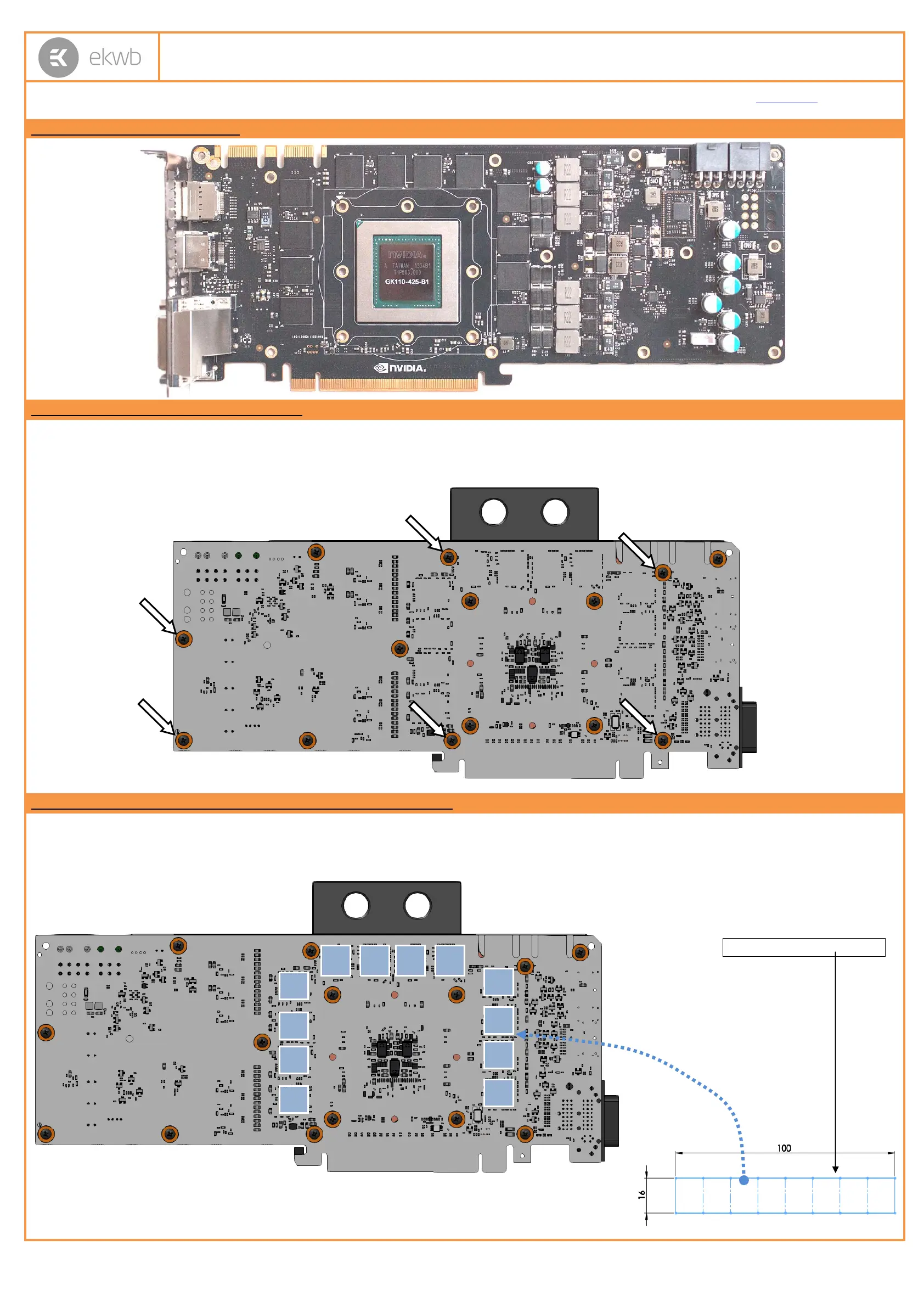

STEP 1: GENERAL INFORMATION. Sample picture of nVidia GeForce GTX 780 GTX Ti graphics card.
STEP 2: PREPARING YOUR GRAPHICS CARD

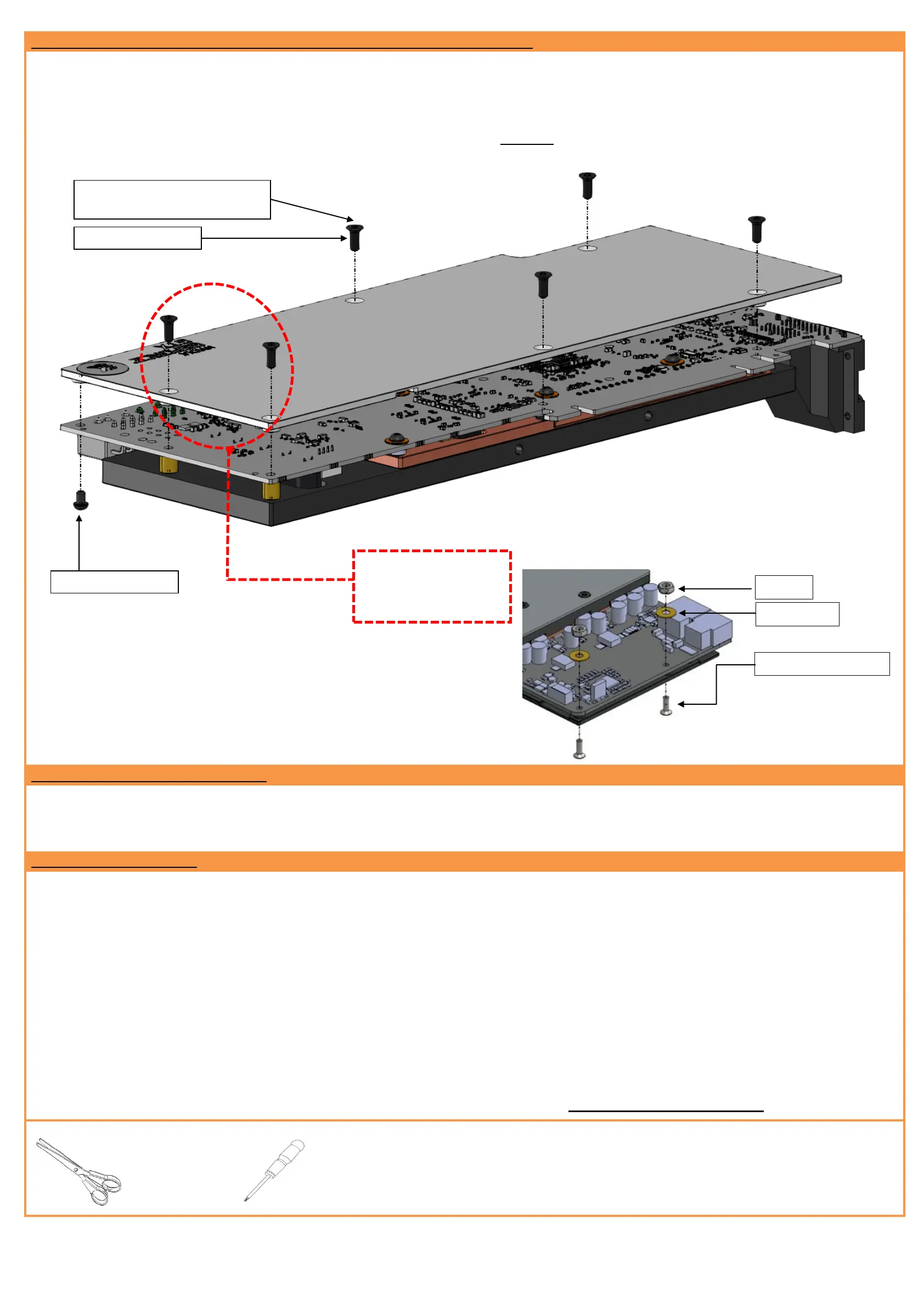

EK-FC Titan SE Backplate is very easy to install. First install EK-FC780 GTX Ti, EK-FC Titan SE or EK-FC770 GTX series water block according to its
installation manual. If you have it already installed the water block please check the picture below to see which mounting screws are to be left in
their position and which are to be removed. Please remove the six (6) M3x4 DIN7985 screws and their washers (marked with arrow).
STEP 3: APPLYING THE THERMAL PADS (GEFORCE GTX TITAN ONLY)
EK-FC Titan SE Backplate features passive cooling of the printed circuit board and it’s components therefore it is mandatory to install the enclosed
thermal pad. Please place enclosed 0.5mm thick thermal pad (Thermal Pad D – 0.5mm (RAM 8X)) directly on the marked memory (RAM) IC on the
back of the card’s printed circuit board as shown on the picture below. You will need twelve (12) pieces for 12 RAM IC, which is one and a half of
the enclosed thermal pad.
Thermal pad D –0.5mm (RAM 8X)
