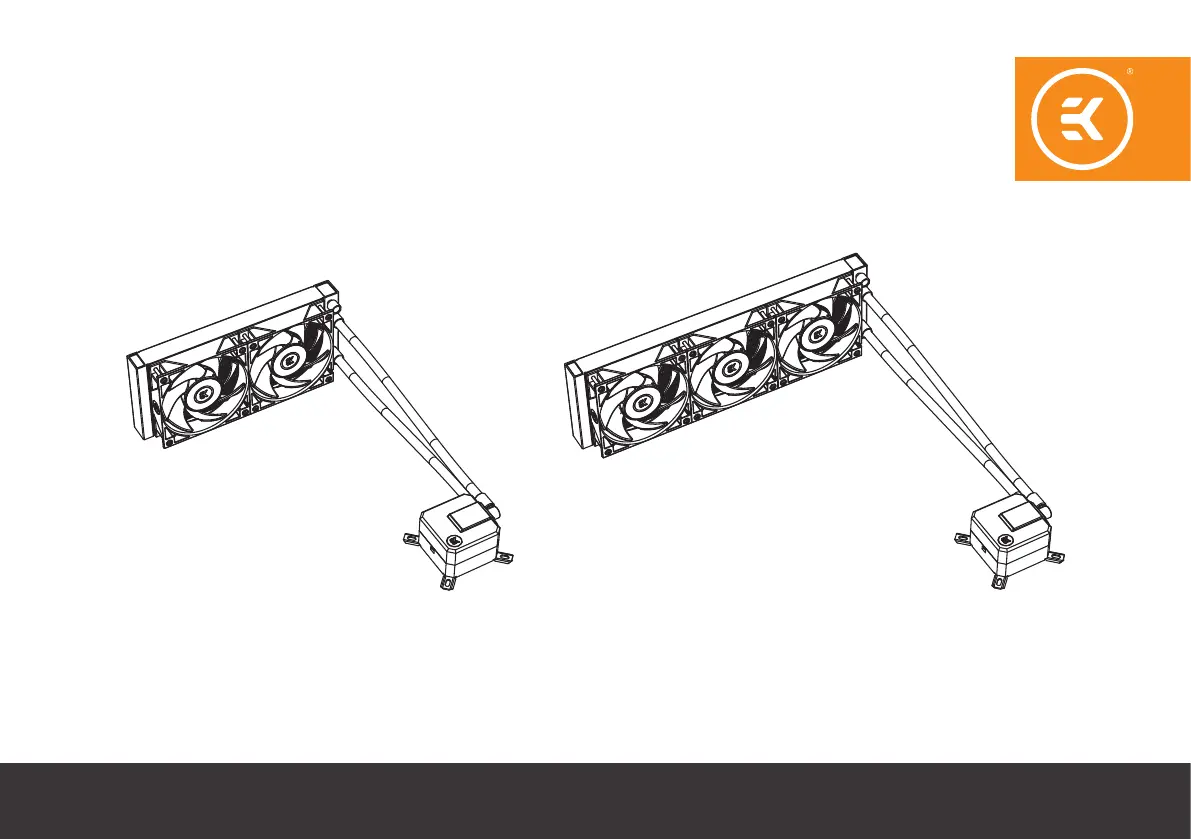

INSTALLATION MANUAL

EK-AIO

BASIC 240 / BASIC 360

Compatible with:

Intel Socket 115X / 20xx CPUs

AMD Socket AM4 CPU

To ensure safe and easy installation, please carefully read

this manual before starting with the installation process!

2nd Revision, March 17, 2021

INFORMATION TO THE USER

This equipment has been tested and found to comply with the limits for a class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

The user is cautioned that changes and modiﬁ cations made to the equipment without the approval

of manufacturer could void the user’s authority to operate this equipment.

1. SAFETY PRECAUTIONS 4

2. SPECIFICATIONS 4

3. ENCLOSED IN THIS PACKAGE 5

MOUNTING KIT 5

4. INSTALLATION – INTEL LGA-115X SOCKET 6

STEP 1: REMOVING THE MOTHERBOARD 6

STEP 2: ATTACHING THE BACKPLATE TO THE MOTHERBOARD 6

STEP 3: ATTACHING MOUNTING SCREWS 6

STEP 4: INSTALLING THE FANS TO THE RADIATOR 6

STEP 5: REMOVING THE COLD-PLATE PROTECTIVE COVER 6

STEP 6: MOUNTING BRACKETS INSTALLATION 6

STEP 7: PUMP UNIT INSTALLATION 6

STEP 8: INSTALLING THE RADIATOR AND FANS ASSEMBLY INTO THE PC CASE 7

STEP 9: PUMP – CONNECTING CABLES 7

STEP 10: FANS – CONNECTING CABLES 8

OPTIONAL STEP! APPLYING THE THERMAL COMPOUND 8

5. INSTALLATION – INTEL LGA-20XX SOCKET 8

STEP 1: ATTACHING MOUNTING SCREWS (LGA-20XX) 8

6. INSTALLATION – AMD AM4 SOCKET 9

STEP 1: REMOVING THE ORIGINAL PLASTIC HOLD-DOWN CLAMPS (AMD) 9

STEP 2: ATTACHING MOUNTING SCREWS (AMD) 9

STEP 3: INSTALLING THE FANS TO THE RADIATOR (AMD) 9

STEP 4: REMOVING THE COLD-PLATE PROTECTIVE COVER (AMD) 9

STEP 5: MOUNTING BRACKETS INSTALLATION (AMD) 9

STEP 6: PUMP UNIT INSTALLATION (AMD) 9

STEP 7: INSTALLING THE RADIATOR AND FANS ASSEMBLY INTO THE PC CASE (AMD) 10

STEP 8: PUMP – CONNECTING CABLES (AMD) 10

STEP 9: FANS – CONNECTING CABLES (AMD) 11

OPTIONAL STEP! APPLYING THE THERMAL COMPOUND 11

7. SUPPORT AND SERVICE 11

8. SOCIAL MEDIA 11

TABLE OF CONTENT

Produkspesifikasjoner

Merke:	EK Water Blocks
Kategori:	datakjølekomponent
Modell:	EK-AIO BASIC 360
Opprinnelsesland:	China
Antall per pakke:	1 stykker
Maksimal luftstrøm:	77 cfm
Egnet plassering:	Prosessor
Maksimalt lufttrykk:	2.89 mmH2O
Viftehastighet (maks.):	2200 RPM
Radiatormateriale:	Aluminium
Radiatorhøyde:	27 mm
Pumpebredde:	88 mm
Harmonisert system (HS)-kode:	84733080
Rørmateriale:	Gummi
Modell/Type:	Alt-i-ett væskekjøler
Viftestøynivå (maks.):	33.5 dB
Viftetilkobling:	4-pin
Viftediameter:	120 mm
Antall vifter:	3 vifter
Støttede prosessorkontakter:	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4
Pumpemotorfart (maks.):	2600 RPM
Viftedimensjoner (BxDxH):	120 x 120 x 25 mm
Radiatordybde:	120 mm
Radiatorbredde:	395 mm
Pumpekontakt:	4-pin
Pumpemotorfart (min.):	850 RPM
Viftetykkelse:	25 mm
Pulsbreddemodulerings- støtte (PWM):	Ja
Viftehastighet (min.):	550 RPM
Pumpedybde:	70 mm
Pumpehøyde:	53 mm
