User Manual
PAR L
2
©2024 ELATION PROFESSIONAL all rights reserved. Information, speci󰤱cations, diagrams,
images, and instructions herein are subject to change without notice. ELATION PROFESSIONAL
logo and identifying product names and numbers herein are trademarks of ELATION
PROFESSIONAL. Copyright protection claimed includes all forms and matters of copyrightable
materials and information now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or registered trademarks of their
respective companies and are hereby acknowledged. All non-ELATION brands and product
names are trademarks or registered trademarks of their respective companies.
ELATION PROFESSIONAL and all a󰤳liated companies hereby disclaim any and all liabilities for
property, equipment, building, and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of any information contained within
this document, and/or as a result of the improper, unsafe, insu󰤳cient and negligent assembly,
installation, rigging, and operation of this product.
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico
52000
+52 (728) 282-7070
Date Document
Version
Software
Version DMX Channel Mode Notes
04/22/24 1.0 1.01 4 / 12 / 15 / 13 / 17 Ext /
17 Std Zones / 25 Ch Initial Release
06/17/24 1.1 No ChangeN/C Updated Dimensional Drawings, Speci󰤱cations
D O C U M E N T V E R S I O N
Due to additional product features and/or enhancements, an updated version of
this document may be available online. Please scan the QR Code with your mobile
device or visit www.elationlighting.com for the latest revision/update of this
manual, before installation and/or programming.
3
C O N T E N T S
General Information 4
Limited Warranty (USA Only) 5
IP65 Rated 6
Safety Guidelines 7
Maintenance Guidelines 9
Overview 10
Installation Guidelines 11
Accessory Installation 15
Remote Device Management (RDM) 16
Control Panel 17
System Menu 18
Fan Modes 21
DMX Set Up 22
DMX Traits 24
Pixel Grouping 29
Virtual Color Table 30
Color Temperature Table 31
Dimmer Modes & Curves 32
Primary-Secondary Set Up 33
Multi Unit Power Linking | Maintenance Guidelines 34
Torque Settings for Screws 35
IP Test Parameters 36
Dimensional Drawings 37
Specifications | Ordering Information 39
Error Codes | FCC Statement 40
4
G E N E R A L I N F O R M AT I O N
INTRODUCTION
Please read and understand the instructions in this manual carefully and thoroughly before
attempting to operate this device. These instructions contain important safety and use infor-
mation. This device is intended for use by trained personnel only, and is not suitable for
private use.
UNPACKING
Every device has been thoroughly tested and has been shipped in perfect operating condition.
Carefully check the shipping carton for damage that may have occurred during shipping. If the
carton is damaged, carefully inspect the device for damage, and be sure all accessories neces-
sary to install and operate the device have arrived intact. In the event damage has been found
or parts are missing, please contact our customer support team for further instructions. Please
do not return this device to your dealer without 󰤱rst contacting customer support. Please do
not discard the shipping carton in the trash. Please recycle whenever possible.
BOX CONTENTS
Power Cable (x1)
Safety Cable (x1)
CUSTOMER SUPPORT
Contact ELATION Service for any product related service and support needs.
Also visit forums.elationlighting.com with questions, comments, or suggestions.
ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
323-582-3322 | support@elationlighting.com
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
+31 45 546 85 63 | Fax +31 45 546 85 96 | support@elationlighting.eu
REPLACEMENT PARTS please visit parts.elationlighting.com
IMPORTANT NOTICE!
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY
REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURERS WARRANTY.
DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE
DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE
MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/
OR REPAIRS.
5
L I M I T E D WA R R A N T Y ( U S A O N LY)
A. Elation Professional hereby warrants, to the original purchaser, Elation Professional products to be
free of manufacturing defects in material and workmanship for a period of two years (730 days),
and Elation Professional product rechargeable batteries to be free of manufacturing defects in
material and workmanship for a period of six months (180 days), from the original date of purchase.
This warranty excludes discharge lamps and all product accessories. This warranty shall be valid
only if the product is purchased within the United States of America, including possessions and
territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable
evidence, at the time service is sought.
B. For warranty service, send the product only to the Elation Professional factory. All shipping charges
must be pre-paid. If the requested repairs or service (including parts replacement) are within the
terms of this warranty, Elation Professional will pay return shipping charges only to a designated
point within the United States. If any product is sent, it must be shipped in its original package
and packaging material. No accessories should be shipped with the product. If any accessories are
shipped with the product, Elation Professional shall have no liability what so ever for loss and/or
damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the
product is modi󰤱ed in any manner which Elation Professional concludes, after inspection, a󰤰ects
the reliability of the product; if the product has been repaired or serviced by anyone other than the
Elation Professional factory unless prior written authorization was issued to purchaser by Elation
Professional; if the product is damaged because not properly maintained as set forth in the product
instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning or
periodic check-up. During the periods as speci󰤱ed above, Elation Professional will replace defective
parts at its expense, and will absorb all expenses for warranty service and repair labor by reason
of defects in material or workmanship. The sole responsibility of Elation Professional under this
warranty shall be limited to the repair of the product, or replacement thereof, including parts, at
the sole discretion of Elation Professional. All products covered by this warranty were manufactured
after January 1, 1990, and bare identifying marks to that e󰤰ect.
E. Elation Professional reserves the right to make changes in design and/or performance improvements
upon its products without any obligation to include these changes in any products theretofore
manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied
with the products described above. Except to the extent prohibited by applicable law, all implied
warranties made by Elation Professional in connection with this product, including warranties of
merchantability or 󰤱tness, are limited in duration to the warranty periods set forth above. And no
warranties, whether expressed or implied, including warranties of merchantability or 󰤱tness, shall
apply to this product after said periods have expired. The consumer’s and/or dealer’s sole remedy
shall be such repair or replacement as is expressly provided above; and under no circumstances shall
Elation Professional be liable for any loss and/or damage, direct and/or consequential, arising out of
the use of, and/or the inability to use, this product.
G. This warranty is the only written warranty applicable to Elation Professional products and supersedes
all prior warranties and written descriptions of warranty terms and conditions heretofore published.
WARRANTY RETURNS
All returned service items whether under warranty or not, must be freight pre-paid and accompany
a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the
return package. A brief description of the problem as well as the R.A. number must also be written
down on a piece of paper and included in the shipping container. If the unit is under warranty, you must
provide a copy of your proof of purchase invoice. Items returned without a R.A. number clearly marked
on the outside of the package will be refused and returned at customer’s expense. You may obtain a R.A.
number by contacting customer support.
6
I P 6 5 R AT E D
The International Protection (IP) rating system is commonly expressed as (Ingress Protection) IP
followed by two numbers (i.e. IP65), where the numbers de󰤱ne the degree of protection. The 󰤱rst digit
(Foreign Bodies Protection) indicates the extent of protection against particles entering the 󰤱xture,
and the second digit (Water Protection) indicates the extent of protection against water entering the
󰤱xture. An IP65 rated lighting 󰤱xture is designed and tested to protect against the ingress of dust (6),
and low-pressure water jets from any direction (5).
Maritime/Coastal Environment Installations: A coastal environment is seaside adjacent, and caustic
to electronics through exposure to atomized salt-water and humidity, whereas maritime is anywhere
within 5-miles of a coastal environment.
Maritime installations require additional preparation, and additional service intervals may be needed
given the maritime use. In general, IP ratings presuppose freshwater conditions VS maritime conditions,
which are typically more “causticto IP 󰤱xtures (both internally and externally). A duty-cycle may also be
needed when units are not in use. During times of high humidity and colder temperatures, condensation
may occur internally so the 󰤱xture may require a duty-cycle to bring it up to running temperature,
allowing any accumulation of moisture to be expelled via the vent valve. Recommendations can change
based on installation environmental circumstances.
NOTE: NOT ALL FEATURES LISTED ARE AVAILABLE ON ALL FIXTURES; THE FOLLOWING INSTRUCTIONS
MAY NOT APPLY. CONTACT SUPPORT FOR ADDITIONAL DETAILS.
Exterior Maintenance: Inspect the exterior every 30-days. The unit must be powered o󰤰/disconnected.
The chassis should be inspected for any signs of contaminants. Inspect optics to determine if the lens
is obstructed, then clean optics and chassis accordingly. Based on initial 󰤱nding, schedule maintenance
accordingly, keeping in mind that exterior maintenance will be required. Even if the luminaires are NOT
in use, maintenance will still be needed given its location (exterior use). The use of a durable type of
wax on the chassis is recommended since it will help prevent contaminant build up. Inspect both power
and data lines for any signs of contaminants or corrosion. Periodically reapplying di-electric grease,
especially in coastal environments. If any signs of corrosion/contaminants are present, clean thoroughly,
and/or replace connectors, then reapply di-electric grease. Typically, this should be done annually, or
any time an opportunity presents itself. As a preventive measure, annual replacement of both vent
valves is recommended. The vent valve membrane can become contaminated and/or clogged causing
improper venting of humidity within the luminaire. Inspect all mounting hardware as a precaution.
Interior Maintenance: Inspect the interior every 30-days. The unit must be powered o󰤰/disconnected.
Inspect zoom/focus mechanism, clean optics, lubricate linear bearings (Krytox oil) as needed, inspect
belts for wear
Inspect all rotating e󰤰ect wheels, manually rotate them, note any resistance
Inspect all remaining rotating belts for any wear
Inspect all fans, clean as needed, check rotation, check connections
Inspect CMY module, manually move 󰤲ags and check for signs of resistance, and if needed, clean
guide rods 󰤱rst, then reapply a thin layer of grease (moly lube)
Clean interior with low-volume compressed air, then clean optics prior to reassembly of head covers
Although the base has limited moving parts, the pan belt should also be inspected for wear. Remember
to always perform an IP test anytime a cover is removed.
There is no speci󰤱c time frame regarding the routine replacement of parts such as belts/stepper motors,
PCBs, or LEDs. These items should only be replaced on an as needed bases, except for cooling fans, which
should be replaced once the luminaries reach 10,000-hours. This is a prophylactic measure intended
to keep the unit running as cool as possible, insuring proper function of all internal components. A
complete service breakdown is available, please contact service@elationlighting.com for any needed
parts or manuals.
7
SA F E T Y G U I D E L I N E S
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth
operation, it is important to follow all instructions and guidelines in this manual. Elation
Professional is not responsible for injury and/or damages resulting from the misuse
of this fixture due to the disregard of the information printed in this manual. Only
qualified and/or certified personnel should perform installation of this fixture and only
the original rigging parts included with this fixture should be used for installation. Any
modifications to the fixture and/or the included mounting hardware will void the original
manufacturer’s warranty and increase the risk of damage and/or personal injury.
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO
NOT ATTEMPT ANY REPAIRS YOURSELF. DOING SO WILL VOID YOUR
MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS
TO THIS DEVICE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND
GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND
ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.
DO NOT PLUG THIS UNIT INTO A DIMMER PACK
DO NOT REMOVE THE COVER PANELS FOR ANY REASON
NEVER OPERATE THIS UNIT WITH THE CASING REMOVED
UNPLUG FROM POWER DURING LONG PERIODS OF NON-USE
DISCONNECT POWER BEFORE PERFORMING MAINTENANCE
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
FIXTURE SHOULD BE PLACED A MINIMUM OF 1.0 FOOT (0.3 METERS) FROM
ANY NEARBY OBJECTS OR SURFACES.
FIXTURE SHOULD BE PLACED A MINIMUM OF 1.6 FEET (0.5 METERS) FROM
ANY FLAMMABLE MATERIALS.
MAXIMUM AMBIENT OPERATING TEMPERATURE IS 113°F (45°C)
8
S A F E T Y G U I D E L I N E S
For Your Own Personal Safety, Please Read and Understand This Manual Completely
Before You Attempt To Install Or Operate This Unit!
Do not touch the 󰤱xture housing during operation, as it may be hot.
Do not shake the 󰤱xture, and avoid using brute force when installing and/or operating.
Use only the original packaging and materials to transport or ship the 󰤱xture for service.
Make sure to retain the original packaging for this purpose.
Be sure that the local power outlet matches the required voltage for the device.
Do not open up the device for any reason. There are no user serviceable parts inside.
Disconnect the device’s main power when left unused for long periods of time.
Never connect this device to a dimmer pack.
Do not attempt to operate this device if it has been damaged in any way.
Never operate this device with the cover removed.
Do not attempt to operate this device if the power cord has been frayed or broken.
Never force a power cord connector into the 󰤱xture. If the power cord or any of its connec-
tors are damaged, replace immediately with a new cord of the same power rating.
Do not attempt to remove or break o󰤰 the ground prong from the electrical cord. This prong
is used to reduce the risk of electrical shock and 󰤱re in case of an internal short.
Only handle the power cord by the plug end. Never disconnect the plug by tugging on the
wire portion of the power cord.
Disconnect from main power before making any type of connection.
Never block the air ventilation slots. Always be sure to mount this device in an area that will
allow proper ventilation. Allow about 6” (15cm) between this device and a wall.
Always mount this unit in a safe and stable matter.
Please route your power cord out of the way of foot tra󰤳c. Power cords should be routed
so they are not likely to be walked on or pinched by items placed upon or against them.
Before performing any servicing, turn off and disconnect the device from power and allow
at least 15 minutes for the device to cool.
Consistent operational breaks will ensure that this fixture will function properly for many
years.
The device should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen on, or liquid has been spilled into, the device.
C. The device has been immersed in liquid.
D. The appliance does not appear to operate normally or exhibits a marked change in perfor-
mance.
Keep all 󰤲ammable materials away from this 󰤱xture!
9
M A I N T E N A N C E G U I D E L I N E S
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to ensure proper function, optimized light output, and an
extended life. The frequency of cleaning depends on the environment in which the fixture
operates: damp, smoky or particularly dirty environments can cause greater accumulation
of dirt on the fixture’s optics. Clean periodically with a soft cloth to avoid dirt/debris
accumulation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to insure proper function and extended life. There
are no user serviceable parts inside this fixture. Please refer all other service issues to an
authorized Elation service technician. Should you need any spare parts, please order genuine
parts from an authorized Elation dealer.
Please refer to the following points during routine inspections:
A detailed electrical check by an approved electrical engineer every three months, to
make sure the circuit contacts are in good condition and prevent overheating.
Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall
out during normal operation, resulting in damage or injury as larger parts could fall.
Check for any deformations on the housing, color lenses, rigging hardware and rigging
points (ceiling, suspension, trussing). Deformations in the housing could allow for dust
to enter into the fixture. Damaged rigging points or unsecured rigging could cause the
fixture to fall and seriously injure a person(s).
Electric power supply cables must not show any damage, material fatigue or sediments.
10

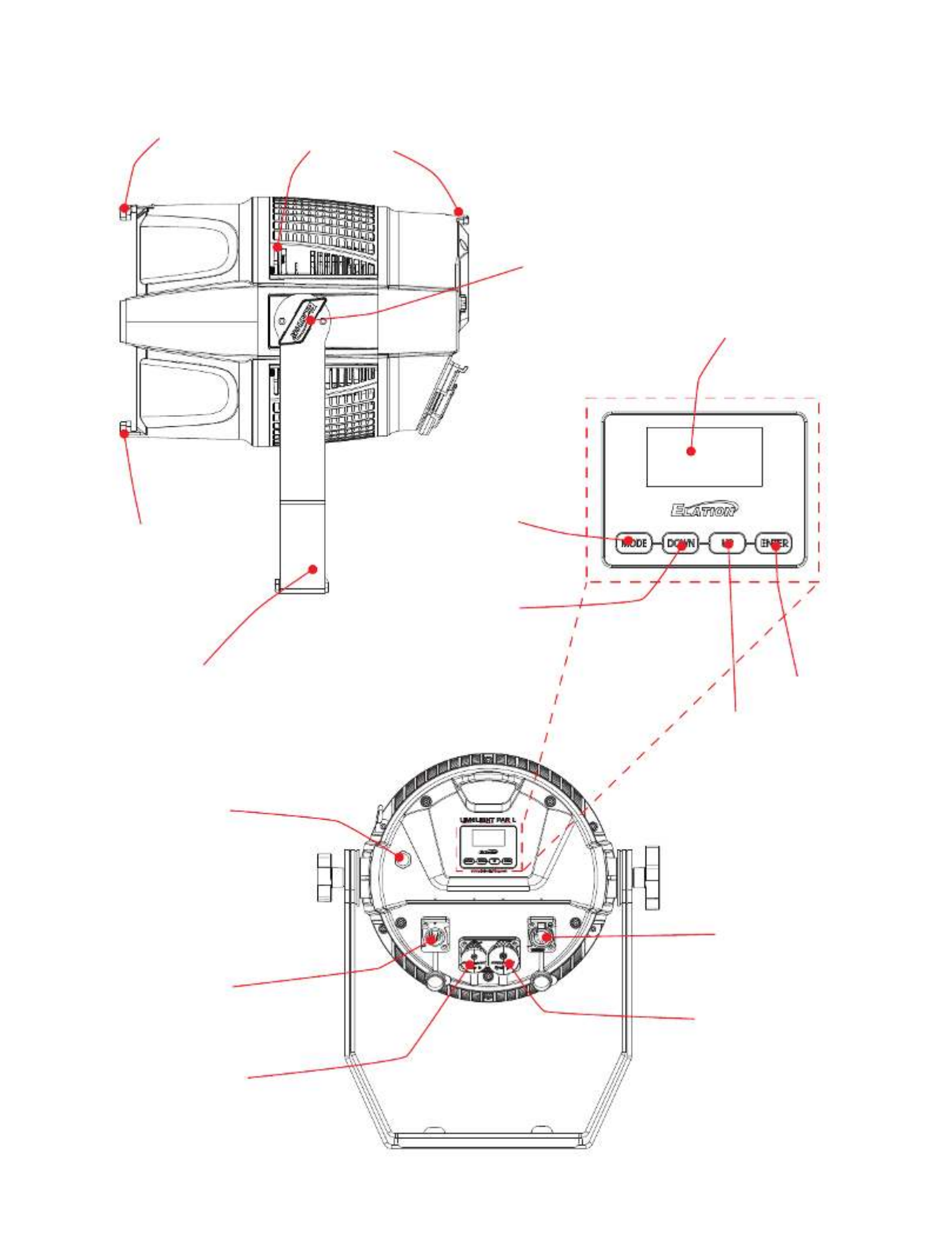

O V E R V I E W
DMX IN DMX OUT
POWER OUT
MAX:10 0-240V 8A
POWER IN
AC100 -240V 50/60 Hz
FUSE: T7A/250V
Gel Frame
Holder
Gel Frame
Latch
Safety
Cable Loop
Bracket
Adjustment
Knob
Mounting
Bracket
Display
Screen
Mode
Button
Down
Button
Enter
Button
Up
Button
DMX
Out
Power
Out
Power
In
DMX
In
Air
Valve
11
I N S TA L L AT I O N G U I D E L I N E S
FLAMMABLE MATERIAL WARNING
Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or
pyrotechnics.
ELECTRICAL CONNECTIONS
A qualified electrician should be used for all electrical connections and/or
installations.
MINIMUM DISTANCE TO OBJECTS/SURFACES IS 1 FOOT (0.3 METERS)
MINIMUM DISTANCE OF FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6
FEET (0.5 METER)
MAXIMUM AMBIENT TEMPERATURE 113° F (45°C)
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical and
construction codes and regulations.
Before rigging/mounting a single fixture or multiple fixtures to any metal truss/structure or
placing the fixture(s) on any surface, a professional equipment installer be consulted MUST
to determine if the metal truss/structure or surface is properly certified to safely hold the
combined weight of the fixture(s), clamps, cables, and accessories.
Fixture(s) should be installed away from walking paths, seating areas, or areas where
unauthorized personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing, or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment,
such as an appropriately rated safety cable.
Allow approximately 15 minutes for the fixture to cool down before servicing.
12
MOUNTING
BRACKET
OMEGA
BRACKET
SAFETY
CABLE
ATTACHMENT
LOOPS
MOUNTING
CLAMP
I N S TA L L AT I O N G U I D E L I N E S

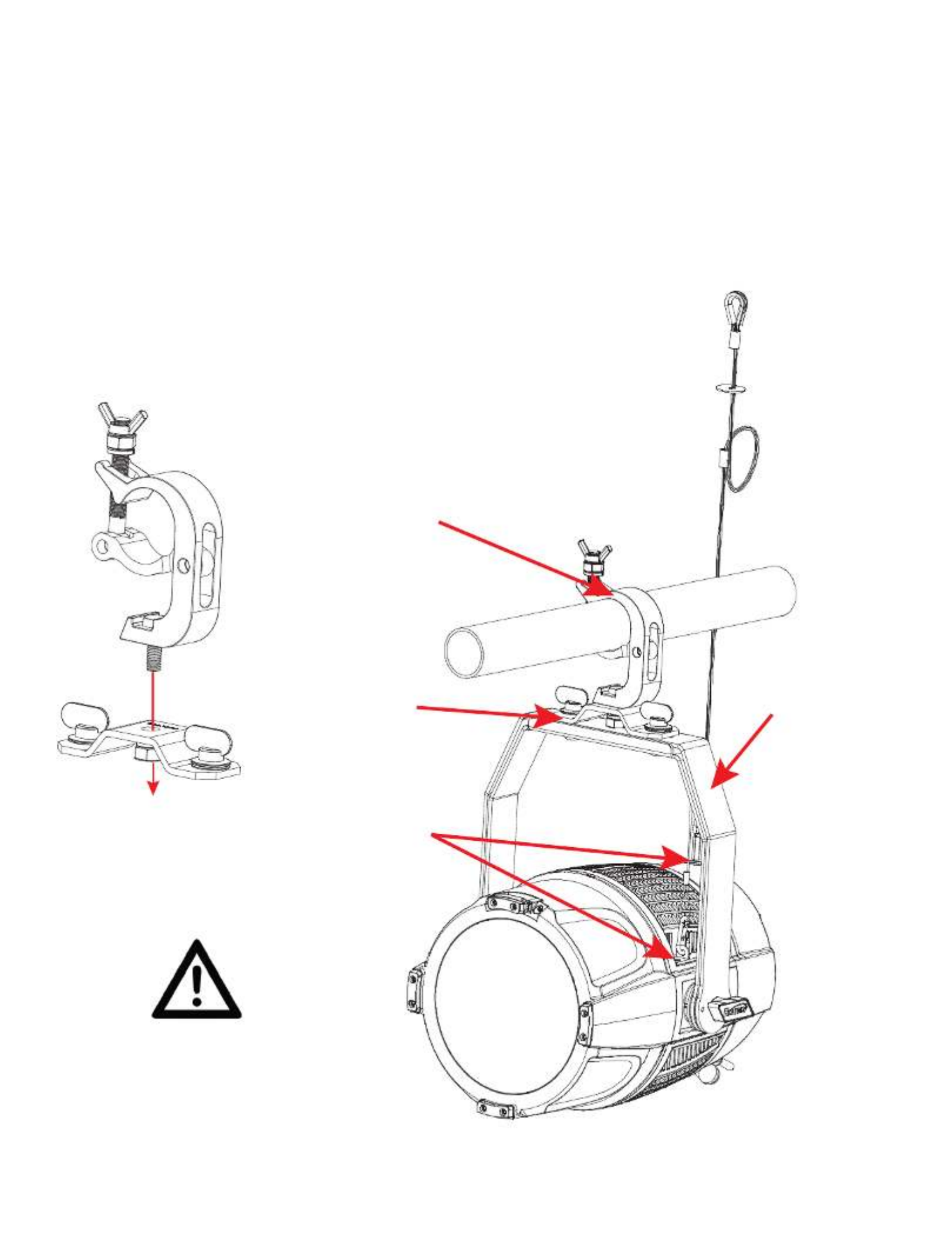

OMEGA BRACKET WITH CLAMP INSTALLATION
When mounting the fixture to a truss, secure an appropriately rated professional grade
rigging clamp to the Omega Bracket by inserting and appripriately sized bolt through
both clamp and Omega bracket, then fasten them together using a matching bolt. Attach
the Omega bracket to the fixture using the attachment points located on the top of the
mounting bracket. Attach a safety cable of the appropriate weight rating to one of the
provided attachment point: either on the rear panel of the fixture above the display screen,
or at the base of the mounting bracket.
ALWAYS ATTACH A SAFETY
CABLE WHENEVER INSTALLING
THIS FIXTURE IN A SUSPENDED
ENVIRONMENT TO ENSURE
THAT THE FIXTURE WILL NOT
FALL IF THE CLAMP FAILS.
13
I N S TA L L AT I O N G U I D E L I N E S

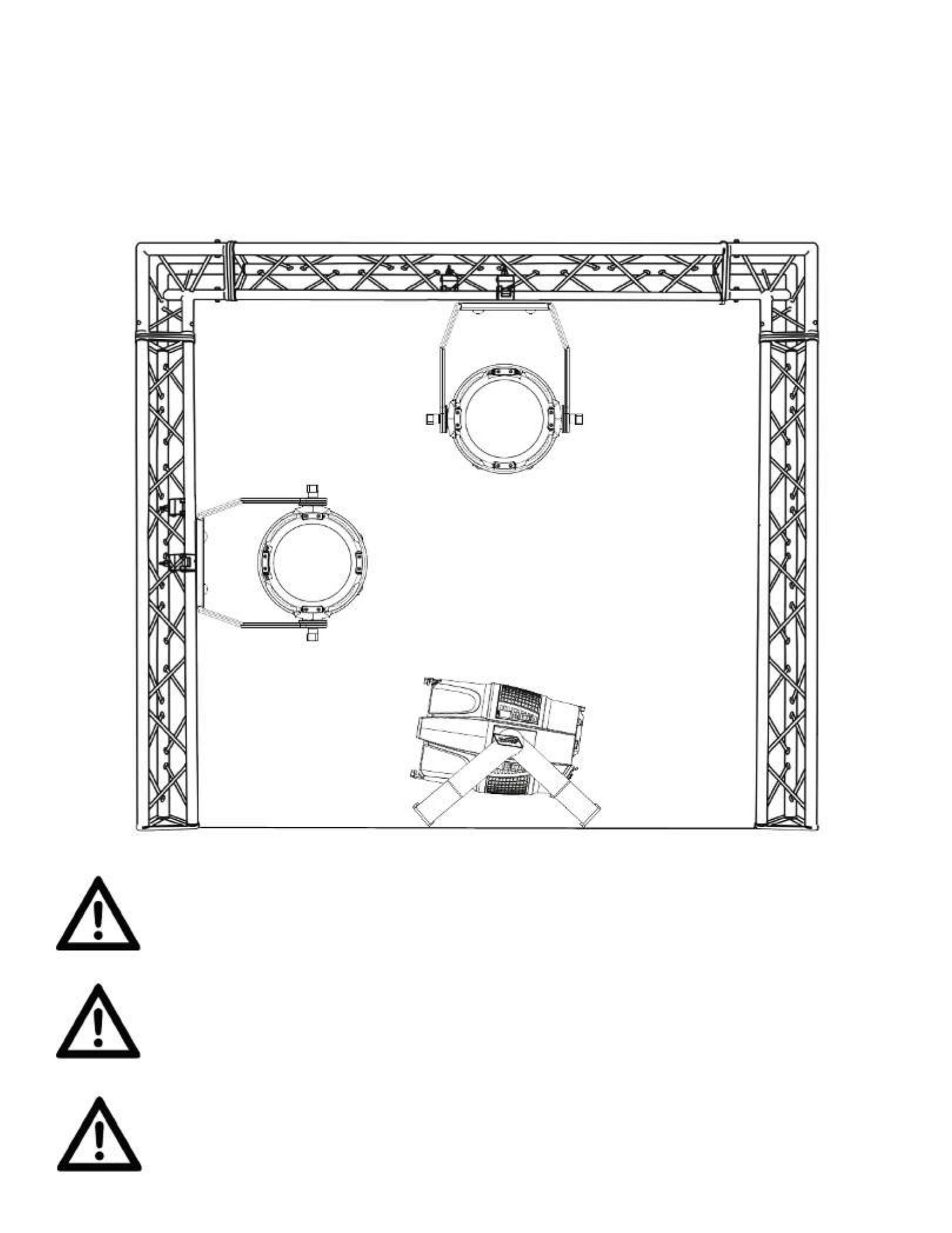

FIXTURE INSTALLATION
This 󰤱xture is fully operational in three di󰤰erent mounting positions: hanging upside-down,
mounted sideways on trussing, or set on a 󰤲at level surface. Be sure this 󰤱xture is kept well
away from any 󰤲ammable materials (decoration etc.). Always use and install a safety cable of
the proper rating as a safety measure to prevent accidental damage and/or injury in the event
the clamp fails.
FALLING FIXTURES CAN CAUSE SEVERE INJURY OR SERIOUS EQUIPMENT
DAMAGE! FOR THIS REASON, FIXTURES SHOULD BE INSTALLED AND INSPECTED
ONLY BY QUALIFIED PERSONNEL. DO NOT INSTALL THE UNIT IF YOU LACK THE
QUALIFICATIONS TO DO SO, OR IF YOU HAVE DOUBTS ABOUT THE SAFETY AND
SECURITY OF THE INSTALLATION SETUP OR LOCATION!
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A
SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT FALL IF THE
CLAMP FAILS.
IF FIXTURE IS INSTALLED WITH ACCESSORIES FITTED, THE FIXTURE SHOULD
ALWAYS BE INSTALLED WITH THE GEL FRAME LATCH ORIENTED UPWARDS, IN
ORDER TO ENSURE THAT THE ACCESSORIES WILL NOT FALL IN THE EVENT THAT
THE LATCH FAILS
14
I N S TA L L AT I O N G U I D E L I N E S

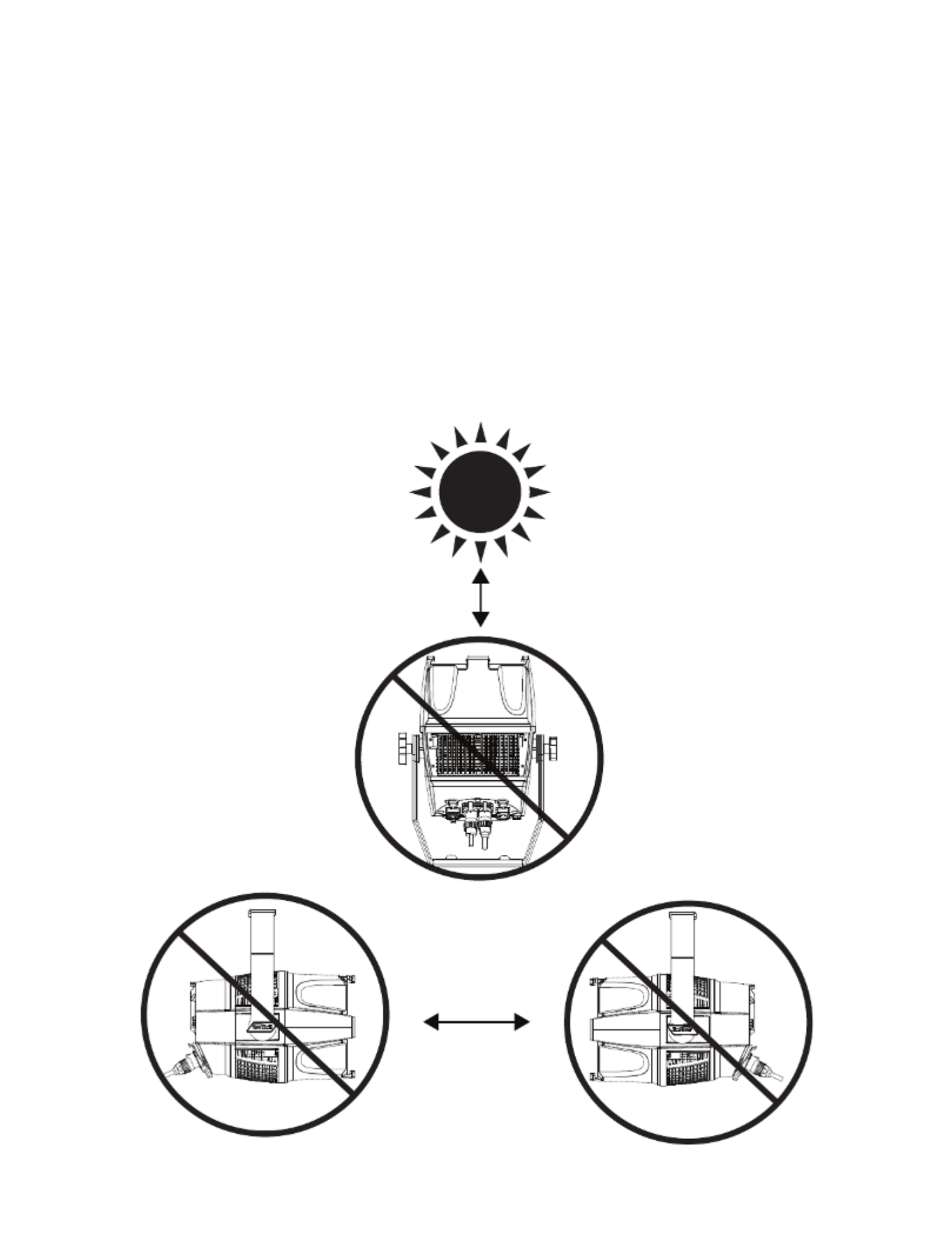

POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS
External sources of light beams from direct sunlight, lighting moving head 󰤱xtures, and lasers,
which are focused directly towards the exterior housing and/or penetrate the front lens
opening of ELATION lighting 󰤱xtures, can cause severe internal damage including burning to
optics, dichroic color 󰤱lters, glass and metal gobos, prisms, animation wheels, frost 󰤱lters, iris,
shutters, motors, belts, wiring, discharge lamps, and LEDs.
This issue is not speci󰤱c only to ELATION lighting 󰤱xtures, it is a common issue with lighting
󰤱xtures from all manufacturers. Although there is no true way to fully prevent this issue from
happening, the guidelines below can prevent any potential damage from occurring if followed.
Contact ELATION Service for more details.
DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM
DIRECT SUNLIGHT, OTHER LIGHTING MOVING HEAD FIXTURES, AND LASERS WHILE
UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS
A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.
16
R E M OT E D E V I C E M A N AG E M E N T ( R D M )
NOTE: In order for RDM to work properly, RDM enabled equipment must be used through-
out the entire system, including DMX data splitters and wireless systems.
Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data stan-
dard for lighting, and allows the DMX systems of the 󰤱xtures to be modi󰤱ed and monitored
remotely. This protocol is ideal for instances in which a unit is installed in a location that is
not easily accessible.
With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled
controller to send out a signal to devices on the wire, as well as allowing the 󰤱xture to re-
spond (known as a GET command). The controller can then use its SET command to modify
settings that would typically have to be changed or viewed directly via the unit’s display
screen, including the DMX Address, DMX Channel Mode, and Temperature Sensors.
FIXTURE RDM INFORMATION:
Please be aware that not all RDM devices support all RDM features, and therefore it is im-
portant to check beforehand to ensure that the equipment that you are considering includes
all of the features that you require.
The following parameters are accessible in RDM on this device:
Device ID Device Model ID RDM Code Personality ID
0x0053 XXXX 0x0053 0x22A6
001: RGB 4Ch
002: CMY 12Ch
003: CMY Extended 15Ch
004: Standard 13Ch
005: Extended 17Ch
006: Standard Zones 17Ch
007: Extended Zones 25Ch
Preset Playback
Default Slot Value
Boot Software Version Label
Boot Software Version ID
Product Detail ID List
Status Messages
Proxied Device Count
Sensor De󰤱nition
Sensor Value
Device Model Description
Manufacturer Label
Device Label
DMX Personality
DMX Personality Description
Device Hours
Comms Status
Status ID Description
Clear Status ID
Lamp Hours
Lamp Strikes
Lamp State
Lamp On Mode
Device Power Cycles
Display Invert
Display Level
Real Time Clock
Power State
Queued Message
18
S Y S T E M M E N U
ELATION LIMELIGHT PAR L
DMX
DMX Address - 512 Set DMX address001
DMX Mode
4Ch RGB
Select DMX channel
mode
12Ch CMY
15Ch CMY Extended
13Ch Standard
17Ch Extended
17Ch Standard Zones
25Ch Extended Zones
No DMX Status
Hold Last
Fixture holds last
settings received if
DMX signal is lost or
interrupted
Fade to Black
Fixture takes all
channels to 0 if
DMX signal is lost or
interrupted
Standalone
Fixture defaults to
standalone mode if
DMX signal is lost or
interrupted
Protocol Select Signal
DMX
Select signal protocol
Aria In - DMX
Out
DMX In - Aria
Out
Aria Aria Channel - 14 Select Aria channel0
CONTROL
Manual Control
Dimmer 000% - 100%
Manually con󰤱gure each
parameter
Red 0 - 255
Green 0 - 255
Blue 0 - 255
Lime 0 - 255
CCT 2400K - 8500K
Default = 6000K
Green Shift -100% ~ +100%
Default = 0
Virtual Color see Color Macros
Table section
Zoom 000% - 100%
Default = 50%
Primary On / Set unit as primaryO󰤰
Secondary On / Set unit as secondaryO󰤰
Zoom Speed Fast / Smooth Set zoom speed

Produkspesifikasjoner

Merke: Elation
Kategori: Lampe
Modell: Limelight Par L

Trenger du hjelp?

Hvis du trenger hjelp med Elation Limelight Par L still et spørsmål nedenfor, og andre brukere vil svare deg




Lampe Elation Manualer

Lampe Manualer

Nyeste Lampe Manualer
