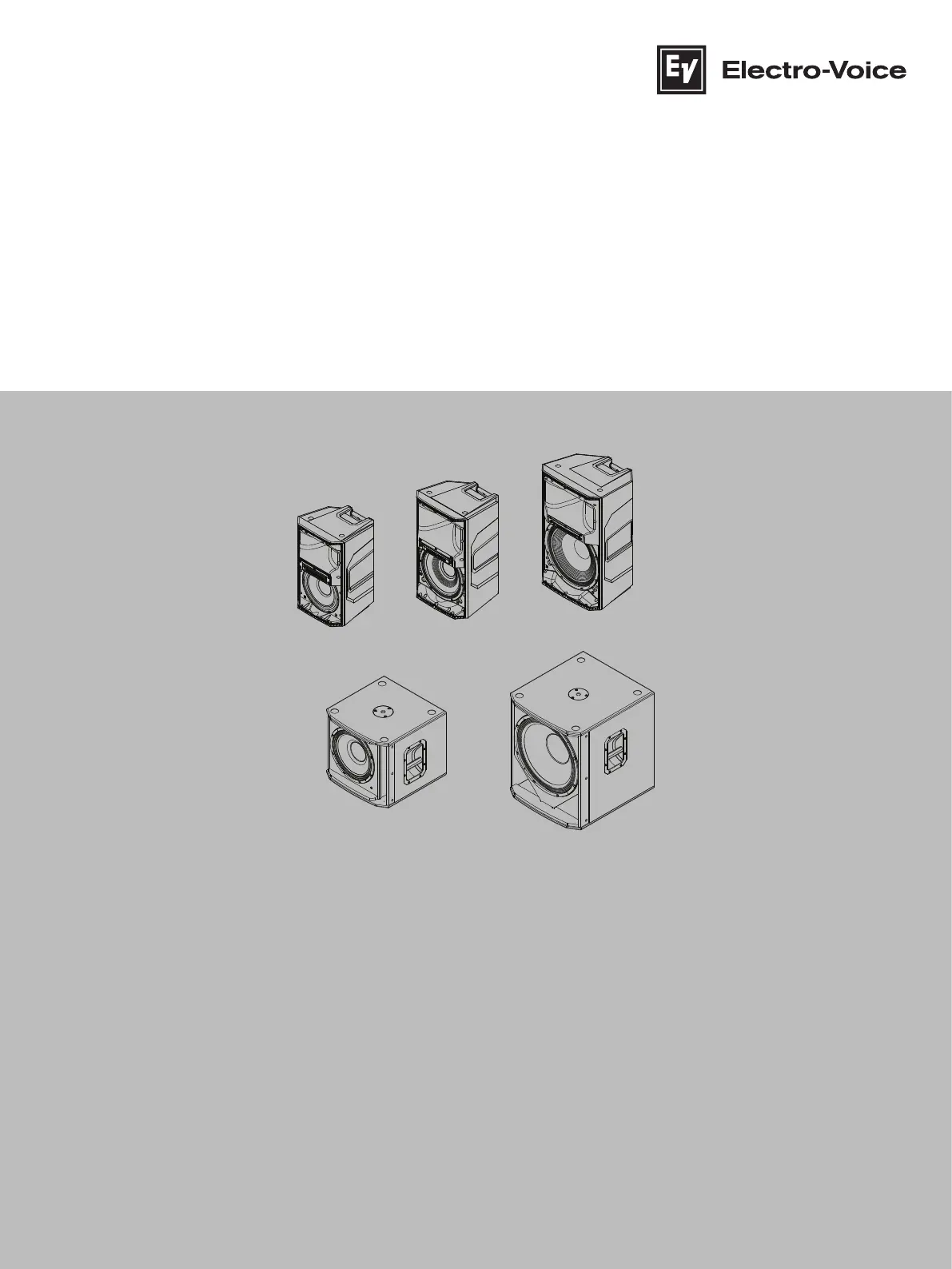

ELX200 Powered Loudspeakers

Installation manual

ELX200 Powered Loudspeakers Table of contents | en 3

Electro-Voice

Installation manual

2022-09 | 06 | F.01U.326.891

Table of contents

Safety 4

1.1 Important safety instructions 4

1.2 Suspension 5

1.3 FCC information 6

1.4 Precautions 6

1.5 Notices 7

Description 8

2.1 Short information 8

2.2 System features 9

2.3 Quick setup 11

Tripod and floor monitor operation 13

3.1 Tripod or pole mount 13

3.2 Floor monitor 15

Suspension 16

Amplifier DSP 19

5.1 Amplifier DSP controls 19

5.2 System status 21

5.3 DSP controls 22

5.3.1 Full-Range loudspeaker DSP control menu 22

5.3.2 Subwoofer DSP control menu 27

Pairing the QuickSmart Mobile application 32

Recommended configurations 33

7.1 Daisy-chaining full-range systems 33

7.2 MP3 player MONO configuration 34

7.3 MP3 player STEREO configuration 35

7.4 Using full-range systems as monitors 36

7.5 Stacking full-range systems with subwoofers 37

Troubleshooting 38

Technical data 40

9.1 Dimensions 41

9.2 Frequency response 42

Produkspesifikasjoner

Merke:	Electro-Voice
Kategori:	Subwoofer
Modell:	ELX200-18SP
Håndtak:	Ja
Strømkildetype:	AC
Pakkevekt:	33100 g
Materiale:	Kryssfiner
Antall subwoofere:	1
AC-inngangsspenning:	100 - 250 V
AC-inngangsfrekvens:	50 - 60 Hz
Produktfarge:	Sort
Av/på-bryter:	Ja
Subwoofer-vekt:	29000 g
Subwoofer RMS-styrke:	1200 W
Subwoofer-driverdiameter (imperisk):	18 "
XLR i:	Ja
Subwoofer-type:	Aktiv subwoofer
Frekvensomgang subwoofer:	40 - 145 Hz
Bredde subwoofer:	507 mm
Dybde subwoofer:	574 mm
Høyde subwoofer:	600 mm
Subwoofer-sensitivitet:	132 dB
