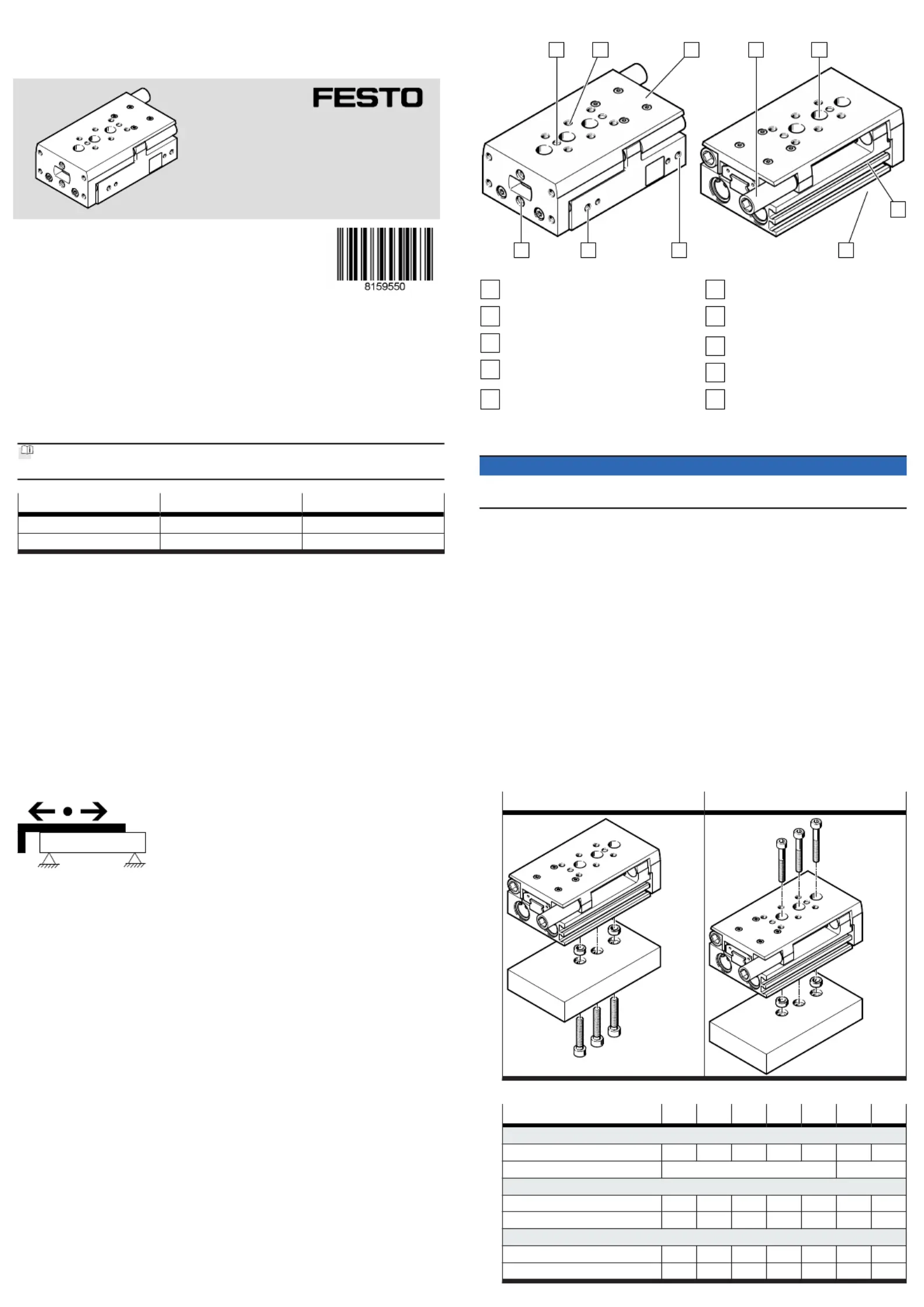

Side 1/3
DGST
Mini slide
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Operating instructions
8159550
2021-09d
[8159552]
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1
Applicable documents
All available documents for the product
è
www.festo.com/sp.
Documents Product Table of contents
Operating instructions Shock absorber DYSS-G8 –
Operating instructions Shock absorber DYEF-G8 –
Tab. 1
2 Safety
2.1
Safety instructions
–Only use the product in its original condition without unauthorised modifica-
tions.
–
Take into account the ambient conditions at the location of use.
–Observe the identifications on the product.
–
Store the product in a cool, dry environment protected from UV and corrosion.
Keep storage times short.
–Before working on the product, switch off the compressed air supply and lock it
to prevent it from being switched on again.
2.2
Intended use
The product is intended for the space-saving transport of masses. The product is
approved for slide operating mode.
Fig.1
2.3 Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers. The qualified personnel have skills and
experience in dealing with pneumatic (open-loop) control technology.
3 Additional information
–
Contact the regional Festo contact if you have technical problems
è
www.festo.com.
–
Accessories and spare parts
è
www.festo.com/catalogue.
4 Function
The product is a non-rotating twin-piston drive with bearing guide.
The slide is moved back and forth by alternate pressurisation of the supply ports.
The slide is braked at the end position by shock absorbers.
5 Product design
1 2 3 4 5
6
78910
Fig.2
1
Centring
2
Thread for mounting the payload
3
Slide
4
Shock absorber with threaded
sleeve
5
Drilled holes for mounting the
mini slide from above
6
Slot for proximity switch
7
Thread for mounting the mini
slide (concealed underneath)
8
Supply port (advance)
9
Supply port (retract)
10
Thread with centring hole for
mounting the payload
6
Transport
NOTICE
Unexpected and unbraked movement of components
• Secure moving components for transport.
1.
Take product weight into account
è
11 Technical data.
2.
Maintain the support clearance of 300 mm when attaching transportation£
equipment.
7
Assembly
7.1 Preparation
–
Position the product to ensure that the operating elements are accessible,
e.g. the clamping components for the shock absorbers.
–Mount the product without torsional stresses.
–
Mount the product on a mounting surface with a flatness of 0.05% of the stroke
length, but max. 0.1 mm.
–If necessary: select the mounting components or the accessories. The centring
sleeves are not included in the scope of delivery.
To prevent collisions: mount the mounting components outside the positioning
range.
7.2 Mounting mini slide
1.
Mount drive ensuring that the minimum number of screws is used.

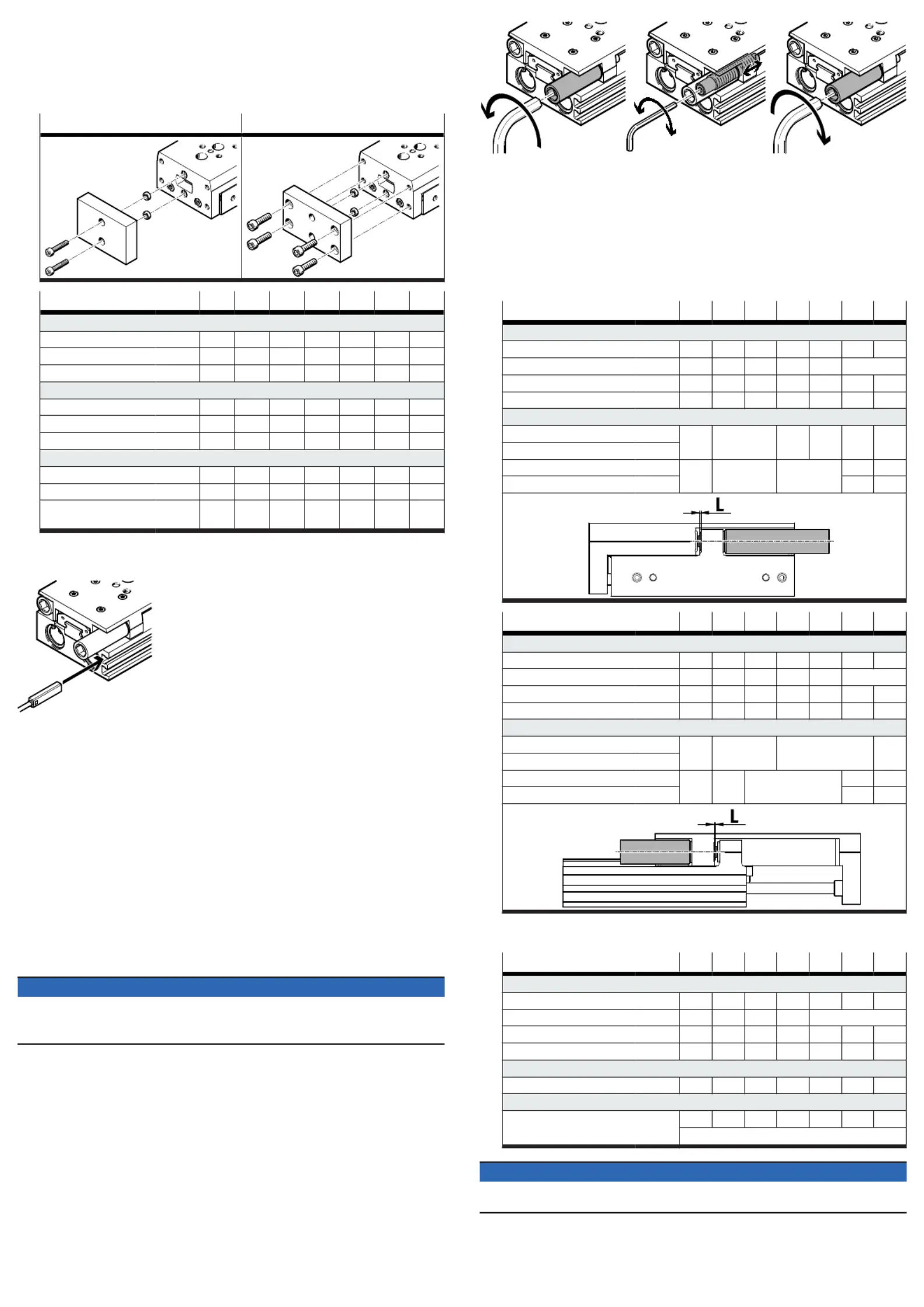

Direct fastening Through-hole mounting
2. Tighten screws evenly.
DGST -6 -8 -10 -12 -16 -20 -25
Minimum number of screws dependent on the stroke
10 150 [mm] 2 2 2 2 2 2 2…
200 [mm] – 3
Direct fastening
Screw M4 M4 M5 M5 M6 M8 M8
Centring [H7] [mm] 5 5 7 7 9 12 12
Through-hole mounting
Screw M3 M3 M4 M4 M5 M6 M6
Centring [H7] [mm] 5 5 7 7 9 12 12
