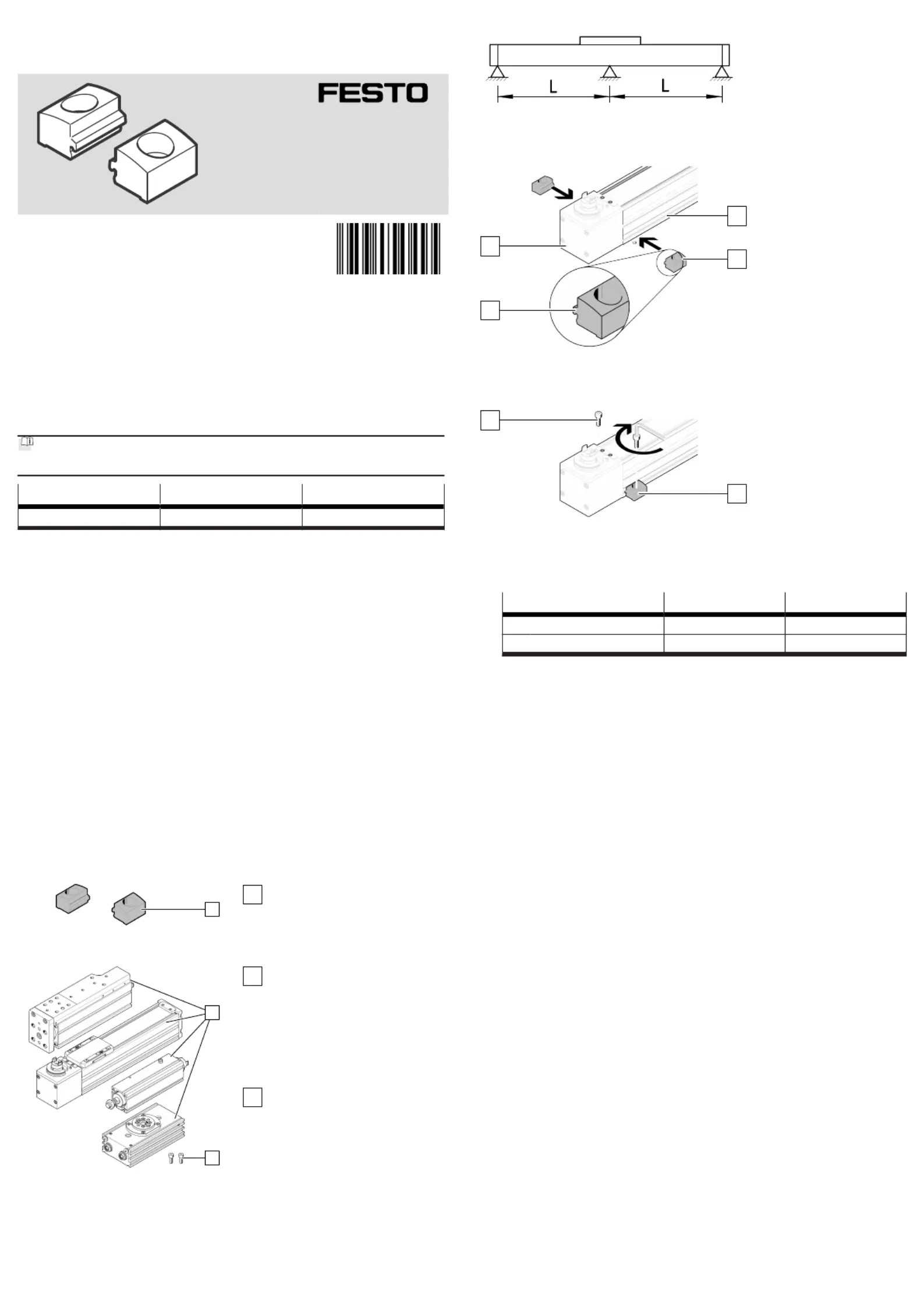

EAHF-L2-...-P-S
Profile mounting
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
Assembly instructions
8179869
2023-10c
[8179871]
8179869
Translation of the original instructions
© 2023 all rights reserved to Festo SE & Co. KG
1
Applicable documents
All available documents for the product
è
www.festo.com/sp.
Document Product Content
User documentation Actuator Assembly2
Tab. 1:
Applicable documents
2 Safety
2.1 Safety instructions
–Only mount the product on components that are in a condition to be safely
operated.
2.2
Intended use
The profile mounting fastens an actuator to a mounting surface via the basic2
profile.
2.3 Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can eval-
uate the work and detect dangers. Personnel must have the relevant mechanical
training.
3
Additional information
–Contact the regional Festo contact if you have technical problems
è
www.festo.com.
–Accessories
è
www.festo.com/catalogue.
4 Product Range Overview
4.1 Scope of delivery
1
Fig.1
1
Profile mounting (2x)
4.2 Not in scope of delivery
3
2
Fig.2
2
Actuator (1x):
Axis ELGC, ELFC;
Axis unit ELGS;
Mini slide EGSC;
Mini slide unit EGSS;
Quarter turn actuator DRRS;
Cylinder EPCC;
Cylinder unit EPCE, EPCS
3
Screw (2x)
5
Assembly
Fig. 3: Determine support spacings L and mounting points
• Determine the required support spacingsL and mounting points of the
actuator Other applicable documents.è
1
A
2
B
Fig. 4: Positioning profile mountings
• Position profile mountings at the support points of the actuator .1 2
Ä
The lug(A) is in slot(B).
1
3
Fig. 5: Mounting actuator
1.
Select the screws suitable for the installation situation.3
2.
Fasten the profile mountings on the mounting surface with screws .1 3
Observe maximum tightening torque.
EAHF-L2-...-P-S -25 -45
3Screw M4 M5
Max. tightening torque [Nm] 2.4 4.8
3.
Repeat the mounting steps for all mounting points.
