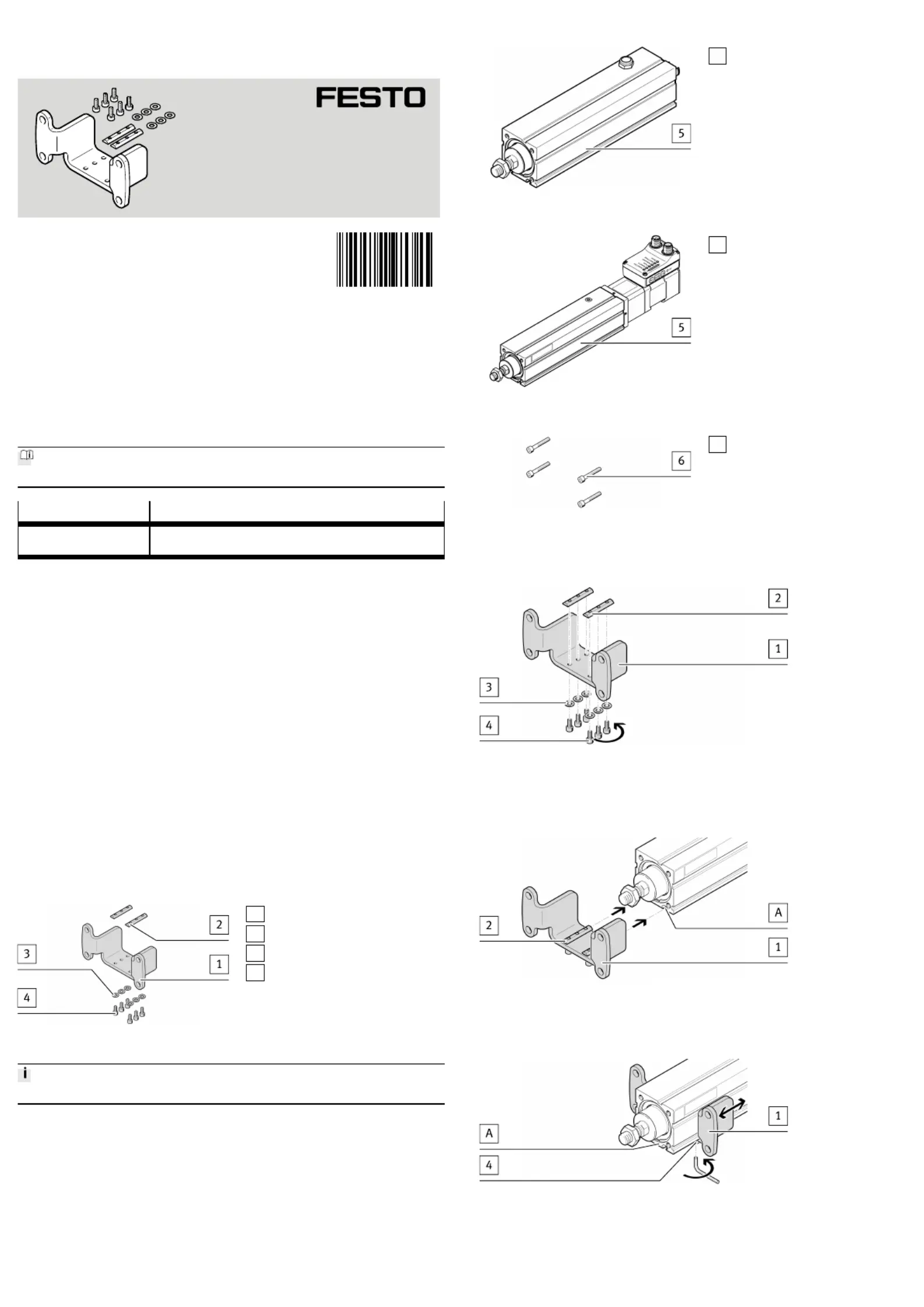

Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1 Applicable documents
All available documents for the product www.festo.com/sp.è
Document Product
User documents Electric cylinder EPCC
Electric cylinder unit EPCS
Tab. 1
2 Safety
2.1 Safety instructions
– Only mount the product on components that are in a condition to be safely
operated.
– Observe tightening torques. Unless otherwise specified, the tolerance is
±20%.
2.2 Intended use
Mounting of the electric cylinder EPCC or the electric cylinder unit EPCS in a flex
ible position.
2.3 Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can eval
uate the work and detect dangers. Personnel must have the relevant mechanical
training.
3 Additional Information
– Accessories www.festo.com/catalogue.è
4 Product Range Overview
4.1 Scope of delivery
1
Flange mounting (1x)
2
Slot nut (2x)
3
Shim (6x)
4
Screw (6x)
Fig. 1
Shims are only required with EAH...P245/60.3
4.2 Not in scope of delivery
5
Electric cylinder EPCC (1x)
Fig. 2
5
Electric cylinder unit EPCS (1x)
Fig. 3
6
Screw (4x)
Fig. 4
5 Assembly
Fig. 5 Fixing slot nuts
1. Position slot nuts on the flange mounting .2 1
2. Fasten slot nuts with the screws .2 4
The shims must be used with EAH...P245/60.3
Fig. 6 Fastening flange mounting

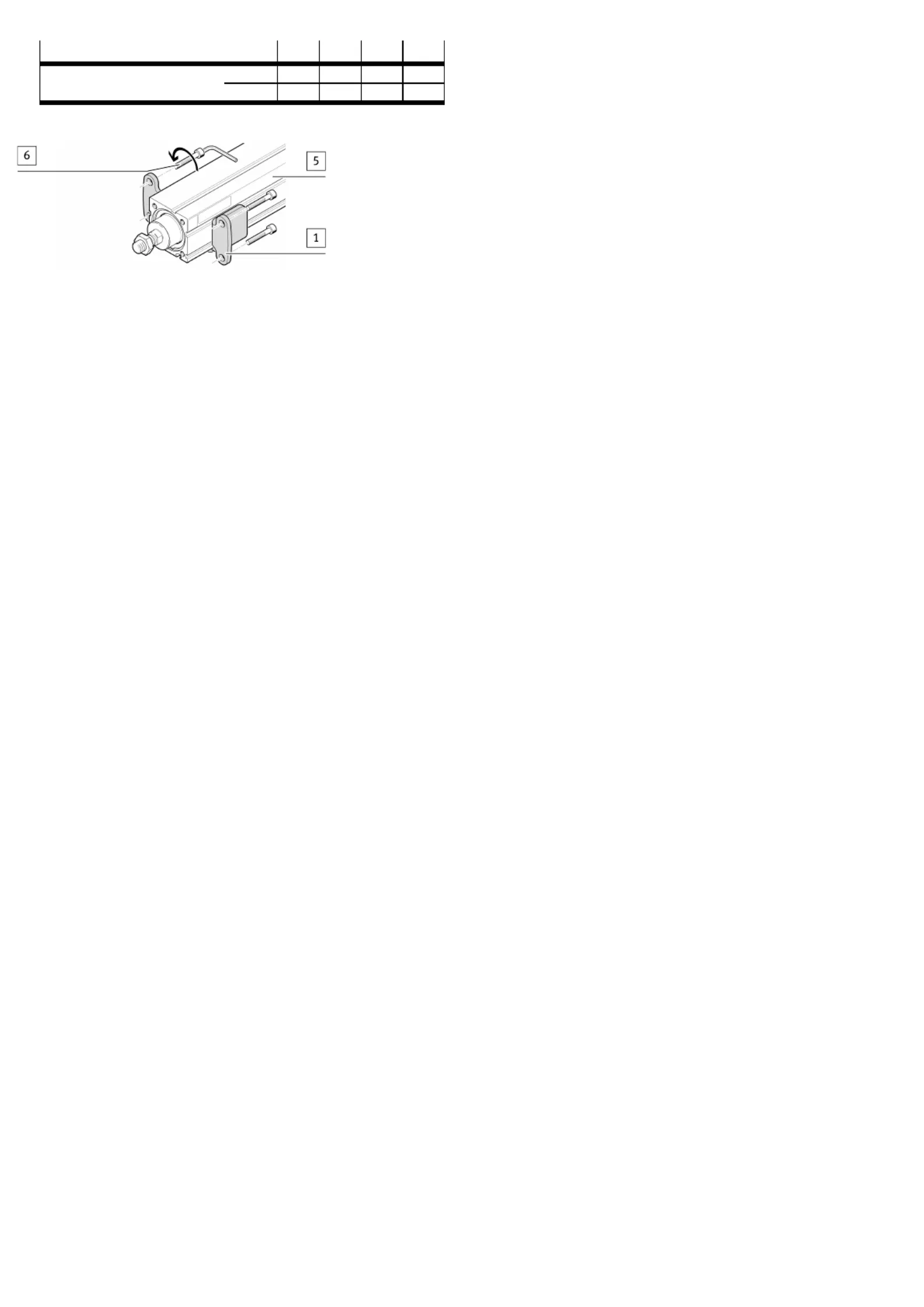

• Push flange mounting into the slots of the basic profile[A] with the slot1
nuts .2
Fig. 7 Mounting flange mounting
1. Position flange mounting on basic profile[A] as required.1
8135711
EAHH-P2
Flange mounting
8135711
202101a
[8135713]
Assembly instructions
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 3470
www.festo.com
