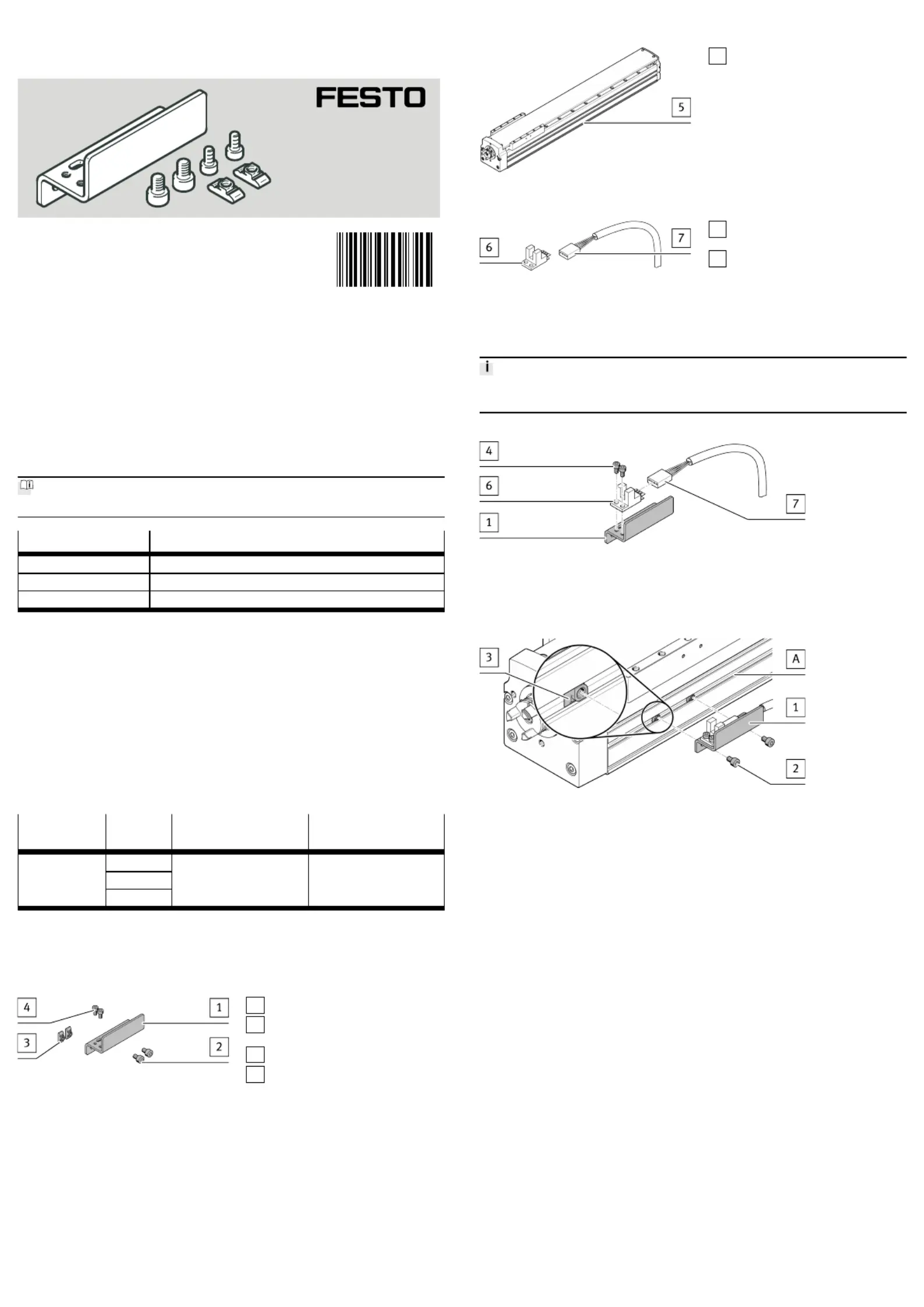

Translation of the original instructions
© 2020 all rights reserved to Festo SE & Co. KG
OMRON
®
is a registered trademark of its respective trademark holder in certain
countries.
1 Applicable documents
All available documents for the product www.festo.com/sp.è
Document Product
User documents Actuator
User documents Proximity switches
User documents Switch lug
Tab. 1
2 Safety
2.1 Safety instructions
– Only mount the product on components that are in a condition to be safely
operated.
– Observe tightening torques.
2.2 Intended use
2.2.1 Use
Mounting of an optical microsensor from OMRON for sensing the slide position
on the basic profile of an actuator.
2.2.2 Permissible components
Sensor brack
et
Actuator Proximity switches Switch lug
ELGT-BS-90
ELGT-BS-120
EAPM-L9-SHE
ELGT-BS-160
Optical microsensor
OMRON,Series EE-SX674
EAPM-L9 -...- SLE
Tab. 2
3 Product Range Overview
3.1 Scope of delivery
1
Sensor bracket (1x)
2
Screw (2x)
M4x6
3
Slot nut (2x)
4
Screw (2x)
M3x6
Fig. 1
3.2 Not in scope of delivery
5
Actuator (1x)
ELGT-BS
Fig. 2
6
Sensor (1x)
Series EE-SX674 (OMRON
7
Connector (1x)
EE-1001/1001-1, EE-1006,
EE-1009 (OMRON
Fig. 3
4 Assembly
The switch lug, sensor bracket and proximity switch can be mounted on the left or
right of the actuator .5
Fig. 4 Mount the proximity switch on the sensor bracket
1. Fasten sensor with the screws to the sensor bracket .6 4 1
Tightening torque: 1.5Nm±10%
2. Connect the connector to the sensor .7 6
Fig. 5 Mount the sensor bracket on the actuator
1. Place slot nuts in the slot[A].3
2. Attach sensor bracket with the screws to the slot nuts .1 2 3
3. Position sensor bracket at the desired switching point.1
4. Tighten screws . Tightening torque: 2.5Nm±10%2
8140672
EAPML9SHE
Sensor bracket
8140672
2020-08
[8140674]
Assembly instructions
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
