80i-110s

AC/DC Current Probe

Instructions

Introduction

The Fluke 80i-110s (the Probe or Product) is a clamp-on AC/DC Current

Probe that reproduces current waveforms found in commercial and industrial

power distribution systems. The Probe performance is optimized for accurate

reproduction of currents at line frequency and up to the 50

harmonic

waveform. The 80i-110s is also compatible with any instrument capable of

millivolt measurements.

The Probe provides these benefits:

• Accurate AC, DC, and AC+DC current measurements for Electrical,

Electronic, and Automotive applications.

• Shielded for high-noise immunity around electronic motor drives and

ignition systems.

• Wide measurement range from 50 mA to 100 A, useful to 10 mA.

• Jaw shaped for easy access to cramped spaces.

• Tactile barrier (see Figure 1, item

).

• Safety-designed 600 V insuIated BNC - compatible with Fluke

ScopeMeter

test tools, Power Harmonic analyzers, and

oscilloscopes.

• Selectable output of 10 millivolts/1 amp for the 100 A range, and

100 mV/1 A for the 10 A range.

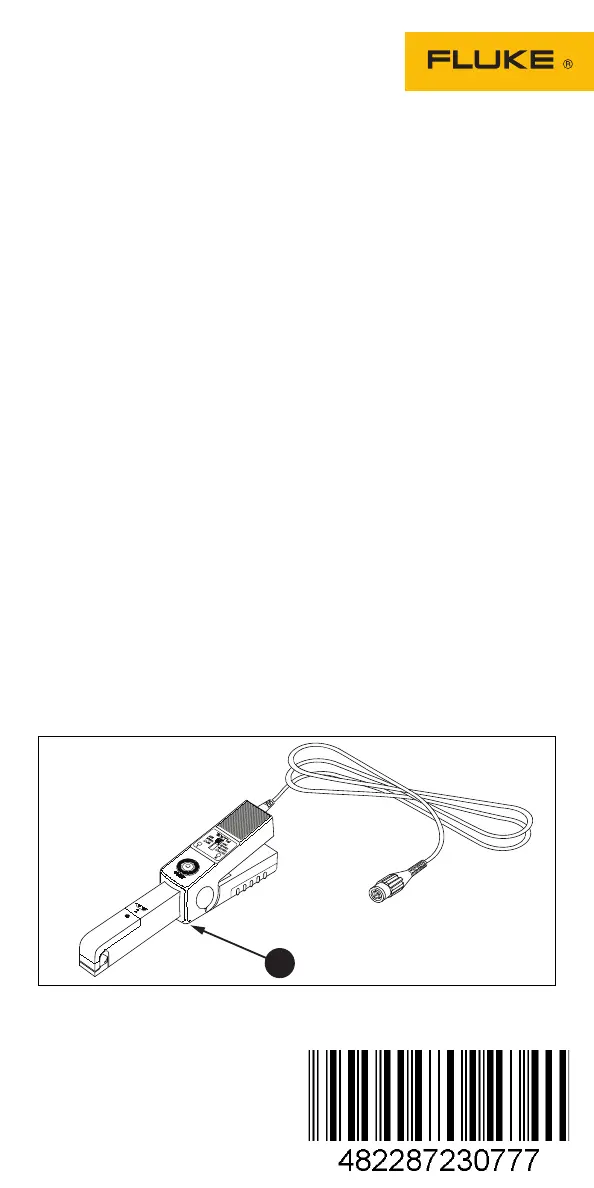

Figure 1. 80i-110s AC/DC Current Probe

80i-110s.book Page 1 Monday, December 5, 2016 12:12 PM

Produkspesifikasjoner

Merke:	Fluke
Kategori:	Ikke kategorisert
Modell:	80i-110s
Produkttype:	Strømklemme
Vekt:	330 g
Tilkobling:	BNC
Antall per pakke:	1 stykker
Lengde:	231 mm
Nominell spenning:	600 V
Kabellengde:	1.6 m
Produktfarge:	Sort
Driftstemperatur (T-T):	0 - 50 °C
Oppbevaringstemperaturomåde (Celsius):	-30 - 70 °C
Videoopptaksgrensesnitt:	Bananplugger
Strøm (maks.):	100 A
Maksimal driftshøyde:	2000 m
Målekategori som støttes:	CAT II, CAT III
