i200/i200s

AC Current Clamp

Instruction Sheet

Introducing the i200/i200s

The i200 is a single range 200A clamp-on AC Current Clamp with

current output via safety shrouded banana plugs.

The i200s is a dual range 20A and 200A clamp-on AC Current

Clamp with voltage output via a safety insulated BNC connector.

A dual banana to BNC adapter is supplied to allow the i200s to be

connected to multimeters with banana input.

Unpacking

The following items should be included in your Current Clamp box:

• Current Clamp

• Dual Banana to BNC Adapter model PM9081 (only with i200s)

• Instruction Sheet (this paper)

Check the contents of the shipping box for completeness. If

something in the box has been damaged or missing, contact your

distributor or the nearest FLUKE sales or service office immediately.

Safety Information

Read First: Safety Information.

To ensure safe operation and service of the

current clamp, follow these instructions:

• Read the operating instructions before use and follow all safety

instructions.

• Use the Current Clamp only as specified in the operating

instructions, otherwise the clamp’s safety features may not

protect you.

• Adhere to local and national safety codes. Individual protective

equipment must be used to prevent shock and arc blast injury

where hazardous live conductors are exposed.

• Do not hold the Current Clamp anywhere beyond the tactile

barrier, see Figure 1.

• Before each use, inspect the Current Clamp. Look for cracks or

missing portions of the clamp housing or output cable

insulation. Also look for loose or weakened components. Pay

particular attention to the insulation surrounding the jaws.

• Check the magnetic mating surfaces of the clamp jaws; these

should be free of dust, dirt, rust and other foreign matter.

• Never use the clamp on a circuit with voltages higher than 600

V CAT III.

− CAT III equipment is designed to protect against transients

in equipment in fixed equipment installations, such as

distribution panels, feeders and short branch circuits, and

lighting systems in large buildings.

• Use extreme caution when working around bare conductors or

bus bars. Contact with the conductor could result in electric

shock.

• Use caution when working with voltages above 60 V dc, 30 V ac

rms or 42 V ac peak. Such voltages pose a shock hazard.

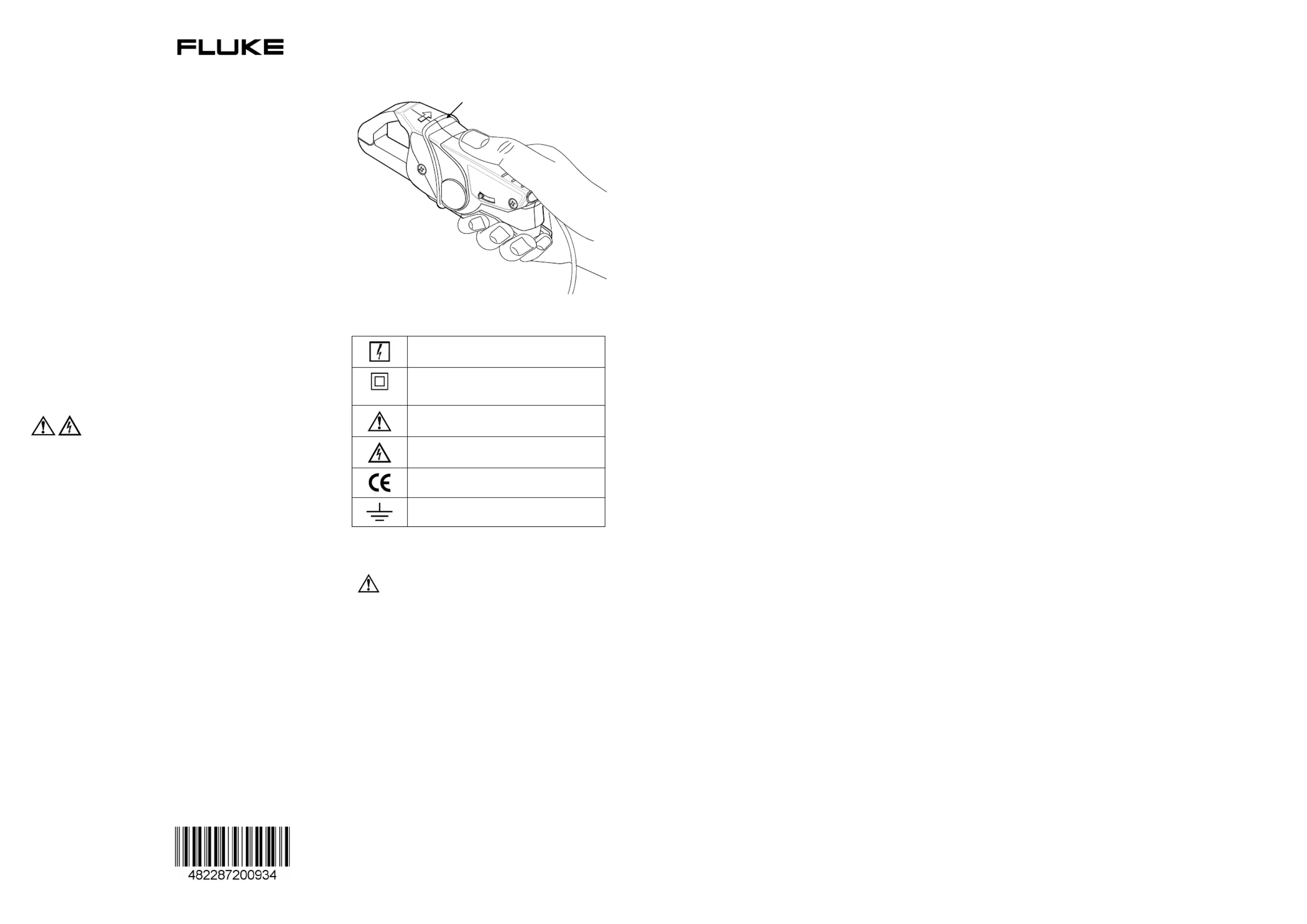

Figure 1. Safely holding the Current Clamp

Symbols

May be used on HAZARDOUS LIVE

conductors.

Product is protected by double insulation.

Risk of Danger. Important information. See

Instruction Sheet.

Risk of Electric Shock.

Conforms to relevant European standards.

Earth ground.

Specifications

SAFETY

Input jaws & output floating

voltage to ground

Complies with American

industry standards

UL61010B-1 & UL61010B-2-

032 and European standards

EN/IEC 61010-1 2nd Edition

& EN/IEC 61010-02-032 for

600V CAT III, pollution

degree 2.

EMC

Complies with standards

EN/IEC 50081-1 &

EN/IEC 50082-2

ELECTRICAL SPECIFICATIONS

All Electrical Specifications are valid at the following reference

conditions:

• Ambient temperature

23±3°C (73±3°F)

• Relative Humidity

20 to 75%

• Frequency

48 to 65 Hz

• Continuous external field

< 40 A/m

• Load impedance i200: 0.2

Ω

…15

Ω

i200s: >1 M

Ω

// 100 pF

• The current may not contain any DC component

• No influence from adjacent currents

• The conductor must be centered within the jaw aperture

20A Range (i200s only)

Measuring range 0.1 to 24A

Maximum current 24A

Crest factor * < 3

Maximum non-destructive

current

200A (Frequency ≤ 1 kHz and

crest factor < 3)

Output signal 100 mV/A

Output impedance

≤ Ω 20 @ 1 kHz

Basic accuracy

48 Hz to 65 Hz

≤ 2% + 0.5A

Additional error:

40 Hz to 48 Hz and

65 Hz to 1 kHz

+ < 10%

1 kHz to 10 kHz + < 15%

Phase shift Unspecified

200A Range i200 i200s

Measuring range 0.5 to 240A 0.5 to 240A

Maximum current 240A 240A

Crest factor * < 3 < 3

Maximum non-destructive

current

@ Frequency ≤ 1 kHz and

crest factor < 3

Continuous 200A

10 min ON

/30 min OFF

240A

Output signal 1 mA/A 10 mV/A

Output impedance -

≤ Ω 10 @ 1 kHz

Basic accuracy

48 Hz to 65 Hz

0.5A to 10A

≤ ≤ 3% + 0.5A 3.5% + 0.5A

10A to 40A

≤ ≤ 2.5% + 0.5A 3% + 0.5A

40A to 100A

≤ ≤ 2% + 0.5A 2.5% + 0.5A

100A to 240A

≤ ≤ 1% + 0.5A 1.5% + 0.5A

Additional error:

40 Hz to 48 Hz and

65 Hz to 1 kHz

+ < 3%

1 kHz to 10 kHz + < 12% + < 12%

Phase shift

0.5A to 10A Unspecified Unspecified

10A to 40A

≤ ≤ 5 ° 6 °

40A to 100A

≤ ≤ 3 ° 4 °

100A to 240A

≤ ≤ 2.5 ° 3 °

All ranges i200 i200s

Load on output

0.2...15 Ω >1 MΩ // < 100 pF

Load Influence Current: < 1%

Phase: < 1°

Bandwidth -1.5 dB

-3dB

40 Hz to 10 kHz

40 kHz

40 Hz to 10 kHz

40 kHz

Additional errors

With temperature

≤ 0.15 % / 10 K

With position of

conductor in the

clamp aperture

≤ 0.5 % @ 50 Hz

With adjacent

conductors

≤ 15 mA / A @ 50 Hz

* This is the maximum permissible ratio between the peak value

of a superimposed transient and the ac rms value.

GENERAL

Clamp Dimensions 135 x 50 x 30 mm

(5.3 x 2 x 1.2 in)

Protection index IP40

Jaw Opening 21 mm (0.82 in)

Height of open Jaws 69 mm (2.7 in)

Maximum conductor size

∅ 20 mm (0.8 in) or

busbar 20 x 5 mm (0.8 x 0.2 in)

Weight 180 g (6.4 oz)

Cable length i200

i200s

1.5 m (59 in)

2m (79 in)

Temperature

Operating

Non-operating

-10 to +55°C (+14 to +131°F)

-40 to + 70°C (-40 to +158°F)

Relative Humidity

Operating

85%, up to +30°C (+86°F)

75%, up to +55°C (+131°F)

Altitude

Operating

Non-operating

to 2000 m (6500 ft)

to 12000 m (40000 ft)

EMC EN/IEC 50081-1

EN/IEC 50082-2 (3V/m,

2.74V/yd)

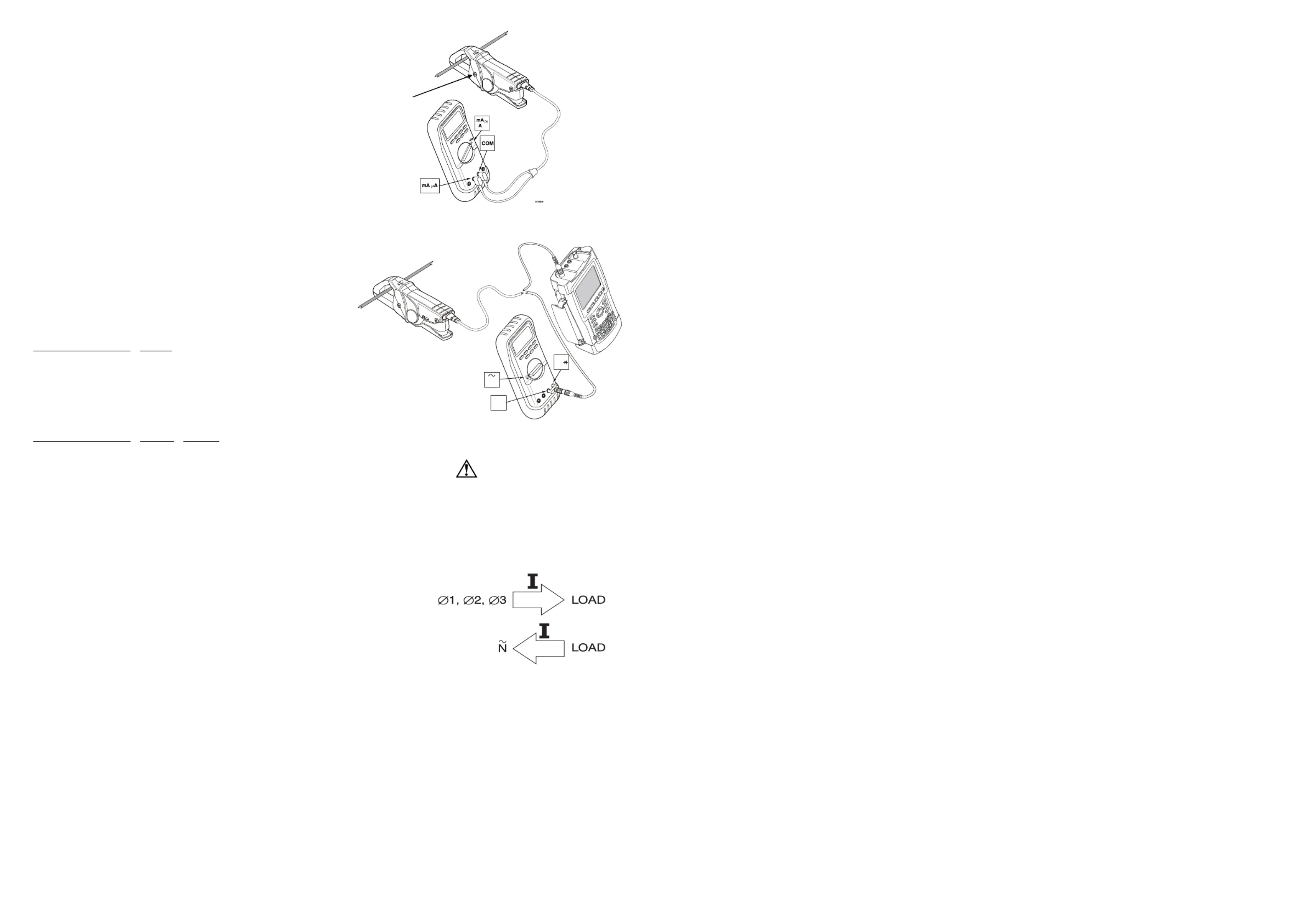

Instrument Compatibility

The i200s is compatible with any Fluke ScopeMeter test tool, Power

Harmonics Analyzer, Oscilloscope, Multimeter, or other voltage

measurement device that has the following features:

• BNC input connector. The Dual Banana to BNC Adapter

included in the package, can be used to connect to standard

inputs on multimeters. For the 120 series ScopeMeters, use

the BB120 Shielded Banana to BNC Adapter.

• Input accuracy of 2% or better to take full advantage of the

accuracy of the Current Clamp.

• Ω Input impedance of greater than or equal to 1 M , and for full

bandwidth and accuracy, a maximum input capacity of 100 pF.

• A pass- band of more than four times the frequency of the

waveform to be measured.

The i200 is compatible with any Fluke Multimeter or any other

current measurement device that has the following features:

• Banana inputs.

• Input accuracy of 2% or better to take full advantage of the

accuracy of the Current Clamp.

• Ω Ω Input impedance of 0.2 …15

• A pass-band of more than four times the frequency of the

waveform to be measured.

4822 872 00934

July 1998, Rev. 5, 08/05

Printed in France

All product names are trademarks of

their respective companies.

Tactile barrier
