ITP 120
Isolated Trigger Probe
Instruction Sheet
Introduction
The ITP 120 is an optically isolated trigger probe for
isolated trigger purposes with the Fluke 120 series
ScopeMeter test tool.
Specifications
Probe Characteristics
Maximum floating voltage to ground: 600V
Maximum input voltage: 600V (with 600V Mini
Testhook)
Maximum non-destructive input voltage times
frequency: 10
9
Input resistance: 10 MΩ ± 1%
Input capacitance: 15 pF ± 10%
Probe length: 1.2 m (48 inch)
Trigger Characteristics
Trigger level: TTL compatible (High ≥ 2V, Low ≤ 0.8V)
Minimum pulsewidth: 7 µs
Frequency range: DC to 50 kHz
Trigger slope selectable on the ScopeMeter test tool.
Battery Type: Alkaline 9 volt, NEDA, IEC6LR61
Battery Life: 60 hour operation
June 1996, Rev. 3, 4/10
© 1996, 1997, 2010 Fluke
Corporation.
All rights reserved.
Printed in The Netherlands.
All product names are trademarks of their respective companies
Environmental Specifications
Meet requirements of:
• MIL-T-28800E, Type III, Class 3
• EN 50081-1, Electromagnetic Compatibility
Generic Emission Standard: EN55022 and
EN60555-2
• EN 50082-1, Electromagnetic Compatibility
Generic Immunity Standard: IEC1000-4 -2, -3, -4,
-5
This product is in conformity with Electromagnetic
Compatibility Directive 2004/108/EC, and Low Voltage
Directive 2006/95/EC.
This conformity is indicated by the symbol
, i.e.
“Conformité européenne”
Temperature:
Operating: 0 °C to +50 °C (32 °F to +122 °F)
Non-operating: -40 °C to +70 °C (-40 °F to +158 °F)
Safety
Meets requirements of:
• UL 3111
• IEC1010-2-031 CAT II 600V
( Double Insulation)
Unpacking
Check that the following items are included with the ITP
120:
• Trigger Probe
• Mini Testhook (with ground lead)
• 9V Battery (installed)

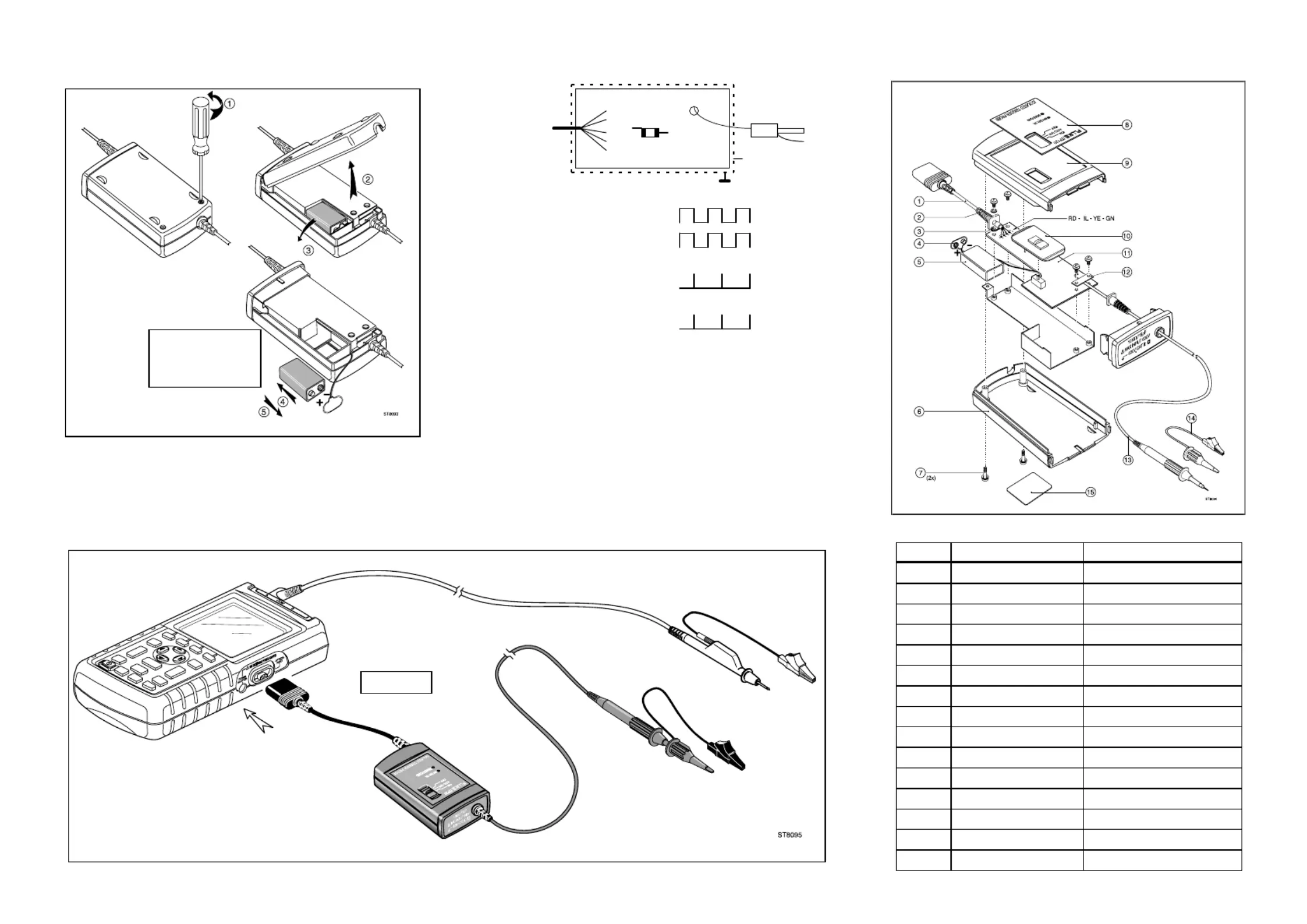

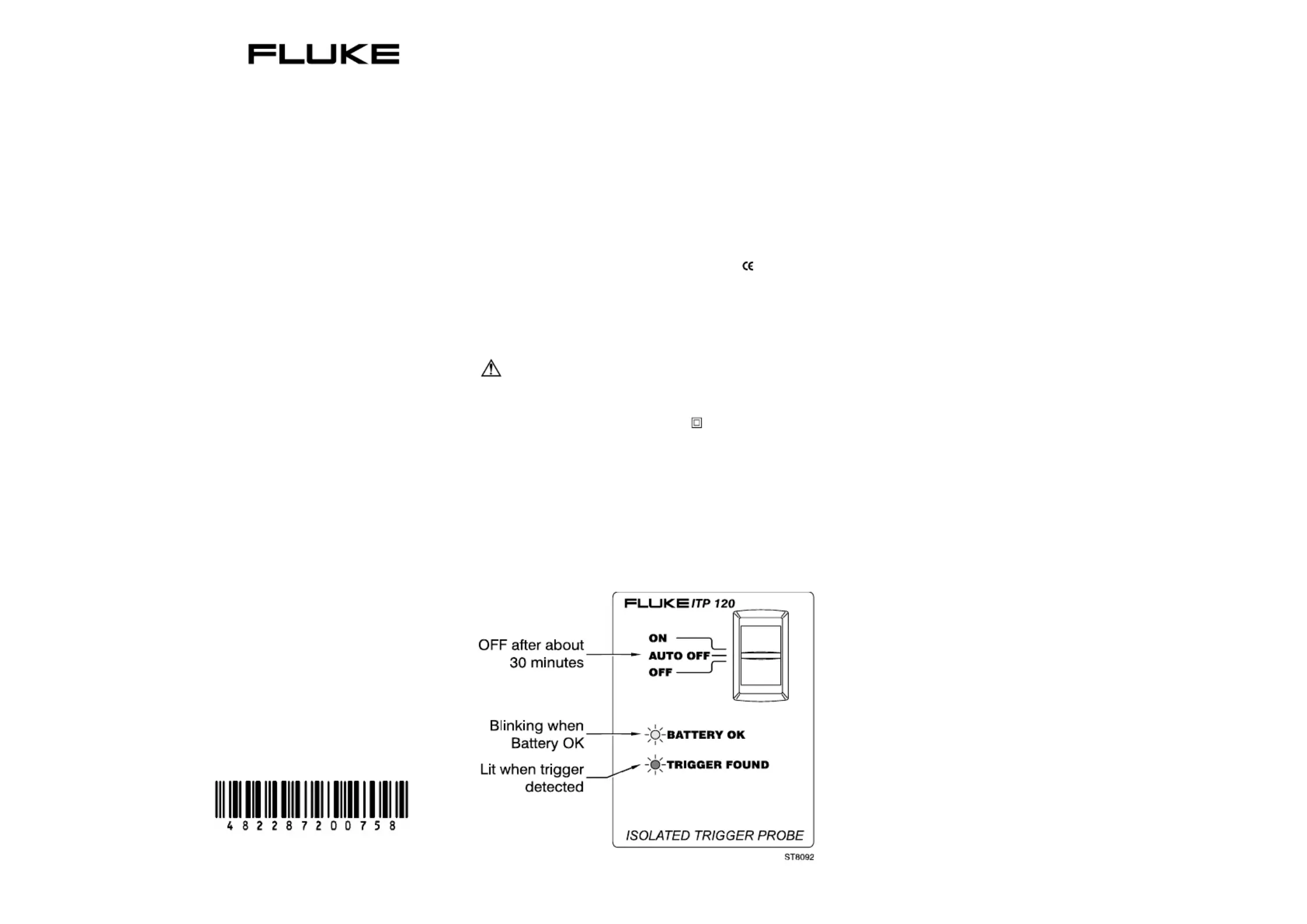

Using the ITP 120
Limited Warranty &
Limitation of Liability
This Fluke product will be free from defects in material
and workmanship for one year from the date of
purchase. This warranty does not cover fuses,
disposable batteries or damage from accident, neglect,
misuse or abnormal conditions of operation or handling.
Resellers are not authorized to extend any other
warranty on Fluke’s behalf. To obtain service during the
warranty period, send your defective product to the
nearest Fluke Authorized Service Center with a
description of the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO
OTHER WARRANTIES, SUCH AS FITNESS FOR A
PARTICULAR PURPOSE, ARE EXPRESSED OR
IMPLIED. FLUKE IS NOT LIABLE FOR ANY SPECIAL,
INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES OR LOSSES, ARISING FROM ANY
CAUSE OR THEORY.
Since some states or countries do not allow the
exclusion or limitation of an implied warranty or of
incidental or consequential damages, this limitation of
liability may not apply to you.
Fluke Corporation Fluke Industrial B.V.
P.O. Box 9090 P.O. Box 90
Everett WA 98206-9090 7600 AB Almelo
USA. The Netherlands
Service Centers
To locate an authorized service center, visit us on the
World Wide Web:
http://www.fluke.com
or call Fluke using any of the phone numbers listed
below:
+1-888-993-5853 in USA and Canada
+31-40-2675200 in Europe
+1-425-446-5500 from other countries
