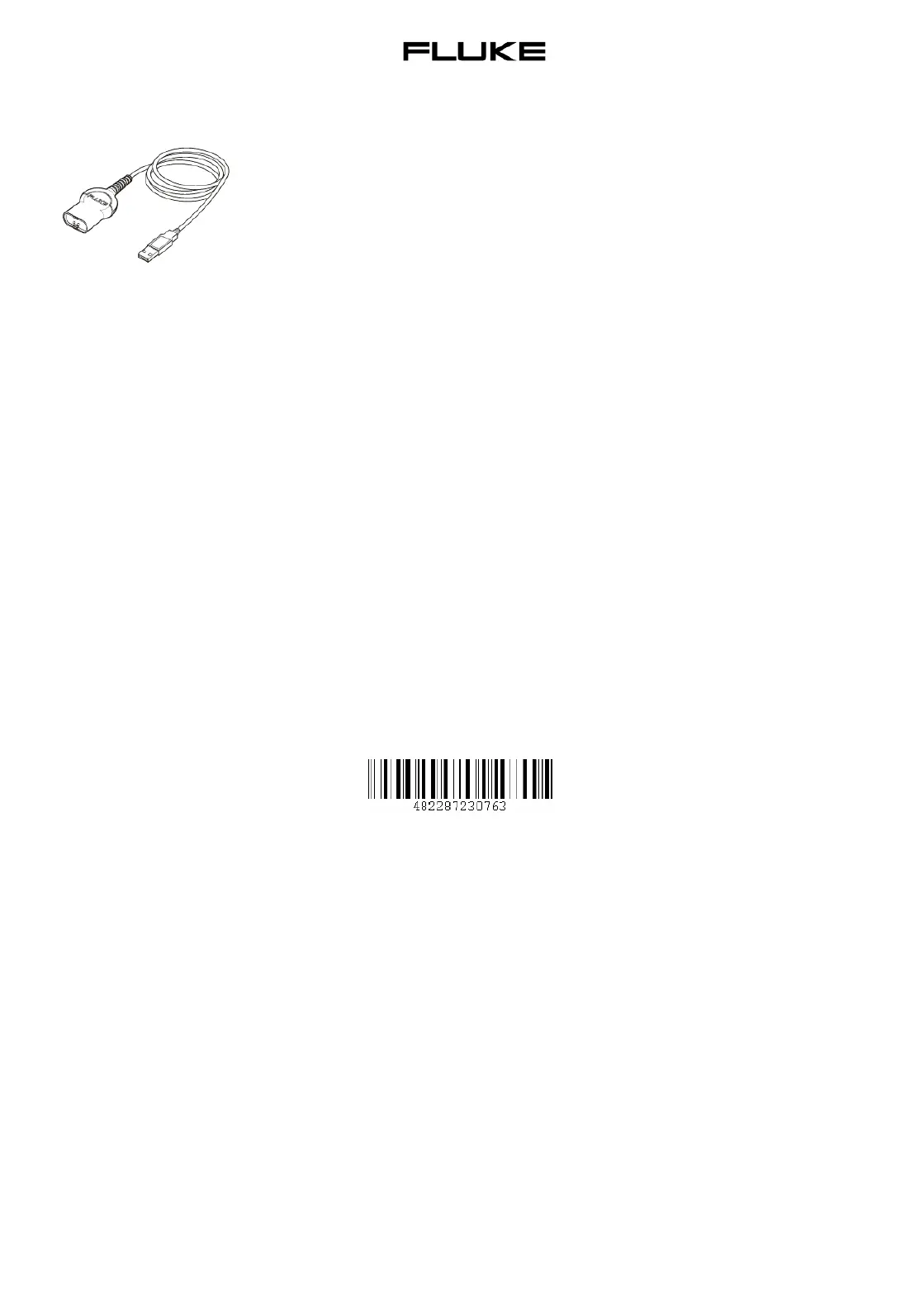

OC4USB
Optical Cable for USB
Rev.II
Instruction Sheet
Specifications
Type of interface:
Optically isolated serial to USB adapter
Baud rate: 57.6 k Baud max
Logic States:
SPACE = 0, Light with wavelength 800 nm
MARK =1, No light
Handshake method:
XON/XOFF, Software handshake only
Environmental:
Meets requirements of MIL-PRF-28800F
Type III, Class 3.
Temperature, Operating:-20 °C to +55 °C
Temperature, Storage:-20 °C to +70 °C
Mechanical:
Cable length: 1.65 m
Weight: 0.1 kg
Using the Interface Cable
PC Requirements
- USB 1.1 (or higher) port on the PC.
- Windows XP/2000/Me/98 Second Edition.
Installing the OC4USB cable drivers
- Log into an account with Administrator privileges (Windows XP or Windows 2000).
- Plug the USB cable into an USB port.
- Windows will respond that it has "found new hardware", and the Windows Found/Add New
Hardware Wizard dialog will appear. Follow the instructions from the Wizard dialog.
- For automatic downloading of the latest drivers from the internet allow Windows XP or
Windows 2000 to search Microsoft Windows update when asked. To load the drivers from
CD-ROM the CD-ROM with the USB drivers (Included with cable or on FlukeView CD-
ROM) must have been inserted.
- The Hardware Wizard will install the “USB Serial Converter”/"USB to Serial Port”.
Note: for Windows XP users, you may get a dialog box warning you that this driver "has not
passed Windows Logo Testing". Just click the "Continue anyway" button.
- Additionally the “found new hardware” wizard will run again and install the USB serial port.
- The Hardware Wizard will finish, the OC4USB cable drivers have now been installed.
- Your PC may need to reboot before the OC4USB cable can be used.
Sep 2004, Rev. 1, 05/06
© 2004 Fluke Corporation. All rights reserved.
Printed in the EU. All product names are
trademarks of their respective companies
