Hazet 1979W-85 Bruksanvisning
Les nedenfor 📖 manual på norsk for Hazet 1979W-85 (4 sider) i kategorien Lampe. Denne guiden var nyttig for 43 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/4

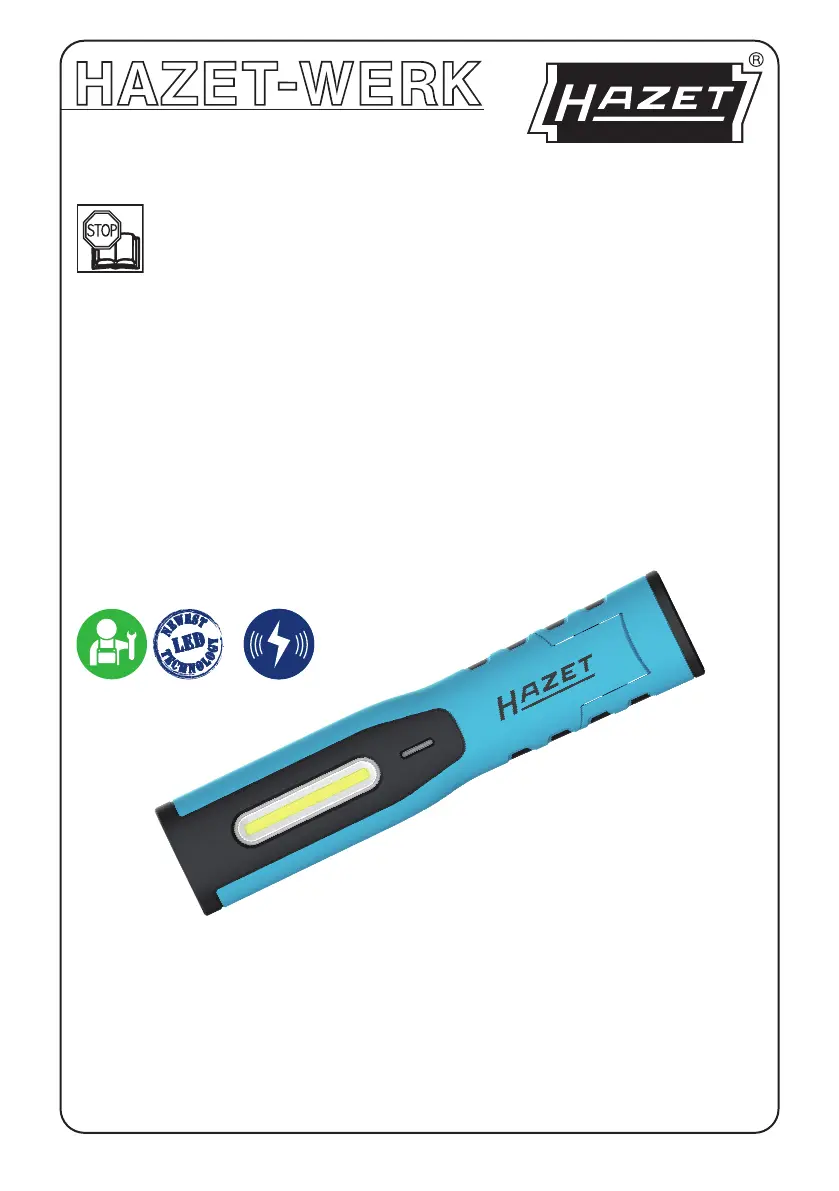

HÖCHSTE TECHNOLOGIE IN DER WERKZEUGFERTIGUNG SEIT 1868
HIGHEST TECHNOLOGY IN TOOL MANUFACTURE SINCE 1868
1979W-85
q
1979W-85 BA IV
Betriebsanleitung
LED Solid Light, Wireless
Operating instructions
LED Solid Light, Wireless
Mode d'emploi
Lampe à LED, sans fil
Istruzioni per l'uso
Torcia a LED,
senza fili
Instrucciones
Lámpara LED,
inalámbrica
2
TECHNISCHE DATEN 1979W-85
Lumen Top-Licht __________ 300 Lumen
Lumen Hauptlicht _________ 600 ~ 60 Lumen
Leuchtdauer Top-Licht _____ 4,5 Std.
Leuchtdauer Haupt-Licht ___ 3 Std. - 20 Std.
Ladedauer ________________ 3,5 ± 0,5 Std.
Lithium-Akkupacks ________ 3,7 V | 2.600 mAh | 9,62 Wh
Schutzklasse ______________ IP65/IK09
Lagertemperatur ___________ -20 °C bis 50 °C
Arbeitstemperatur _________ -10 °C bis 35 °C
Gewicht inkl. Akku _________ 370 g
Abmessung _______________ 55 x 35 x 255 mm
Leuchtmittel ______________ 1 x COB LED; 1 x SMD LED
Eingangsspannung ________ 5 V DC
Eingangsstrom ____________ Max. 1.000 mA
Leuchtmittel Top Licht ______ 3 Watt SMD LED
Leuchtmittel Haupt-Licht ___ 6 Watt COB LED
Funkfrequenz _____________ 100...300kHz
Sendeleistung _____________ <27dBµA/m bei 3m
TECHNICAL DATA 1979W-85
Lumen Top Light __________ 300 lumen
Lumen Main Light _________ 600 ~ 60 lumen
Battery life for top light _____ 4.5 h
Battery life for main light ____ 3 h - 20 h
Charging time _____________ 3.5 ± 0.5 h
Li-ion rechargeable battery __ 3.7 V | 2,600 mAh | 9.62 Wh
protection class ___________ IP65/IK09
Storage temperature _______ -20 °C to 50 °C
Operating temperature _____ -10 °C to 35 °C
Weight of light incl. battery __ 370 g
Dimensions of ligh _________ 55 x 35 x 255 mm
Illuminant _________________ 1x COB LED; 1x SMD LED
Input voltage ______________ 5 V DC
Input current ______________ Max. 1,000 mA
illumination Top Light ______ 3 Watt SMD LED
illumination Main Light ______ 6 Watt COB LED
Radio frequency __________ 100...300kHz
Transmission power ________ <27dBµA/m at 3m
. . . . . . . 4 – 5
. . . . . . . .6 – 7
. . . . . . . .8 – 9
. . . . . . 10 – 11
. . . . . . 12 – 13
Ursprungsprache deutsch – original language: German – Langue d’origine: allemand
– Lingua originale tedesco – Idioma de origen: alemán –
HAZET-WERK Hermann Zerver GmbH & Co. KG • ; Güldenwerther Bahnhofstraße 25 - 29
42857 Remscheid • GERMANY • } 10 04 61 • 42804 Remscheid
[ +49 (0) 21 91 / 7 92-0 • ^ hazet.de • ] info@hazet.de
Technische Daten, Technical Data
3
CARACTÉRISTIQUES TECHNIQUES 1979W-85
Lumen éclairage supérieur __ 300lumens
Lumen éclairage principal _ 600 ~ 60 lumens
Durée d'éclairage
de l'éclairage supérieur _____ 4,5h
Durée d'éclairage
de l'éclairage principal ______ 3h - 20h
Durée de charge ___________ 3,5 ± 0,5h
Bloc de batterie
rechargeable lithium ________ 3,7V | 2600mAh | 9,62Wh
Degré de protection ________ IP65/IK09
Température de stockage ___ de -20°C à 50°C
Température de travail ______ de -10°C à 35°C
Poids avec
batterie rechargeable _______ 370g
Dimensions _______________ 55 x 35 x 255 mm
Ampoule __________________ 1 x LED COB; 1 x LED SMD
Tension d'entrée ___________ 5 V CC
Courant d'entrée __________ max. 1000mA
Ampoule éclairage supérieur LED SMD de 3watts
Ampoule éclairage principal _ LED COB de 6watts
Fréquence radio __________ 100...300kHz
Puissance de transmission __ <27dBµA/m à 3m
DATI TECNICI 1979W-85
Lumen luce superiore ______ 300 Lumen
Lumen luce principale _____ 600 ~ 60 Lumen
Durata di illuminazione luce superiore _ 4,5 ore
Durata di illuminazione luce principale _ 3 ore - 20 ore
Tempo di ricarica __________ 3,5 h ± 0,5 ore
Pacchetto batteria al litio ___ 3,7 V | 2.600 mAh | 9,62 Wh
Classe di protezione _______ IP65/IK09
Temperatura di stoccaggio __ da -20 °C a 50 °C
Temperatura di esercizio ____ da -10 °C a 35 °C
Peso incl. batteria__________ 370 g
Dimensione _______________ 55 x 35 x 255 mm
Lampadina ________________ 1x COB LED; 1x SMD LED
Tensione di ingresso _______ 5 V DC
Corrente in ingresso ________ Max. 1.000 mA
Lampadina luce superiore __ 3 Watt SMD LED
Lampadina luce principale __ 6 Watt COB LED
Frequenza radio ___________ 100...300kHz
Potenza di trasmissione ____ <27dBµA/m a 3m
DATOS TÉCNICOS 1979W-85
Lúmenes de la luz superior __ 300 lúmenes
Lúmenes de la luz principal 600 ~ 60 lúmenes
Autonomía de la luz superior 4,5 h
Autonomía de la luz principal 3 h - 20 h
Duración de la carga _______ 3,5 ± 0,5 h
Paquete de batería de litio __ 3,7 V | 2.600 mAh | 9,62 Wh
Grado de protección _______ IP65/IK09
Temperatura de almacenaje _ -20 °C a 50 °C
Temperatura de trabajo _____ -10 °C a 35 °C
Peso con batería __________ 370 g
Dimensiones ______________ 55 x 35 x 255 mm
Lámpara __________________ 1 x LED COB; 1 x LED SMD
Tensión de entrada _________ 5 V CC
Corriente de entrada _______ máx. 1.000 mA
Fuente lumínica superior ____ LED SMD 3 W
Fuente lumínica principal ___ LED COB 6 W
Radiofrecuencia ___________ 100...300kHz
Potencia de emisión _______ <27dBµA/m a 3m
Caractéristiques Techniques, Dati Tecnici, Datos Técnicos
