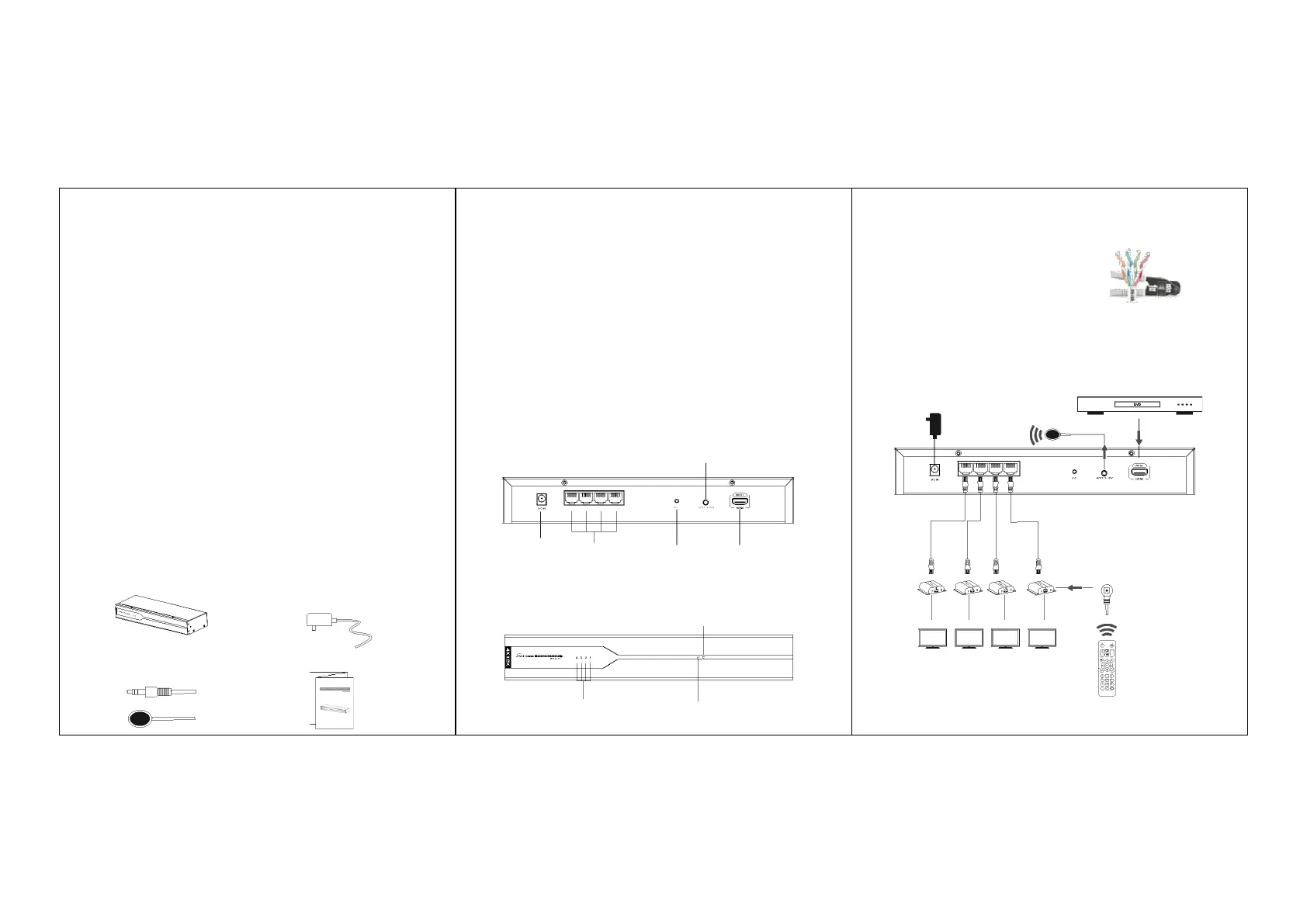

3. Connection instruction:

1). Connect HDMI input with HDMI output of source device.

2). Connect IR blaster extension cable to the IR extender out port.

3). Connect RJ45 port with RJ45 input port of HDMI extender RX.

4). Connect HDMI output of HDMI extender RX to HDMI input of HDTV and

set the TV source input to correct HDMI input channel.

5). Power on the device (power indicator lights) and it works.

• FAQ

Q: TV display “waiting for connection” on the bottom right corner?

A: 1）Please check if the power supply of extender splitter and RX(receiver) is

well connected and the power indicator led lights on.

2）Make sure all cables are firmly connected.

Q: TV display “Please check the TX input signal”?

A: 1）please check if there is an HDMI signal input of extender splitter.

2）Try to connect the signal source directly to display device to see if

there is signal output from source device or change the signal

source, HDMI cables and try again.

Q: Display not fluent and stable?

A: 1）Please check the cable length between extender splitter and RX

(receiver) is within the required range.

2）Press“reset” button on the extender splitter/RX panel, reset

and reconnect.

• Specification

Items Specification

HDMI signal Compatible with HDCP

Transport protocol HDbitT

Support resolutions

480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,

720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz

4KX2K@24/25/30Hz

Transmit distance

Up to 120meters transmission distance for

4Kx2K@24/25/30Hz ultra HD over single CAT6

IR signal

Support 20~60kHz IR device

Input

1 x HDMI

Output

4 x RJ45

Working temperature

0℃～60℃

Power supply

DC5V/2A

Power Consumption

<10W

Dimension

288(W) x 98(D) x 44.4(H) mm

Weight

1000g

Color

Black

Disclaimer

The product name and brand name may be registered trademark of

related manufacturers.TM and ® may be omitted on the user manual. The

pictures on the user manual are just for reference,and there may be some

slight difference with the real products.

We reserve the rights to make changes without further notice to a product or

system described herein to improve reliability, function or design.

HDbitT 1 to 4 HDMI Extender Splitter

over CAT5/5e/6

User manual

4Kx2K

Produkspesifikasjoner

Merke:	HELGI
Kategori:	AV-forlenger
Modell:	HLG0314-4K-HDBITT
Vekt:	1000 g
Bredde:	288 mm
Dybde:	98 mm
Høyde:	44.4 mm
LED-indikatorer:	Power, Status
Bruksanvisning:	Ja
Oppløsning:	3840 x 2160 piksler
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	3840 x 2160 piksler
Videokomprimeringsformater:	H.264
HDCP:	Ja
Maksimal oppdateringshastighet:	60 Hz
Frekvensområde:	0.2 - 0.6 GHz
Utgangsstrøm:	5 V
HDMI inn:	1
Driftsspenning:	5 V
Antall videoporter:	1
HDCP-gjennomgang:	Ja
Produktfarge:	Blue, Silver
HD-type:	4K Ultra HD
Støttede grafikkoppløsninger:	1280 x 720 (HD 720),1920 x 1080 (HD 1080),2560 x 1440,3840 x 2160
Pakketype:	Boks
Strømforbruk (vanlig bruk):	10 W
Støttede videofunksjoner:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1440p, 2160p
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	4
Driftstemperatur (T-T):	0 - 60 °C
Fjernkontroll medfølger:	Ja
Modell/Type:	AV-sender og -mottaker
DC-inngangskontakt:	Ja
Lydsystem:	Stereo
Ethernet/bredbåndsforbindelse:	Ja
AC-adapter bunt:	Ja
Plugg inn og spill:	Ja
Største båndbredde for port:	10.2 Gbit/s
Enkel installering:	Ja
Maksimal overføring avstand:	120 m
Kabeltyper som støttes:	Cat6
Maksimal opereringsrekkevidde:	120 m
Display Data Channel (DDC) inngang:	5 V
Kabelstandard:	Cat6
Video tilkoblingstype:	HDMI
RJ-45-utgangsporter:	4
