Side 1/32

Please check HUDDLECAMHD.com for
the most up to date version of this document Ver 1.0 2/20
HuddleCamHD EPTZ Webcam
NDI®|HX EPTZ CAMERA
INSTALLATION & OPERATION MANUAL

Page of 2 32
Ver 1.0 2/20
Precautions………………………………………………………………………………………….
Safety Tips……………………………………………………………………………………………………
• Please read this manual carefully before using the camera.
• Avoid damage from stress, violent vibration or liquid intrusion during
transportation, storage or installation.
• Take care of the camera during installation to prevent damage to the camera
case, ports, or lens.
• Do not apply excessive voltage. (Use only the specified voltage.) Otherwise, you
may experience electrical shock.
• Keep the camera away from strong electromagnetic sources.
• Do not aim the camera at bright light sources (e.g. bright lights, the sun, etc.) for
extended periods of time.
• Do not clean the camera with any active chemicals or corrosive detergents.
• Do not disassemble the camera or any of the camera's components. If problems
arise, please contact your authorized dealer.
• Contact your authorized dealer for repair.
In the Box…………………………………………………………………………………………….
Supplied Equipment…………………………………………………………………………………….
• HC-EPTZ-NDI Camera (1)
• 12V Power Supply (1)
• IR Remote Controller (1)
• User Manual (1)

Page of 3 32
Ver 1.0 2/20
Physical Description ………………………………………………………………………………
1. Front View………………………………………………………………………………………….
1. Lens
108° Field of View lens
2. Power LED
Blue LED lights when unit is powered and on.
3. Mounting Base
Mounting base for camera. 1/4-20 mounting screw.
4. Microphone Array
Beamforming Microphone Array
1
2
3
4

Page of 4 32
Ver 1.0 2/20
2. Rear View………………………………………………………………………………………………………….
5. RJ-45 Connection
For connection to LAN and for PoE powering
6. USB 2.0 Connection
For future use
7. DC12V Power Connection
For powering on camera
5
6
7

Page of 5 32
Ver 1.0 2/20
NDI®|HX Connection Guide……………………………………………………………………
This connection guide will explain the method to connect your NDI ®|HX camera to your PC
for use with software applications.
Three easy steps:
1. Install the latest NDI® Tools
2. Connect your camera to the NDI® Virtual Input
3. Select the NDI® Virtual Input in your software of choice
Step 1:
• Download and install the latest NDI® Tools
https://www.newtek.com/ndihx/products/
Please note this will install NewTek® NDI® Studio Monitor & NDI® Virtual Input
Step 2:
• Open the NDI® Virtual Input
• Right-click the NDI® Virtual Input and select your camera of choice
Step 3:
• Open your software of choice
• Go to video settings and select video source as “NewTek NDI® Video”
NewTek®, NDI®, & NDI®|HX are all registered trademarks of VZRT Group®.
Please note that your license key is non-transferrable.

Page of 6 32
Ver 1.0 2/20
OSD Menu ………………………………………………………………………………………………
On Screen Display Menu
Use the OSD menu to access and change the camera settings.’s
Note: Electronic P / T / Z functionality is disabled when the OSD menu is displayed.
The camera OSD Menu offers the following settings options:
• Exposure
o Full Auto
▪ ExpCompMode O ff On / Off
▪ Exp Comp 0 -7 ~ +7
Note: Available when ExpCompMode is “On”
▪ Gain Limit 6 0 ~ 15
▪ Meter Average Bottom / Average / Top / Center
▪ Backlight Off On / Off
▪ DRC Strength 5 0 ~ 8
▪ Anti-Flicker 60Hz Off / 50Hz / 60Hz
o Shutter Priority
▪ Shutter 1/60 1/30s, 1/60s, 1/90s, 1/100s, 1/125s, 1/200s,
1/250s, 1/350s, 1/500s, 1/725s, 1/1000s,
1/1500s, 1/2000s, 1/3000s, 1/4000s,
1/6000s, & 1/10000s
▪ Meter Average Bottom / Average / Top / Center
▪ DRC Strength 5 0 ~ 8
o Bright
▪ Bright 70 ~ 17
▪ Gain Limit 6 0 ~ 15
▪ Meter Average Bottom / Average / Top / Center
▪ DRC Strength 5 0 ~ 8
▪ Anti-Flicker 60Hz Off / 50Hz / 60Hz

Page of 7 32
Ver 1.0 2/20
o Manual
▪ Shutter 1/60 1/30s, 1/60s, 1/90s, 1/100s, 1/125s, 1/200s,
1/250s, 1/350s, 1/500s, 1/725s, 1/1000s,
1/1500s, 1/2000s, 1/3000s, 1/4000s,
1/6000s, & 1/10000s
▪ Gain 2 0 ~ 15
▪ DRC Strength 5 0 ~ 8
• Color
o Auto
▪ AWB Sens High Low / Middle / High
▪ RG Tuning 0 -10 ~ +10
▪ BG Tuning 0 -10 ~ +10
▪ Saturation 100% 60% ~ 200%
▪ Hue 7 0 ~ 14
o Indoor
▪ Saturation 100% 60% ~ 200%
▪ Hue 7 0 ~ 14
o Outdoor
▪ Saturation 100% 60% ~ 200%
▪ Hue 7 0 ~ 14
o OnePush
▪ AWB Sens High High / Low / Normal
▪ RG Tuning 0 -10 ~ +10
▪ BG Tuning 0 -10 ~ +10
▪ Saturation 100% 60% ~ 200%
▪ Hue 7 0 ~ 14
o Manual
▪ RG Tuning 226 0 ~ 255
▪ BG Tuning 188 0 ~ 255

Page of 8 32
Ver 1.0 2/20
▪ Saturation 100% 60% ~ 200%
▪ Hue 7 0 ~ 14
• Image
▪ Luminance 7 0 ~ 14
▪ Contrast 7 0 ~ 14
▪ Sharpness 4 Auto / 0 ~ 15
▪ Flip-H Off Off / On
▪ Flip-V Off Off / On
▪ Gamma E XT Default / 0.45 / 0.5 / 0.56 / 0.63
▪ Style Default Clarity / Bright / / Clarity (LED) / NormPC
▪ LDC 10 Off / -10 ~ +10
• Noise Reduction
▪ 2D-NR Close / Auto / 1 ~ 5
▪ 3D-NR Close / 1 ~ 8
• Setting
▪ Language English English, Chinese, Russian, Italian, German,
French, Spanish
▪ Protocol VISCA VISCA, PELCO-P, PELCO-D
▪ Visca Addr 1 1 – 7 (VISCA), 0 – 254 ELCO-P), (P
0 – 31 (PELCO-D)
▪ EPTZ On On / Off
▪ Zoom Limit 1x-3x 1x-3x / 1x-4x / 1x-8x / 2x-4x / 2x-8x / 3x-8x
▪ Audio In MicIn 16K MicIn 16K
▪ AutoFraming Off On / Off
• Information Displays current camera settings
• Restore Default Restore camera default settings

Page of 9 32
Ver 1.0 2/20
IR Remote Controller…………………………………………………………………………….
Note: IR Remote will not work on other HuddleCamHD cameras
1. Standby Button:
Press this button to enter standby mode. Press it again to
enter normal mode.
NOTE: Power consumption in standby mode is
approximately half of the normal mode.
2. Position Buttons:
To set preset or call preset
3. * (asterisk) Button:
For multiple functions.
4. Preset Button:
Allows for setting a preset
NOTE: [PRESET] + Numeric button (0– to set9)
5. Home Buttons:
Press the Home button to send the camera back to front
6. Return Button:
Press the button to back previous menu
7. Zoom Buttons:
Zoom+: Zoom In (Slow and fast speed)
Zoom-: Zoom Out (Slow and fast speed)
8. L/R Set Button:
Set the left & right direction of the remote control.
(not available on this model)
9. Focus Buttons:
Used for focus adjustment
Press AUTO to adjust the focus on the center of the
object automatically. To adjust the focus manually, press
the MANUAL button, and adjust it with FAR and NEAR.
10. Camera Address Select Buttons:
Camera the button corresponding to the camera which
you want to operate with the remote controller
11. # Button:
For multiple functions
12. Multiple function Buttons:
Function 1. Set camera IR address
Press 3 keys contiguously can set camera IR address as
follow:
[*] + [#] + [ ]: IR Address 1F1
[*] + [#] + [F2]: IR Address 2
[*] + [#] + [F3]: IR Address 3
[*] + [#] + [F4]: IR Address 4
Function 2. Image freezing function
Press [F4] to start the freeze function. The word “Freeze” displays on the upper left corner. After five seconds, the
display disappears automatically (though the freeze feature continues). To cancel the freeze, press the [F4] key
the word “Unfreeze” displays on the upper left corner. After five seconds, the display disappears automatically.
13. Reset Button:
Clear preset: Erase a preset position [RESET] + numeric button (0-9), or: [*] + [#] + [RESET]: Erase all presets
14. Pan/Tilt Control Buttons:
Allows for electronic n/Tilt controlPa
15. Menu Buttons:
Menu Button: Press this button to enter or exit the OSD menu.
16. Backlight Button:
Backlight button: Press this button to enable the backlight compensation. Press it again to disable the backlight
compensation.

Page of 10 32
Ver 1.0 2/20
NOTE: Only available in manual exposure mode.
NOTE: If there is a light begin the subject, the subject will appear dark. In this case, press the backlight ON/OFF
button. To cancel the function, press the backlight ON/OFF button
17. P/T RST Button:
Press this button to self-calibrate pan & tilt once again.
NOTE: not available on this model
• Shortcuts:
[*] + [#] + [1]: Display OSD menu in English
[*] + [#] + [3]: Display OSD menu in Chinese
[*] + [#] + [4]: Show IP Address
[*] + [#] + [6]: Quickly restore the default settings
[*] + [#] + [8]: Show the camera version
[*] + [#] + [9]: Quickly set mount mode (flip/normal)
[*] + [#] + [MANUAL]: Resets IP information
[#] + [*] + [4]: Toggle between DHCP & Static IP addressing
[#] + [*] + [#] + [1]: Set IP address to 192.168.100.81
[#] + [*] + [#] + [2]: Set IP address to 192.168.100.82
[#] + [*] + [#] + [3]: Set IP address to 192.168.100.83
[#] + [*] + [#] + [4]: Set IP address to 192.168.100.84
[#] + [*] + [#] + [5]: Set IP address to 192.168.100.85
[#] + [*] + [#] + [6]: Set IP address to 192.168.100.86
[#] + [*] + [#] + [7]: Set IP address to 192.168.100.87
[#] + [*] + [#] + [8]: Set IP address to 192.168.100.88
[#] + [*] + [#] + [9]: Set IP address to 192.168.100.89
[#] + [*] + [#] + [0]: Set IP address to 192.168.100.80
Care Of The Unit …………………………………………………………………………….……
Remove dust or dirt on the surface of the lens with a blower (commercially available).
Installation Instructions………………………………………………………………………
Monitor Installation…………………………………………………………………………………….
When mounting the HuddleCamHD camera on a monitor, ensure that the mount screw
is fastened tightly to the camera. Use the top mount to rest the camera on a
monitor. Position the bottom mount on the back of the monitor to secure the camera
in position. You can rotate the camera lens as necessary.
Tripod Insta ation…………………………………………………………………………………ll ……
When using the HuddleCamHD camera with a tripod, screw the tripod to the bottom
of the camera. The tripod screw must fit below specifications:
The tripod screw must fit shown specifications:

Page of 12 32
Ver 1.0 2/20
Setting up the Camera’s IP……………………………………………………………………
1. The first thing you are going to want to do to get your camera up and streaming on
your network is to connect your camera to power, to an active network port on your
network. (Note it will power on when power is applied via power supply or PoE)
2. Next, go online and download the IP Address Settings Tool, for Windows & MacOS,
from the HuddleCamHD Download Page. Once you complete the installation and
launch the tool “UPGRADE vX.X” you should be able to click the “Search” button to
locate all the available HuddleCamHD cameras on your network.
a. If you are having issues with camera discovery…
i. There is likely an issue with mDNS not being enabled / configured
properly – consult your network administrator or network equipment
manufacturers manual for proper setup.
ii. The Network Drop Down may be on the wrong network interface
iii. You can always revert to the direct PC to Camera connection as shown
in the previous section
3. The next thing you would want to do is change your camera’s IP address to be in the
same range as your network. The camera comes with a default static IP address of
192.168.100.99. You will need to update that to be in the same range as your
network. If you look at the example above, you can see f m the other cameras on ro
the network, that the network is set up to be in the range of 192.168.111.XXX.
Please see the “Extras” section at the end of this document for further information
on finding your network IP scheme.
4. Once you know your IP range you can right click on the camera you wish to change
the IP address for and click “Config”. Note: if you need to find the IP range of your
network, you can do so by following the guide in the extras section at the end of
this document.

Page of 13 32
Ver 1.0 2/20
You should now be able to set your camera’s IP address to one in the range of your
network. You should be able to leave the subnet mask alone, unless you are
configuring the camera for use across subnets.
(Note that in more complex network environments you may have to request a
“Static IP” from the Network Administrator(s) to prevent any possible complications
on your network in addition request the appropriate Network Mask, Default
Gateway and First DNS for use with Static IP)
5. Now that you have set the Static IP address of your HuddleCamHD camera, you
should be able to access the WebUI for control and settings via a web browser.
6. Open your desired browser and type in the Static IP address you assigned to your
camera, in step 4, you will be prompted for a Username and Password, both are
“admin” by default.
7. You may br prompted to download the ActiveX component for live viewing if utilizing
Microsoft Internet Explorer (not Edge). Currently no other browsers are supported.
8. You should have full P / T Z control over your camera using the P T Z controls / / /
on the left side. You can adjust many of your camera’s settings via the IP interface
and if using Internet Explorer with the ActiveX plugin you will also receive a live
preview.

Page of 14 32
Ver 1.0 2/20
9. You should now be able to pull an RTSP stream from your camera into VLC, WireCast,
OBS, etc…
a. You can test the RTSP stream in VLC media player.
b. Once you install VLC and launch the program you should be able to go to the
“Media” drop down meny and then select “Open Network Stream”.
c. In the network URL, you should enter “rtsp://<ip-address>:554/1”
i. In the example below, for a HuddleCamHD camera with the static IP
address of 192.168.111.84, the RTSP stream would be accessed by
entering “rtsp://192.168.111.84:554/1”
ii. The “554” part is the port number used by the camera, and the “1” is
the stream number.
iii. There are up to three RTSP network streams available
1. One for HD content “1”
2. One for SD content “2”
3. One for SD content “3”

Page of 15 32
Ver 1.0 2/20
Extras……………………………………………………………………………………………………………
1. Discovering your Network IP range.
a. Changing you IP address without talking to your network admin could lead to
conflicts with your network.
b. If you change your address to one that is already in use it will cause
communications problems.
2. If you need to discover the IP address range of your network you can do so by using
command prompt for Windows or Terminal for Apple computers.
3. To do this on a PC, you would type “CMD” into your search bar in the Windows menu.
You should see a black box pop up with the ability to type in the box.
4. If you type “ipconfig” and hit “Enter” on your keyboard you will see a bunch of
information pop up in your command prompt.
5. When you see “IPv4 Address” that is your computers IP address on your current
network. So you would use the first 3 sets of numbers from this as your IP range.
6. If you need to find the IP range of your Apple computer, you would first open a new
finder window and then go to Applications, and then Utilities. You should see the
program “Terminal” in that menu, select that program.
7. Now, you would type in “IP config getifaddr en0”. Once you type this string and click
“Enter” on your keyboard you will receive back an IP address.
8. So the IP range of the network, according to the Apple computer is 192.168.111.xxx,
you can use this to figure out the IP range in which your camera needs to be set.

Page of 16 32
Ver 1.0 2/20
Camera Web Interface…………………………………………………………………………

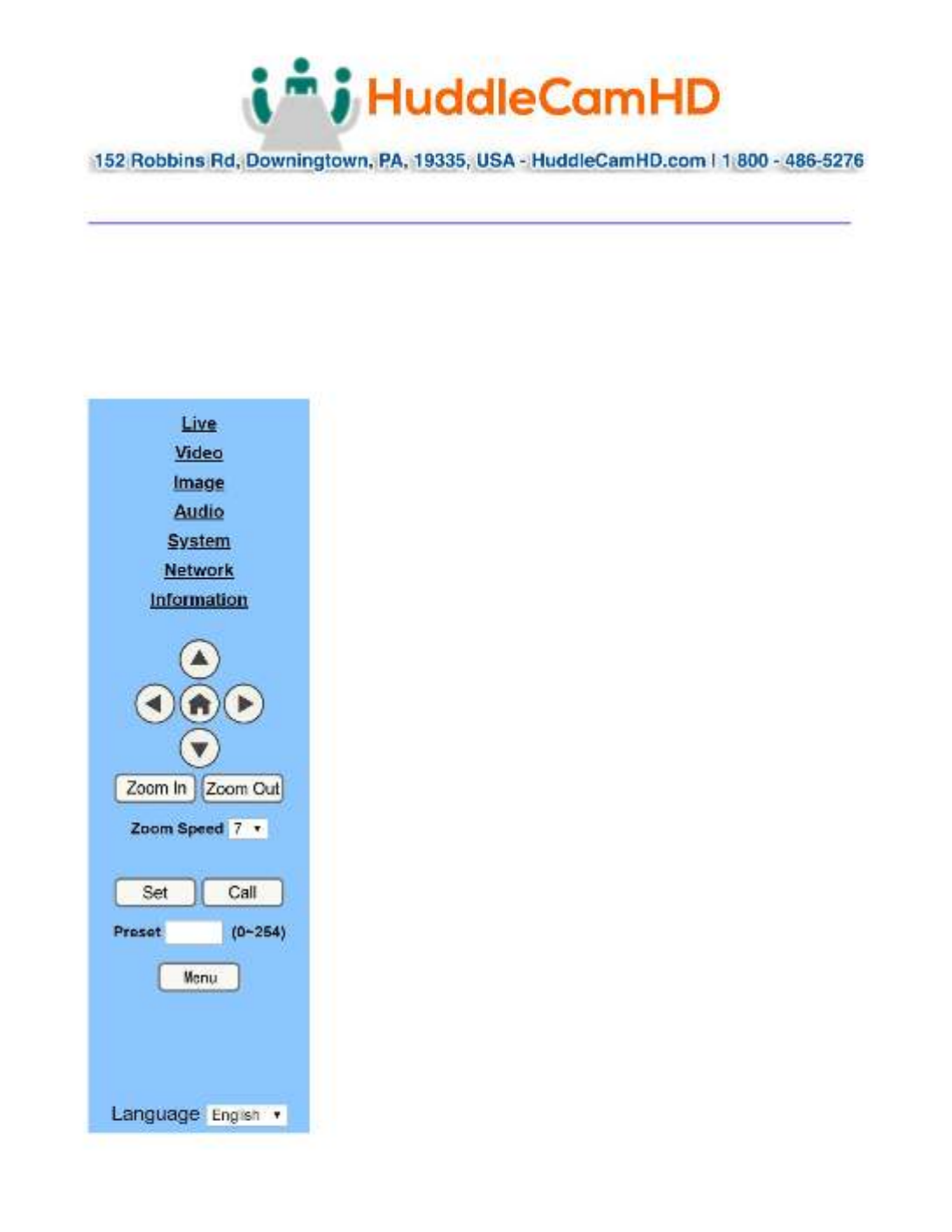

1. Homepage introduction
1.1 Home page
1) The left pane features PTZ, Preset, Focus, and OSD Control Options
2) The right pane features configuration options and a live preview (IE only)
1.2 Menu & Control
1. Configuration Options: Live Preview, Video Parameters,
Image Settings, Audio Settings, Network Configuration and
Camera Info.
2. OSD Control: The MENU button will open / close the OSD.
Up, Down, Left and Right arrows allow for navigation and
changing options.
3. Pan / Tilt Control: The Up, Down, Left and Right arrows
allow electronic pan and tilt when EPTZ has been enabled.
(Electronic Pan/Tilt is available once you have
electronically zoomed in.)
4. Zoom Control: Zoom in and zoom out buttons allow for
adjustment wide or tele when EPTZ is enabled from the
OSD.
5. Speed Control: Zoom speeds can be set at any rate
between 0 – 7.
6. PTZ Preset: After manually setting up a shot that you
would like to return to later, you can save presets for quick
recall of these positions. Type a number between 0 and 254
into the Preset box. Click the “Set” button to save the
current location with that preset number. Click the “Call”
button to cause the camera to return to that position. This
enables smooth, quick and convenient control without the
need to manually drive the camera.
7. Language Selection: Click either “Russian”, “Chinese” or
“English” to change the language of the menu.

Page of 17 32
Ver 1.0 2/20

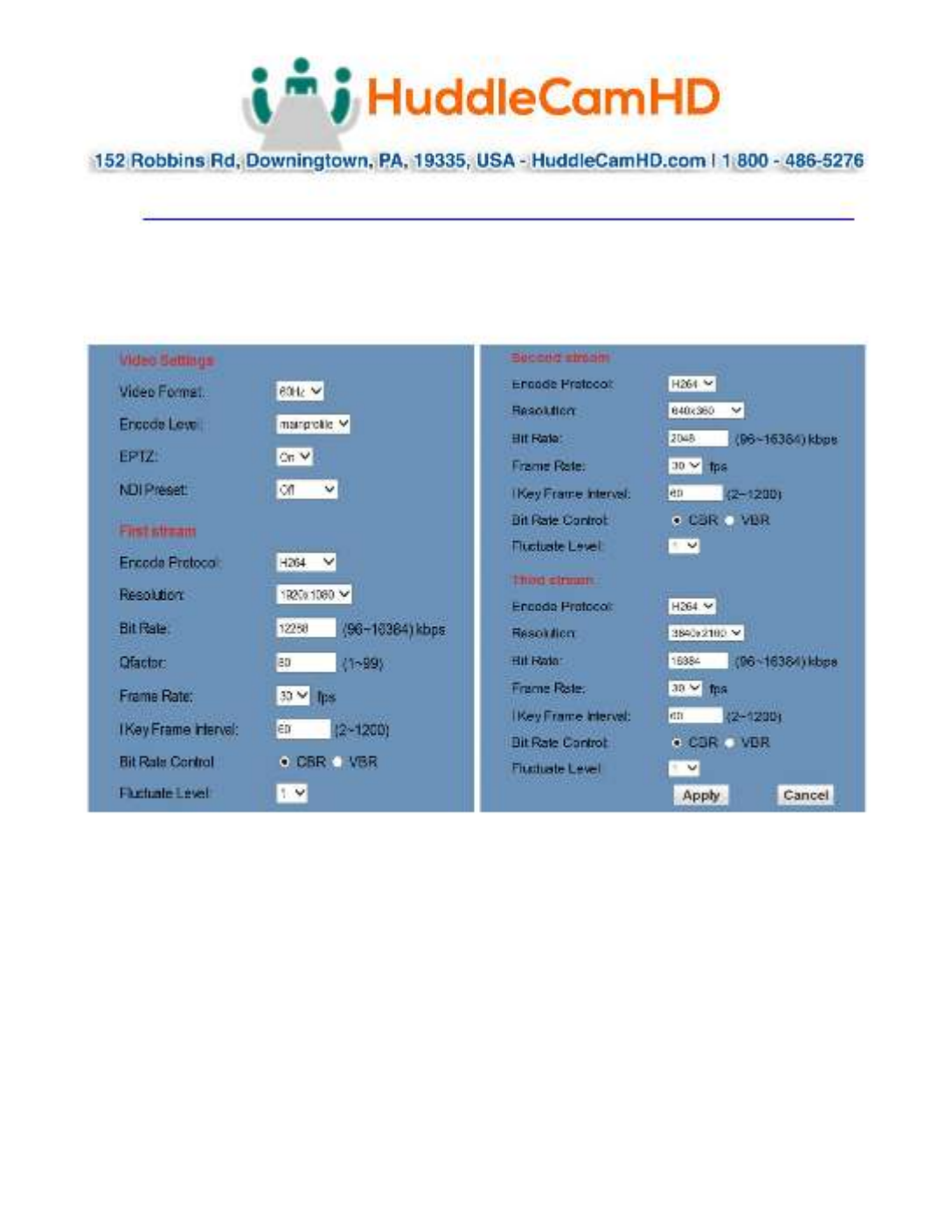

Video……………………………………………………………………………………………………………
Click “Video” - the streaming parameters may now be set in the right-side area.
The camera can send 3 simultaneous streams.
For example, you can send one stream in HD and one in SD so that PCs may have
their own stream resolution depending on bandwidth concerns or usage..
1. Video Settings
Video Format:
Supports 50Hz(PAL) and 60Hz(NTSC) and OSD formats.
Note: 60Hz is often used for North America
Video Coding:
H.264 (High Profile, Main Profile, Base Line)
*Note may override / limit other settings
H.265 (High Profile, Main Profile, Base Line)
*Note may override / limit other settings
MJPEG (Single Stream Output only)
*Note may override / limit other settings
EPTZ:
Electronic Pan/Tilt/Zoom. Toggle on & off
Note: When EPTZ is on, high res stream is to stream 3 for NDI® compatibility

Page of 18 32
Ver 1.0 2/20
2. Streams (1 – 3)
NDI® Modes:
Users can select from pre-determined high-quality IP stream settings for use
with NDI®
“NDI Ultra” will provide a 2160@30 fps NDI® feed
“NDI Medium” will provide a 1080@30 NDI® feed
“NDI Low” will provide a 720@30 NDI® feed
NDI modes set the NDI® preview mode a 360@30 NDIat ® feed
Resolution:
The first stream allows for the following output resolutions:
1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 resolutions
The second stream allows for the following output resolutions:
3840x2160@15, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x360,
480x270, 320x240, 320x180 resolutions.
The third stream allows for the following output resolutions:
1024x576, 960x540, 720x480, 720x408, 640x360, 480x270, 320x240, 320x180
resolutions.
Bit Rate:
Users can assign the bit rate of the stream
(Bitrate range is from 32 kbps ~ 102400 kbps noting that bandwidth is shared
by all three streams).
Maximum Frame Rate:
Users can specify the maximum frame rate (fps or frames per second).
Higher frame rates provide smoother video but require higher bit rate
settings..
Output is limited to a maximum of 30 fps.
I Key Frame Interval:
This setting defines how many predicted frames will be used for each actual
frame provided (from 1-1200). Shorter intervals increase video quality at the
cost of requiring higher bit rates in order to look good, it is best consult the to
recommended settings for your ingestion system.
Bit Rate Control Method:
Constant Bit Rate (CBR): The video encoder will encode at a constant rate as
set in bitrate setting.
Variable Bit Rate (VBR): The video encoder will encode at a variable rate, with
a maximum as set in the bit rate setting.
VBR should only be used when working against bandwidth constraints.
Fluctuation Level:
This setting affects how aggressive variable bit rate adjustments will be
(Fluctuate Range is from 1 6).~
Spikes that are too large may affect video quality.
Low levels will not save on as much bandwidth

Page of 19 32
Ver 1.0 2/20

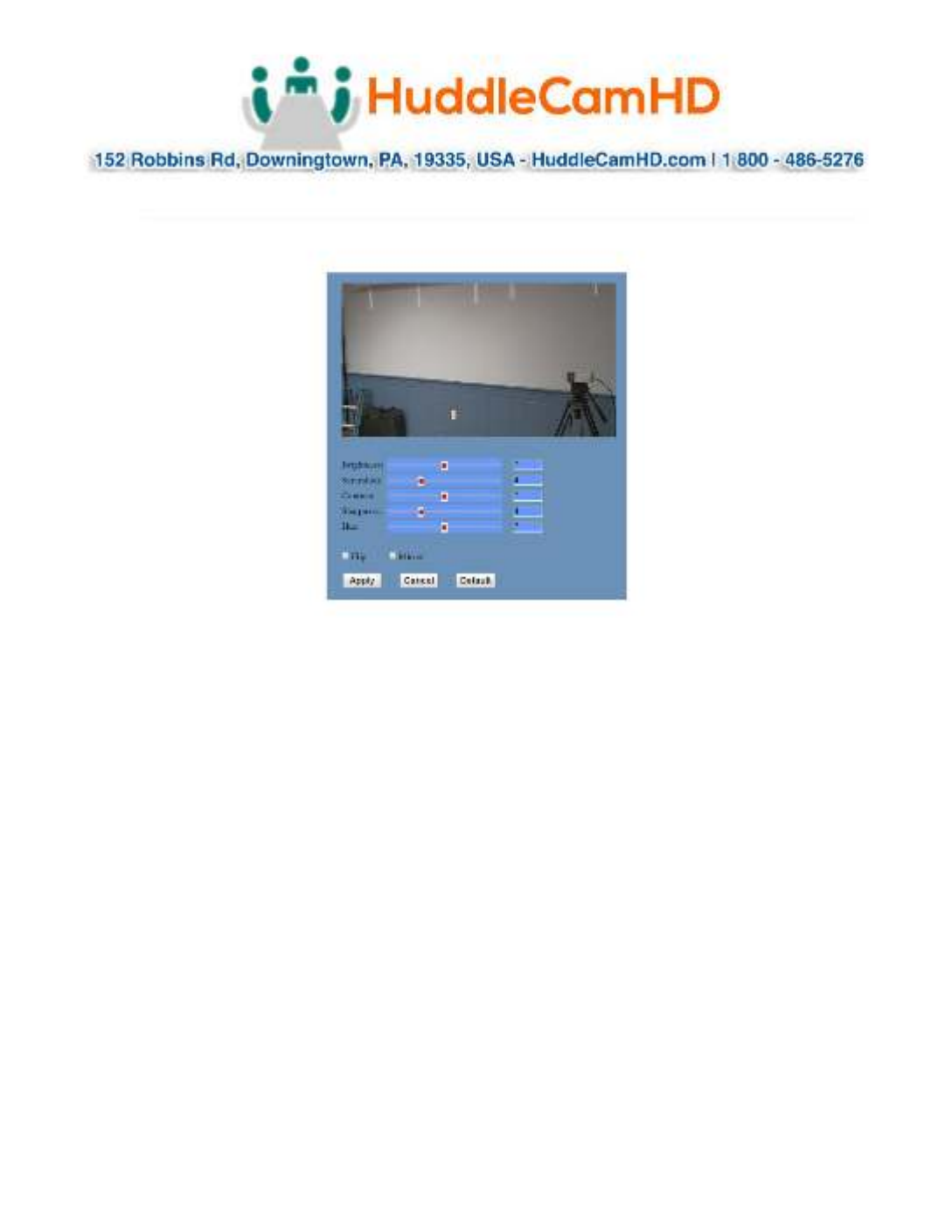

Image……………………………………………………………………………………………………………
Click “ ” - the image parameters may now be set in the right side area.Image
Brightness:
Image brightness can be adjusted from 0-14 using the presented slider control.
The box on the right shows the corresponding numerical value. (Default is 7)
Saturation:
Color Saturation can be adjusted from 0-14 using the presented slider control.
The box on the right shows the corresponding numerical value. (Default is 4)
Contrast:
Contrast can be adjusted from 0-14 using the presented slider control.
The box on the right shows the corresponding numerical value. (Default is )10
Sharpness:
Sharpness can be adjusted from 0-15 using the presented slider control.
The box on the right shows the corresponding numerical value. (Default is 3)
Hue:
Hue can be adjusted from 0-14 using the presented slider control.
The box on the right shows the corresponding numerical value. (Default is 7)
Flip & Mirror:
Check the “Flip” box to invert the image vertically for a ceiling mount.
Check the “Mirror” box to reverse the image horizontally. (Default is unchecked)
Apply, Cancel and Default Buttons:
After adjusting the parameters, press the “Apply” button to save settings.
Press the “Cancel” button to cancel any adjustment of the parameters.
Press the “Default” button to return to the default values.

Page of 20 32
Ver 1.0 2/20

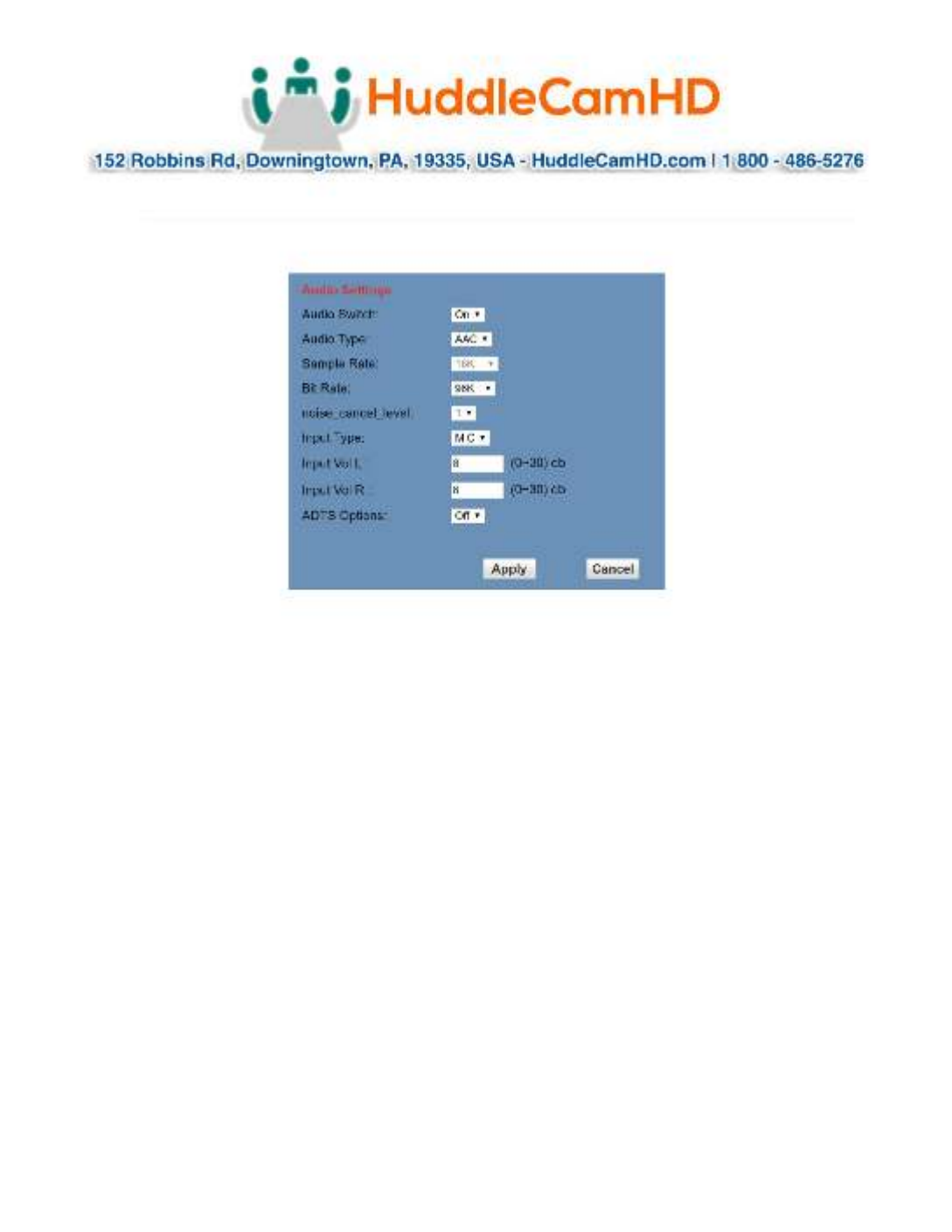

Audio……………………………………………………………………………………………………………
Click “ ” - the audio parameters may now be set in the right side area.Audio
Audio Switch:
Enable or Disable audio embedding
Audio Encoding:
AAC
Audio Sample Rate Options:
16K, 44.1K, or 48K
Audio Bit Rate Options:
96K, 128K, or 256K
Noise_Cancel_Level:
0, 1, 2, or 3
Input Type / Parameters:
3.5mm Line Input requiring
A stereo un-balanced line level input
(No amplification or power is supplied from the cameras 3.5mm port)
Input Vol L Settings:
Adjusts the volume of the left audio channel (-97 to +30dB)
Input Vol R Settings:
Adjusts the volume of the right audio channel (-97 to +30dB)
ADTS Options:
Audio Data Transport Stream – Can be set to ‘On’ or ‘Off’ (Use with MJPEG
only)
Apply and Cancel Buttons:
After modifying the parameters, press the “ ” button to save.Apply
Press the “ ” button to discard any changes not applied yet.Cancel

Page of 21 32
Ver 1.0 2/20
System…………………………………………………………………………………………………………
Click “ ” - the system parameters may now be set in the right side area. System

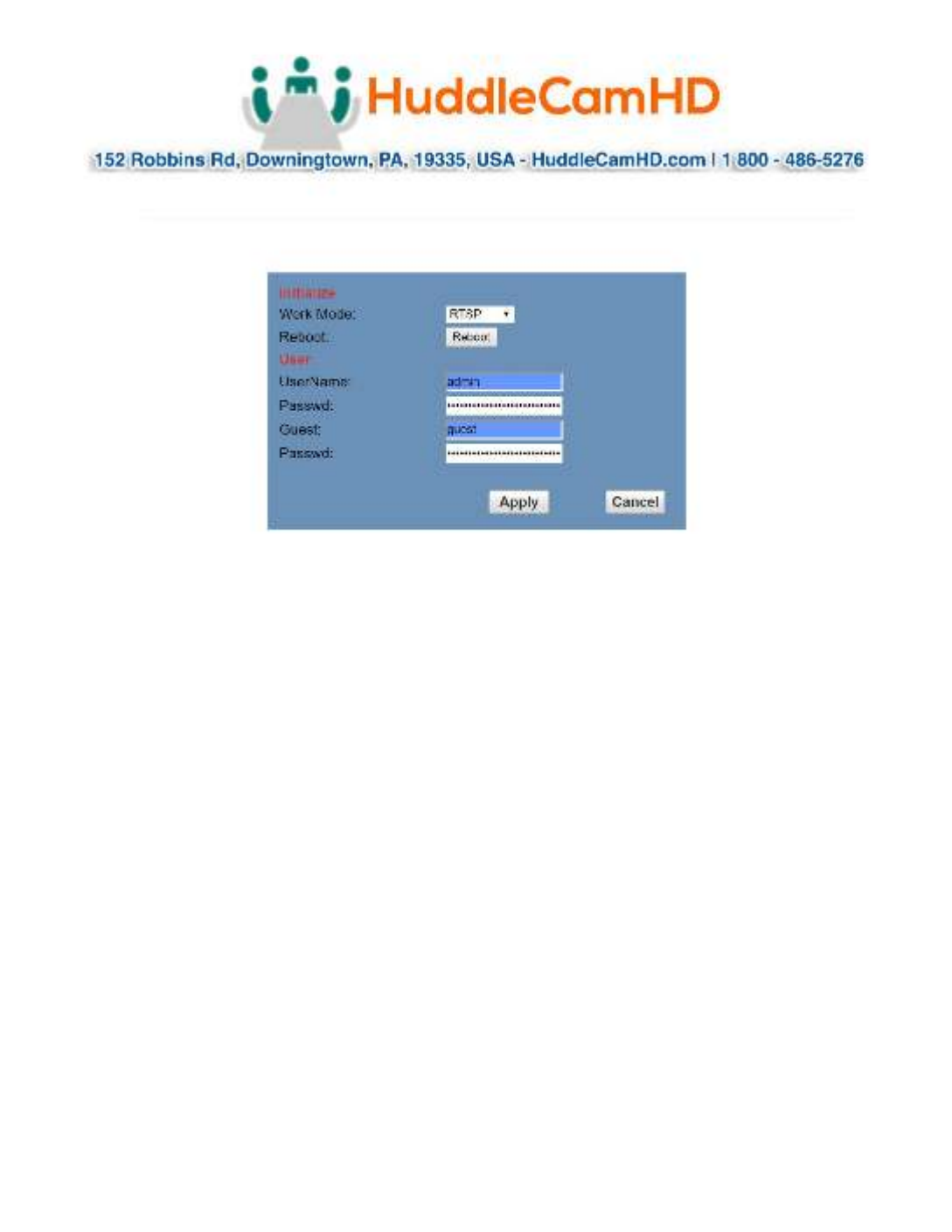

1. Initialize
Work Mode:
Legacy feature to support Third-Party solutions and has no standard use.
Reboot Button:
The “ ” button will initiate a system restart. This is required after Reboot
changing most settings.
2. User
User and Password:
Users can modify the Admin / Guest passwords (letters and numbers only).
The default credentials are:
User: and Password: admin admin
User: and Password: guest guest
Apply and Cancel Buttons:
After modifying the parameters, press the “ ” button to save.Apply
Press the “ ” button to leave settings unchanged. Cancel

Page of 22 32
Ver 1.0 2/20
Network………………………………………………………………………………………………………
Click “ ” - the network parameters may now be set in the right side area.Network

Page of 23 32
Ver 1.0 2/20

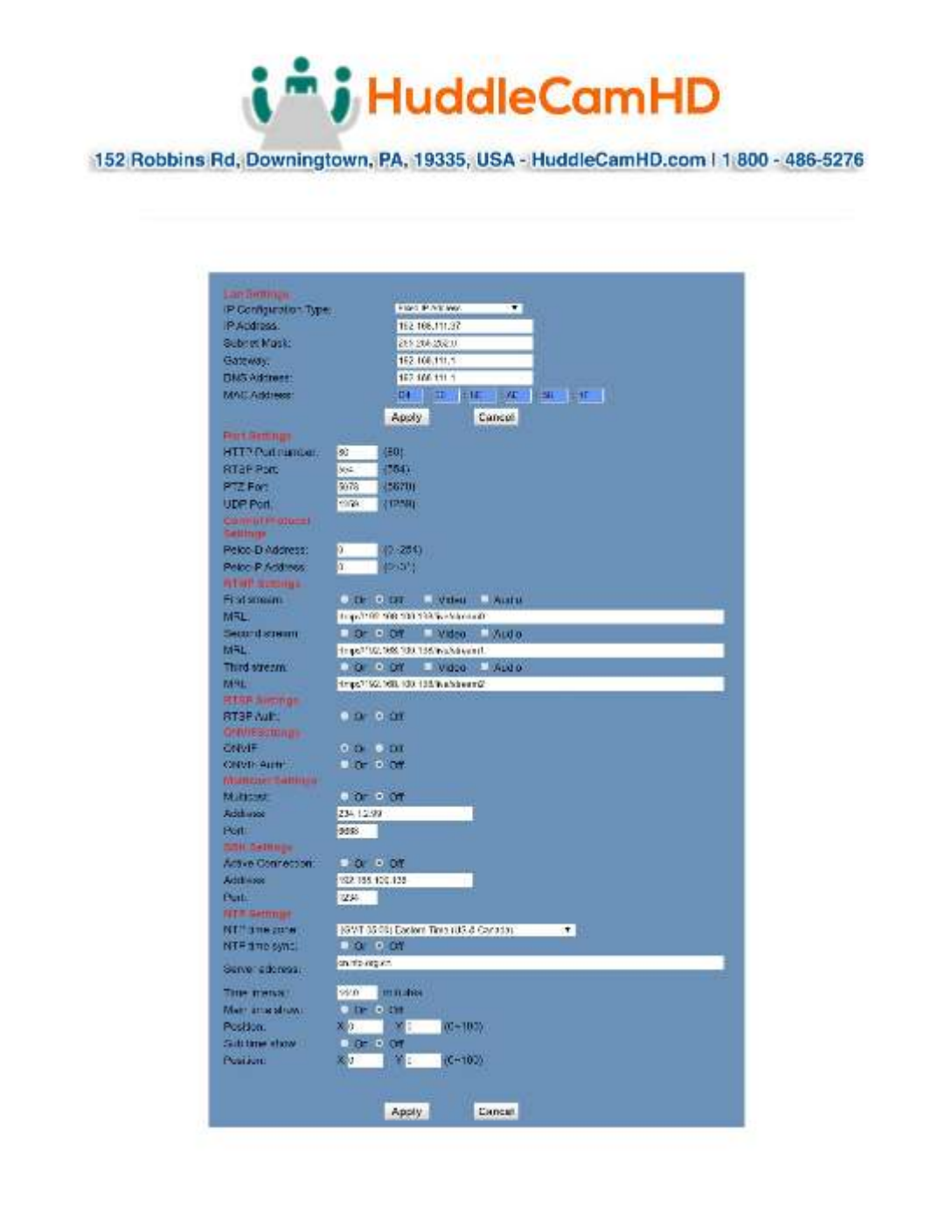

1. LAN Settings:
IP settings for the device can be set here for either Static (fixed) or DHCP (dynamic)
addressing.
The default IP address of the camera is 192.168.100.99.
Please note that after changing the IP settings for the camera, you may not be able
to reconnect until your PC is set for and connected to the same subnet or visible via
proper network routing.
2. Port Settings:
While the IP address identified the device, the camera uses multiple ports for
communication that can be adjusted if necessary.
HTTP Port: This is the port for web applications using the default port of 80.
RTSP Port: The camera supports the RTSP streaming protocol using the default
port of 554.
PTZ Port: Supports camera control via the TCP protocol using the default port
of 5678
UDP Port: Supports camera control via the UDP protocol using the default port
of 1259
3. Control Protocol Settings:
Control IDs / addresses for Pelco-D (0-255) and Pelco-P (0-31) may be set here.
4. RTMP Settings:
The camera provides for up-to three (3) RTMP streams to an RTMP server or servers
providing an appropriate RTMP string to use with the camera’s encoder.
Set 1st, 2nd, and/or 3rd stream to ‘On’ or ‘Off’ as desired.
Check to include video and/or audio as desired.
Enter the address provided from / for the RTMP server in the MRL location
Note: an RTMP streaming server is required for use of RTMP streaming feature.
5. RTSP Authorization:
Enable or disable authorization for accessing the RTSP output stream(s)
6. ONVIF Settings:
Turn ONVIF compatibility ‘On’ / ‘Off’ (for ONVIF compatible streaming and control).
Turn ONVIF authorization ‘On’ / ‘Off’ (username and password for connection).
7. Multicast Settings: (Only use if your network has been configured to support multicast)
Turn Multicast streaming ‘On’ or ‘Off’ (reboot required to commit)
Address and Port Settings: Enter the desired multicast address and port to be used by
the camera on the multicast capable network.
Note: Do not attempt to use Multicast streaming unless your network has been setup
and tested to support multicast e.g. IGMPv3, significant network performance issues
or outages may result otherwise. The public internet does not support multicast
streaming.
8. SDK Settings: (Only enable if you are developing using the SDK)
Address and Port Settings: Enter the desired SDK address and port to be used by the
camera for use with development of software under the SDK.

Page of 24 32
Ver 1.0 2/20
9. NTP Settings:
Network Time Protocol: Enable to synchronize clock between camera & a time server
10. Apply and Cancel Buttons
After modifying the parameters, press the “ ” button to save.Apply
Press the “ ” button to leave settings unchanged.Cancel

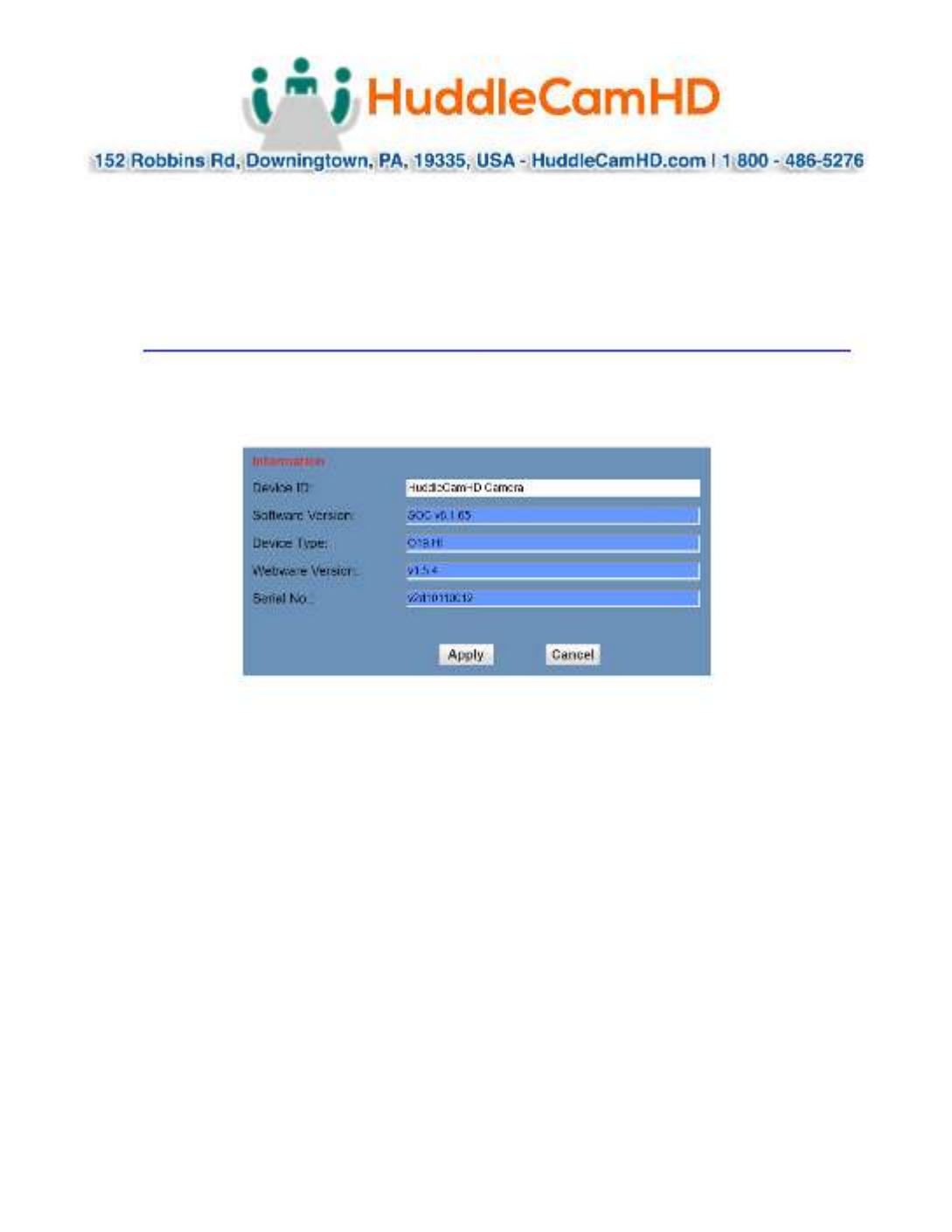

Information…………………………………………………………………………………………………
Click “ ” - shows the current device information, as shown below. Information
You may change the Device ID as required for your application.
(This is utilized by NDI® Software when identifying your camera on the network.)

Page of 25 32
Ver 1.0 2/20
Network Camera Control Protocol……………………………………………………….
Setup camera for IP (First see “Setting up the Camera’s IP” section above)
Control Notes for PTZ Control
The camera currently supports various PTZ control methods including:
The web interface, HTTP-CGI and TCP/UDP protocols
The camera includes an internal TCP server with the default port number of
5678.
When the client and server set up a TCP connection, the client sends
commands to the internal server and the server will then parse and execute
the PTZ commands.
The camera includes an internal UDP server with the default port number of
1259.
When the client and server set up a UDP connection, the client sends
commands to the internal server and the server will then parse and execute
the PTZ commands.
The HuddleCamHD command format based on VISCA / VISCA over IP can be found
online at HuddleCamHD.com/Resources
HTTP CGI Control: The camera’s integrated web server supports HTTP-CGI for control.
Please see command list below for reference.
Control
Function
Command
Variable
Values
Comments
Pan & Tilt
http://[camera ip]/cgi-bin/ptzctrl.cgi?ptzcmd& &[action] [pan speed] [tilt &
speed]
[camera ip]
*Camera’s
current IP
[action]
up
moves camera ‘up’
down
moves camera ‘down’
left
moves camera ‘left’
right
moves camera ‘right’
leftup
moves camera ‘left’ & ‘up’
rightup
moves camera ‘right’ & ‘up’
leftdown
moves camera ‘left &
‘down’
rightdown
moves camera ‘right’ &
‘down’
ptzstop
tells camera to ‘stop’
moving
[pan speed]
1
slowest ‘pan’ speed
…
ranges from 1 - 24
24
fastest ‘pan’ speed
[tilt speed]
1
slowest ‘tilt’ speed
…
ranges from 1 – 20
20
fastest ‘tilt’ speed
Zoom
http://[camera ip]/cgi-bin/ptzctrl.cgi?ptzcmd& &[action] [zoom speed]
[camera ip]
*camera’s
current IP
[action]
zoomin
zooms camera in

Page of 26 32
Ver 1.0 2/20
zoomout
zooms camera out
zoomstop
stops zooming
[zoom
speed]
1
slowest ‘zoom’ speed
…
ranges from 1 – 7
7
fastest ‘zoom’ speed
Focus
http://[camera ip]/cgi-bin/ptzctrl.cgi?ptzcmd& &[action] [focus speed]
[camera ip]
*camera’s
current IP
[action]
focusin
focuses camera in
focusout
focuses camera out
focusstop
stops focusing
[focus
speed]
1
slowest ‘focus’ speed
…
ranges from 1 – 7
7
fastest ‘focus’ speed
Focus Lock
http://[camera ip]/cgi-bin/param.cgi?ptzcmd&[action]_mfocus
[camera ip]
*camera’s
current IP
[action]
lock
locks focus state
unlock
unlocks focus state
Home
Position
http://[camera ip]/cgi-bin/ptzctrl.cgi?ptzcmd&home
[camera ip]
*cameras
current IP
Preset
http://[camera ip]/cgi-bin/ptzctrl.cgi?ptzcmd& &[action] [position number]
[camera ip]
*cameras
current IP
[action]
posset
position ‘set’
poscall
position ‘call’
[position
number]
0
beginning of range 1
…
range 1 from 0-89
89
end of range 1
100
beginning of range 2
…
range 2 from 100-254
254
end of range 2
Direct
Position
Recall
http://[camera ip]/cgi-bin/ptzctrl.cgi?ptzcmd& &[mode] [pan speed] [tilt &
speed] [pan position] [tilt position]& &
[camera ip]
*cameras
current IP
[mode]
abs
absolute positioning
rel
relative positioning
[pan
speed]
1
slowest ‘pan’ speed
…
ranges from 1 - 24
24
fastest ‘pan’ speed
[tilt speed]
1
slowest ‘tilt’ speed
…
ranges from 1 - 20
20
fastest ‘tilt’ speed
[pan
position]
0000 or FFFF
home position
0001
first step ‘pan’ right
…
range from 0000 - 0990 (HEX)
0990
last step ‘pan’ right
FFFE
first step ‘pan’ left
…
range from FFFF - F670 (HEX)
F670
last step ‘pan’ left
[tilt
position]
0000 or FFFF
home position
0001
first step ‘tilt’ up
…
Range from 0001 - 0510 (HEX)
0510
last step ‘tilt’ down
FFFE
first step tilt down
…
range from FFFF - FE51 (HEX)
FE51
last step tilt down
Direct
Zoom
Recall
http://[camera ip]/cgi-bin/ptzctrl.cgi?ptzcmd&zoomto&[zoom
speed] [zoom position]&
[camera ip]
*cameras
current IP
[zoom
speed]
0
slowest ‘zoom’ speed
…
range from 0 – 7
7
fastest zoom speed
[zoom
position]
0000
full wide
…
range from 0000 - 4000 (HEX)
4000
full tele

Page of 27 32
Ver 1.0 2/20
Navigation
Function
Command
Variable
Values
Comments
OSD Access
http://[camera ip]/cgi-bin/param.cgi?navigate_mode&[mode]
[camera ip]
*cameras
current IP
[mode]
OSD
calls OSD Menu
PTZ
P/T/Z Control Mode
OSD Menu
Navigation
http://[camera ip]/cgi-bin/ptzctrl.cgi?ptzcmd&[action]
[camera ip]
*cameras
current IP
[action]
up
moves menu ‘up’
down
moves menu ‘down’
enter
selects an OSD option
return
returns to previous menu
Adjustments
Function
Command
Variable
Values
Comments
Settings
http://[camera ip]/cgi-bin/param.cgi?post_image_value& &[mode] [level]
[camera ip]
*cameras
current IP
[mode]
bright
adjust brightness
saturation
adjust saturation
contrast
adjust contrast
sharpness
adjust sharpness
hue
adjust hue
[level]
0
beginning of range
…
ranges from 0 – 14
14
end of range
Orientation
http://[camera ip]/cgi-bin/param.cgi?post_image_value& &[mode] [state]
[camera ip]
*cameras
current IP
[mode]
Flip
flipped image adjustments
Mirror
mirror image adjustments
[state]
1
flip / mirror
0
default
Default
Settings
http://[camera ip]/cgi-bin/param.cgi?get_image_default_conf
[camera ip]
*cameras
current IP
defaults all image settings
above
JPEG
Snapshot
Function
Command
Variable
Values
Comments
Take
Snapshot
http://[camera ip]/snapshot.jpg
[camera ip]
*cameras
current IP
Change
Resolution
http://[camera ip]/cgi-
bin/snapshot.cgi?post_snapshot_conf&resolution=[size]
[camera ip]
*cameras
current IP
[size]
1920x1080
Sets JPEG resolution to
1920x1080
960x600
Sets JPEG resolution to
960x600
480x300
Sets JPEG resolution to
480x300
Photobooth
Pictures
Function
Command
Variable
Values
Comments
Take
Snapshot
http://[camera ip]/cgi-bin/booth.cgi?0&4& &photo&0[delay]
[camera ip]
*cameras
current IP
[delay]
1
shortest delay
…
delay in seconds 1 – 9
9
longest delay
Get
Snapshot
http://[camera ip] [num]/photo .jpg
[num]
1
photo 1
…
photos 1 – 4
4
photo 4
Produkspesifikasjoner
Merke: | HuddleCamHD |
Kategori: | Videokonferansesystem |
Modell: | HC-EPTZ |
Trenger du hjelp?
Hvis du trenger hjelp med HuddleCamHD HC-EPTZ still et spørsmål nedenfor, og andre brukere vil svare deg
Videokonferansesystem HuddleCamHD Manualer
12 Januar 2025
12 Januar 2025
12 Januar 2025
11 Januar 2025
11 Januar 2025
11 Januar 2025
11 Januar 2025
10 Januar 2025
10 Januar 2025
10 Januar 2025
Videokonferansesystem Manualer
- Videokonferansesystem Philips
- Videokonferansesystem Extron
- Videokonferansesystem Roland
- Videokonferansesystem Yealink
- Videokonferansesystem Viewsonic
- Videokonferansesystem B-tech
- Videokonferansesystem Plantronics
- Videokonferansesystem Anchor Audio
- Videokonferansesystem Crestron
- Videokonferansesystem Middle Atlantic
- Videokonferansesystem MuxLab
- Videokonferansesystem PureLink
- Videokonferansesystem AVer
- Videokonferansesystem Heckler
- Videokonferansesystem Huddly
- Videokonferansesystem ClearOne
- Videokonferansesystem KanDao
- Videokonferansesystem Ipevo
- Videokonferansesystem PulseAudio
- Videokonferansesystem VFI
- Videokonferansesystem VDO360
Nyeste Videokonferansesystem Manualer
13 August 2025
13 August 2025
7 August 2025
1 April 2025
21 Februar 2025
15 Februar 2025
8 Februar 2025
20 Januar 2025
20 Januar 2025
20 Januar 2025
