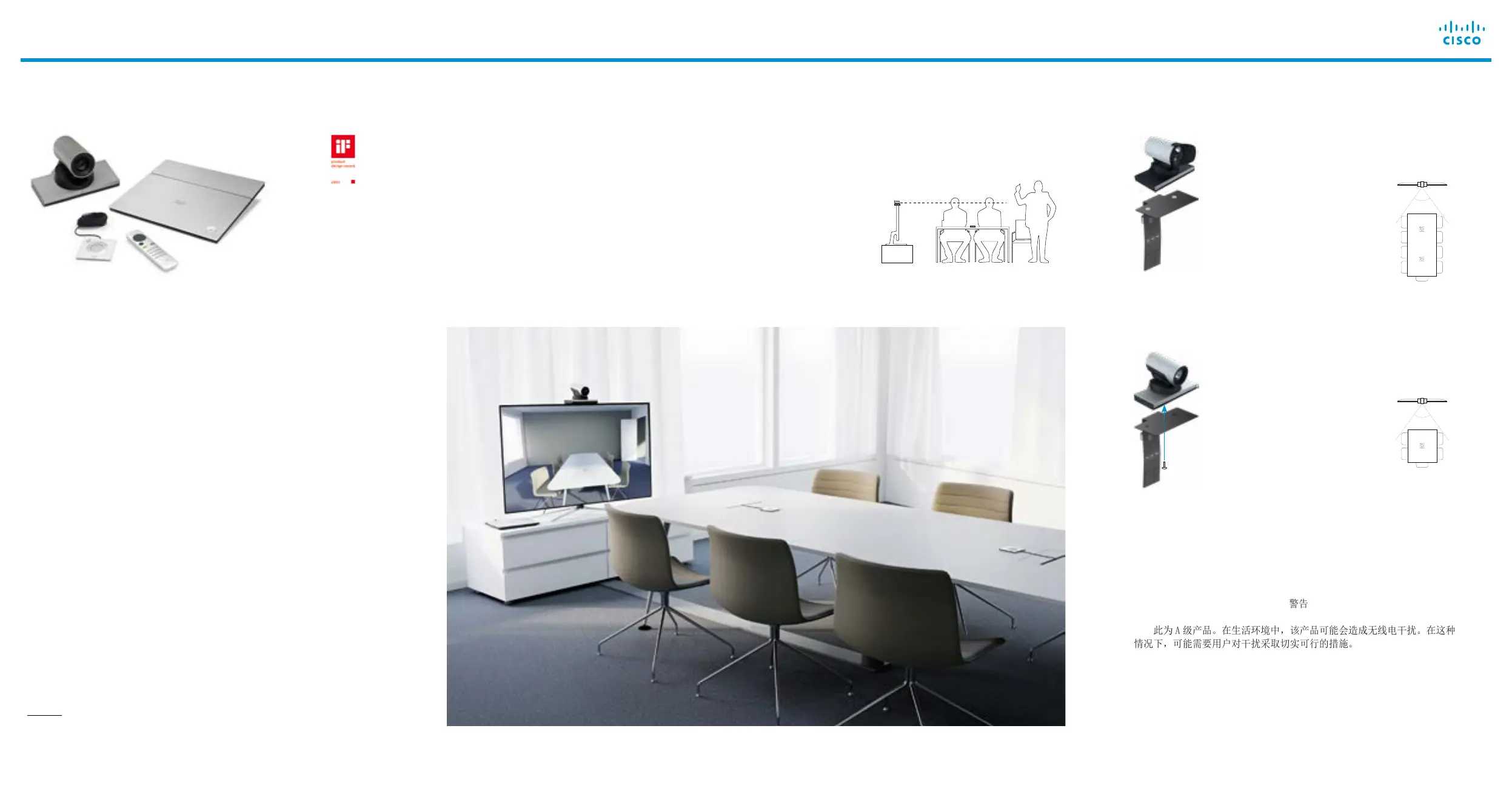

Installation Guide for Cisco TelePresence SX20 Quick Set

SX20 Quick Set components

y SX20 Codec

y Camera options

A: PrecisionHD 1080p 12X

B: Precision 40

y Table Microphone 20

(1 default and 1 optional)

y User interface:

- TRC6 remote control with

two AAA batteries, or

- Touch 10 controller

y HDMI cable for monitor

(1 default)

y Camera cable

y Ethernet cable for LAN

y Presentation cable:

- VGA to DVI-A cable, or

- HDMI to DVI-D cable

y Power supply and

power cable

y Codec wall mounting kit

(optional)

y Camera mounting bracket

(optional)

y Microphone extension cable

(optional)

In addition to the SX20 Quick Set you must provide a monitor or

projector, and a loudspeaker (external or built-in to the monitor) to

complete your video conferencing system.

Documentation

https://collaborationhelp.cisco.com

https://www.cisco.com/go/sx-docs

Visit one of these web sites to find more information about the setup,

management, and use of this product. Also regulatory compliance and

safety information is included. Use the first link if your device is registered

to our cloud service, Cisco Webex; otherwise use the second link.

Option A: PrecisionHD 1080p 12X

Snap on the lens hood to

prevent stray light from

disturbing your video

experience.

You can use the optional

camera bracket to place

the camera on top of the

monitor. Fasten the bracket

to the monitor with Velcro.

The camera snaps to the

magnets on the bracket.

Recommended room setup

The following should be regarded as

guidelines only. Try things out on-site

before fixing any mounting positions.

Explore the Cisco Project Workplace

to find inspiration and guidelines when

preparing your office or meeting room

for video conferencing, https://www.

cisco.com/go/projectworkplace

Camera

Place the camera at eye height to

get the best perceived eye contact.

Typically, this is about 1.2 m (4 ft)

above the floor.

Use the camera self view function

to make sure all participants are

captured by the camera.

Aim for good illumination of a

person’s face to avoid shadows. Also

avoid direct light on the monitor to

prevent reflections.

Microphones

Place the microphone(s) as close to

all meeting participants as possible.

Option B: Precision 40

You can use the optional

camera bracket to place

the camera on top of the

monitor. Fasten the bracket

to the monitor with Velcro.

The camera is fastened to

the bracket with a screw.

Tool: 4 mm Allen Key (not

provided).

Typical room scenario:

Medium to large

meeting room.

70˚

Typical room scenario:

Medium sized

meeting room.

70˚

Camera options

EMC Class A declaration

A 级声明 (A Class product declaration)

本产品为 A 级 ITE，在其使用说明，铭牌等显著位置中已包含如下内容的声明

(We declare here that the subject product is A class ITE product, and the

following statement is clearly marked in the user manual or nameplate):

声明所在位置 (Position of the Declaration):



使用说明 User Manual



铭牌 Nameplate

申请号 (Application No.)：

申请人 (Applicant):

型号 (Model Number)：

签字/盖章 Signature/Stamp:

日期 Date:

警告

此为 A 级产品。在生活环境中，该产品可能会造成无线电干扰。在这种

情况下，可能需要用户对干扰采取切实可行的措施。

WARNING:

This is a class A product. In a domestic environment this

product may cause radio interference in which case the user may be

required to take adequate measures.

WARNING: This is a class A product. In a domestic environment this

product may cause radio interference in which case the user may be

required to take adequate measures.

You may order the product without a camera.

Installation Guide for Cisco TelePresence SX20 Quick Set

Video

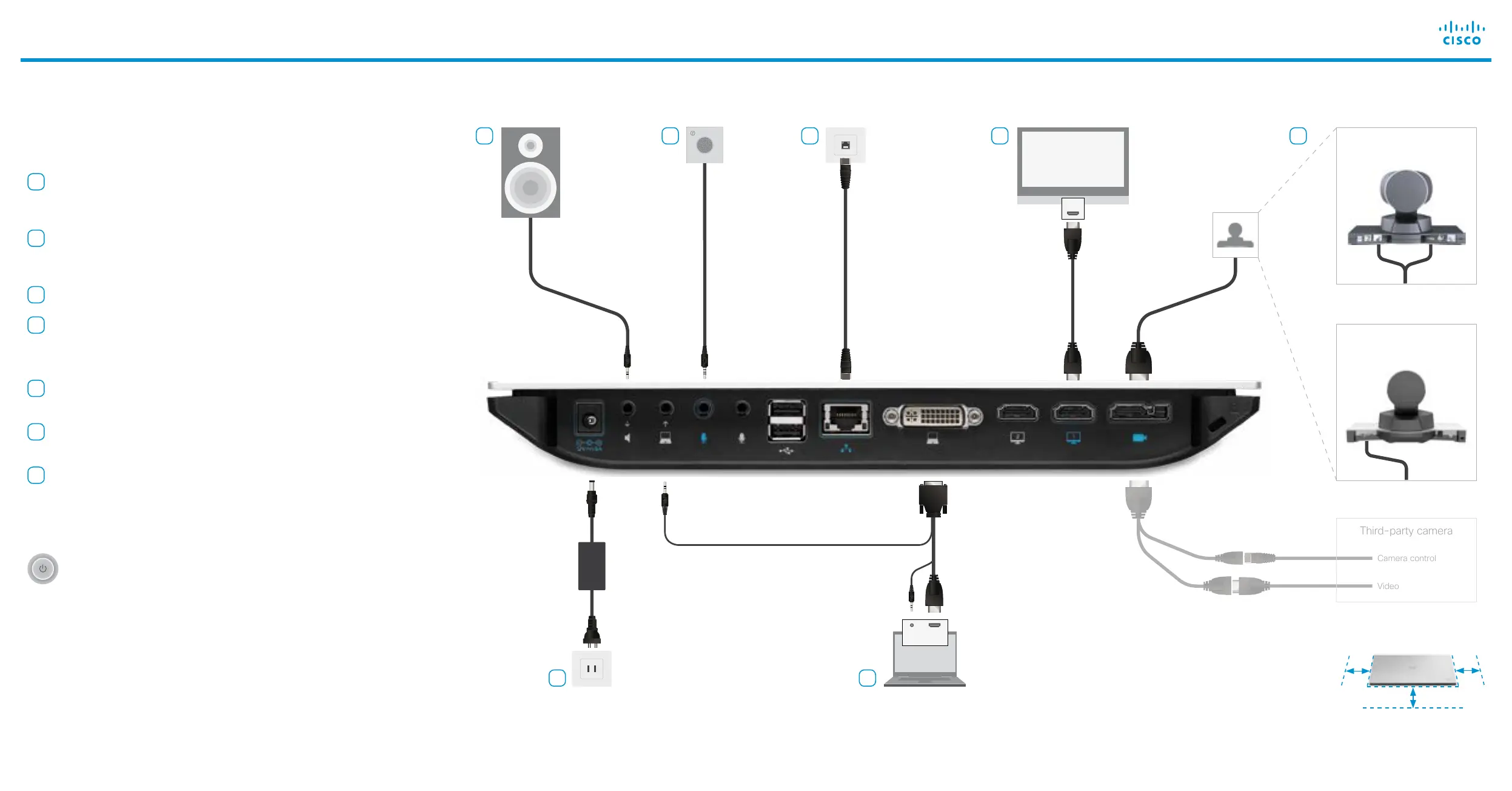

Connecting the cables

Connect all cables as illustrated.

Caution: Make sure all units are switched off when connecting or

disconnecting devices.

If connecting an external loudspeaker, please take care to use an

active speaker (built-in amplifier). Use an ungrounded (floating)

speaker to avoid ground loop noise.

Connect one or two microphones to your codec.

We recommend Cisco Table Microphone 20 or

Cisco TelePresence Ceiling Microphone.

Connect the codec to LAN/Ethernet.

Connect your primary display to the blue colored HDMI socket.

With the dual display option, connect the second display to the

other HDMI output.

Connect your camera (option A or B, or a third-party camera) to

the codec.

Connect a PC (video and audio) to be able to share presentations

(locally, or with remote participants).

Always use the provided power supply:

y FSP FSP060-DIBAN2

HDMI

Camera option A:

PrecisionHD 1080p 12X

Camera option B:

Precision 40

1 4

3 5

Starting to use the system

If the codec is not starting automatically, press the power button

to switch it on. When the button lights steadily the system is

ready for configuration. This may take a few minutes.

Follow the instructions on screen:

y Cisco Webex: To find more information on how to get started, visit

https://collaborationhelp.cisco.com and look for Getting Started

articles for room devices.

y Other services: For further information on set-up and

configuration, download the Getting Started Guide from

https://www.cisco.com/go/sx-docs

Ventilation

Do not block any ventilation openings;

minimum 8 cm / 3.15 in. free space.

HDMI

(or VGA)

Mini-

jack

Third-party camera

Camera control

Produkspesifikasjoner

Merke:	Cisco
Kategori:	Videokonferansesystem
Modell:	TelePresence SX20
Vekt:	1400 g
Bredde:	300 mm
Dybde:	180 mm
Høyde:	34 mm
Antall USB 2.0-porter:	2
Antall HDMI-porter:	1
Digital zoom:	5 x
Optisk zoom:	2.5 x
AC-inngangsspenning:	100-240 V
AC-inngangsfrekvens:	50 - 60 Hz
Støttede grafikkoppløsninger:	176 x 144,352 x 288,704 x 576,720 x 480,720 x 576,1280 x 768,1280 x 800,1280 x 960,1024 x 576 (WSVGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1360 x 768 (WXGA),1920 x 1080 (HD 1080),640 x 480 (VGA),800 x 600 (SVGA)
Strømforbruk (vanlig bruk):	40 W
Støttede videofunksjoner:	1080p, 576p, 720p
Mikrofon, linje-inn-støpsel:	Ja
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Lagringsrelativ fuktighet:	10 - 90
Line-in:	Ja
Ethernet LAN dataoverføringshastigheter:	10,100,1000 Mbit/s
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 90
Størrelseforhold:	16:9
Stemmekodekser:	G.711, G.722, G.722.1
