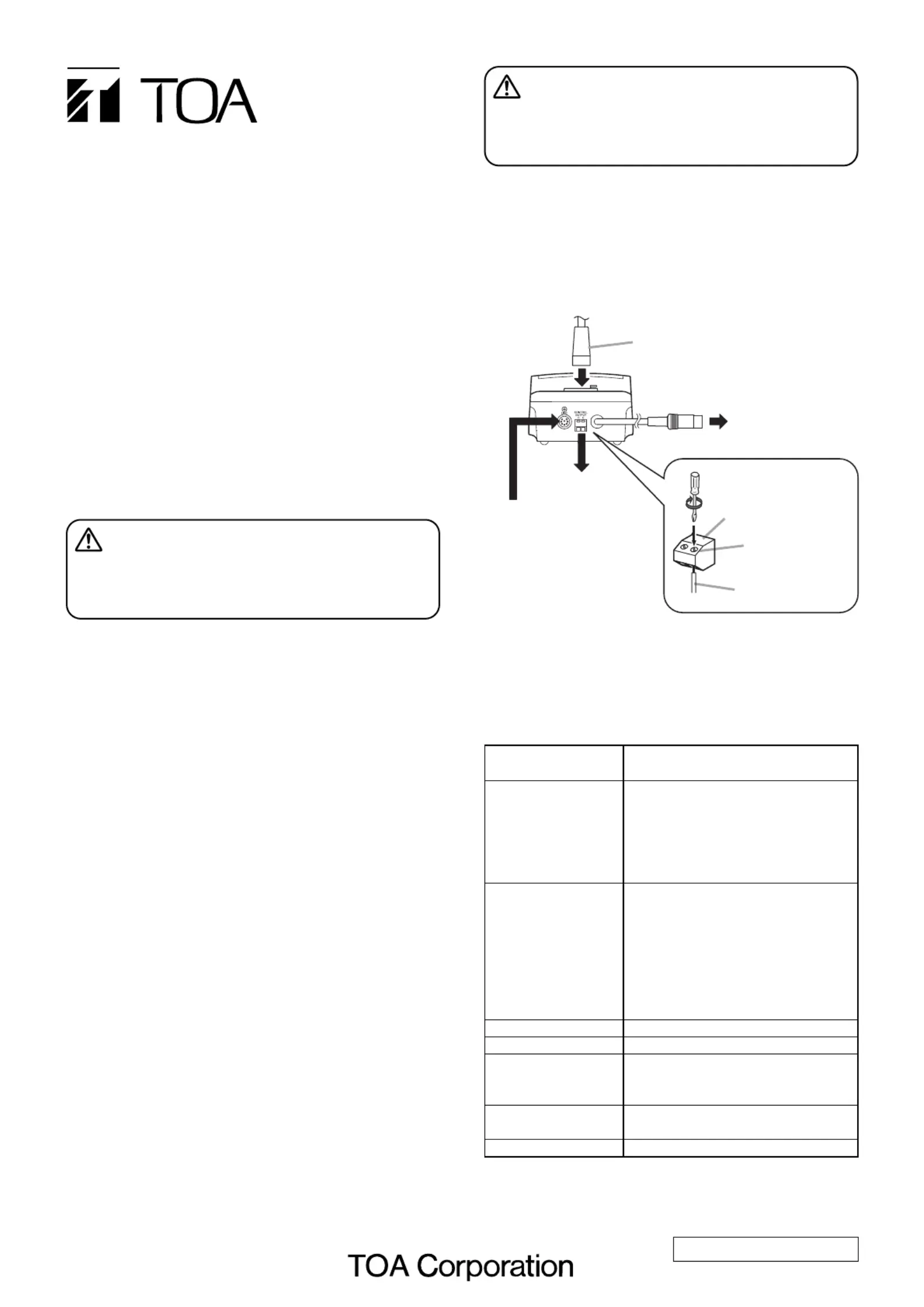

INSTRUCTION
MANUAL
CHAIRMAN UNIT
DELEGATE UNIT
TS-771
TS-772
3. CONNECTION
• Before installation or use, be sure to carefully read all the
instructions in this section for correct and safe operation.
• Be sure to follow all the precautionary instructions in this
section, which contain important warnings and/or cautions
regarding safety.
• After reading, keep this manual handy for future reference.
2. SAFETY PRECAUTIONS
CAUTION
Indicates a potentially hazardous situation which, if
mishandled, could result in moderate or minor personal
injury, and/or property damage.
• Avoid installing the unit in humid or dusty locations, in
locations exposed to the direct sunlight, near the heaters,
or in locations generating sooty smoke or steam as doing
otherwise may result in fire or electric shock.
WARNING
Indicates a potentially hazardous situation which, if
mishandled, could result in death or serious personal
injury.
• Do not expose the unit to rain or an environment where it
may be splashed by water or other liquids, as doing so
may result in fire or electric shock.
• Avoid installing or mounting the unit in unstable locations,
such as on a rickety table or a slanted surface. Doing so
may result in the unit falling down and causing personal
injury and/or property damage.
• Since the unit is designed for in-door use, do not install it
outdoors. If installed outdoors, the aging of parts causes
the unit to fall off, resulting in personal injury. Also, when it
gets wet with rain, there is a danger of electric shock.
• Should the following irregularity be found during use,
immediately switch off the power of the TS-770 Central
unit, disconnect the power supply plug from the AC outlet
and contact your nearest TOA dealer. Make no further
attempt to operate the unit in this condition as this may
cause fire or electric shock.
· If you detect smoke or a strange smell comingfrom the
unit.
· If water or any metallic object gets into the unit
· If the unit falls, or the unit case breaks
· If it is malfunctioning (no tone sounds.)
• To prevent a fire or electric shock, never open nor remove
the unit case as there are high voltage components inside
the unit. Refer all servicing to qualified service personnel.
• Do not place cups, bowls, or other containers of liquid or
metallic objects on top of the unit. If they accidentally spill
into the unit, this may cause a fire or electric shock.
• Do not insert nor drop metallic objects or flammable
materials in the ventilation slots of the unit's cover as this
may result in fire or electric shock.
The TS-771 Chairman unit and TS-772 Delegate unit are
designed for use with the TOA Conference system.
Either the TS-773 Microphone (standard) or the TS-774
Microphone (long) can be selected for the microphone.
1. GENERAL DESCRIPTION
TS-771/772
To an indicator, etc.
To TS-770 Center unit
or
other conference unit
From other conference unit
TS-773 or TS-774 Microphone
Terminal screw
Cable*
Control output terminal
Tighten
* Conductor diameter:
ø0.4 – 1.3 mm
(AWG 16 – 26),
solid or stranded
Note
For details, refer to the instruction manual enclosed with the
TS-770.
4. SPECIFICATIONS
URL: http://www.toa.jp/
Power Source 35 V DC, under 30 mA (supplied from
TS-770 Central unit)
Output Headphone/Recording:
32 (headphone)/10 kΩ Ω, –20 dB*
(recording), unbalanced, mini jack,
equipped with a volume control
Internal Speaker: 130 Ω, 200 mW
Contact output: 24 V DC, Max. 50 mA
Control Speech:
Microphone and speaker on-off
control by Talk key
Priority speech (TS-771 only):
Microphone and speaker on-off
control, other microphone off, and
single-tone chime activation by
Priority key
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity Under 90 % RH (no condensation)
Finish Case: ABS resin, black
Panel: ABS resin, gray metallic, 50 %
glossy, paint
Dimensions 114.5 (w) x 78.4 (h) x 152.9 (d) mm
(4.51" x 3.09" x 6.02")
Weight 560 g (1.23 lb)
* 0 dB = 1 V
Note: The design and specifications are subject to change without
notice for improvement.
