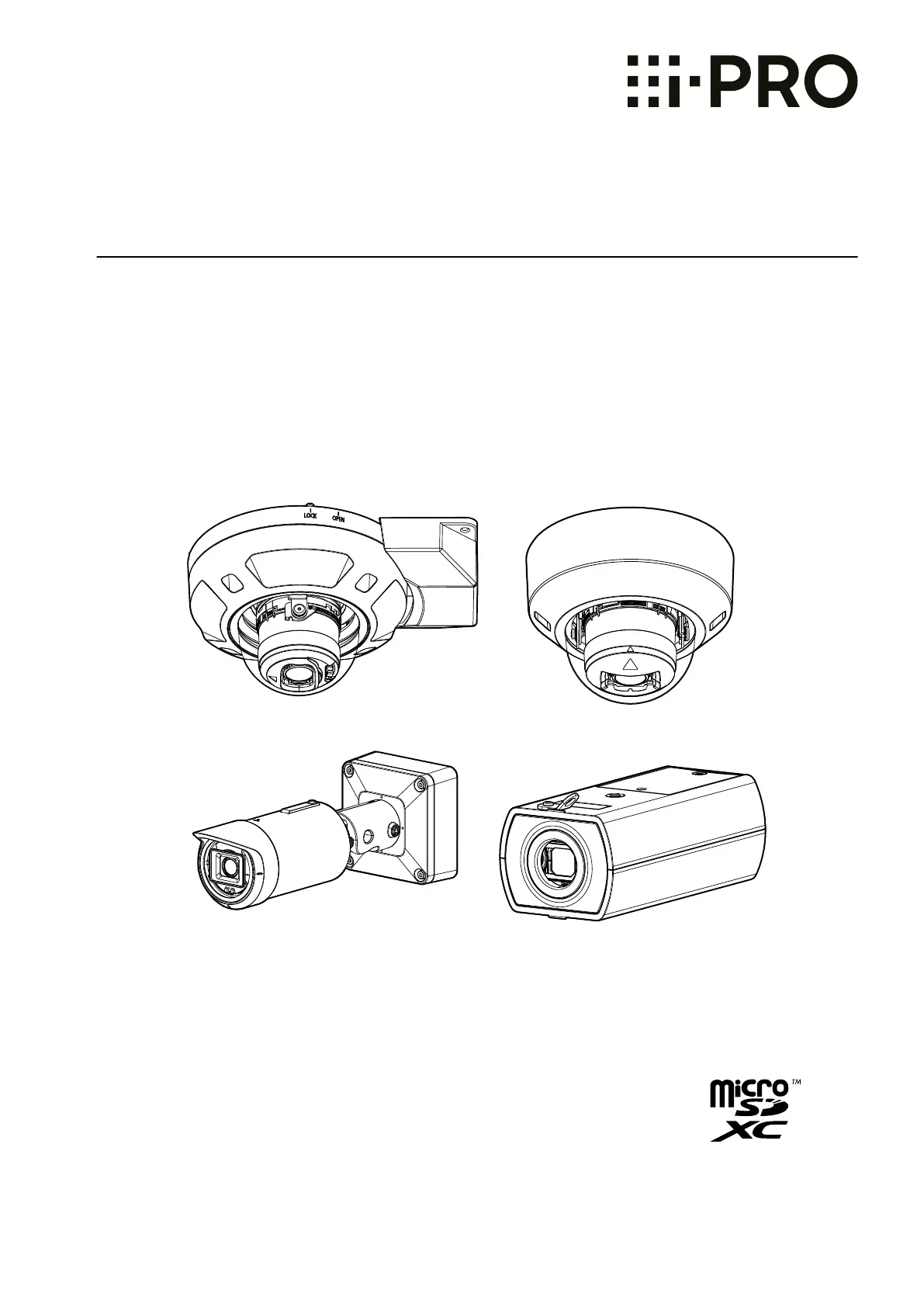

Operating Instructions

Network Camera

Model No. WV-S2500 Series

WV-S2200 Series

WV-S2100 Series

WV-S1500 Series

WV-S1100 Series

WV-S2136LWV-S2536LN

WV-S1536LN

WV-S1136

• This manual covers the models: WV-S2500 Series (WV-S2536LTN,

WV-S2536LN, WV-S2536L), WV-S2200 Series (WV-S2236L), WV-S2100 Series

(WV-S2136L, WV-S2136), WV-S1500 Series (WV-S1536LTN, WV-S1536LN,

WV-S1536L, WV-S1536LNS), and WV-S1100 Series (WV-S1136).

• The model number is abbreviated in some descriptions in this manual.

Preface

About the user manuals

There are 3 sets of operating instructions as follows.

• Operating Instructions (this document): Explains how to perform the settings and how to operate this

camera.

• Basic Information: Provides information about “Precautions for use” , “Parts and functions” and “Detail

specifications”.

• Installation Guide: Provides information about “Precautions”, “Precautions for installation” and the

installation method.

The screens used in these operating instructions show the case of WV-S2136L. Depending on the model used,

the screens shown in the explanations may differ to the actual camera screens.

This document provides how to operate and configure the camera using a web browser but it is recommended

to use the i-PRO Configuration Tool to configure the camera. The i-PRO Configuration Tool can configure up

to 1024 cameras at the same time so that the cameras can be configured efficiently.

For information about the i-PRO configuration tool (iCT), refer to our technical information website <Control

No.: C0133>.

Note

• “<Control No.:C****>” used in this document should be used to search for information on our technical

information website

(https://i-pro.com/global/en/surveillance/training_support/support/technical_information) and will

guide you to the right information.

• The captured screens are used based on the guideline by Microsoft Corporation.

• Operations using Google Chrome is described in this document. For information on the operation

verification of the supported web browsers, refer to our technical information website <Control No.:

C0132>

• Covered by one or more claims of the HEVC patents listed at patentlist.accessadvance.com.

• The default settings of some of the stream-related settings vary as follows depending on the language

setting of the browser selected at the time of administrator registration.

Setting items

Language of the browser

Languages other than

Japanese

Transmission priority VBR Frame rate

Image quality 3 Normal

Stream(1)

-Max bit rate (per client)

6144kbps * 3072kbps *

Stream(1)

-Smart VIQS

On(Low) Off

Stream(2)

-Max bit rate (per client)

4096kbps * 2048kbps*

Stream(3)

-Max bit rate (per client)

1536kbps * 768kbps *

Stream(4)

-Max bit rate (per client)

1536kbps * 768kbps *

2 Operating Instructions

Preface

Stream(1) - Stream(4)

-Refresh interval

2s 1s

About notations

The following notations are used when describing the functions limited for specified models.

The functions without the notations are supported by all models.

Notation

Model

S1136

WV-S1136

S2536L

WV-S2136/ WV-S2136L/

WV-S2236L/ WV-S2536L/

WV-S2536LN/ WV-S2536LTN/

WV-S1536L/ WV-S1536LN/

WV-S1536LTN/ WV-S1536LNS

Abbreviations

The following abbreviations are used in these operating instructions.

Microsoft Windows 10 is described as Windows 10.

Microsoft Windows 8.1 is described as Windows 8.1.

microSDXC/microSDHC/microSD memory card is described as SD card or SD memory card.

Universal Plug and Play is described as UPnP™ or UPnP.

For administrator registration

At the time of first access to the camera (or at the time of initialization), the registration screen will be displayed.

Operating Instructions 3

Preface

Produkspesifikasjoner

Merke:	I-PRO
Kategori:	Sikkerhetskamera
Modell:	WV-S1552L
Vekt:	1700 g
Dybde:	337 mm
Støttede mobile operativsystemer:	Android, iOS
Bluetooth:	Nei
Wi-Fi:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	3072 x 2304 piksler
Diameter:	130 mm
Strømkildetype:	DC, PoE
Antall kameraer:	1
LED-type:	IR
Fokus:	Motorisert
Hodetelefonutganger:	1
Optisk zoom:	9.3 x
Hvitbalanse:	ATW, AWC
Vekt (med stativ):	22000 g
Nettverksstandard:	IEEE 802.3af
Antall brukere:	14 bruker(e)
Strømforbruk:	930 mA
Dag/natt-modus:	Ja
Linsesynsvinkel, horisontal:	106 °
Linsesynsvinkel, vertikal:	77 °
Bildefrekvens:	30 fps
Sensortype:	CMOS
Støttede lydformater:	AAC-LC, G.711, G.726
Produktfarge:	Hvit
Vippevinkelområde:	-100 - 100 °
Bredde (med stativ):	133 mm
Dybde (med stativ):	377 mm
Høyde (med stativ):	133 mm
Minnekortenhet:	SD, SDHC, SDXC
Støttede grafikkoppløsninger:	320 x 180,400 x 300,640 x 360,640 x 480 (VGA),800 x 600 (SVGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2560 x 1440,2560 x 1920,3072 x 1728
Zoomfunksjon:	Ja
Brennviddeområde:	2.9 - 9 mm
Støttede videofunksjoner:	720p, 1080p, 1440p
Mikrofon, linje-inn-støpsel:	Ja
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	-30 - 60 °C
Innebygd kortleser:	Ja
Lukkerhastighet:	1/10000 - 30 s
nattsyn:	Ja
IK-kode:	IK10
Beskyttelsesfunksjoner:	Vandal proof, Water resistant
Formfaktor:	Kule
CCD-sensorstørrelse:	1/2.8 "
Strømforbruk (Power over Ethernet (PoE)):	11.5 W
Modell/Type:	IP-sikkerhetskamera
Kroppsmateriale:	Aluminium
Innebygd harddisk:	Nei
Panoreringsomfang:	-100 - 100 °
Internasjonal beskyttelses (IP)-kode:	IP66
Minimumsbelysning:	0.0044 lx
Ethernet/bredbåndsforbindelse:	Ja
Ethernet-grensesnittype:	Raskt Ethernet
Relativ luftfuktighet under drift (H-H):	10 - 100
Støttede plasseringer/plasseringer som kan benyttes:	Utendørs
Montasjetype:	Tak/Vegg
Totale megapiksler:	5 MP
Maksimal størrelse på hukommelseskort:	256 GB
Videoformat som støttes:	H.264, H.265, M-JPEG
Webbasert administrasjon:	Ja
Privacy maske:	Ja
Avstandsdeteksjon (bred):	46.3 m
Observere aavstand (bred):	18.52 m
Gjenkjenne avstand (bred):	9.26 m
Avstandsidentifikasjon (bred):	4.63 m
Videobasert bevegelsesdeteksjon:	Ja
Baklyskompensasjon (BLC):	Ja
Auto-fokus:	Ja
Alarminngang/-utgang:	Ja
Highlight Compensation (HLC):	Ja
Dynamisk omfang:	134 dB
Nærmeste fokuseringsavstand:	0.3 m
Portrett modus:	Ja
Avstandsdeteksjon (tele):	200.96 m
Observere avstand (tele):	80.38 m
Gjenkjenne avstand (tele):	40.19 m
Avstandsidentifikasjon (tele):	20.1 m
