Side 1/272

Operating Instructions

Network Camera

Model No. WV-S4156

WV-S4556L

WV-S4556LM

WV-S4176

WV-S4576L

WV-S4576LM

-S4156

WV-S4556L

WV-S4176

The model number is abbreviated in some descriptions in this manual.

Preface

About the user manuals

Product documentation is composed of the following documents.

• Installation Guide (accessory): Provides information about “Precautions”, “Precautions for installation” and

the installation method.

• Basic Information (this document): Provides information about “Precautions for use” and “Detail

specifications”.

• Operating Instructions (in the following website): Explains how to perform the settings and how to operate

this camera.

https://i-pro.com/global/en/surveillance/training-support/documentation-database-list

Note

• “<Control No.:C****>” used in this document should be used to search for information on our support

website and will guide you to the right information.

• The captured screens are used based on the guideline by Microsoft Corporation.

• Operations using Internet Explorer 11 is described in this document.

• Covered by one or more claims of the HEVC patents listed at patentlist.accessadvance.com.

• The default settings of some of the stream-related settings vary as follows depending on the language

setting of the browser selected at the time of administrator registration.

Setting items

Language of the browser

Languages other than

Japanese

Transmission priority VBR Frame rate

Image quality 3 Normal

Stream(1)

– Max bit rate (per client)

WV-S4556L/WV-S4556LM/

WV-S4156

Default: 12288kbps *

WV-S4576L/WV-S4576LM

WV-S4176

Default: 16384kbps *

WV-S4556L/WV-S4556LM/

WV-S4156

Default: 6144kbps *

WV-S4576L/WV-S4576LM

WV-S4176

Default: 8192kbps *

Stream(2)

– Max bit rate (per client)

WV-S4556L/WV-S4556LM/

WV-S4156

Default: 4096kbps *

WV-S4576L/WV-S4576LM

WV-S4176

Default: 3072kbps *

WV-S4556L/WV-S4156

Default: 2048kbps *

WV-S4576L/WV-S4576LM

WV-S4176

Default: 1536kbps *

About notations

The following notations are used when describing the functions limited for specified models.

The functions without the notations are supported by all models.

2 Operating Instructions

Preface

Notation Model Notation Model

S4156

WV-S4156

S4556

WV-S4556L/WV-S4556LM

S4176

WV-S4176

S4576

WV-S4576L/ WV-S4576LM

Abbreviations

The following abbreviations are used in these operating instructions.

Microsoft Windows 10 is described as Windows 10.

Microsoft Windows 8.1 is described as Windows 8.1.

Windows Internet Explorer 11 is described as Internet Explorer.

SDXC/SDHC/SD memory card is described as SD card or SD memory card.

Universal Plug and Play is described as UPnP™ or UPnP.

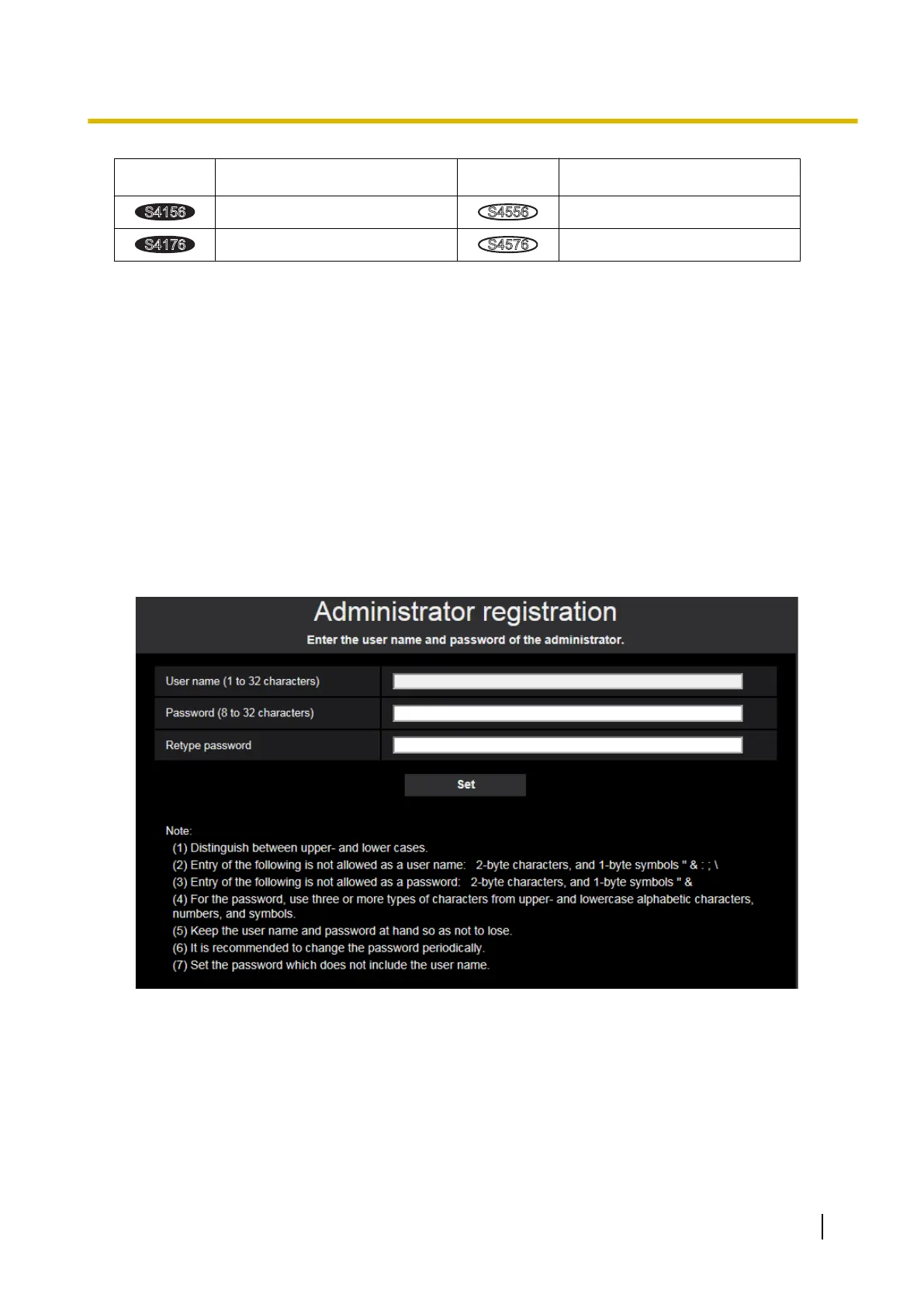

For administrator registration

At the time of first access to the camera (or at the time of initialization), the registration screen will be displayed.

Define the user name and the password for the administrator, and enter them correctly. Hereafter, they can

be used for login.

[User name (1 to 32 characters)]

Enter the user name of the administrator.

Available number of characters: 1 - 32 characters

Unavailable characters: 2-byte characters, and 1-byte symbols " & : ; \

[Password (8 to 32 characters)]/[Retype password]

Enter the administrator password.

Available number of characters: 8 - 32 characters

Operating Instructions 3

Preface

Produkspesifikasjoner

Merke:	I-PRO
Kategori:	Sikkerhetskamera
Modell:	WV-S4576LMA
Vekt:	880 g
Bredde:	154 mm
Dybde:	60.3 mm
Bluetooth:	Nei
Wi-Fi:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	- piksler
Videokomprimeringsformater:	H.264, H.265
Strømkildetype:	DC
LED-type:	IR
Sensortype:	CMOS
Minimum belysning (panoramakamera):	0.3 lx
Støttede lydformater:	AAC-LC, G.711, G.726
Produktfarge:	Hvit
Minnekortenhet:	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Zoomfunksjon:	Ja
Brennviddeområde:	1.4 mm
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Lukkerhastighet:	1/10000s s
nattsyn:	Ja
IK-kode:	IK10
Beskyttelsesfunksjoner:	Dust resistant, Water resistant
CCD-sensorstørrelse:	1/2 "
Internasjonal beskyttelses (IP)-kode:	IP66
Horisontalt synsfelt (termisk modul):	183 °
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 100
Støttede plasseringer/plasseringer som kan benyttes:	Utendørs
Montasjetype:	Tak
Totale megapiksler:	12 MP
Normal fokuseringsrekkevidde:	0.5 m
Avstandsdeteksjon (bred):	29.9 m
Observere aavstand (bred):	12 m
Gjenkjenne avstand (bred):	6 m
Avstandsidentifikasjon (bred):	3 m
Videobasert bevegelsesdeteksjon:	Ja
Dynamisk omfang:	84 dB
Avstandsdeteksjon (tele):	56.1 m
Observere avstand (tele):	20.6 m
Gjenkjenne avstand (tele):	8.4 m
Avstandsidentifikasjon (tele):	0.3 m
Vertikalt synsfelt (termisk modul):	183 °
