Operating Instructions

Network Camera

Model No. WV-S15000 Series

WV-S22000 Series

WV-S25000 Series

WV-S22700-V2L

WV-S15700-V2LN

WV-S25700-V2LN

• This manual covers the models: WV-S25000 Series (WV-S25500-V3LN,

WV-S25700-V2LN, WV-S25500-F6L, WV-S25500-F3L), WV-S22000 Series

(WV-S22500-V3L, WV-S22700-V2L, WV-S22500-F6L, WV-S22500-F3L),

WV-S15000 Series (WV-S15500-V3LN, WV-S15700-V2LN, WV-S15500-F6L,

WV-S15500-F3L).

• The model number is abbreviated in some descriptions in this manual.

Preface

About the user manuals

There are 3 sets of operating instructions as follows.

• Operating Instructions (this document): Explains how to perform the settings and how to operate this

camera.

• Basic Information: Provides information about “Precautions for use” , “Parts and functions” and “Detail

specifications”.

• Installation Guide, Installation procedure leaflet: Provides information about “Precautions”, “Precautions

for installation” and the installation method.

The screens used in these operating instructions show the case of WV-S15500-V3L. Depending on the model

used, the screens shown in the explanations may differ to the actual camera screens.

This document provides how to operate and configure the camera using a web browser but it is recommended

to use the i-PRO Configuration Tool to configure the camera. The i-PRO Configuration Tool can configure up

to 1024 cameras at the same time so that the cameras can be configured efficiently.

For information about the i-PRO configuration tool (iCT), refer to our technical information website <Control

No.: C0133>.

Note

• “<Control No.:C****>” used in this document should be used to search for information on our technical

information website

(https://i-pro.com/global/en/surveillance/training_support/support/technical_information) and will

guide you to the right information.

• The captured screens are used based on the guideline by Microsoft Corporation.

• Operations using Google Chrome is described in this document. For information on the operation

verification of the supported web browsers, refer to our technical information website <Control No.:

C0132>

• The default settings of some of the stream-related settings vary as follows depending on the language

setting of the browser selected at the time of administrator registration.

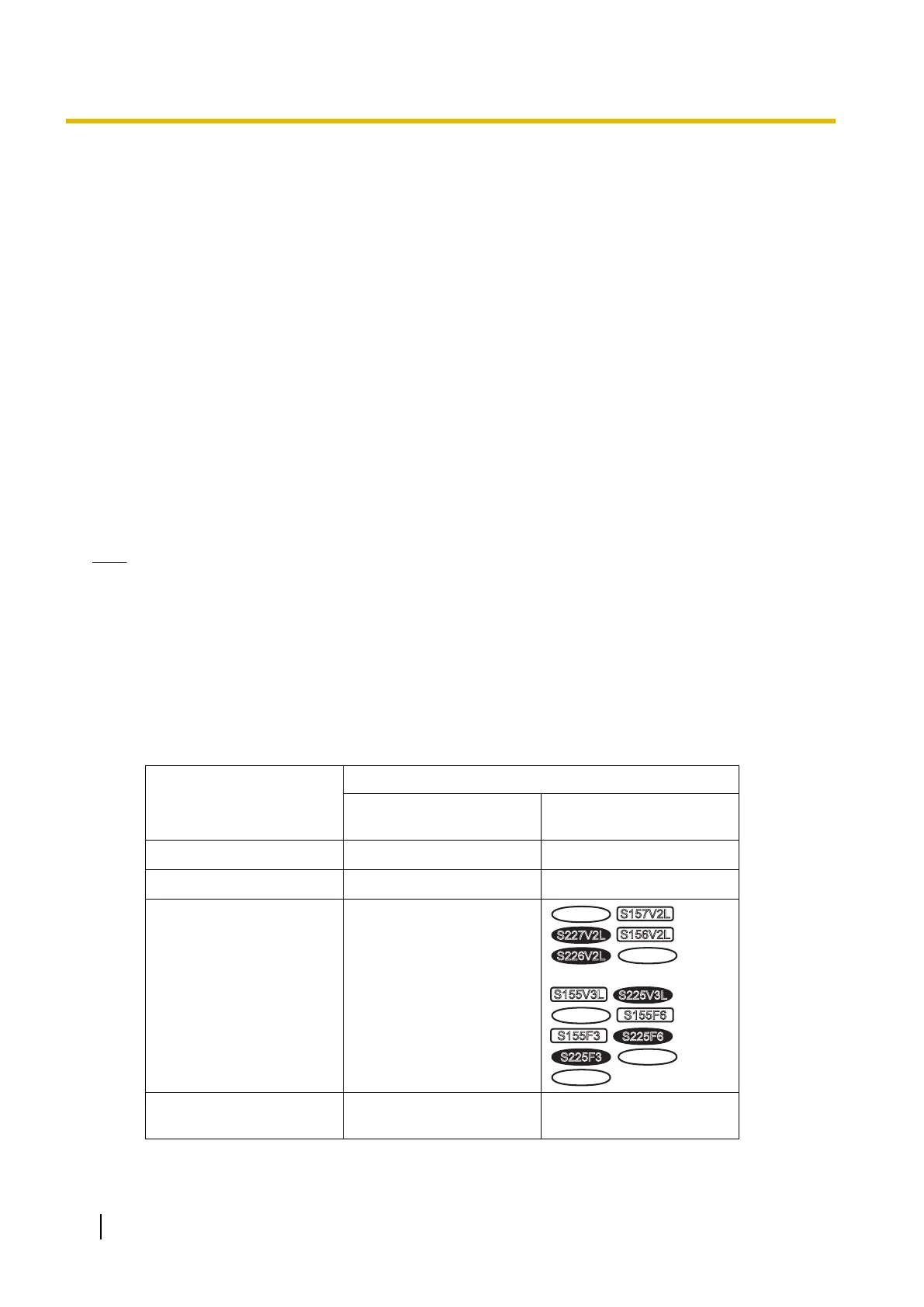

Setting items

Language of the browser

Languages other than

Japanese

Transmission priority VBR Frame rate

Image quality 3 Normal

Stream(1)

-Max bit rate (per client)

12288kbps *

S257V2L

S157V2L

S227V2L

S156V2L

S226V2L

S256V2L

8192kbps *

S155V3L

S225V3L

S255V3L

S155F6

S155F3

S225F6

S225F3

S255F6

S255F3

6144kbps *

Stream(1)

-Smart VIQS

On(Low) Off

2 Operating Instructions

Preface

Stream(2)

-Max bit rate (per client)

6144kbps * 3072kbps*

Stream(3)

-Max bit rate (per client)

4096kbps * 2048kbps *

Stream(4)

-Max bit rate (per client)

1536kbps * 768kbps *

Stream(1) - Stream(4)

-Refresh interval

2s 1s

About notations

The following notations are used when describing the functions limited for specified models.

The functions without the notations are supported by all models.

Notation

Model Notation Model

S157V2L

WV-S15700-V2L Series

S156V2L

WV-S15600-V2L Series

S155V3L

WV-S15500-V3L Series

S227V2L

WV-S22700-V2L Series

S226V2L

WV-S22600-V2L

S225V3L

WV-S22500-V3L Series

S257V2L

WV-S25700-V2L Series

S256V2L

WV-S25600-V2L Series

S255V3L

WV-S25500-V3LN Series

S155F6

WV-S15500-F6L Series

S155F3

WV-S15500-F3L Series

S225F6

WV-S22500-F6L Series

S225F3

WV-S22500-F3L Series

S255F6

WV-S25500-F6L Series

S255F3

WV-S25500-F3L Series

Abbreviations

The following abbreviations are used in these operating instructions.

Microsoft Windows 11 is described as Windows 11.

Microsoft Windows 10 is described as Windows 10.

microSDXC/microSDHC/microSD memory card is described as SD card or SD memory card.

Universal Plug and Play is described as UPnP™ or UPnP.

For administrator registration

At the time of first access to the camera (or at the time of initialization), the registration screen will be displayed.

Operating Instructions 3

Preface

Produkspesifikasjoner

Merke:	I-PRO
Kategori:	Sikkerhetskamera
Modell:	WV-S22500-V3L
Vekt:	800 g
Høyde:	102.5 mm
Bluetooth:	Nei
Wi-Fi:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	3072 x 2304 piksler
Videokomprimeringsformater:	H.264, H.265, M-JPEG
Diameter:	129.5 mm
Strømkildetype:	DC, PoE
Antall kameraer:	1
LED-type:	IR
HTTPS-kryptering:	Ja
Fokus:	Motorisert
Strømforbruk (maks.):	12 W
Hodetelefonutganger:	1
Optisk zoom:	3.1 x
Hvitbalanse:	ATW, AWC
Nettleser:	Ja
Støyreduksjon:	Ja
Antall brukere:	14 bruker(e)
Lyddeteksjon:	Ja
Strømforbruk:	240 mA
Rotasjonsvinkel:	270 °
Antall sensorer:	1
Antall språk:	9
Justering av bildekvalitet:	Lysstyrke
Linsesynsvinkel, horisontal:	33 - 105 °
Linsesynsvinkel, vertikal:	19 - 56 °
Bildefrekvens:	30 fps
Sensortype:	CMOS
Produktfarge:	Hvit
Vippevinkelområde:	-30 - 85 °
Minnekortenhet:	SD, SDHC, SDXC
Støttede grafikkoppløsninger:	320 x 180,320 x 240,400 x 300,640 x 360,640 x 480 (VGA),800 x 600 (SVGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2560 x 1440,2560 x 1920,3072 x 1728,3072 x 2304
Brennviddeområde:	2.9 - 9 mm
Mikrofon, linje-inn-støpsel:	Ja
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 50 °C
Oppbevaringstemperaturomåde (Celsius):	-10 - 50 °C
Innebygd kortleser:	Ja
Lukkerhastighet:	1/30 - 1/10000 s
nattsyn:	Ja
IK-kode:	IK10
Beskyttelsesfunksjoner:	Shock resistant, Vandal proof
Formfaktor:	Kuppel
CCD-sensorstørrelse:	1/2.8 "
Strømforbruk (Power over Ethernet (PoE)):	11.5 W
Modell/Type:	IP-sikkerhetskamera
Kroppsmateriale:	Aluminium, Polycarbonate (PC)
DC utgangsstrøm:	1 A
Innebygd harddisk:	Nei
Panoreringsomfang:	-240 - 120 °
Språkstøtte:	CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, POR, RUS
Bithastighetskontroll:	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Antall maskeringsområder for personvern:	8
Sikkerhetsalgoritmer:	802.1x RADIUS, FIPS 140-2
Minimumsbelysning:	0 lx
Ethernet/bredbåndsforbindelse:	Ja
Støttede plasseringer/plasseringer som kan benyttes:	Innendørs
Montasjetype:	Tak
Totale megapiksler:	5 MP
Maksimal størrelse på hukommelseskort:	512 GB
DC-ut, volt:	12
Privacy maske:	Ja
Effektiv distanse for nattsyn:	40 m
Avstandsdeteksjon (bred):	47.1 m
Observere aavstand (bred):	18.9 m
Gjenkjenne avstand (bred):	9.4 m
Avstandsidentifikasjon (bred):	4.7 m
Stemmekodekser:	AAC, G.711, G.726
Intelligent Video Surveillance (IVS)-systemfunksjoner:	Face detection, Human detection, Scene change, Vehicle detection
Videobasert bevegelsesdeteksjon:	Ja
Komposittvideo ut:	1
Baklyskompensasjon (BLC):	Ja
Auto-fokus:	Ja
Highlight Compensation (HLC):	Ja
Alarm inngang-kanaler:	3
Dynamisk omfang:	132 dB
Streaming-metode:	Multicast, Unicast
Alert varslingstype:	E-mail, Push notification
Nærmeste fokuseringsavstand:	0.3 m
Avstandsdeteksjon (tele):	207.4 m
Observere avstand (tele):	83 m
Gjenkjenne avstand (tele):	41.5 m
Avstandsidentifikasjon (tele):	20.7 m
Lydsystem full duplex:	Ja
