Thunderbolt™ 3 Docking Station

+ Power Delivery 180 W

www.i-tec.cz

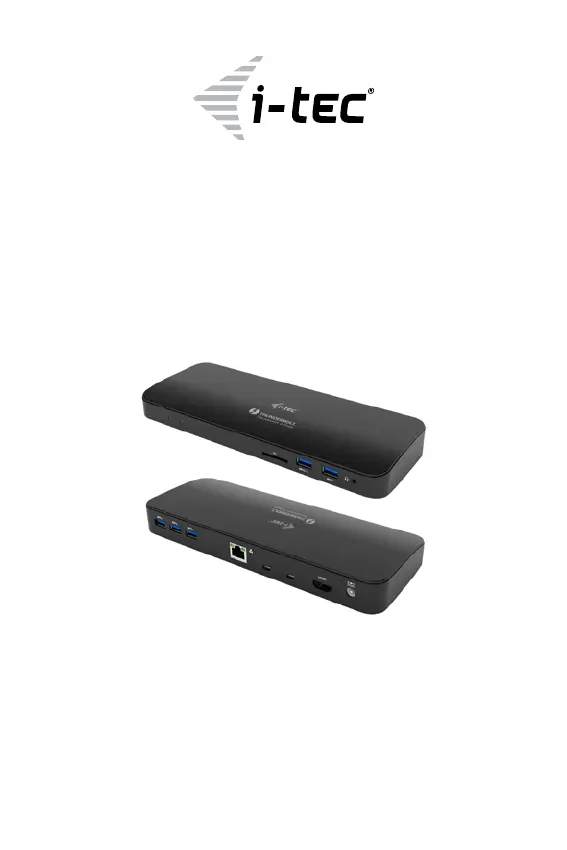

Quick StartThunderbolt™ 3 Docking Station + Power Delivery 180 W

ENGLISHENGLISH

INTRODUCTION

Thank you for purchasing the i-tec Thunderbolt™ 3 Docking Station, our product allows

you to connect your favourite devices via a single Thunderbolt™ 3 cable to a laptop or

tablet with a Thunderbolt™ 3 port. The docking station provides 1x HDMI port and 2x

Thunderbolt™ 3 ports (1x Power Delivery 85 W), 1x Ethernet GLAN RJ-45 port, 5x USB-A

3.0 ports (one quick-recharging port with BC 1.2 specication),1x Combo Audio port

(headphones and microphone), 1x SD Card Reader

PACKAGE CONTENTS

• i-tec Thunderbolt™ 3 Docking Station + Power Delivery 85 W

• Thunderbolt™ 3 cable (70 cm)

• USB-C to DisplayPort Adapter (100 cm)

• Power adapter (output DC: 20 V / 9A, DC cable 150 cm. AC cable 170 cm)

• Quick Start

SPECIFICATION AND DESCRIPTION

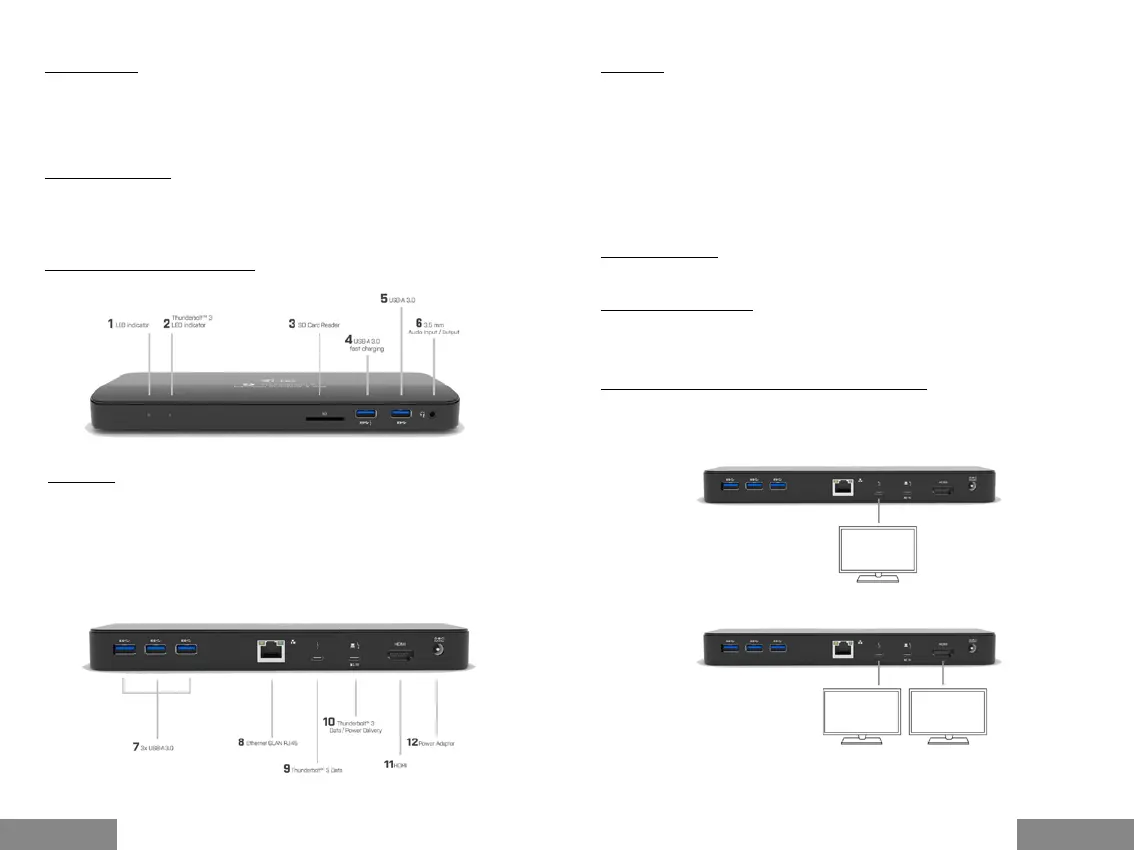

Front panel:

LED power – lights with greed color after connection to the power supply line

LED Thunderbolt™ 3 – lights with blue color after connection of the docking station

to the Thunderbolt™ 3 device

SD Card Reader (spec. (SD 4.0 specication)

USB-A 3.0 port with quick-recharging, BC 1.2 specication

USB-A 3.0 port - super speed data transfer (5 Gb/s), supports USB Hot Swapping

function

3.5 mm Combo Audio Jack (2.1 CH)

Rear panel:

3x USB-A 3.0 port - super speed data transfer (5 Gb / s), supports USB Hot Swapping

function

Ethernet GLAN RJ-45 port - supports 10 / 100 / 1000 Mb / s

Thunderbolt™ 3 data port - for connection of the Thunderbolt™ 3 / USB-C device to

the docking station. Another Thunderbolt™ 3 monitor with resolution of up to 5K can be

also connected.

10.

Thunderbolt™ 3 data port / Power Delivery - for connection of the docking station to

the Thunderbolt™ 3 port of your laptop or for connection of the Thunderbolt™ 3 / USB-C

device to the docking station; this port supports a Power Delivery function on prole 5,

max. 85W.

11.

HDMI port - 4K Ultra HD resolution up to 4096x2160@60Hz

12.

Power Jack for a power supply adapter (DC 20 V / 9 A)

Other specications:

• Dimensions: 229 x 87 x 27 mm

• Weight: 457 g

SYSTEM REQUIREMENTS

Hardware requirements: Laptop / tablet with a free Thunderbolt™ 3 port

Operating system: Windows 10 32/64 bit, macOS Sierra 10.12 and later

Windows 10 and macOS – automatic installation of OS drivers.

CONNECTING THE HDMI / THUNDERBOLT™ 3 MONITOR

For connection of the monitor to the docking station, use a HDMI / Thunderbolt™ 3 cable

(for HDMI, we recommend a cable of 2.0 version and higher). During the installation of an

additional monitor, the laptop / tablet monitor may blink, this is a normal state. Docking

station supports up to two monitors.

Graphic Interface: 1x HDMI and 1x Thunderbolt™ 3 port. Resolution:

1 monitor connected via a Thunderbolt™ 3 cable - resolution up to 5K

5120x2880@60Hz; HDMI at 5K resolution will be automatically disconnected

2 monitors connected simultaneously (1x HDMI + 1x Thunderbolt™ 3 port),

resolution up to 4K 4096x2160@60Hz
