Quick Start Guide
USB 3-2-1 Raven
™
3204C Pro
4-Port USB 3 (5Gbps), 10GbE LAN or CAT 6a/7 USB-C Extender System
Package Contents:
USB 3-2-1 Raven 3204C Pro LEX
USB 3-2-1 Raven 3204C Pro REX
USB-C Cable
24V 1A AC Adapter
24V 2.71A AC Adapter
2x Country Specic Power Cords
Quick Start Guide
LEX = Local Extender
REX = Remote Extender
For more information about conguring and operating this product,
refer to the complete online user guide at icron.com/3204Cpro.
For technical support, visit icron.com/support.
For sales/general inquiries, visit icron.com/contact.
Before starting, install any required drivers for your USB device(s).
Max 100m
(CAT cable not included)
USB Devices
USB-C Cable
24V 1A AC Adapter
Network Connect Direct Connect
Host
Max 100m CAT 6a/7 Cable (not included)
Max 100m between extender
and network switch.
Back View
24V 2.71A AC Adapter
USB
USB
USB-CUSB-C
REX
1Gb Ethernet

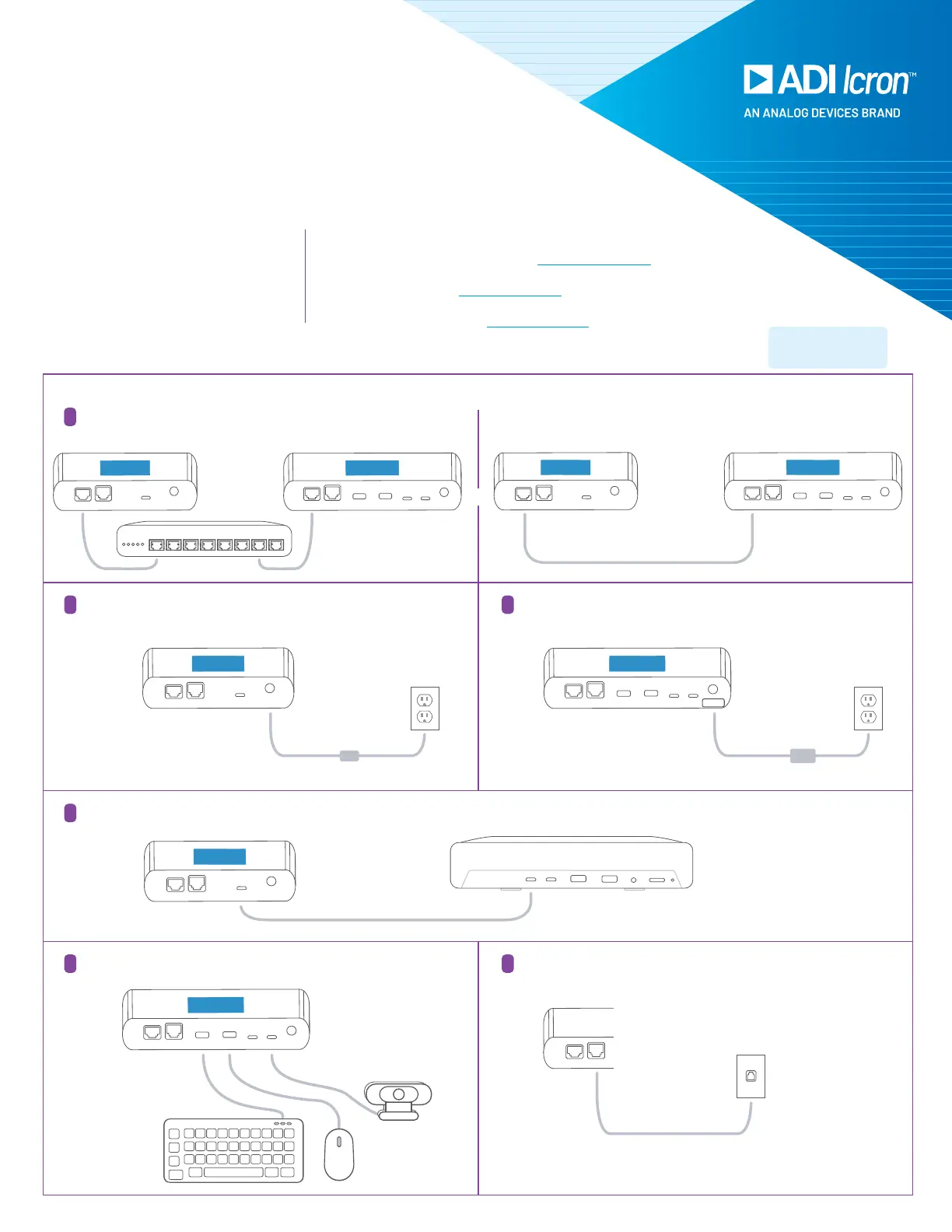

Connect the LEX to the host computer’s USB-C port using the included USB-C cable.
Place LEX and REX where desired and Link in one of two ways:
Power the REX with the included 24V 2.71A AC adapter and tighten the
locking ring.
Power the LEX with the included 24V 1A AC adapter and tighten the
locking ring.
1
4
2 3
Optional: Connect the LEX and REX 1Gb Ethernet ports (inner RJ45
connector) to a network or device as necessary for pass-through LAN.
Attach the USB device(s) to the REX.
5
6
Host
LEX
24V 1A
LEX
24V 2.71A
REX
Note: If an outlet is unavailable,
refer to the online user guide for
an alternate LEX powering option.
(b) Connect a CAT 6a/7 cable to the Link ports (outermost RJ45
connector) on the LEX and REX.
Link
LEX
Link
REX
LEX
Link
REX
(a) Connect the Link ports (outermost RJ45 connector) on the
LEX and REX to a 10GBASE-T LAN using a CAT 6a/7 cable.
Link
Network Switch
or
