Side 1/2

724-746-5500 | blackbox.com724-746-5500 | blackbox.com 724-746-5500 | blackbox.com

Page 5 Page 6

Black Box and the Double Diamond logo are registered trademarks of

BB Technologies, Inc. Any other trademarks mentioned in this manual

are acknowledged to be the property of the trademark owners.

BLACK BOX

Quick Start Guide

Industrial Ethernet Extender, 10/100, 1-Port

LB320A

Black Box Tech

Support: FREE! Live.

24 / 7. Tech support

the way it should be.

Great tech support is just 60 seconds

away at 724-746-5500 or blackbox.com.

Order toll-free in the U.S.:

Call 877-877-BBOX

(outside U.S. call 1-724-746-5500)

FREE technical support

24 hours a day, 7 days a week:

Call 724-746-5500 or

fax 724-746-0746

Mailing address:

Black Box Corporation

1000 Park Drive

Lawrence, PA 15055-1018

Web site: www.blackbox.com

E-mail: info@blackbox.com

Customer

Support

Information

BLACK BOX

LB320A Quick Start Guide

lb320a_qsg_rev1

Distance and data rate for the Ethernet Extender port:

Table 6-1. Distance and Data Rate.

Distance (m) Data Rate (Mbps)

300 100

400 80

600 60

800 40

1200 20

2600 1

This distance/data rate information is measured

according to a testing standard in the laboratory. The

actual installation will be affected by the quality of the

copper wire and the impact of noise disturbance. The

connection speed will be affected.

724-746-5500 | blackbox.com724-746-5500 | blackbox.com 724-746-5500 | blackbox.com

LB320A Quick Start Guide LB320A Quick Start GuideLB320A Quick Start Guide

Page 3Page 2 Page 4

1. Unpacking

Unpack the items. Your package should include:

• One LB320A Industrial Ethernet Extender

• This printed quick start guide

If items are missing or damaged, contact Black Box

Technical Support at 724-746-5500 or info@blackbox.

com. Keep the carton and packing material.

2. Select a Location

• Installation: Desktop, Wallmount, DIN-Rail mount.

• Identify a power source within 6 feet (1.8 meters).

• Choose a dry area with ambient temperature

between +14 and +140º F (-10 and +60° C).

• Keep away from heat sources, sunlight, warm air

exhausts, hot-air vents, and heaters.

• Be sure there is adequate airflow.

• Keep the device at least 6-ft. (1.8-m) away from the

nearest source of electromagnetic noise, such as a

photocopy machine.

3. Connect to the Data Ports

1. Insert one end of the Ethernet cable into a switch

port.

2. Connect the other end into the Ethernet port of the

device.

3. Insert the voice grade copper wire between one

pair of Ethernet Extenders via the Ethernet Extender

port (RJ-11 connector or terminal block). One device

must be set to LOC mode and the other to Auto

mode when two devices are connected.

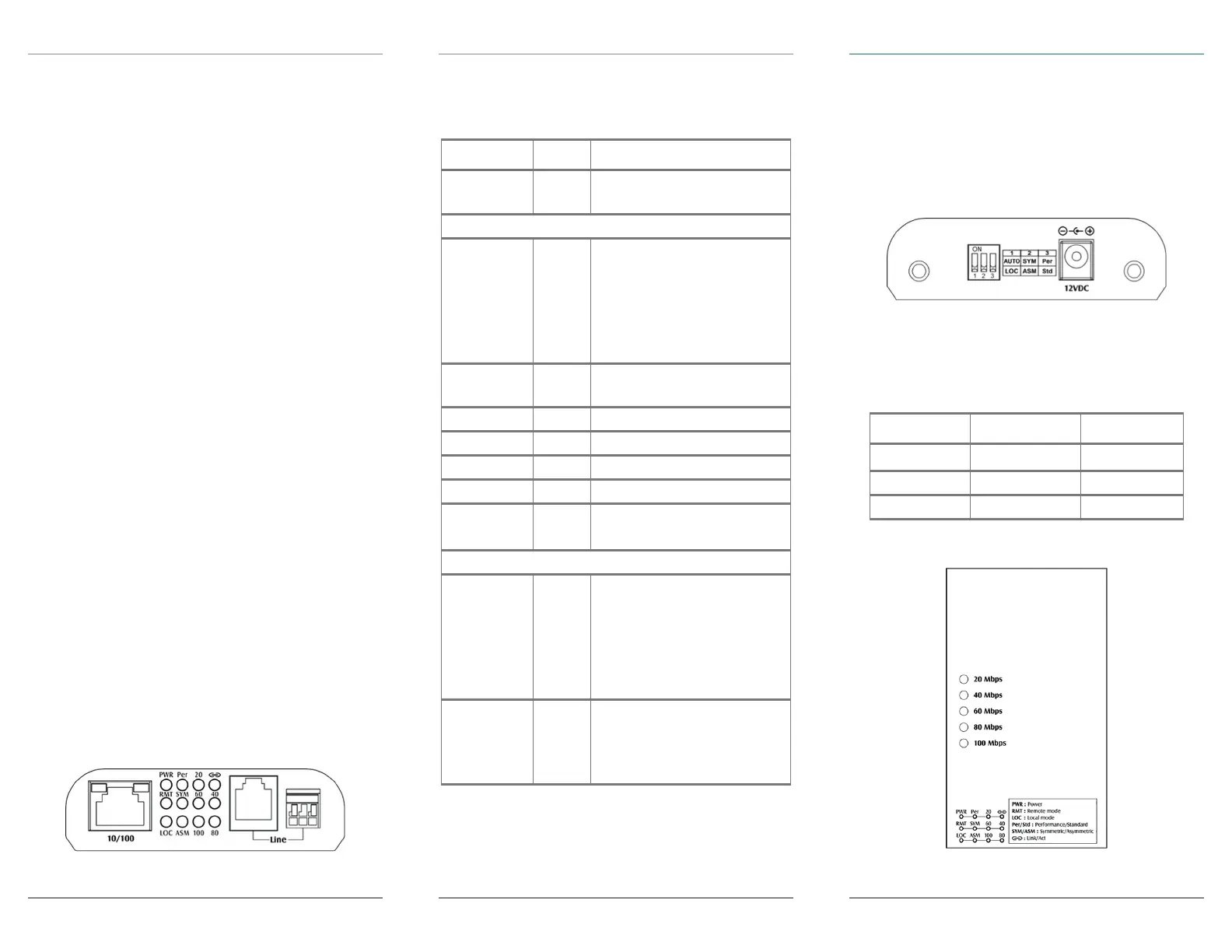

Figure 1. Front panel of the extender.

Table 1. LEDs on the extender.

LED Color Status

PWR Green ON = Receiving power

OFF = Power off

Ethernet Extender Port

Link Activity Green ON = Connection is

established

OFF = No connection is

established

Flashing = Port is sending

or receiving data

Per Green ON = Performance mode

OFF = Standard mode

RMT Green ON = Remote mode

LOC Green ON = Local mode

SYM Green ON = Symmetric mode

ASM Green ON = Asymmetric mode

Line Speed Green ON = Displays the link speed

in Mbps

10/100TX port

Link/Activity Green ON = Valid network

connection

OFF = No data transmission

on port

Flashing = Port is sending

or receiving data

Speed Yellow ON = Link speed

at 100 Mbps

OFF = Link speed

at 10 Mbps

4. Apply DC Power

Connect the supplied AC to DC power adapter to the

receptacle on the rear panel of the Ethernet Extender,

and then attach the plug into a standard AC outlet.

Figure 2. Back panel of the extender.

5. DIP Switch

Table 5-1. DIP Switches

Pin Up Down

DIP Switch 1 Auto mode Local mode

DIP Switch 2 Symmetric Asymmetric

DIP Switch 3 Performance Standard

6. Top Panel

Figure 3. Top panel of the extender.

Produkspesifikasjoner

Merke:	Black Box
Kategori:	wifi-repeterer
Modell:	LB320A
Vekt:	150 g
Bredde:	80.3 mm
Dybde:	109 mm
Høyde:	23.8 mm
LED-indikatorer:	Ja
Strømforbruk (maks.):	4.2 W
Sertifisering:	CE, UL60950-1, EN60950-1 EMI: FCC Part 15B, Class A; EN61000-6-4: EN55022, EN61000-3-2, EN61000-3-3 EMS: EN61000-6-2: ESD Standard: EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6-8, EN61000-4-8, IEC60068-2-6, IEC60068-2-27
Kablingsteknologi:	10/100Base-T(X)
Nettverksstandard:	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Auto MDIX IEEE:	Ja
Auto-forhandling:	Ja
Terminalblokkport:	Ja
Produktfarge:	Sort
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Bærekraftsertifikater:	RoHS
Relativ luftfuktighet under drift (H-H):	5 - 95
Montasjetype:	Vegg
Strømningskontroll støtte:	Ja
Overføringshastighet (Mbps):	100 Mbit/s
Maksimal overføring avstand:	2600 m
Tosidig system:	Full, Half
Antall RJ11-porter:	1
Pakke videresending rate (100 Mbps):	148810 pps
Pakke videresending rate (10 Mbps):	14880 pps
