724-746-5500 | blackbox.com724-746-5500 | blackbox.com 724-746-5500 | blackbox.com

Page 5 Page 6

Black Box and the Double Diamond logo are registered trademarks of

BB Technologies, Inc. Any other trademarks mentioned in this manual

are acknowledged to be the property of the trademark owners.

BLACK BOX

Quick Start Guide

Industrial Ethernet Extender — Extreme T

LB323A

Black Box Tech

Support: FREE! Live.

24 / 7. Tech support

the way it should be.

Great tech support is just 60 seconds

away at 724-746-5500 or blackbox.com.

Order toll-free in the U.S.:

Call 877-877-BBOX

(outside U.S. call 1-724-746-5500)

FREE technical support

24 hours a day, 7 days a week:

Call 724-746-5500 or

fax 724-746-0746

Mailing address:

Black Box Corporation

1000 Park Drive

Lawrence, PA 15055-1018

Web site: www.blackbox.com

E-mail: info@blackbox.com

Customer

Support

Information

BLACK BOX

LB323A Quick Start Guide

lb323a_qsg_rev1

4. Apply DC Power

Connect the DC power cord to the pluggable terminal

block on the Hardened Ethernet Extender, and then

plug it into a standard DC outlet.

Connect the ground connection from the terminal

block to the grounding surface.

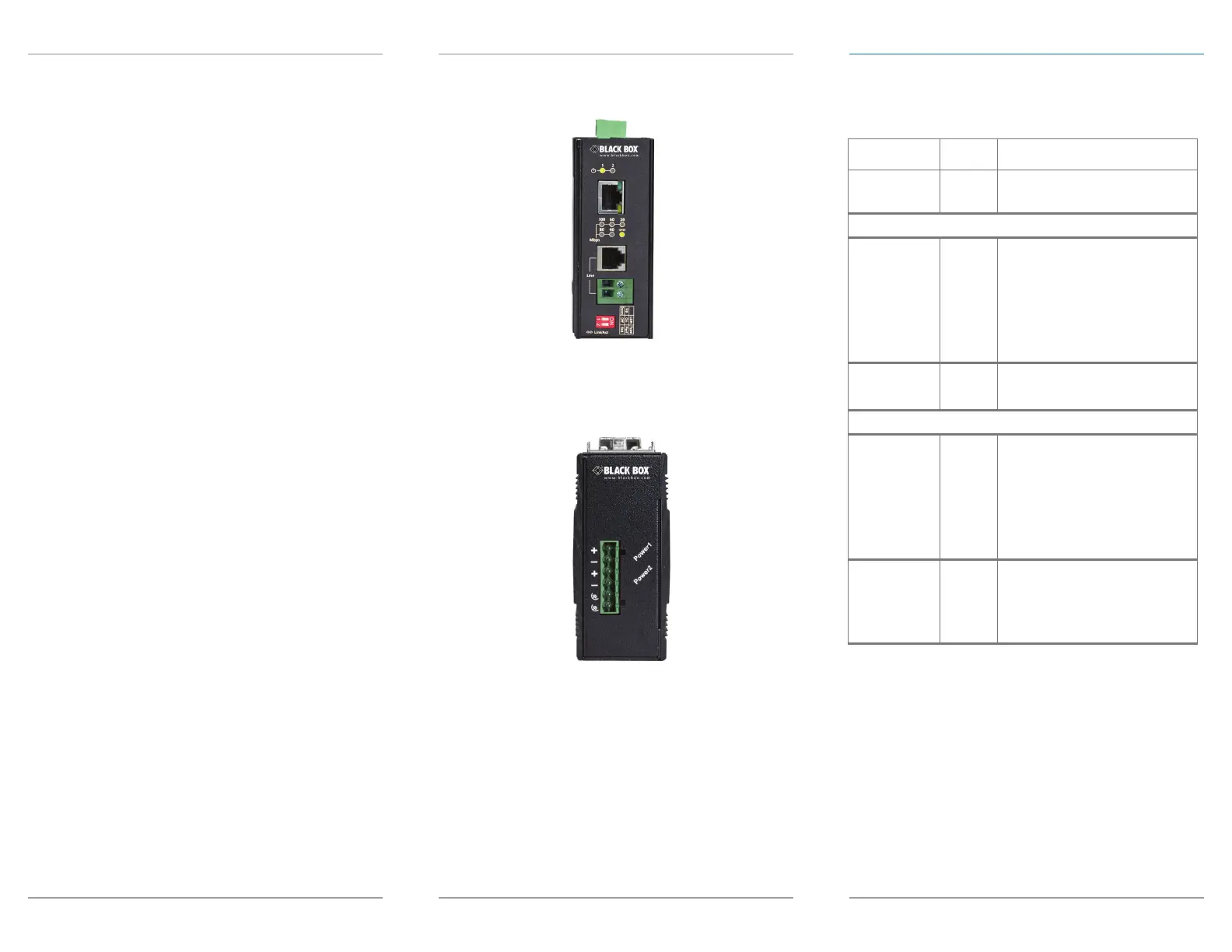

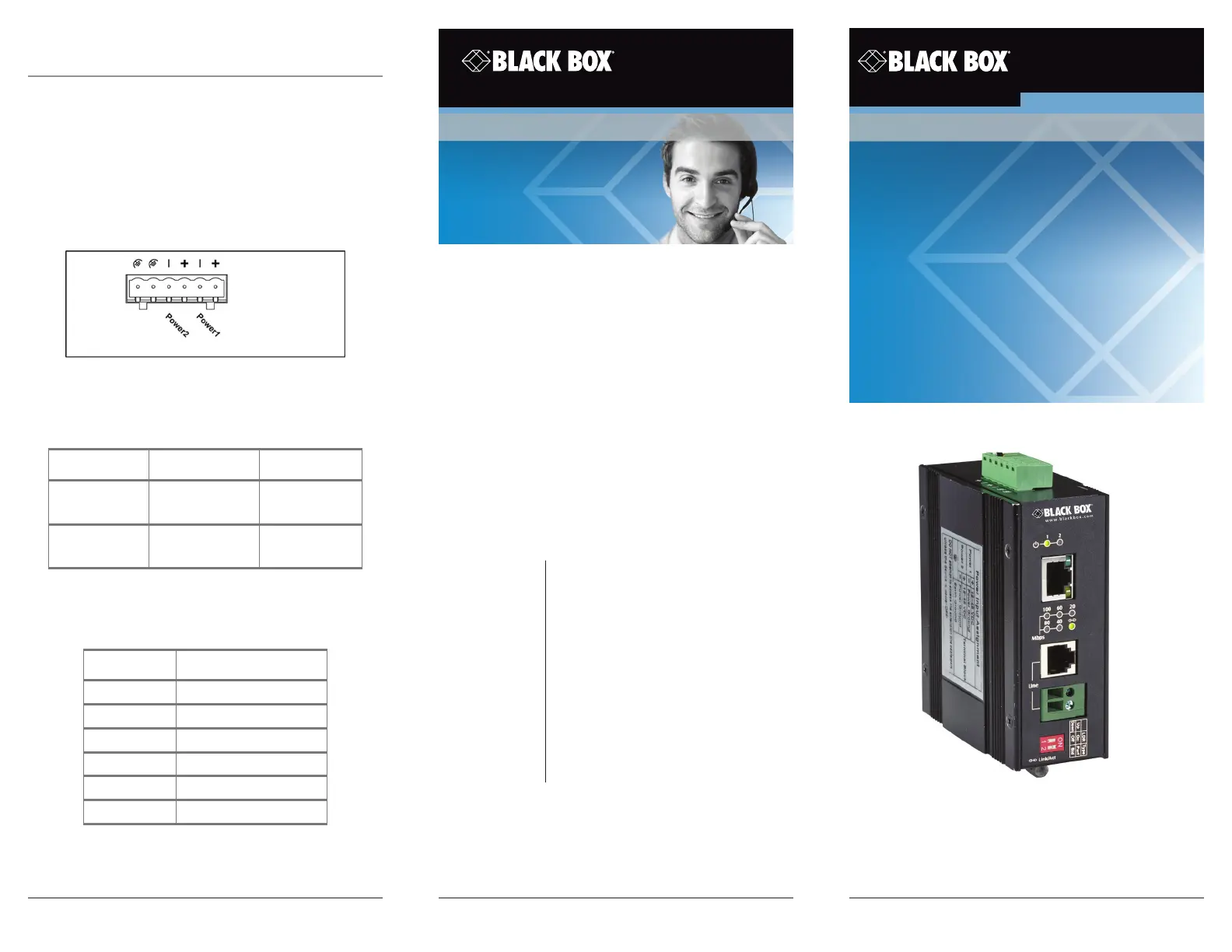

Figure 3. Terminal block on the extender.

5. DIP Switch

Table 2. DIP Switches

Pin Up Down

DIP Switch 1

(Site)

Auto mode Local mode

DIP Switch 2

(Type)

Turn on link

down relay

Turn off link

down relay

Distance and data rate for the Ethernet Extender port:

Table 3. Distance and Data Rate.

Distance (m) Data Rate (Mbps)

300 100

400 80

600 60

800 40

1200 20

2600 1

NOTE for Table 3: This distance/data rate information

is measured according to a testing standard in the

laboratory. The actual installation will be affected by

the quality of the copper wire and the impact of noise

disturbance. The connection speed will be affected.

Produkspesifikasjoner

Merke:	Black Box
Kategori:	wifi-repeterer
Modell:	LB323A
Vekt:	410 g
Bredde:	42 mm
Dybde:	90 mm
Høyde:	100 mm
LED-indikatorer:	Ja
Strømforbruk (maks.):	4.2 W
Kablingsteknologi:	10/100Base-T(X)
Nettverksstandard:	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Auto MDIX IEEE:	Ja
Auto-forhandling:	Ja
Terminalblokkport:	Ja
Produktfarge:	Sort
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	-40 - 75 °C
Bærekraftsertifikater:	RoHS
Ethernet LAN dataoverføringshastigheter:	10, 100 Mbit/s
Relativ luftfuktighet under drift (H-H):	5 - 95
Montasjetype:	Bord/Vegg
Strømningskontroll støtte:	Ja
Plugg inn og spill:	Ja
Overføringshastighet (Mbps):	100 Mbit/s
Maksimal overføring avstand:	2600 m
Tosidig system:	Full, Half
Antall RJ11-porter:	1
Pakke videresending rate (100 Mbps):	148810 pps
Pakke videresending rate (10 Mbps):	14880 pps
