– 1 –
The above are features that lead to perfectly predictable and repeatable bends.
Instructions
Bend conduit with skill and professionalism. Take the guess-
work out of bending.
Steps to Remember
Step 1. Measure your job.
Step
2.
Mark you conduit using the recommended tables.
Step 3. Use your bender’s engineered marks.
Note: Reference to the above Steps 1, 2, and 3 will be made
throughout this booklet.
Features

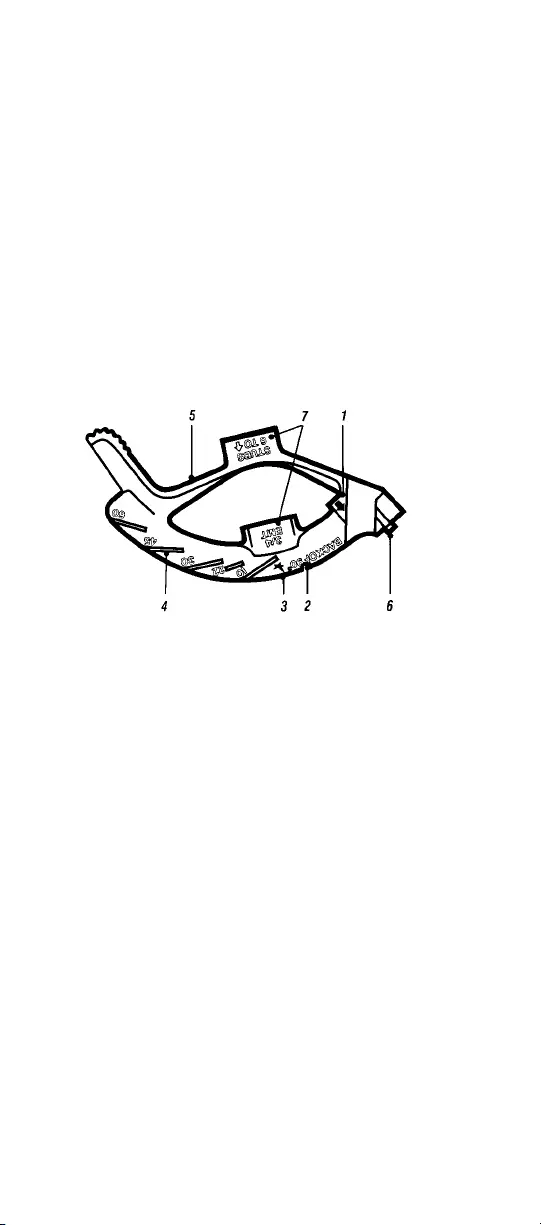

Your IDEAL Bender has engineered features which include:
1. Arrow
To be used with stub, offset and outer marks of saddle
bends.
2. Rim Notch
Locates the center of a saddle bend.
3. Star-Point
Indicates the back of a 90° bend.
4. Degree Scale
For offsets, saddles and those special situations.
5. A Choice
High strength ductile iron or light weight aluminum.
– 2 –
Don’t Forget
When bending on the floor, pin the conduit to the floor. Use
heavy foot pressure.
When bending in the air, exert pressure as close to your body
as
possible.
In case you overbend, use the
back pusher or the expanded
end of the bender handle to
straighten your conduit to
fit the job.
How to Bend a Stub
The stub is the most common bend. Note that your bender is
marked with the “take-up” of the arc of the bender shoe.
Example:
Consider making a 14” stub, using a 3/4” EMT conduit.
Step 1. The IDEAL bender indicates stubs 6” to . Simply
subtract the take-up, or 6”, from the finished stub
height. In this case 14” minus 6” = 8”.
Step 2. Mark the conduit 8” from the end.
Step 3. Line up the Arrow on the bender with the mark on the
conduit and bend to 90°.
Remember: Heavy Foot pressure is critical to keep the EMT in
the bender groove and to prevent kinked conduit.
