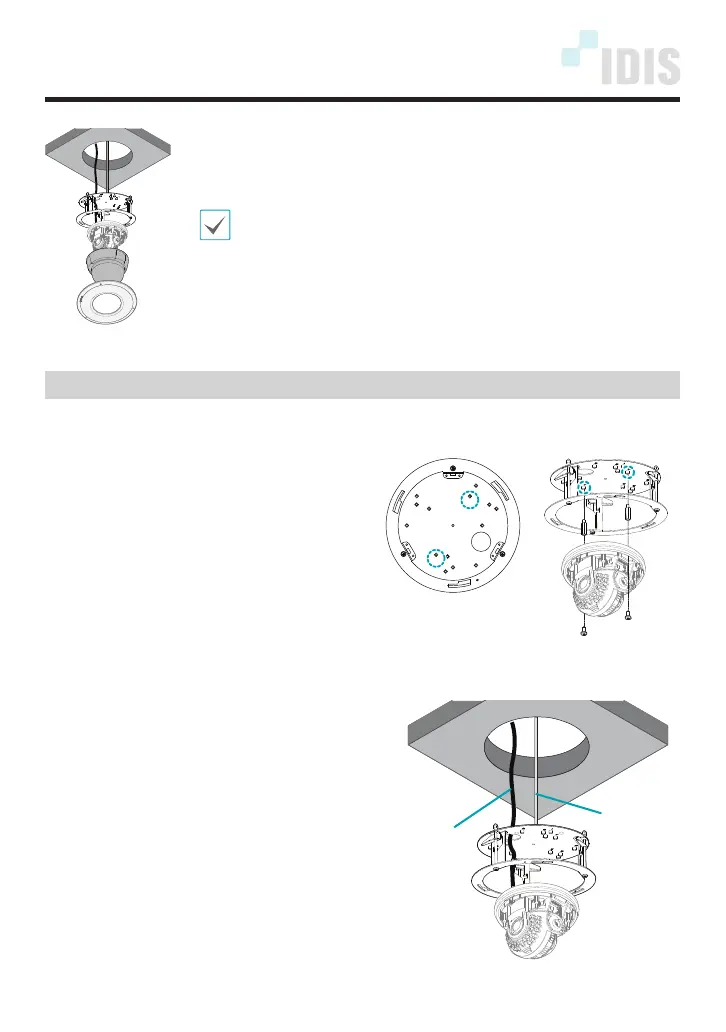

This manual is intended for the users of the FM1300 ceiling mounting bracket.

It includes the instructions for mounting the FM1300 ceiling mounting bracket

to the ceiling.

• This bracket is intended to be used with some models of dome

cameras. Ask your retailer for details on a specic model and do

not use it with other models of cameras.

• This installation should be performed by a qualied service

personnel in conformance to all local codes.

• You may need to reinforce the ceiling. If the ceiling is not strong

enough to support the camera, the camera may fall.

• Do not use this product for other purposes.

Mounting

Assemble the camera body to the bracket by

tightening the screws.

• DC-D2233WHX / DC-D3233WRX / DC-

D3233RX / DC-D3233X Models:

Screw No. 5 (3-point), PCB Support 8.8mm

• DC-D2233R / DC-D2233 Models:

Screw No. 4 (2-point), PCB Support 20.4mm

• DC-D2233WHR / DC-D2233WR / DC-

D2233W Models:

Screw No. 3 (3-point), PCB Support 23.1mm

• Other Plastic Dome Models: Screw No. 2

(3-point), No PCB support necessary

• Other Vandal Dome Models: Screw No. 1

(3-point), No PCB support necessary

< Screw No. >

(DC-D2233R Model)

Connect the cable through the cable hole

and screw the safety wire to the bracket to

prevent the bracket from falling on to the

oor.

Cable

Safety Wire

FM1300 INSTALLATION MANUAL

IDIS Co., Ltd.

For more information, please visit www.idisglobal.com

Ver.1.0

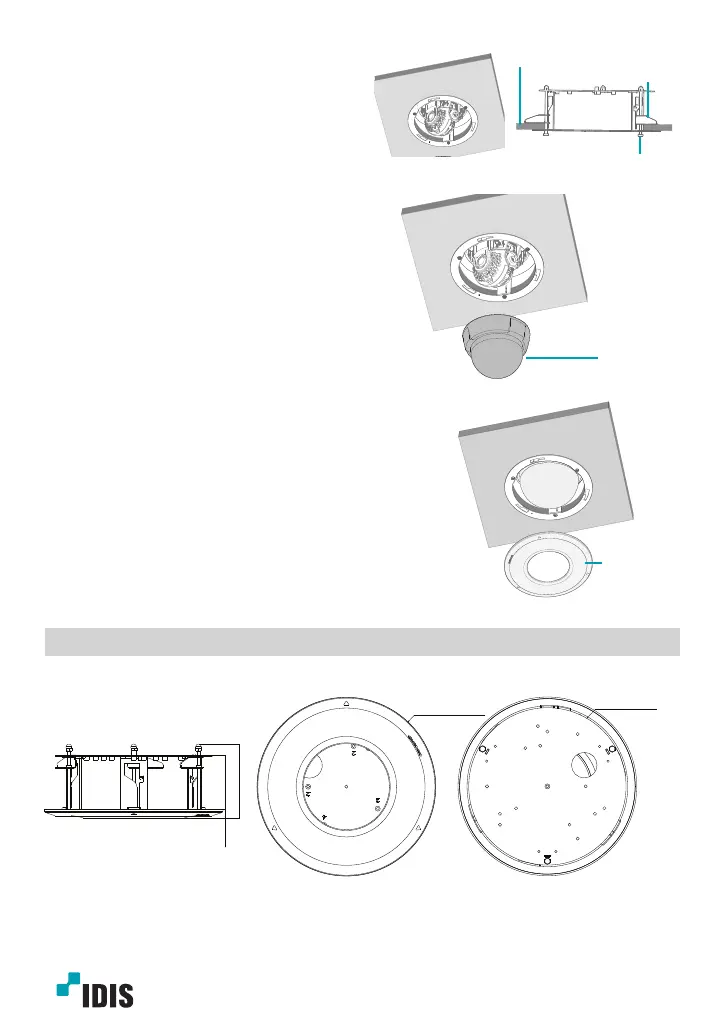

Mount the bracket to the ceiling, then x

it with the calmp (3-point) by turning the

clamp screws clockwise.

Clamp

Ceiling

Clamp Screw

(3-Point)

Assemble the dome cover to the camera

body.

Dome Cover

Assemble the bracket lid to the bracket.

Bracket Lid

Dimensions

Unit: mm (inch)

87 (3.43)

63.7 (2.51) 10.3

(0.41)

Ø 210.2 (8.28)

Ø 185 (7.28)

Produkspesifikasjoner

Merke:	IDIS
Kategori:	Ikke kategorisert
Modell:	DA-FM1300
Vekt:	650 g
Høyde:	75 mm
Diameter:	210 mm
Produktfarge:	Hvit
Modell/Type:	Montering
Maksimalvekt (kapasitet):	- kg
