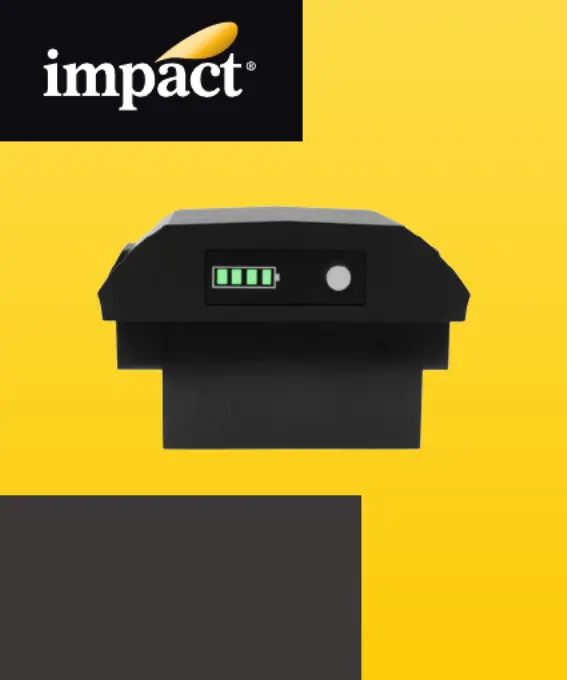

QUICK-START GUIDE
ADCD-500-BT
Rechargeable Battery
for ACDC-500-TTL Monolight
2
Precautions
• Do not attempt to disassemble, open, or repair this product.
• Do not dispose of this product in re or water.
• Do not store above 140°F (60°C).
• Do not puncture, short, or crush the external contacts.
• Images are for illustrative purposes only.
Battery type Li-ion
Voltage 14.4 V
No. of ashes @ full power 350
Charging time (approximate) 3 hr.
Charger Input: AC 100 to 240 V, 50/60 Hz
Output: DC 16.8 V, 2.5 A
Overheat limit 140°F (60°C)
Dimensions 3.7 × 4.2 × 2.6 in.
(9.4 × 10.7 × 6.6 cm)
Weight Battery: 1.5 lb. (680.4 g)
3
Charging and Installing the Battery
Use the multivoltage charger that’s included with the Cruiser TTL 500.
Note: Impact recommends fully charging the battery before its initial
use and after an extended period of inactivity (more than two months).
To charge and then install the battery, follow these steps:
1. Plug the AC cord into a wall outlet. The charger’s indicator light
will glow green when the charger is receiving power.
2. Connect the DC cord to the battery. The charger indicator light
will glow red when the battery is charging, and green when the
battery is charged.
3. Install the battery by orienting the contacts on the inside edge of
the battery with the contacts in the battery compartment. Press
it down into the battery compartment until the locking buttons
click shut.
Checking the Battery Level
When the battery is installed in the Cruiser, the remaining charge is
always displayed by the battery icon on the LCD screen.
If the battery is not installed, check the battery level by pressing and
holding the charge indicator button. The indicator lights will show the
remaining charge.
