USB PD TRIGGER MODULE-

COM ZY12PDN, COM- -ZY12PDN-ST and COM ZY12PDN- -USB

1. GENERAL INFORMATION

Dear customer,

Thank you for purchasing our product. In the following, we will show you

which things should be noted during the use.

Should you encounter any unexpected problems, do not hesitate to

All three items have the same circuit board and dier only in the output

interface.

When using the modules, make sure to use a suicient cable

cross section.-

To use the modules as intended, you need a USB capable power -PD-

supply unit.

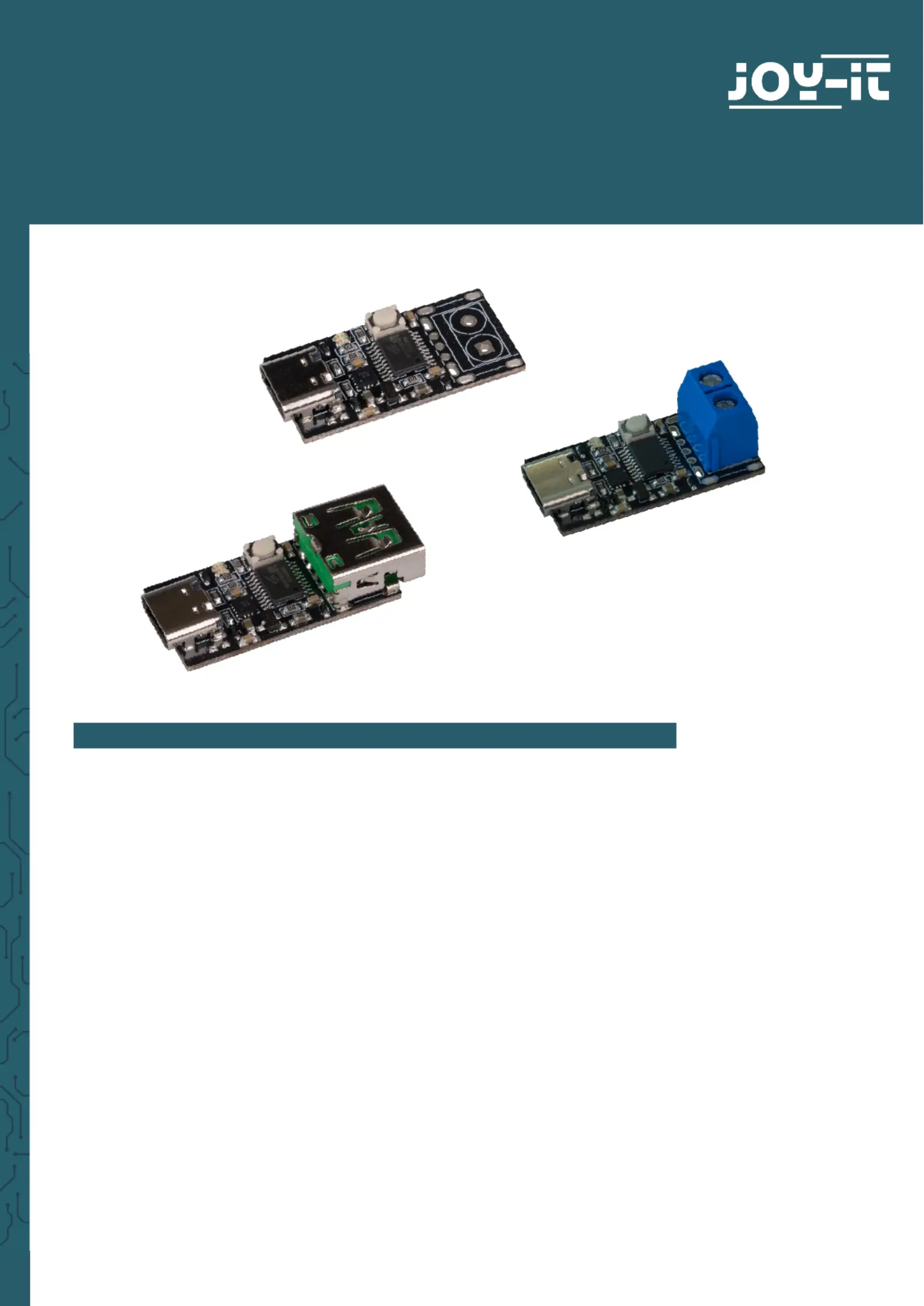

2. OUTPUT INTERFACES

COM ZY12PDN-

COM ZY12PDN- -ST

COM ZY12PDN USB- -

3. OPERATION

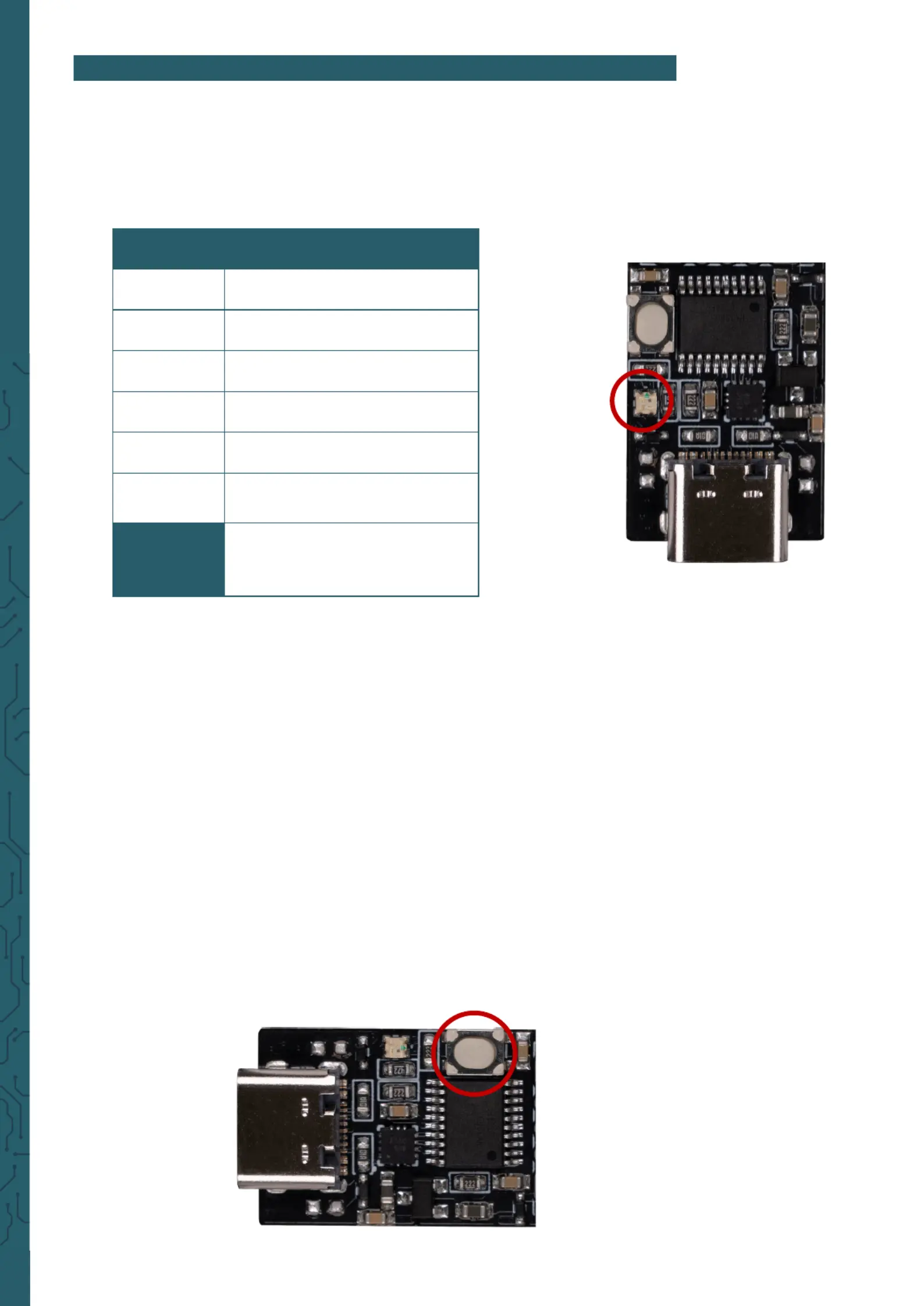

Connect your USB PD trigger module to a USB PD capable power supply - -

using the USB C connector. These modules provide you with dierent -

voltage modes, which are indicated by the LED. The mode can be

changed by pressing the button.

Colour Voltage modes

■ 5 V

■ 9 V

■ 12 V

■ 15 V

■ 20 V

■ Maximum possible voltage

■

Runs through all modes

(one per second)

To set the modes as default, first plug the board into your power supply

while holding down the button on the board. Now the LED will start

flashing colourfully. Now you can select the desired mode using the

button. Now press and hold the button to confirm your selection. Finally,

disconnect the power supply from the module and then reconnect it so

that the module now starts directly in this mode.

If the device is connected to a non USB PD 5V power source, the LED will - -

flash blue aer approximately 4 seconds to indicate the lack of USB PD -

support.

Produkspesifikasjoner

Merke:	Joy-it
Kategori:	Ikke kategorisert
Modell:	COM-ZY12PDN
Bredde:	31 mm
Dybde:	15 mm
Høyde:	4 mm
Strømforbruk (maks.):	100 W
Inngangsspenning:	5 - 20 V
Strøm:	5 A
Antall støttede enheter:	1
