RB-MOTO2 (STEP YOUR PI)
Raspberry Pi stepper motor control
1. GENERAL INFORMATION
Dear costumer,
thank you very much for choosing our product.
In following, we will introduce you to what to observe while starting up
and using this product.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us.
www.joy it.net-
Pascalstr. 8 47506 Neukirchen Vluyn-
2. ASSEMBLY AND INSTALLATION
1. Connect both the motors to the corresponding sockets.
2. You can influence the power supply with the pin header:
If you want the motors to receive their power from the Raspberry Pi,
connect the two le hand pins, marked on the following picture, -
with the enclosed "jumpers":
3. However, if you want to supply an external power source, you can
install it on the two right pins, marked on the following picture:
+ -
www.joy it.net-
Pascalstr. 8 47506 Neukirchen Vluyn-

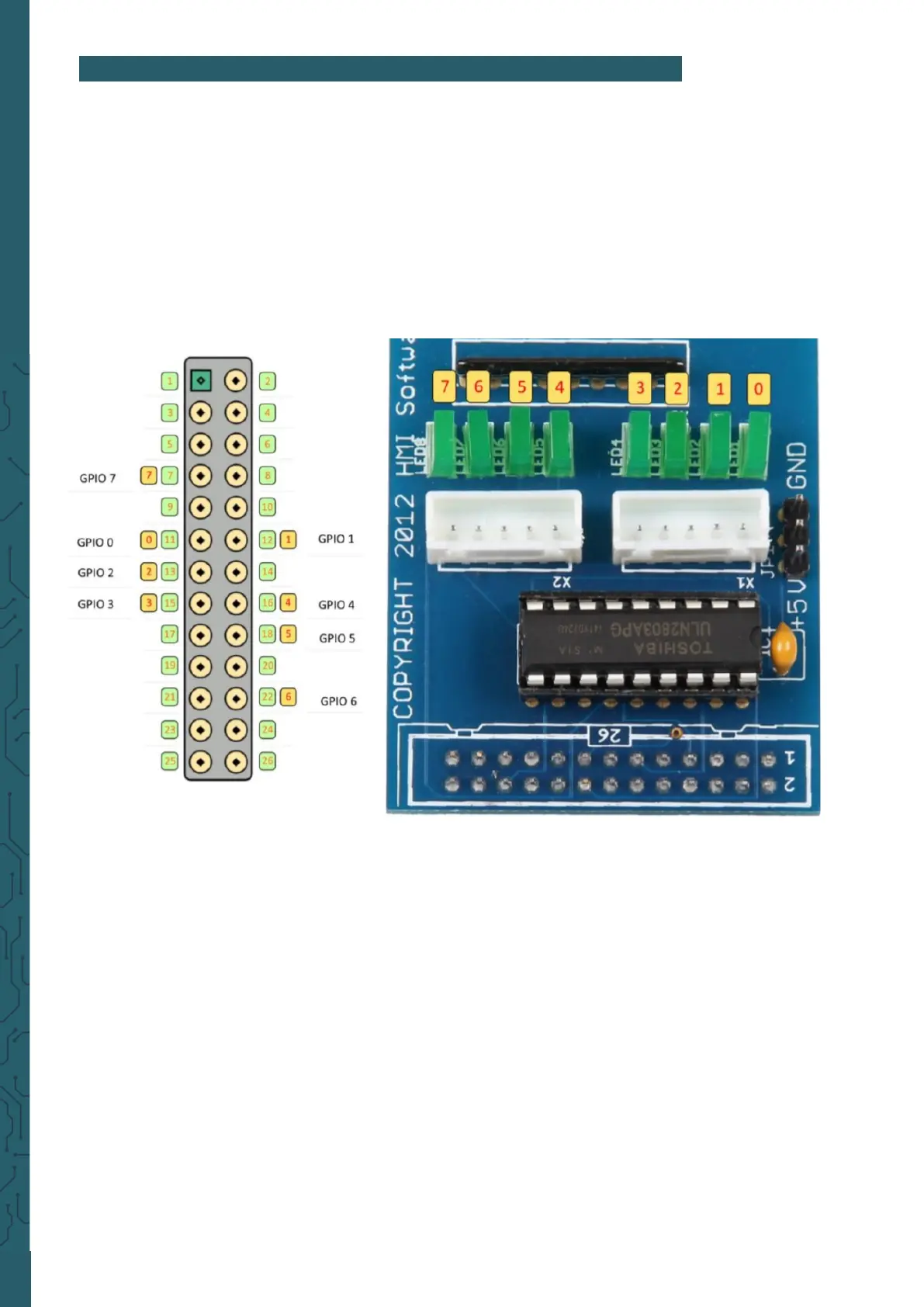

4. Stepper motors are controlled by alternately supplying the individual
steps of the motor with power. The required pins for the steps of the
individual motors is shown in the following wiring overview:
2. ASSEMBLY AND INSTALLATION
