Side 1/6

eNet radio hand-held transmitter 1-gang

Art. No. : FMHS1T

Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled

persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Keep button cells out of reach of children! If button cells are swallowed, get medical help

immediately.

Risk of explosion! Do not throw batteries into fire.

Risk of explosion! Do not recharge batteries.

The radio communication takes place via a non-exclusively available transmission path,

and is therefore not suitable for safety-related applications, such as emergency stop and

emergency call.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

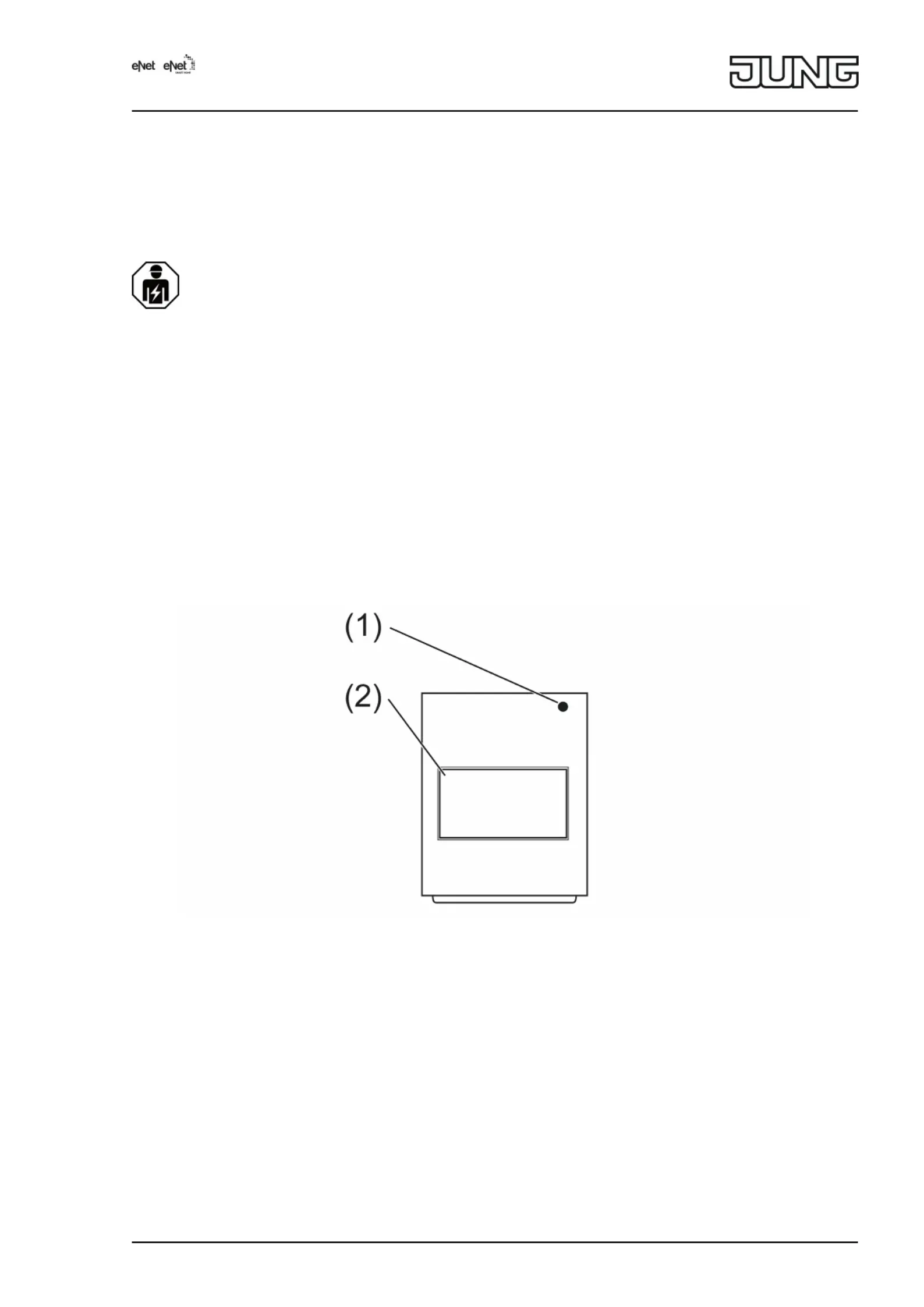

Figure 1: Radio hand transmitter 1-gang

(1) Status LED

(2) Button

3 Function

Intended use

- Radio hand transmitter for radio transmission of switching, dimming, and blind movement

commands

- Operation with radio actuators from the eNet system

Product characteristics

- A button for switching and dimming a channel

- Status indication with LED

1/6

82582523

J0082582523

26.04.2017

- Battery-powered device

- Signalling of transmission errors can be switched off

Can be set with eNet server:

- Scenes: All On, All Off, individual scenes

- Operation locks

Supplementary functions with eNet Server

- Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0

- Update of the device software

- Reading of error memory

4 Operation

iWhen operating with the eNet Server, operation and signalling could vary from what is

described here.

The radio hand-held transmitter is optimised for switch actuators in push-button operation.

Button pressed, push-button actuator switches on, Button released, push-button actuator

switches off.

In addition, the hand-held transmitter can be used in various ways:

- Single-area operation, lighting: Switching lighting on or off or dimming brighter/darker takes

place alternately when the button is pressed repeatedly.

- Single-area operation, Venetian blind: Upward or downward movement takes place

alternately when the button is pressed repeatedly.

iIt may be the case that the button has to be pressed twice, in order to obtain the desired

result.

Function of status LED in operation

As soon as the button is pressed or released, the status LED (1) first signals radio transmission

- LED turns red for 3 seconds

and then the actuator status

- LED turns green for 3 seconds:

At least one actuator is switched on, or one Venetian blind is not in the top end position

- LED remains off:

All the actuators are switched off or the blinds are all in the upper end position

or - if there is no status message from an actuator - a transmission error.

- The LED rapidly flashes red for 5 seconds:

The status message of at least one actuator is missing

Operating light

oSwitching: Press button for less than 0.4 seconds.

oDimming: Press the button for longer than 0.4 seconds. The dimming process ends when

the button is released.

oSwitching on at minimum brightness: Press the button for longer than 0.4 seconds.

Operating blind

oMoving the Venetian blind: Press the button for longer than 1 second.

iChange of direction for moving Venetian blind: Press the button for longer than 1 second.

Change of direction for stationary Venetian blind: First, press the button for less than

1 second, then press the button for longer than 1 second.

oStopping the Venetian blind: Press the button for less than 1 second.

oAdjusting the Venetian blind: Press the button for less than 1 second.

iIf the break between the two button actuations is longer than approx. 1 second, the

direction will change.

Operating push-button actuator

oPress the button. The load is switched on for the duration of the button-press.

2/6

82582523

J0082582523

26.04.2017

eNet radio hand-held transmitter 1-gang

iThe maximum actuation length is 60 seconds.

5 Information for electrically skilled persons

5.1 Commissioning

DANGER!

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

During commissioning, cover the parts carrying voltage on radio transmitters

and actuators and in their surrounding area.

Insert battery

WARNING!

Risk of chemical burns.

Batteries can burst and leak.

Replace batteries only with an identical or equivalent type.

oOpen battery compartment on the rear side of the hand-held transmitter.

iKeep contacts of batteries and device free of grease.

oApply battery to the positive contact of the battery holder. Observe polarity: the positive

pole of the battery must be at the top.

oPress gently on battery to snap it in.

oClose battery compartment.

Hand-held transmitter is ready for operation.

Connecting to radio actuator

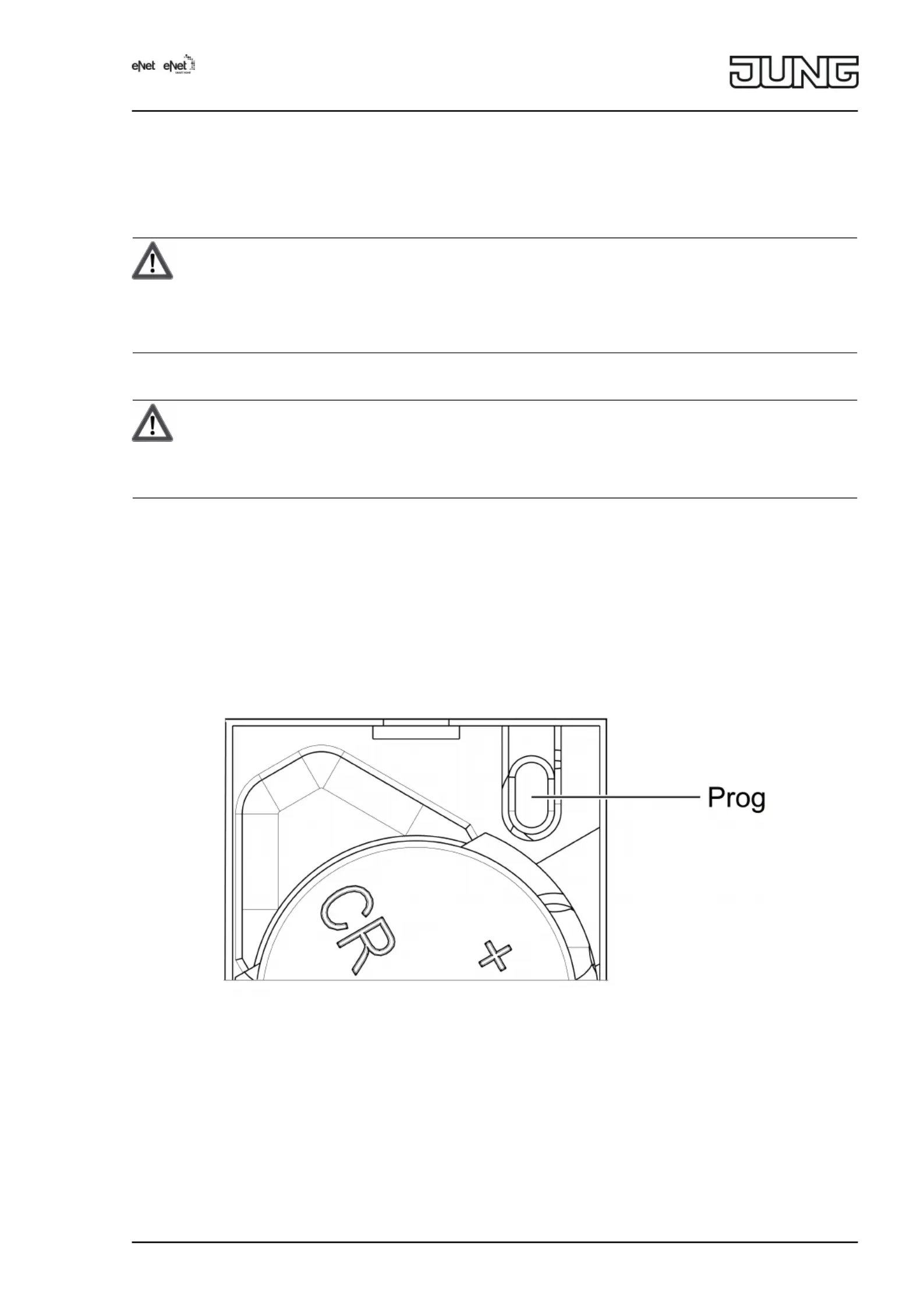

Figure 2: Button in the battery compartmentProg

iUp to 10 radio actuators can be connected to a transmitter in a single step.

oSwitch the actuator to programming mode (see actuator instructions).

oPress the (figure 2) button for longer than 4 seconds.Prog

Status LED (1) flashes red. The hand-held transmitter is in programming mode for approx.

1 minute.

oPress button briefly.

3/6

82582523

J0082582523

26.04.2017

eNet radio hand-held transmitter 1-gang

Produkspesifikasjoner

Merke:	Jung
Kategori:	smarthjem
Modell:	FM HS 1 T
Bredde:	40.5 mm
Dybde:	15 mm
Høyde:	55 mm
LED-indikatorer:	Ja
Tilkoblingsteknologi:	Trådløs
Driftsspenning:	3 V
Batteriteknologi:	Lithium
Batteritype:	CR 2450
Produktfarge:	Antrasitt
Antall støttede batterier:	1
Driftstemperatur (T-T):	-5 - 45 °C
Modell/Type:	Håndholdt
Internasjonal beskyttelses (IP)-kode:	IP20
Videoopptaksgrensesnitt:	RF kabel-fri
Batterier medfølger:	Ja
Arbeidsfrekvens:	868 - 868.6 MHz
Antall støttede enheter:	10
Overførings kraft:	20 mW
