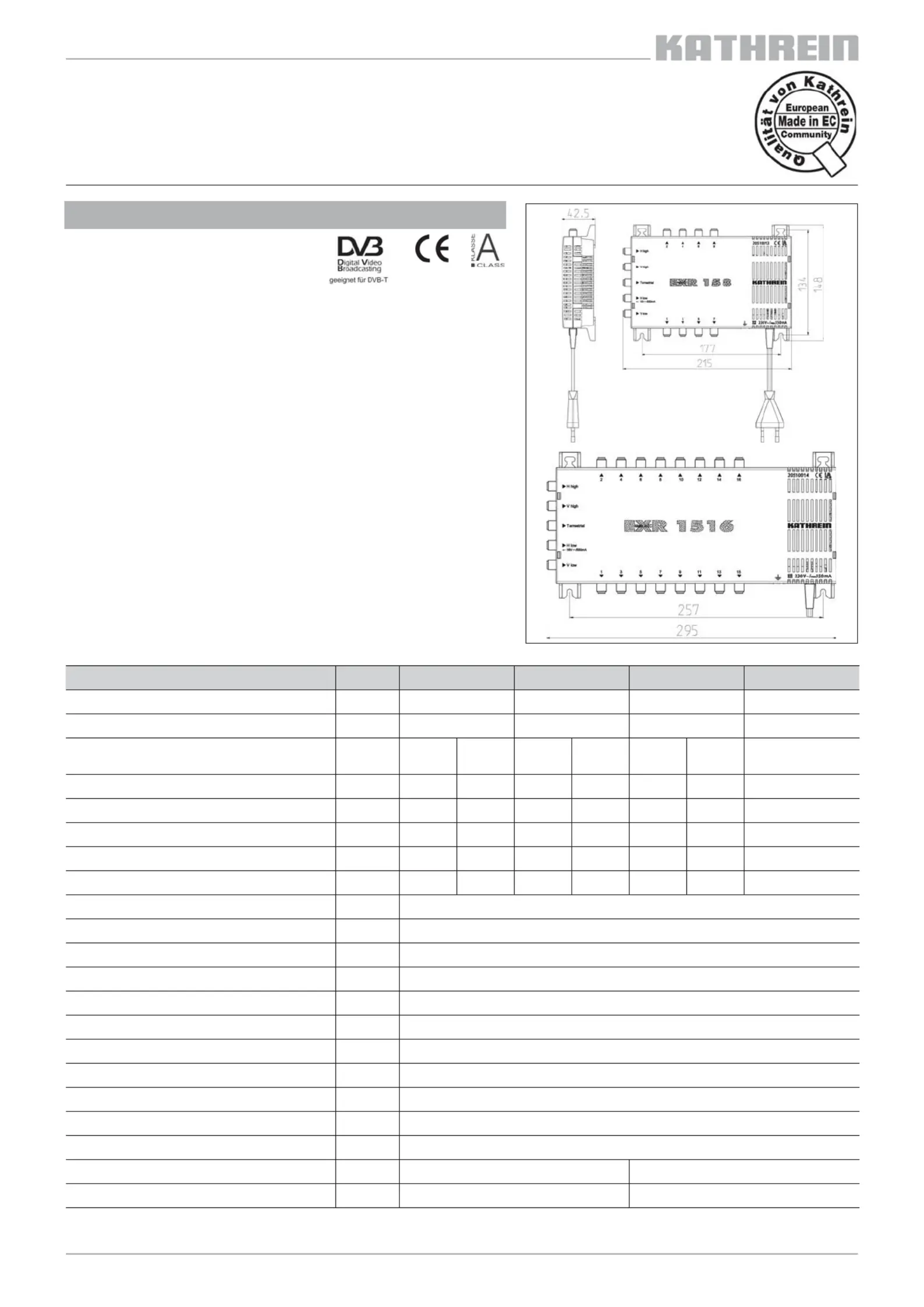

Sat IF Distribution System Multiswitch

Multiswitch

EXR 156

EXR 158

EXR 1512

EXR 1516

20510011

20510012

20510013

20510014

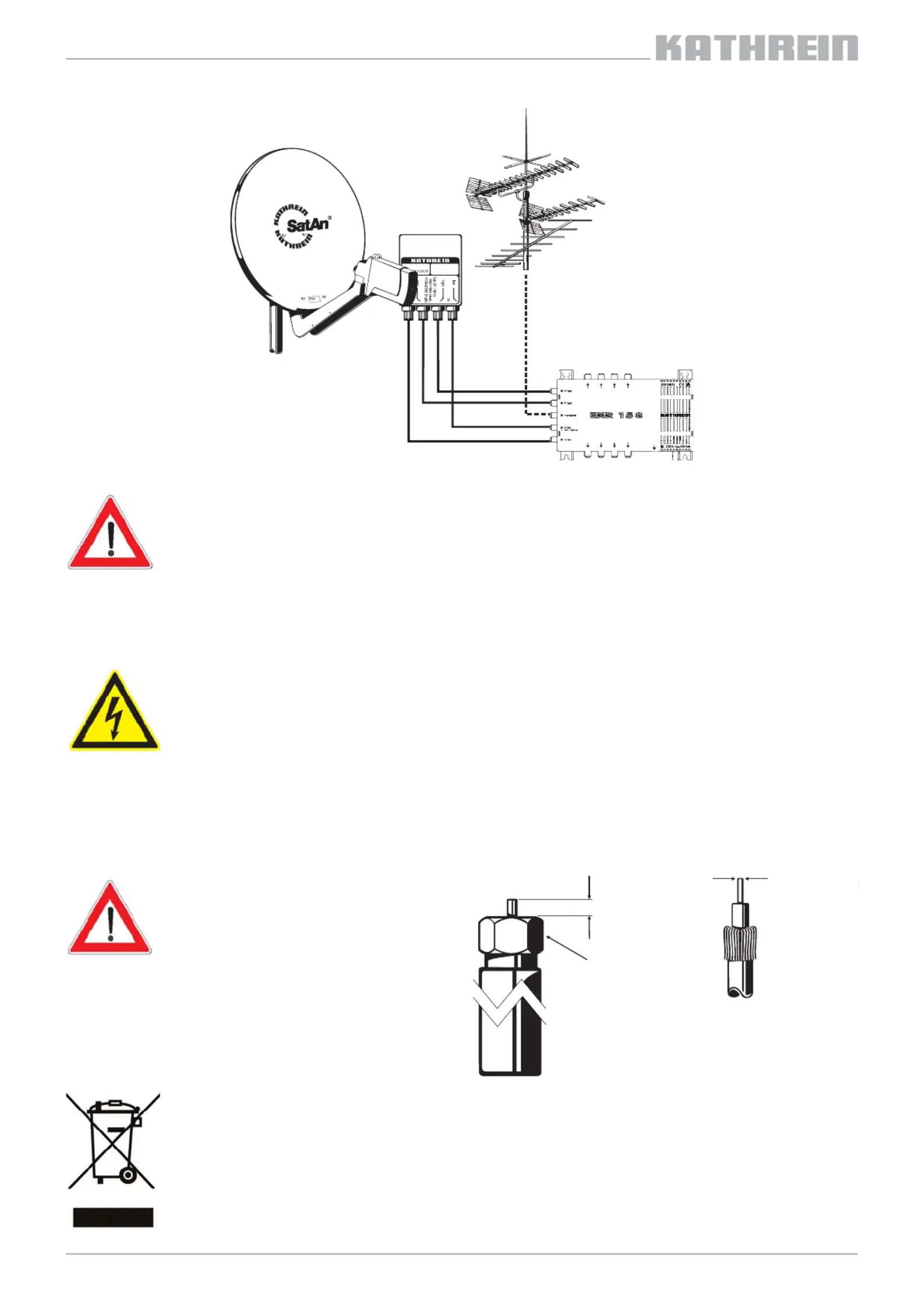

Multiswitch for distribution of 4 Sat levels and terrestrial signals to

6, 8, 12 or 16 connections

Only one drop cable per receiver needed (two for twin receivers)

Independent horizontal/vertical, low/high selection from each receiver

Switching via coaxial cable at 14/18V and 0/22 kHz signal frequency

Integrated ampliﬁ er for low attenuation in Sat and terrestrial signal

range

Integrated pre-emphasis to equalise cable attenuation

Terrestrial signals also receivable with Sat receiver switched off

High decoupling between outputs

Remote feed via horizontal low input. All other inputs are

DC blocked (enabling operation with UAS 485).

Low power consumption due to high-efﬁ ciency short-circuit-proof

switch-mode power supply unit

For indoor installation

Type EXR 156 EXR 158 EXR 1512 EXR 1516

Order no. 20510011 20510012 20510013 20510014

Subscriber connections 6 8 12 16

Inputs 1 x terr.

4 x

Sat-ZF

1 x terr.

4 x

Sat-ZF

1 x terr.

4 x

Sat-ZF

1 x terr.

4 x

Sat-ZF

Frequency ranges MHz

47-862 950-2150 47-862 950-2150 47-862 950-2150 47-862 950-2150

Attenuation ¹) dB 4-0 12-7 4-0 12-7 8-4 12-7 8-4 12-7

Horizontal/vertical isolation dB - 25 - 25 - 25 - 25

Output isolation dB 25 25 25 25 25 25 25 25

Max. output level ²) dBµV 95 105 95 105 89 105 89 105

Screening factor dB 5-300 MHz > 85, 300-470 MHz > 80, 470-1000 MHz > 75, 1000-2150 MHz > 55

Vertical/horizontal input control V 12-14.5/16-19

Low/High band control kHz 0/22

Current consumption per subscriber mA < 25

Nominal input voltage

V 198-253

Nominal input power (max./only with UAS 484) W 14/6.5

Secondary voltage ³) V 18

Max. total remote feed current ³) mA 550

Protection class/protection type II (totally insulated)/IP 30

Permissible ambient temperature °C -20 to +55

Connections F connectors

Dimensions, W x H x D mm 215 x 148 x 43 295 x 148 x 43

Packing unit/Weight units/kg 1 (10)/0.65 1 (10)/1.0

¹) Frequency-dependent attenuation (pre-emphasis)

²) Terr. acc. to EN 50083-5, 60-dB-KMA; SAT acc. to EN 50083-3, 35-dB-IMA

³) Via horizontal low input

936.2728/G/0509/1.2d
