An Internet connection is required for the use of the Red Bull MEDIA HOUSE PORTAL.

See “Network/Internet access” after ﬁ rst installation.

Operating Instructions Part 1 UFS 924

Connection and setup English

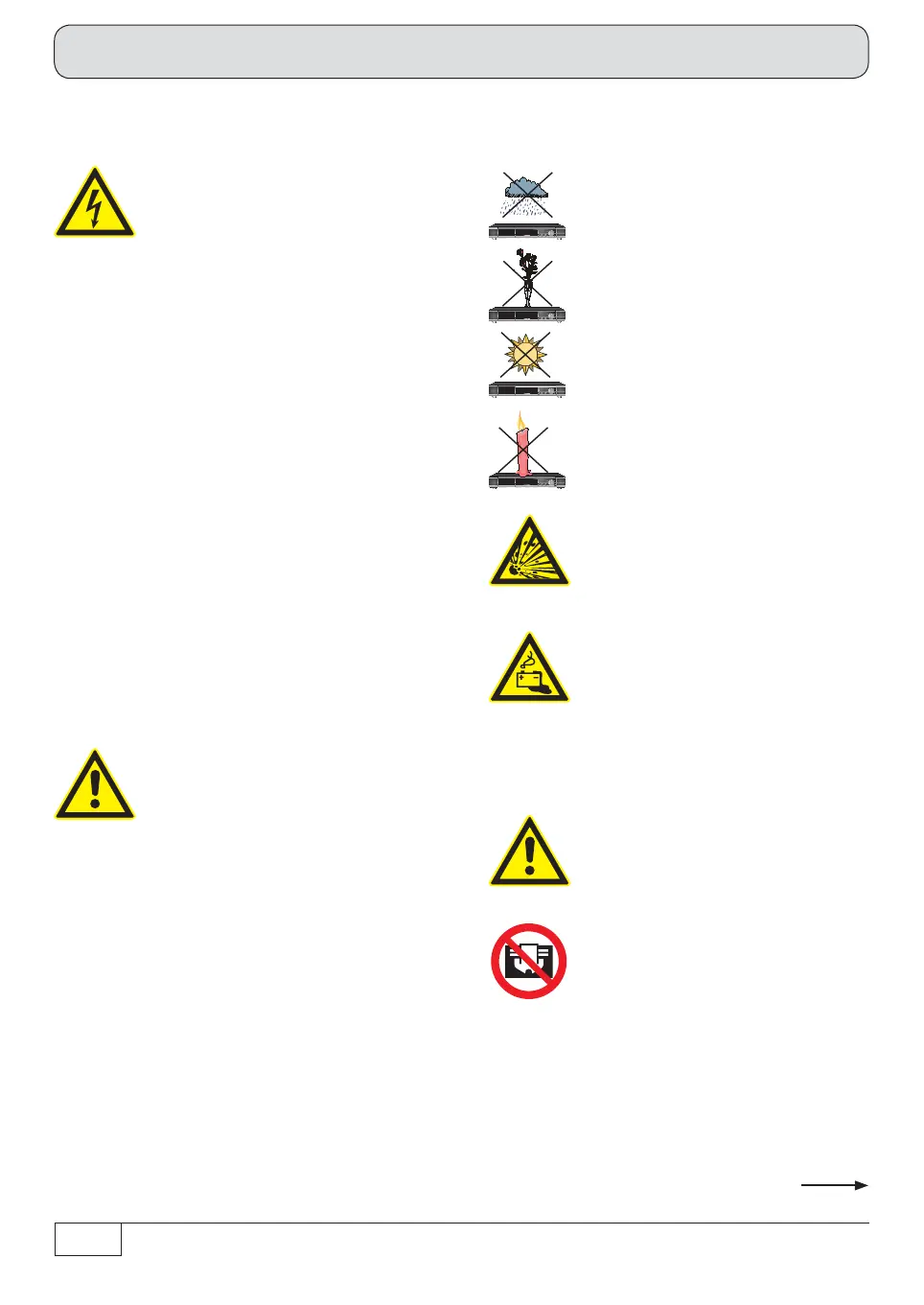

Safety instructions - important notes ............. 2

Items supplied .................................................. 5

Connection and setup ...................................... 6

Front/rear view of the receiver (front flap

open) ................................................................ 6

Inserting batteries into the remote control ........ 8

Connecting the receiver ................................... 9

TV connection .................................................. 9

Audio connection ............................................ 10

Digital .................................................................... 10

Analogue ............................................................... 10

Connecting up the video/DVD recorder ......... 10

Information about antenna connection and

loop-through mode ......................................... 11

First installation .............................................. 12

Network/Internet access ................................. 44

Common Interface (CI)/Smartcard reader ...... 46

Inserting the Smartcard and the CI Module ........... 46

Troubleshooting ............................................. 47

Service ............................................................. 48

Technical Appendix ........................................ 49

Advanced connection example ...................... 49

Technical data ................................................ 50

Sat IF connection examples ........................... 51

Individual reception systems ................................. 51

Community antenna network systems

(4 x Sat IF) ............................................................. 51

Community antenna systems (8 x Sat IF),

Multifeed ................................................................ 52

Community antenna systems (16 x Sat IF),

Multifeed ................................................................ 52

Single cable systems ............................................. 53

Connection Examples for the Network

Function ......................................................... 55

DHCP (Receiver): ON ........................................... 55

DHCP (Receiver): ON ........................................... 56

DHCP (Receiver): ON ........................................... 57

DHCP (Receiver): OFF.......................................... 58

DHCP (Receiver): OFF.......................................... 59

DHCP (Receiver): OFF.......................................... 60

For your notes ................................................ 61

If you do not know the conﬁ guration of your satellite reception system, contact your

specialist dealer for the ﬁ rst installation of your receiver.
