Side 1/12

DSCOMPONENTSYSTEM

DS600.2, DS650.2, DS680.2

2007 DS Components Multilingual a01.qxp 11/12/2008 3:47 PM Page 1

Your DS components were specially designed for “Livin’ Loud” out in the harsh automotive

environment. They are made of advanced materials and construction techniques to

maintain optimal performance for years to come.

Application

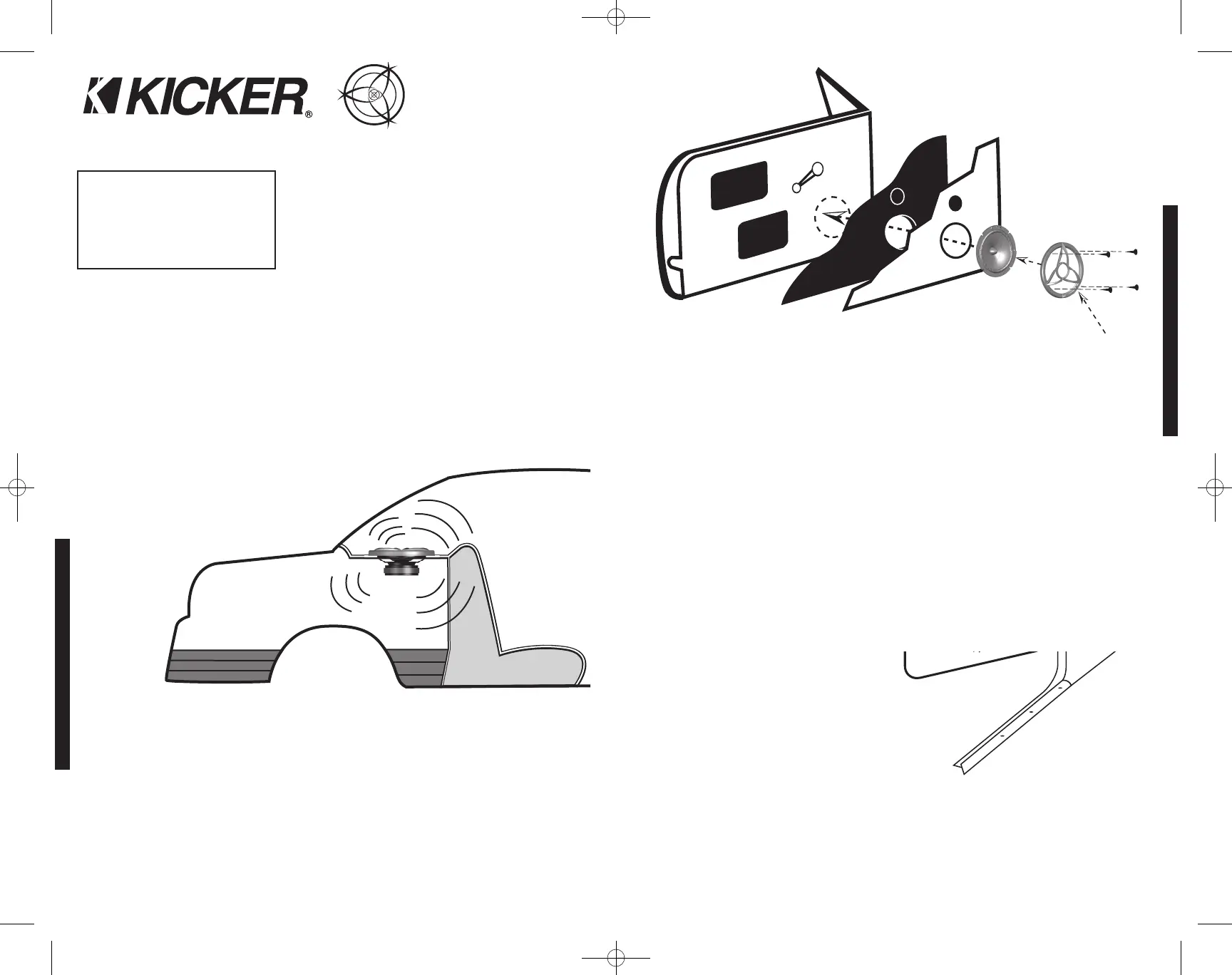

The Kicker DS component systems are specifically designed for mounting in free-air

applications. The speakers do not require a sealed enclosure for optimum performance. It is

important to isolate the sound coming off the front of the driver from the sound radiating

from the back of the driver. This isolation is usually accomplished by using the driver in a

factory speaker location, or in a location with a semi-isolated rear chamber. See Figure 1.

Location

The sound produced by the DS components is directional, particularly for the tweeter’s

sonic output. The external crossover has a High Frequency Output Attenuation switch

(0, 3 & 6dB) that allows for added flexibility in positioning the tweeter. Find the best location

for stereophonic sound. If necessary, add more DS component systems to the audio

system to help distribute and balance the sound. After determining the best mounting

locations, carefully check the areas where the mounting hardware will be placed.

See Figure 2.

INSTALLATION

Congratulations on your

KICKER purchase

Please record your purchase

information and keep your sales

receipt for validation of warranty.

Authorized Kicker Dealer:

Purchase Date:

Speaker Model Number:

_________________________

Note: All specifications and performance figures are subject to change. Please visit the www.kicker.com for the most current information.

To get the best performance from your new Kicker speakers, we recommend using genuine Kicker Accessories and Wiring.

Please allow two weeks of break-in time for the speaker to reach optimum performance.

INSTALLATION

DSComponentSystem

Owner’sManual

DS600.2 / DS650.2 / DS680.2

Models:

WooferMounting

If you are replacing factory speakers in their original locations, you may have to enlarge the

speaker cut-outs and pre-drill new screw holes using a 7/64” (2.5mm) bit. Custom mounting

locations will require more preparation and work. In either case, make sure the speaker will

not interfere with the trunk and door opening and closing mechanisms, and the enclosed

screws will not puncture the fuel tank, wiring, or interfere with any other mechanical parts on

the underside of the mounting surface. Cycle the windows all the way down and up.

If the speaker cut-out locations require you to cut metal, avoid structural metal and braces.

If the door body and panel cannot support the weight of the speaker, an optional reinforcing

panel (thin piece of wood or Medium Density Fiberboard) may be sandwiched between the

panels. Mount the speaker to the vehicle as outlined in Figure 2.

If factory speaker wiring is not available in your desired location, it may be necessary to run

the supplied wire through the door jamb. The speaker wire should be kept away from sharp

edges and avoid the possibility of getting pinched by the door. An existing grommet in the

door jamb is the ideal place to run the speaker wire. If the factory hole and grommet do not

exist or are inaccessible, you must drill a hole

to run the speaker wire through the door jam.

Be careful not to drill into other wiring or

exiting door mechanisms. Any time a wire is

run through a hole, it is necessary to insert a

rubber or plastic grommet to protect the wire

from damage as outlined in Figure 3.

If the supplied hardware is not applicable to

your installation, some other means of

securely attaching the speakers to the vehicle

must be used.

Figure 1

DSCOMPONENTSYSTEM

Rear Seat

Trunk / Storage Space

Rear Sound

Waves

Front Sound

Waves

Figure 2

Door Panel

Place Speaker Grille over the Midrange/Woofer

Driver and mount with the enclosed Screws

Door Body

Reinforcing Panel

(Optional)

Midrange/Woofer

Driver

Speaker Grille

Screws

Stagger the holes for

the wiring and use a

rubber or plastic

grommet to protect

the wire from damage

Speaker cut-out

Figure 3

Front Door Body

Front Dash

Kick Panel

Speaker

cut-out

To speaker terminals

To the

external

crossover

DS Component Driver

2007 DS Components Multilingual a01.qxp 11/12/2008 3:47 PM Page 2

DS600.2

6 (160)

3/4 (20)

Titanium

4 (3)

120 (60)

35-21k

4 13/16 (12.3)

1 7/8 (4.8)

2 3/16 (5.5)

1 9/16 (4)

12, 4000

0, 3 & 6

Yes

4 5

DSCOMPONENTSYSTEM

INSTALLATION

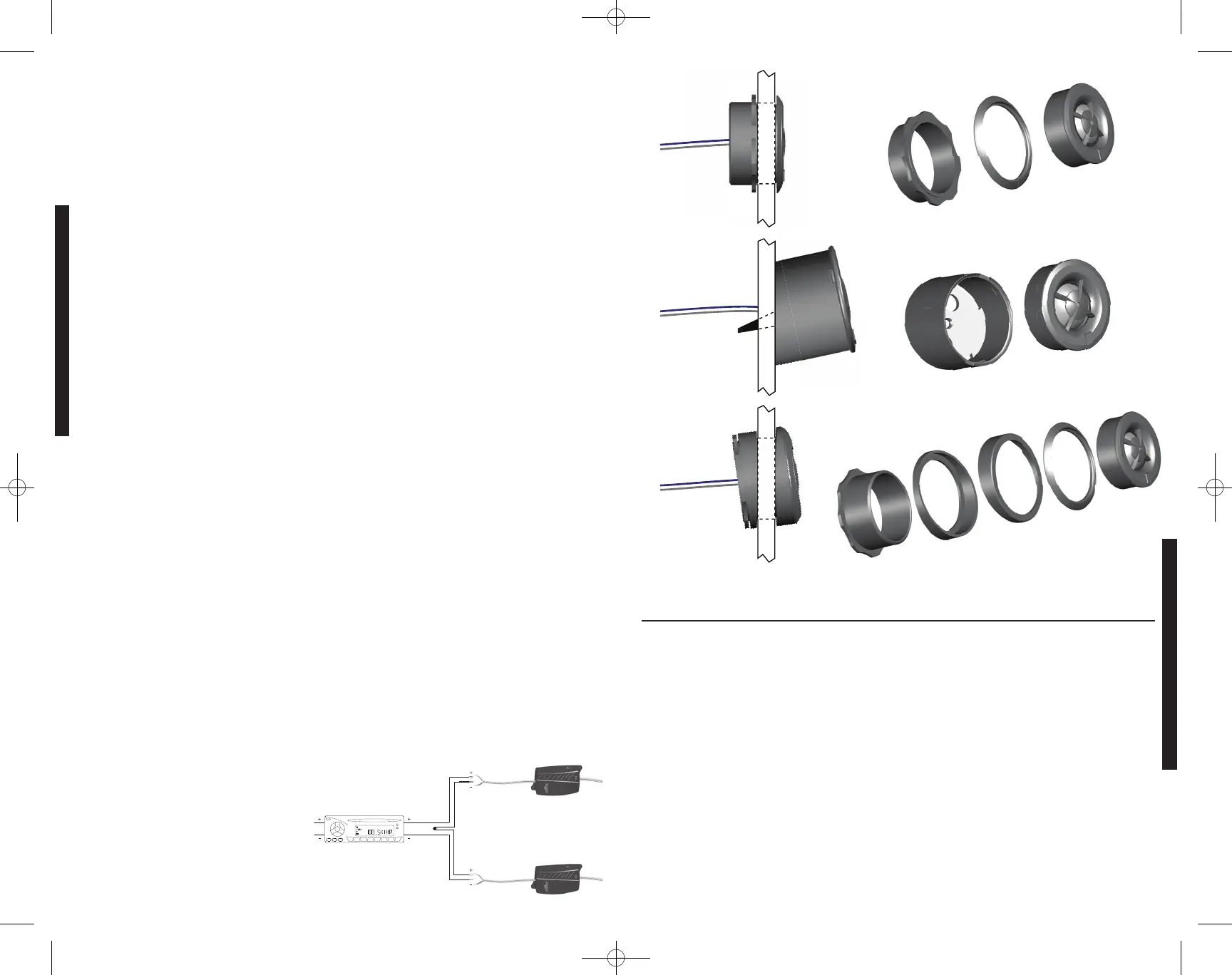

TweeterMounting

The tweeter can be mounted one of three ways: flush, angled-surface and angled mounting.

For flush mounting applications, please refer to the illustration in Figure 5. Choose a flat

location on the panel with space behind the panel to allow room for the mounting nut. After

checking the clearances, cut a 1 9/16” (4cm) diameter mounting hole in the panel. Place the

shorter mounting nut behind the panel (only use the longer mounting nut if panel thickness

prohibits the use of the shorter mounting nut). Feed the wire through the optional tweeter

flange, the hole in the panel and the mounting nut. Mount the tweeter by screwing the

mounting nut onto the tweeter.

For angled-surface mounting applications use the angled-surface mount cup as a template

and pre-drill one 7/64” (2.5mm) screw hole for attaching the angled-mounting cup to the

panel, and a 5/16” (8mm) hole for the wires. A M3 pan-cross head wood screw is supplied

to attach the mounting cup to the panel. Position the tweeter over the attached angled-

mounting cup and press it into position. See Figure 6.

For angled mounting applications choose a flat location on the panel with space behind the

panel to allow room for the mounting nut and back angle ring. After checking the

clearances, cut a 1 9/16” (4cm) diameter mounting hole in the panel. Place the front angle

ring (does not fit through the longer tweeter mounting nut) in front of the panel. Then place

the wire and tweeter through the tweeter flange, front angle ring and into the panel. Next

place the wire through the back angle ring (fits through the longer tweeter mounting nut),

place the back angle ring over the rear of the tweeter, and line-up the narrow part of the

front angle ring for the preferred angle of operation. Place the wire through the longer

tweeter mounting nut and loosely tighten the mounting nut around the tweeter. Rotate all the

parts in unison until the tweeter is angled in the desired direction. Secure the assembly by

tightening the tweeter mounting nut. See Figure 7.

Wiring

Hooking up the Kicker DS-Series Component Speakers is easy. Mount the external

crossover in a location free and clear of water and mechanical components of the vehicle

with the enclosed phillips-head wood screws. The positive and negative leads on the

speakers are terminated with connectors of different shapes and sizes that intuitively

connect to the external crossover’s connectors. After connecting the speakers to the

external crossover, connect the external crossover to the source unit or amplifier in

accordance with its owner’s manual. For reference, the Gray wire is Positive and the Black

wire is Negative on the external crossover.

WiringMultipleSpeakers

Modern high performance component system speakers have a lower DC Resistance than

what used to be available. The Kicker DS-Series component system speakers are rated at

four ohms and work with any source unit or amplifier designed to operate at a four ohm

load. If you want to use two DS-Series component system speakers (two midrange/woofers

and two tweeters) on each channel of

your source unit or amplifier wire the

speakers in series, as shown below. This

will improve the sound quality, lower the

total harmonic distortion and lessen the

thermal load at the source unit or

amplifier. This may prevent an amplifier

from shutting down, due to over-current

protection circuitry. See Figure 4.

DS680.2

6x8 (160x200)

3/4 (20)

Titanium

4 (3)

90 (45)

40-21k

5x7 3/16 (12.7x18.3)

2 3/8 (6)

2 3/4 (7)

1 9/16 (4)

12, 4000

0, 3 & 6

Performance

Model:

Woofer Size, in (mm)

Tweeter Size, in (mm)

Dome Material

Rated Impedance, ohm (DC Resistance, ohm)

Power Handling Watts, Peak (RMS)

Sensitivity [SPLo], dB @ 1W, 1m

Effective Frequency Range, Hz

Woofer Mounting Hole Diameter, in (cm)

Woofer Top Mount Depth, in (cm)

Woofer Bottom Mount Depth, in (cm)

Flush Mounting Tweeter Hole Diameter, in (cm)

High Pass, dB, at Frequency, Hz

Low Pass, dB, at Frequency, Hz

High Frequency Output Attenuation, dB

Bolt-Thru Grilles

Figure 5

DS650.2

6.5 (165)

3/4 (20)

Titanium

4 (3)

120 (60)

35-21k

5 1/2 (14)

1 13/16 (4.6)

2 (5.1)

1 9/16 (4)

12, 4000

0, 3 & 6

Yes

Flush Mount

Angled-Surface Mount

Angled Mount

Shorter Mounting Nut

Angled-Surface Mount Cup

Longer Mounting Nut

Back Angle Ring

Front Angle Ring

Panel

Optional Tweeter Flange

Tweeter

Tweeter Flange

Tweeter

Source Unit or Amplifier

High Frequency Output

Attenuation Switch: 0, 3 & 6dB

Two DS-Series Component

Speakers wired in series to

a single channel

External Crossover

PERFORMANCE

Figure 4

Figure 6

Figure 7

M3 Screw

2007 DS Components Multilingual a01.qxp 11/12/2008 3:47 PM Page 3

Produkspesifikasjoner

Merke:	Kicker
Kategori:	Høyttaler
Modell:	DS68.2
Impedans:	4 Ω
Toppeffekt:	90 W
Diskanthøyttaler:	Ja
Nominell effekt:	45 W
Subwoofer inkludert:	Nei
Frekvensrekkevidde:	40 - 21000 Hz
Basshøyttalerens diameter:	200 mm
Diskant diameter:	20 mm
Sensitivitet/følsomhet:	90 dB
Overgangsfrekvens:	4000 Hz
Innbygningsdybde:	60 mm
Diskanthøyttaler magnettype:	Titan
