For pressure sewer applications, verify a Redundant Check Valve Assembly (curb stop and check valve) is installed between the pump
discharge and the street main, as close to the public right-of-way as possible, on all installations to protect from system pressures.
Approved for Hazardous Locations
Class I, Division 1, Groups C and D T4
Class I, Zone 1, Groups IIA and IIB T4
Installer: Manual must remain with owner or
operator/maintainer.
Record information from pump nameplate:
Keep this manual handy for future reference.
For replacement manual, visit LibertyPumps.com,
or contact Liberty Pumps at 1-800-543-2550.
Retain dated sales receipt for warranty.
Model:
7000 Apple Tree Avenue
Bergen, NY 14416
ph: 1-800-543-2550
fax: 1-585-494-1839
www.LibertyPumps.com
Serial:
Mfg Date:
Install Date:
Installation Manual
6850000E
Copyright © Liberty Pumps, Inc. 2022
All rights reserved.
Omnivore
®
Explosion-Proof
2 hp Grinder Pumps
XLSG and XLSGX-Series
Models
XLSG200-Series
Single-Stage
XLSGX200-Series
2-Stage High Head
2 | EN Copyright © Liberty Pumps, Inc. 2022
All rights reserved. 6850000E
Contents
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 | EN
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . 4 | EN
Operating Constraints . . . . . . . . . . . . . . . . . . . . . . . . . 4 | EN
Model Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 | EN
Inspection and Storage . . . . . . . . . . . . . . . . . . . . . . . . . 4 | EN
Pump Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 | EN
Pump System Components . . . . . . . . . . . . . . . . . . . . . 5 | EN
Wiring Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 | EN
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 | EN
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 | EN
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 | EN
Maintenance and Troubleshooting . . . . . . . . . . . . . . . 9 | EN
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 | EN

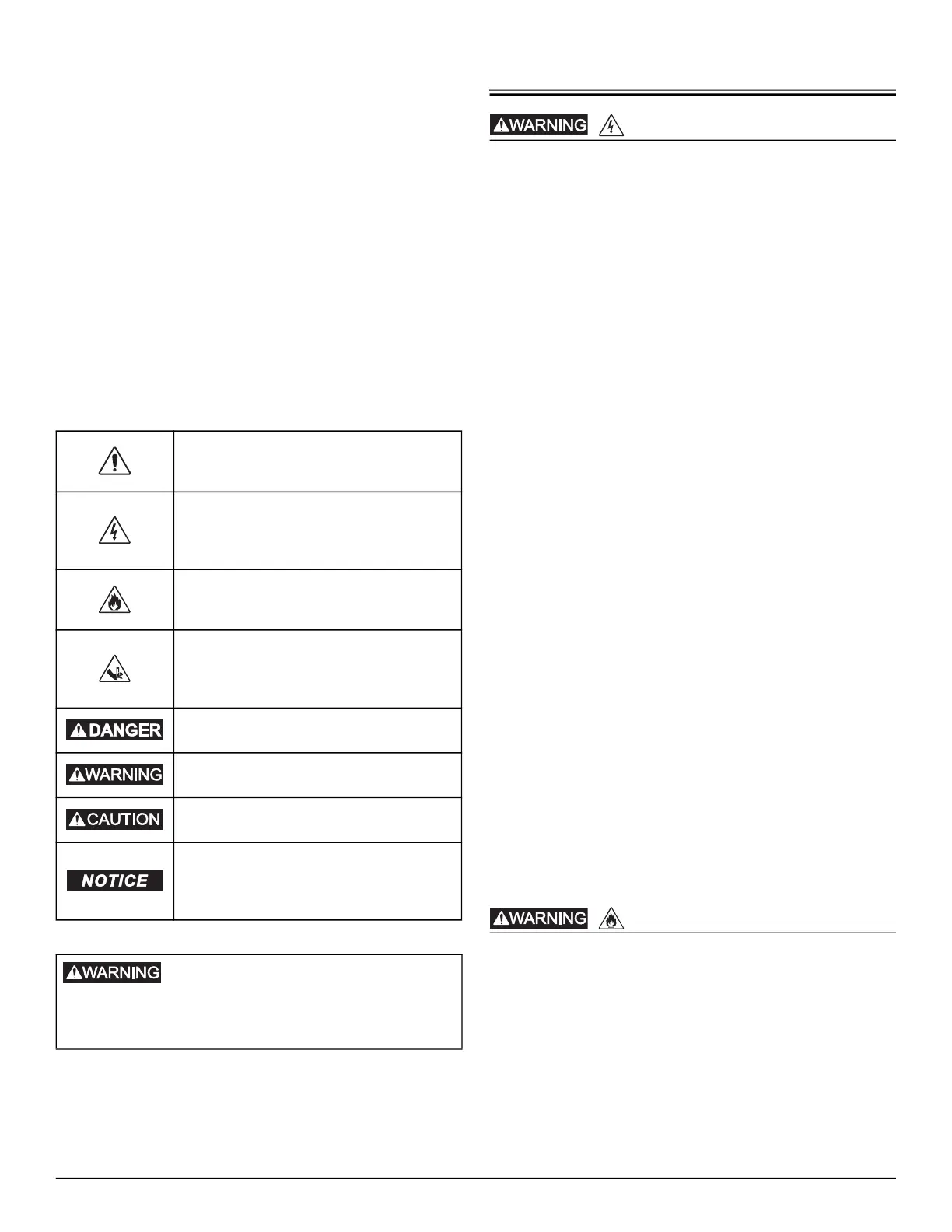

Sa fety Guidelines
Sa fety Preca utions
Accidental contact with electrically live parts, items, fluid, or
water can cause serious injury or death.
Always disconnect pump(s) from power source(s) before
handling or making any adjustments to either the pump(s),
the pump system, or the control panel.
All installation and maintenance of pumps, controls,
protection devices, and general wiring shall be done by
qualified personnel.
All electrical and safety practices shall be in accordance with
the National Electrical Code
®
, the Occupational Safety and
Health Administration, or applicable local codes and
ordinances.
Do not remove cord and strain relief, and do not connect
conduit to pump.
Pump shall be properly grounded using its supplied
grounding conductor. Do not bypass grounding wires or
remove ground prong from attachment plugs. Failure to
properly ground the pump system can cause all metal
portions of the pump and its surroundings to become
energized.
Do not handle or unplug the pump with wet hands, when
standing on damp surface, or in water unless wearing
Personal Protective Equipment.
Always wear dielectric rubber boots and other applicable
Personal Protective Equipment (PPE) when water is on the
floor and an energized pump system must be serviced, as
submerged electrical connections can energize the water. Do
not enter the water if the water level is higher than the PPE
protection or if the PPE is not watertight.
Do not lift or carry a pump or a float assembly by its power
cord. This will damage the power cord, and could expose the
electrically live wires inside the power cord.
The electrical power supply shall be located within the length
limitations of the pump power cord, and for below grade
installations it shall be at least 4
ft (1.22 m) above floor level.
Do not use this product in applications where human contact
with the pumped fluid is common (such as swimming pools,
fountains, marine areas, etc.).
Protect the power and control cords from the environment.
Unprotected power and control (switch) cords can allow water
to wick through ends into pump or switch housings, causing
surroundings to become energized.
Do not use an extension cord to power the product. Extension
cords can overload both the product and extension cord
supply wires. Overloaded wires will get very hot and can catch
on fire.
This product requires a separate, properly fused and
grounded branch circuit, sized for the voltage and amperage
requirements of the pump, as noted on the nameplate.
Overloaded branch circuit wires will get very hot and can
catch on fire. When used, electrical outlets shall be simplex of
the appropriate rating.
This safety alert symbol is used in the
manual and on the pump to alert of
potential risk for serious injury or death.
This safety alert symbol identifies risk of
electric shock. It is accompanied with an
instruction intended to minimize potential
risk of electric shock.
This safety alert symbol identifies risk of
fire. It is accompanied with an instruction
intended to minimize potential risk of fire.
This safety alert symbol identifies risk of
serious injury or death. It is accompanied
with an instruction intended to minimize
potential risk of injury or death.
Warns of hazards which, if not avoided, will
result in serious injury or death.
Warns of hazards which, if not avoided,
could result in serious injury or death.
Warns of hazards which, if not avoided,
could result in minor or moderate injury.
Signals an important instruction related to
the pump. Failure to follow these
instructions could result in pump failure or
property damage.
Read every supplied manual before using
pump system. Follow all the safety
instructions in manual(s) and on the pump.
Failure to do so could result in serious injury
or death.
RISK OF ELECTRIC SHOCK
RISK OF FIRE
