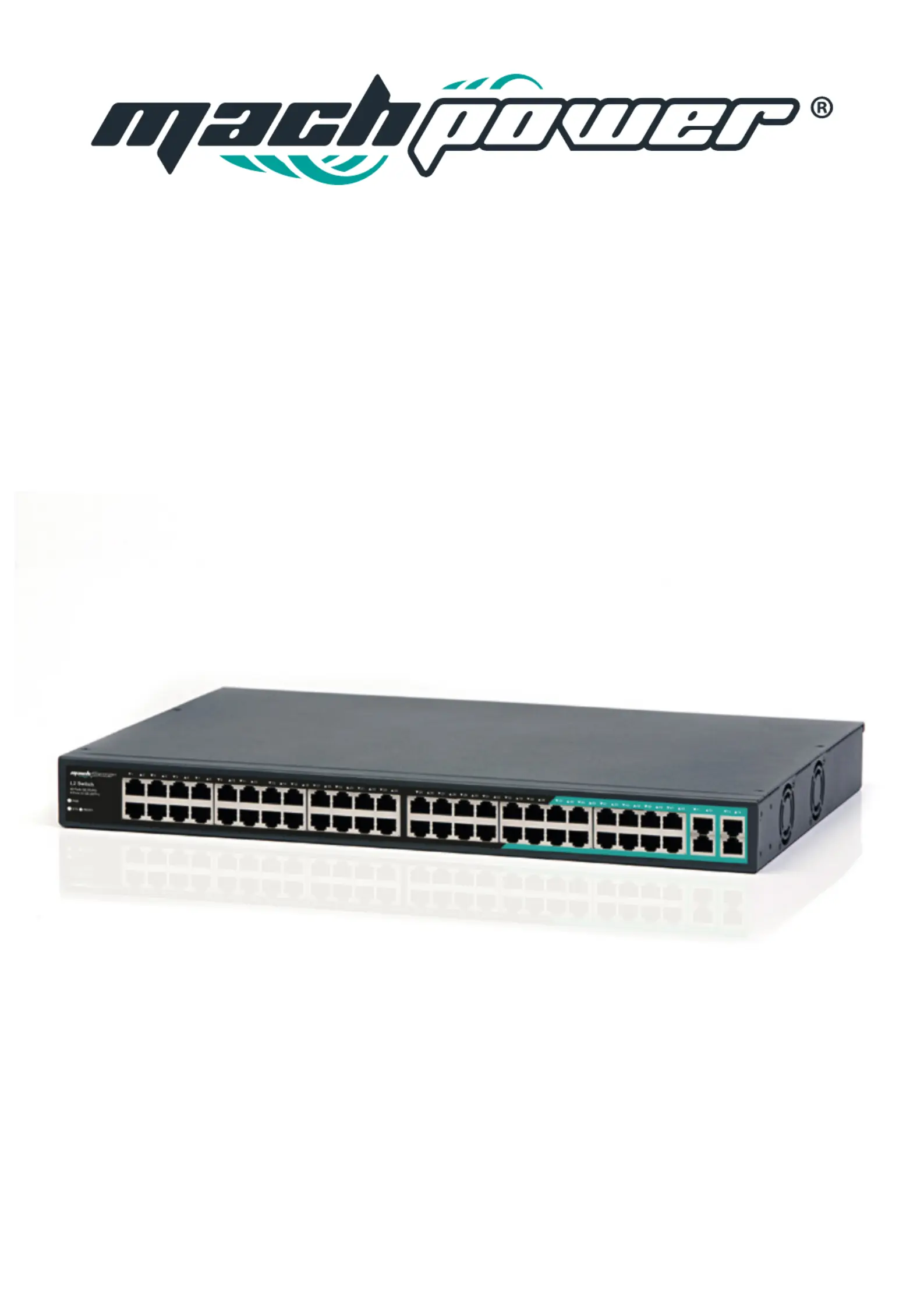

48-Port Gigabit L2
Managed Switch with SFP+
SW-MG48L4F-074
Description
The switch is a full Gigabit management switch, which uses the unique optical port design of the industry,
breaking through the limitations of traditional multiplexing ports; reliable switching engine, broadband
telecommunication power supply design, fast and efficient loop protection function, escorting the stable
operation of your network; international "EEE" environmental protection and energy saving Standard design,
effectively saving electricity and money for users. This series of products provide users with brand-new
technical characteristics and solutions in the aspects of security, reliability, multi-service integration, easy
management and maintenance. It is the ideal convergence of office network, service network and resident
network, access switch and the core switch of small and medium-sized enterprises and branches.
Main Features
Rich port specifications to meet various business needs.
48 Gigabit ports +4 10 Gigabit / Gigabit light port.
Non-blocking High-speed Forwarding
Support L2 level wire-speed port switching, which enables all ports to forward packets without blocking.
Innovative Energy Saving Design, the leader of low-carbon communication
Supports IEEE 802.3az(Energy Efficient Ethernet), port energy detection, CPU variable-frequency and device
hibernate technology, greatly reducing energy consumption and noise without compromising performance
and stability.
Technical Specification
Hardware Specifications
Fixed Ports
Reset
Port Switching capacity
Forwarding Rate
Flash/RAM
Temperature
Humidity
Dimensions
Power
Power consumption
Weight
Lightning protection
MAC address table
LED Indicator
48 x 10/100/1000 Base-T ports
4 x 1G/10 GE Base-X SFP+ ports
1
176Gbps
131Mpps
16MB/128MB
Operating temperature: (-10 - 50)°C
Storage temperature: (-40 - 70)°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) % RH, non-condensing
440(L) x 285(W) x 44(H) mm
AC: 10 ~ 240VAC, 50 ~ 60Hz, 5V/6A
72W
<5Kg
6KV
32K
Software specifications
Forwarding mode
Protocol and Standards
MAC Address
VLAN
Port Aggregation
Port Mirroring
Ring network protocol
Port stream control
Port speed limit
Multicast control
Storm suppression
Line order
Modalities for consultation
System maintenance
Management
Store-and-forward
IEEE 802.3, 10 Base-T Ethernet;
IEEE 802.3u,100 BASE-TX;
IEEE 802.3ab,1000 BASE-T;
IEEE 802.3z,1000 BASE-X;
IEEE 802.3az,EEE(Energy Efficient Ethernet);
8K MAC addresses,Support auto-update, two-way learning
Based Port VLAN
Up to 4096 VLAN
VLANs based on IEEE 802.1q
8 aggregation groups,each containing up to 8 ports;
Send and receive two-way port mirroring
support
Half duplex based on backpressure control
Full duplex based on PAUSE frames
Port Based Input / Output Bandwidth Management
IGMPv1/2/3 and MLDv1/2 Snooping
Storm suppression for unknown Unicast, multicast, multicast, broadcast type
Storm suppression based on bandwidth regulation and storm filtering
Auto-MDIX, Automatic identification of straight and cross lines
Port automatic negotiation
Detection of connectivity
Upgrade package upload
See System log
WEB factory configuration restored
WEB-based interface management
Telnet
SNMP
Mach Power è un marchio registrato. visita il nostro sito > machpower.it
Le caratteristiche potrebbero variare senza preavviso REV01-091221
