Side 1/2

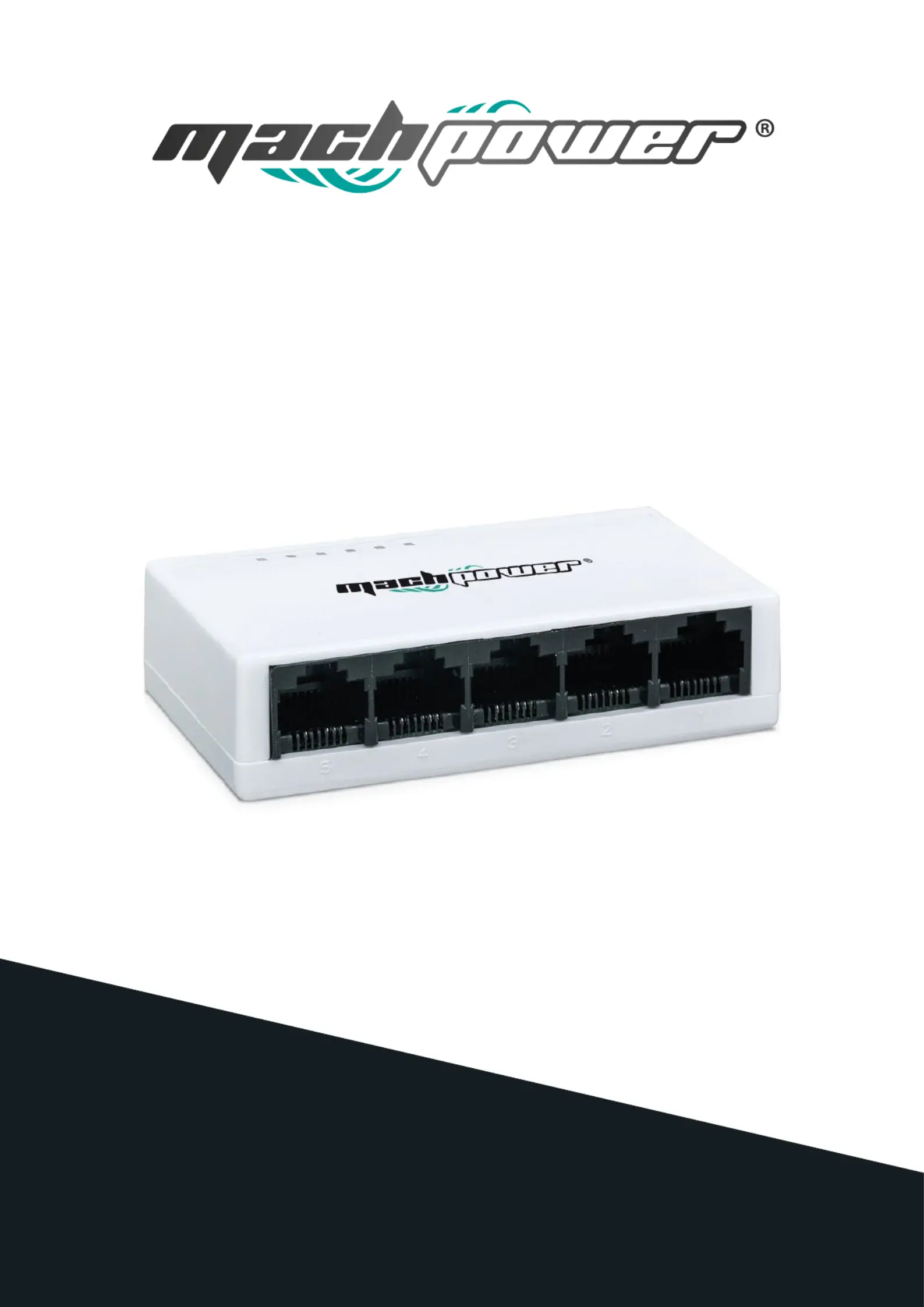

SWITCH 5 PORTS

10/100Mbps Unmanaged

DATASHEET

MODEL: SW-UF5L-030

EAN CODE: 8056459417021

| DATASHEET

DESCRIPTION

The Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX

function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port

can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using

straight cable or crossover cable.

Complies with IEEE802.3, IEEE802.3u standards

5 x 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Supports IEEE802.3x flow control for Full Duplex mode and backpressure for half-duplex mode

Supports MAC address auto-learning and auto-aging

LED indicators for monitoring power, link, activity

Plastic case, desktop

External Power Adapter 5VDC/1A

Size: 90 x 80 x 22 mm

FEATURES

SPECIFICATION

Interface

External Power Supply

Transfer Method

Advanced Functions

Package Contents

Environment

5 10/100/Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

5VDC/1A

Store and Forward

Green Technology, saving power up to70%

802.3X Flow Control, Back Pressure

Auto-Uplink Every Port

5-Port 10/100Mbps Desktop Switch

Power Adapter

User Guide

Operating Temperature: 0°C~40°C

Storage Temperature: -40°C~70°C

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing

Produkspesifikasjoner

Merke:	Mach Power
Kategori:	Ikke kategorisert
Modell:	SW-UF5L-030
Bruksanvisning:	Ja
Inngangsspenning:	5 V
Nettverksstandard:	IEEE 802.3x
Auto MDI/MDI-X:	Ja
Auto-forhandling:	Ja
Produktfarge:	Hvit
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	40 - 70 °C
Lagringsrelativ fuktighet:	5 - 90
Relativ luftfuktighet under drift (H-H):	10 - 90
Rack-montering:	Nei
AC-adapter bunt:	Ja
Svitsjtype:	Håndtert
Antall Basic switching RJ-45 Ethernet-ports:	5
Basic switching RJ-45 Ethernet ports-type:	Fast Ethernet (10/100)
Størrelse på adressetabell:	- oppføringer
Ruting/svitsjekapasitet:	- Gbit/s
Strøm over Ethernet (PoE):	Nei
Plugg inn og spill:	Ja
Innput-strøm:	1 A
Strømtilkobling:	DC-inngang
