Metra 99-9014HG Bruksanvisning
Les nedenfor 📖 manual på norsk for Metra 99-9014HG (8 sider) i kategorien Bilsett. Denne guiden var nyttig for 2 personer og ble vurdert med 4.7 stjerner i gjennomsnitt av 1.5 brukere
Side 1/8
Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 10/10/19 INST99-9014HG
INSTALLATION INSTRUCTIONS
99-9014HG
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision
• ISO DDIN radio provision †
• Pioneer modular DDIN radio provision †
• Painted high gloss black to match the factory finish
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Support bracket • D) Blank panel • E) #4 x 3/8” Phillips pan-head screws (6)
• F) #8 x 3/8” Phillips truss-head screws (2) • G) #8 x 1/2” Phillips truss-head screws (4) • H) Panel clips (2) • I) Panel clip mounts (2)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Cutting tool • T-20 Torx driver
• VW radio removal tool (Metra part #86-9001)
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation .......................................................4
Kit Assembly
–ISO DIN radio provision .......................................5
–ISO DDIN radio provision .....................................6
–Pioneer modular DDIN radio provision .............7
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: AXTC-VW2
Antenna Adapter: 40-EU56-36
A B
F G
C D E
Volkswagen Jetta 2019-Up
H I
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
† Only for with ISO DDIN radios which have an “L” shaped chassis design, with the radio chassis at the
top of the screen. At present only the Sony XAV-AX100, XAV-AX200, and XAV-AX5000 radios have this
design. The Pioneer modular radios, DMH-C2550NEX and DMH-C2500NEX, can also be used.
1.800.221.0932
|
MetraOnline.com
2

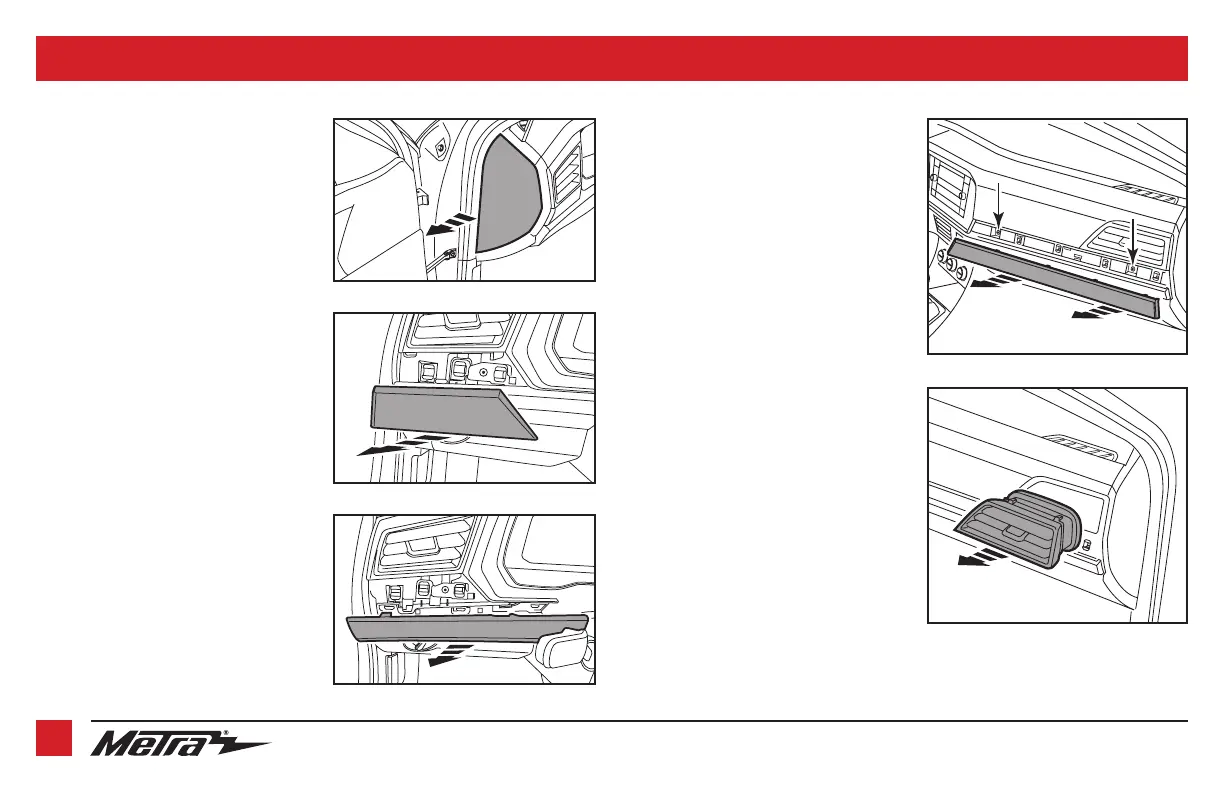

1. Open the driver’s door, then unclip
and remove the dashboard side panel.
(Figure A)
2. Unclip and remove the trim panel
directly below the far left a/c vent.
Remove (1) T-20 Torx screw exposed.
(Figure B)
3. Unclip and remove the trim panel to the
left of the steering column. (Figure C)
4. Unclip and remove the trim panel
directly below the far right a/c vent.
Remove (2) T-20 Torx screws exposed.
(Figure D)
5. Unclip and remove the far right a/c vent.
(Figure E)
Continued on the next page
(Figure E)
(Figure D)
DASH DISASSEMBLY
(Figure A)
(Figure B)
(Figure C)
