IMPORTANT
If you are having difficulties with the installation of this
product, please call out Tech Support line at 1-800-253-TECH.
Before doing so, looks over the instructions a second time,
and make sure the installation was performed exactly as the
instructions are stated. Please have the vehicle apart and
ready to perform troubleshooting steps before calling.
REV 8/21/2018
IMPORTANT
If you are having difficulties with the installation of this
product, please call out Tech Support line at 1-800-253-TECH.
Before doing so, looks over the instructions a second time,
and make sure the installation was performed exactly as the
instructions are stated. Please have the vehicle apart and
ready to perform troubleshooting steps before calling.
REV 8/21/2018

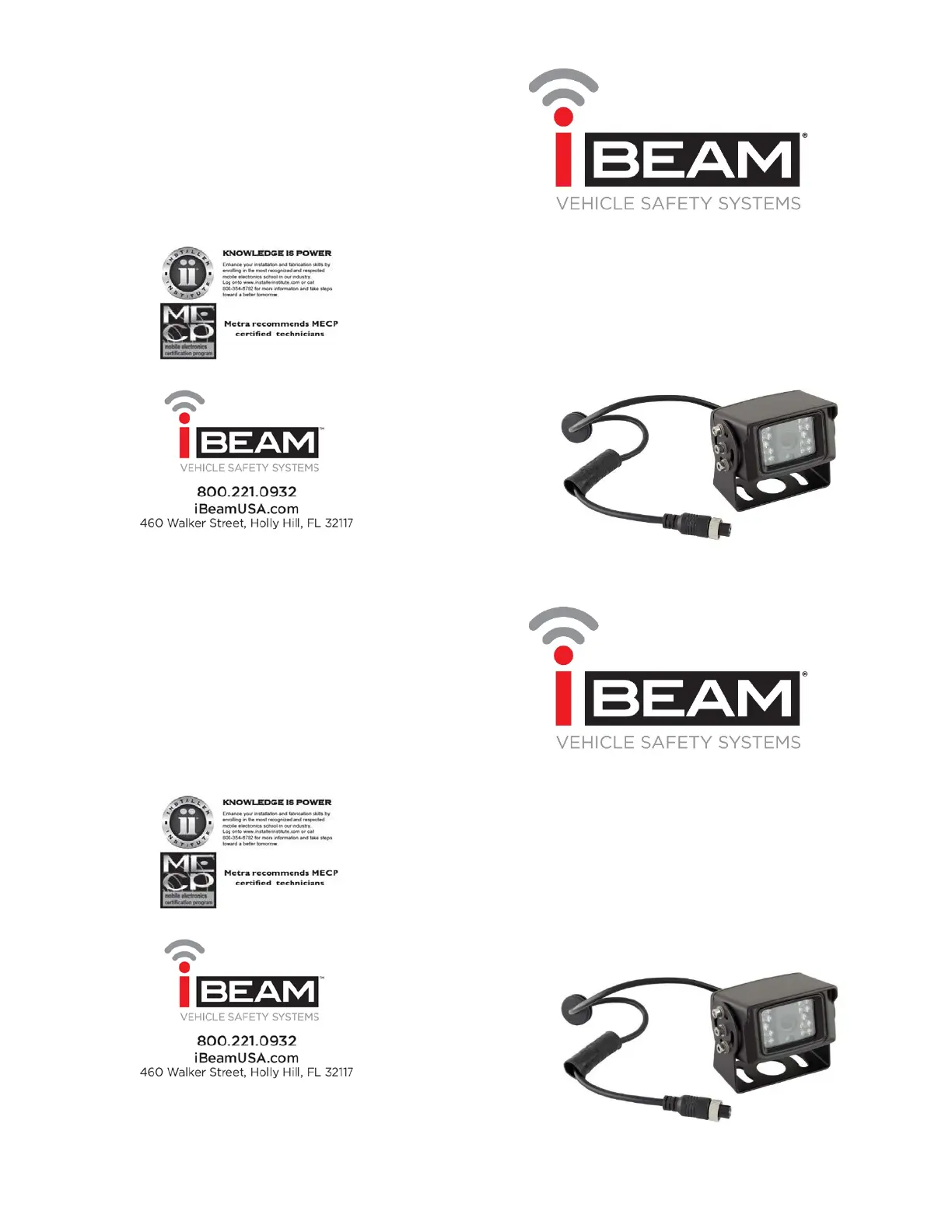

TE-CCM
Product Manual
TE-CCM
Product Manual

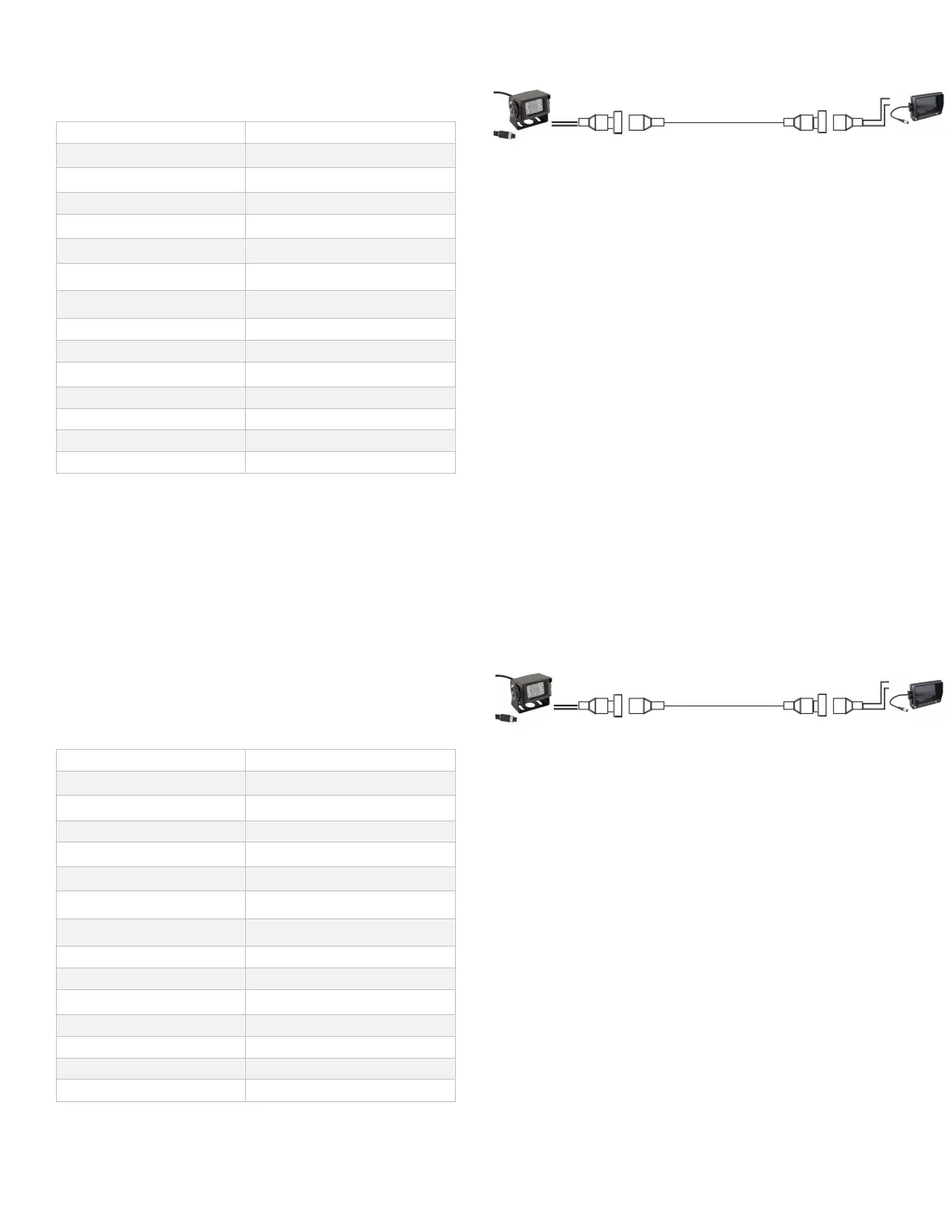

I. Specifications
I. Sp
ecifications
II
. Connections
1. Find a suitable location to install the camera. This camera is
surface mounted so we suggest a flat surface. Make sure the
camera’s view is unobstructed and be careful not to drill into any
wires that might damage the vehicle. When all connections have
been made and before mounting the camera, verify the camera is
working and has a good view of the area. Then mount the camera
down with screws.
2. Power and ground are provided from the monitor if using a
monitor with the same 4-pin din connector as the camera. This
cable also provides video signal to the monitor. If using the
supplied adapter, the DC power plug will either need an adapter
for power or need to be cut off to gain access to the power and
ground wire.
3. If using the adapter for and RCA video monitor, connect the RED
wire from the adapter to 12v reverse signal or 12v accessory
depending on when the camera needs to provide video. Connect
the BLACK wire to chassis ground.
4. Run the 4-pin Din cable or RCA depending on the application up to
the monitor. (avoid placing the video cable where it can be
pinched or damaged)
5. Attach the video cable to the input on the monitor.
II
. Connections
1. Find a suitable location to install the camera. This camera is
surface mounted so we suggest a flat surface. Make sure the
camera’s view is unobstructed and be careful not to drill into any
wires that might damage the vehicle. When all connections have
been made and before mounting the camera, verify the camera is
working and has a good view of the area. Then mount the camera
down with screws.
2. Power and ground are provided from the monitor if using a
monitor with the same 4-pin din connector as the camera. This
cable also provides video signal to the monitor. If using the
supplied adapter, the DC power plug will either need an adapter
for power or need to be cut off to gain access to the power and
ground wire.
3. If using the adapter for and RCA video monitor, connect the RED
wire from the adapter to 12v reverse signal or 12v accessory
depending on when the camera needs to provide video. Connect
the BLACK wire to chassis ground.
4. Run the 4-pin Din cable or RCA depending on the application up to
the monitor. (avoid placing the video cable where it can be
pinched or damaged)
5. Attach the video cable to the input on the monitor.
Sensor
1/3” 960H CMOS
Lens Angle
120 º
IR LEDs
18 LEDs
Min. Illumination
0 LUX/F2.0
Signal System
PAL
Effective Pixels
960X576
Resolution TV lines
600 TV lines
Shutter speed
1/50-60 ~ 1/15000 sec
S/N Ratio
>48db
Video output
1.0V, 75 ohms
Power Supply
DC 12V-24V
Current Consumption
190mA
IP rating
IP69K
Operating Temp.
-20ºC - 65ºC
Connection
4-Pin Din
Sensor
1/3” 960H CMOS
Lens Angle
120 º
IR LEDs
18 LEDs
Min. Illumination
0 LUX/F2.0
Signal System
PAL
Effective Pixels
960X576
Resolution TV lines
600 TV lines
Shutter speed
1/50-60 ~ 1/15000 sec
S/N Ratio
>48db
Video output
1.0V, 75 ohms
Power Supply
DC 12V-24V
Current Consumption
190mA
IP rating
IP69K
Operating Temp.
-20ºC - 65ºC
Connection
4-Pin Din
