Side 1/4
©COPYRIGHT 2021 METRA ELECTRONICS CORPORATION
iBEAMUSA.comiBEAM Vehicle Safety Systems
®
REV. 04/30/2021 INSTTE-CCM1
Attention!
When testing the aftermarket
equipment, ensure that all factory equip-
ment is connected before cycling the key to
ignition.
TE-CCM1
INSTALLATION INSTRUCTIONS
#IBEAMSAFETY
Camera ....................................................................2
Wiring......................................................................3
Specifications..........................................................4
TABLE OF CONTENTS
TOOLS REQUIRED
• Wire stripper
• Tape
• Digital Multi-meter
Commercial Heavy Duty Camera
With Microphone
Visit iBEAMUSA.com for more detailed informatuon about the product and up-to-date vehicle specific
applications.
Product Features
• Heavy duty metal housing
• 18 IR LEDs for night viewing
• Selectable parking lines
• PAL and NTSC selectable
• Microphone for audio

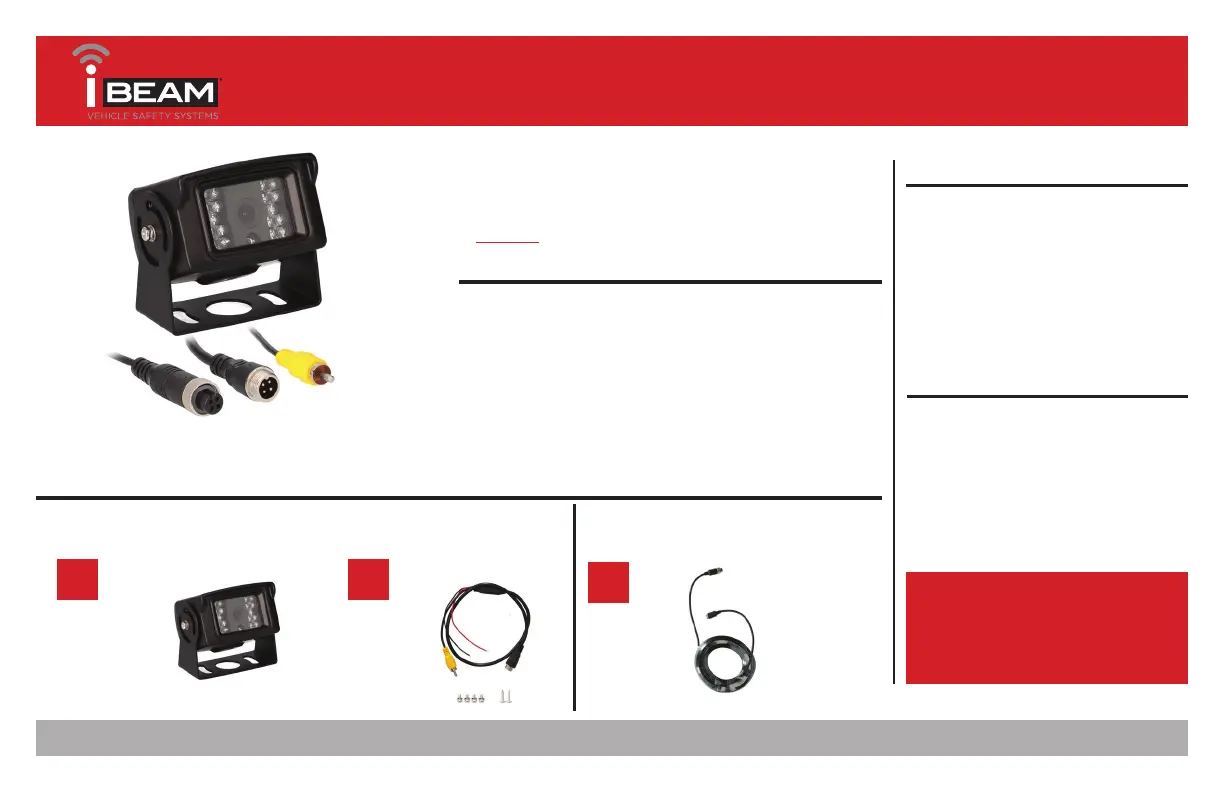

Part Components
A) Camera B) 4-pin to RCA adapter and hardware C) Extension (Sold separately)
A B
C
386-257-1187
|
iBEAMUSA.com
2

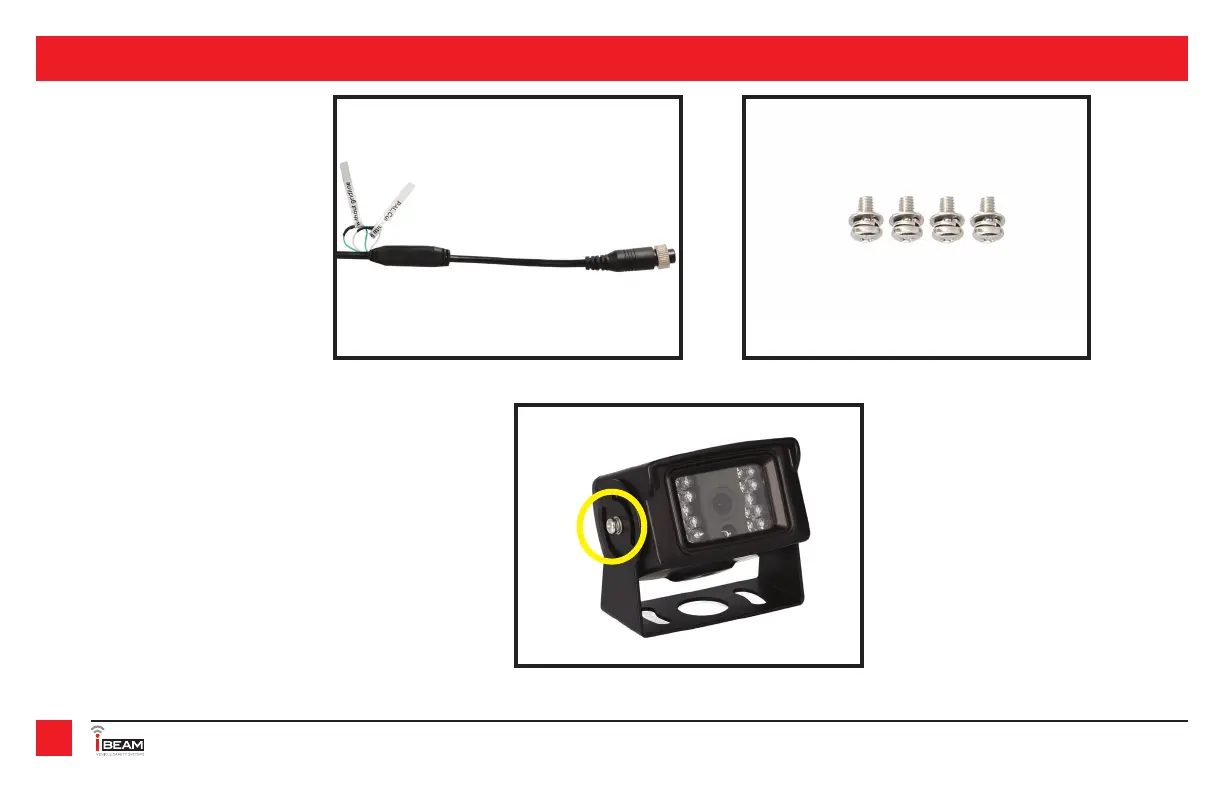

Camera install
1. There are two loops on the camera. If
there is a not a need for parking lines,
the loop will need to be cut. (Default
lines on) If the video format needs to be
changed, the loop will need to be cut.
(Default NTSC)
• Green - parking lines
• White - PAL or NTSC format
2. Depending on your installation needs,
the camera wire does have a grommet
inline to use to help with sealing the
entry place to the vehicle. iBEAM also
suggest using some silicon to better help
with water from entering the vehicle.
3. Once installed use the provided stainless
screws (Figure B) to secure base in place
with the camera. This can also be done
before mounting and tightened once
mounted. (Figure C)
Figure A
Figure B
Figure C
I N STALL ATI O N
