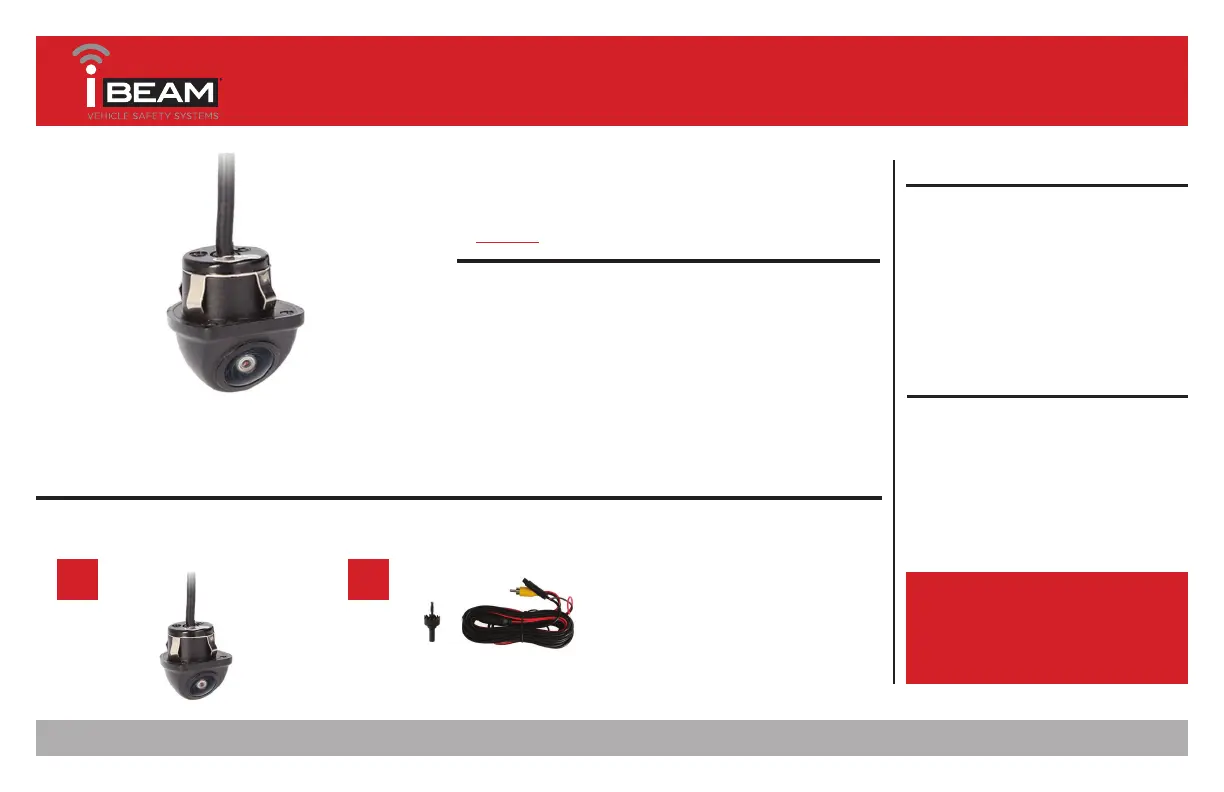

©COPYRIGHT 2021 METRA ELECTRONICS CORPORATION
iBEAMUSA.comiBEAM Vehicle Safety Sytems
®
REV. 08/04/2021 INSTTE-MIPI
Attention!
When testing the aftermarket
equipment, ensure that all factory equip-
ment is connected before cycling the key to
ignition.
TE-MIPI
INSTALLATION INSTRUCTIONS
#IBEAMSAFETY
Wiring ..................................................................... 2
Specifications .........................................................3
TABLE OF CONTENTS
TOOLS REQUIRED
• Wire stripper
• Tape
• Digital Multi-meter
• Cutter
Universal 800 TV Line
Micro Camera
Visit iBEAMUSA.com for more detailed informatuon about the product.
Product Features
• 55° fixed angled camera
• Resolution: 800 TV Lines
• Water resistant - IP69
• Mirror image - switchable
• Selectable parking lines or independantly triggered
• Viewing angle: 188° Diagonal, 155° Horizontal, 133° Vertical
Part Components
A) Camera B) Hardware and harness
A B
386.257.1187
|
iBEAMUSA.com
2

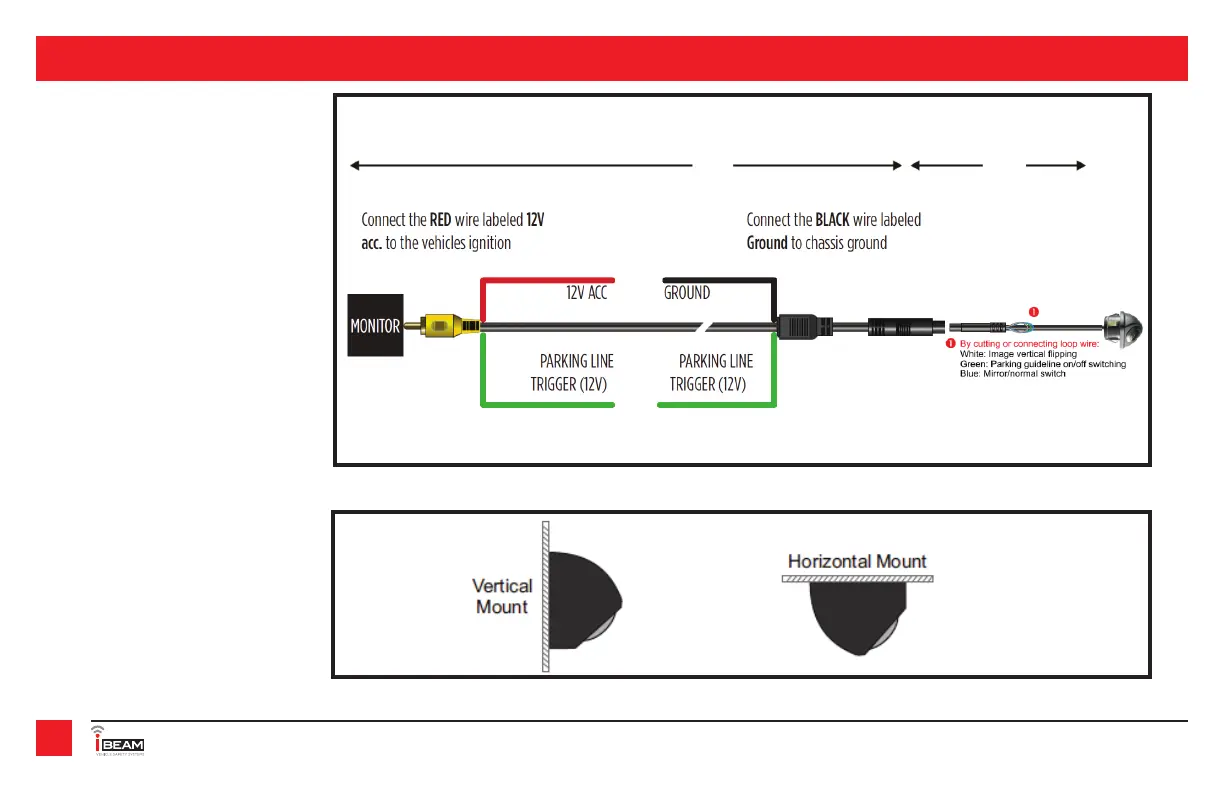

Camera Wiring/Install
(Figure A)
1. Find a desirable location to mount the cam-
era. Make sure this location is away from
moving objects and has a clear visual of the
desired view wanted from the camera.
2. Drill a 22mm size hole for the camera and
wiring to be ran into the vehicle.
3. Connect the wires to the designated sources
below. Verify with a multi-meter that the
correct wire is being used
• RED wire to 12V reverse or accessory
if desired
• BLACK wire to chassis ground
• GREEN wire is to activate the parking
lines. If parking line are desired, this
can be wired to a 12v reverse signal.
4. Run the extention wire to the location
where the visual will be displayed, ex.
aftermarket radio or monitor.
5. There are three loops located on the camera
wire.
• GREEN loop - Parking lines on/off
• BROWN loop - Mirror/normal image
• WHITE loop - Image vertical flipping
NOTE: Figure B shows WHITE loop mounting
options.
(Figure A)
(Figure B)
24 in20 ft
WIRING/INSTALL
