INSTALLATION INSTRUCTIONS

For Technical Support: www.panduit.com/resources/install_maintain.asp

V00029NY

Page 1 of 11

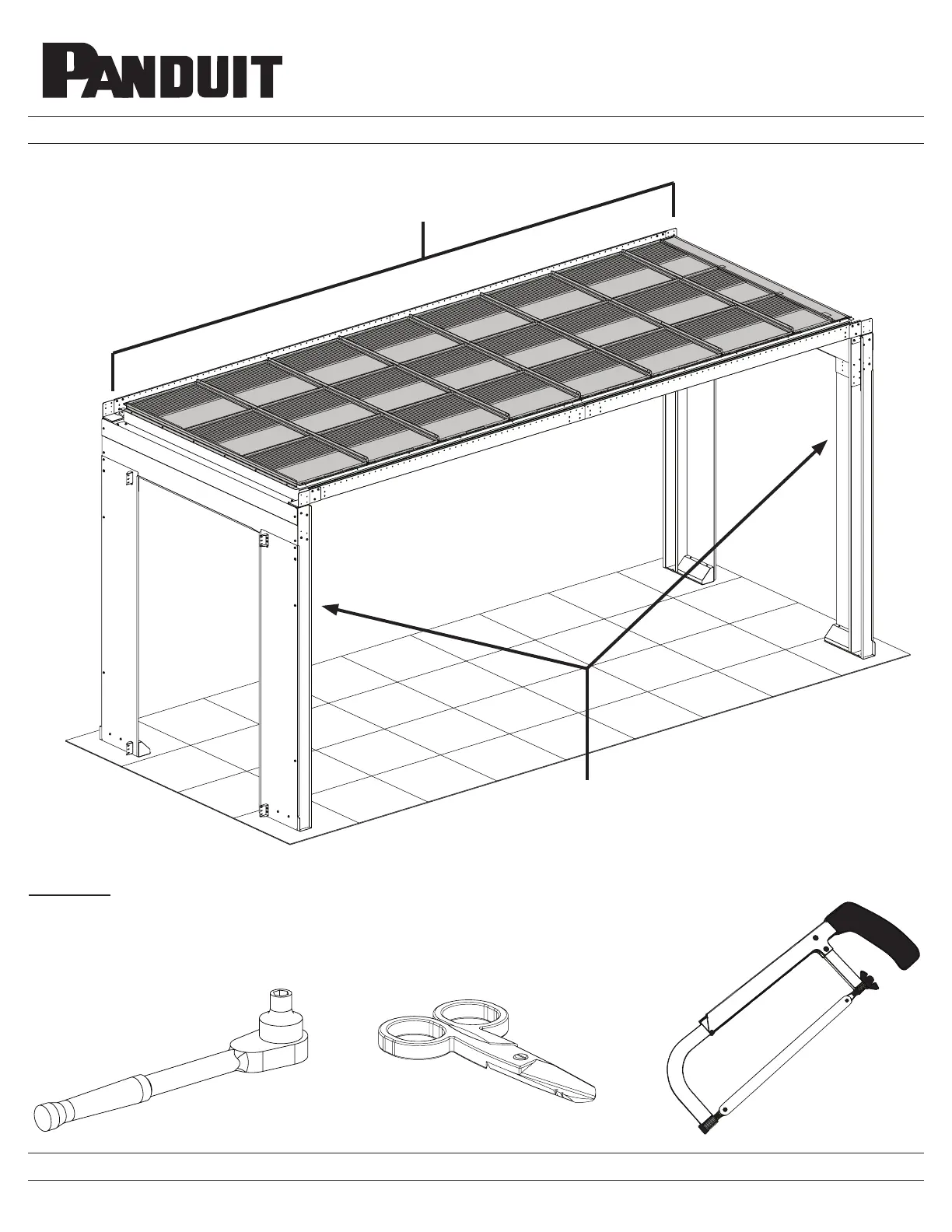

1800mm Drop Away Panel Ceiling System

for Universal Aisle Containment

Part Number(s) : CUEORF06DP** & CUCGF06DP**

1800mm Drop Away Panel

Ceiling System

Net-Contain Universal

Aisle Containment Framing

Not Included

(See Installation Instruction V00029JB)

Tool List:

• 7mm Socket Wrench

• 8mm Socket Wrench

• Scissors

• Hack saw

INSTALLATION INSTRUCTIONS

For Technical Support: www.panduit.com/resources/install_maintain.asp

V00029NY

Page 2 of 11

1800mm End of Row Kit

CUEORF06DP**

(1) 1800mm End of Row Beam

(1) 1800mm Adjustable End of Row Beam

(1) Slider Plate Assembly

(2) 1800mm End of Row Cross Beam

(1) Hardware Kit

1800mm Ceiling Grid

CUCGF06DP**

(1) 1800mm Aisle Beam Assembly

(3) 2x2 Drop Away Panel

(2) Progression Plate

(2) 1800mm Cross Beam

(1) Hardware Kit

Component Guide for 1800mm Drop Away Panel Ceiling System

INSTALLATION INSTRUCTIONS

For Technical Support: www.panduit.com/resources/install_maintain.asp

V00029NY

Page 3 of 11

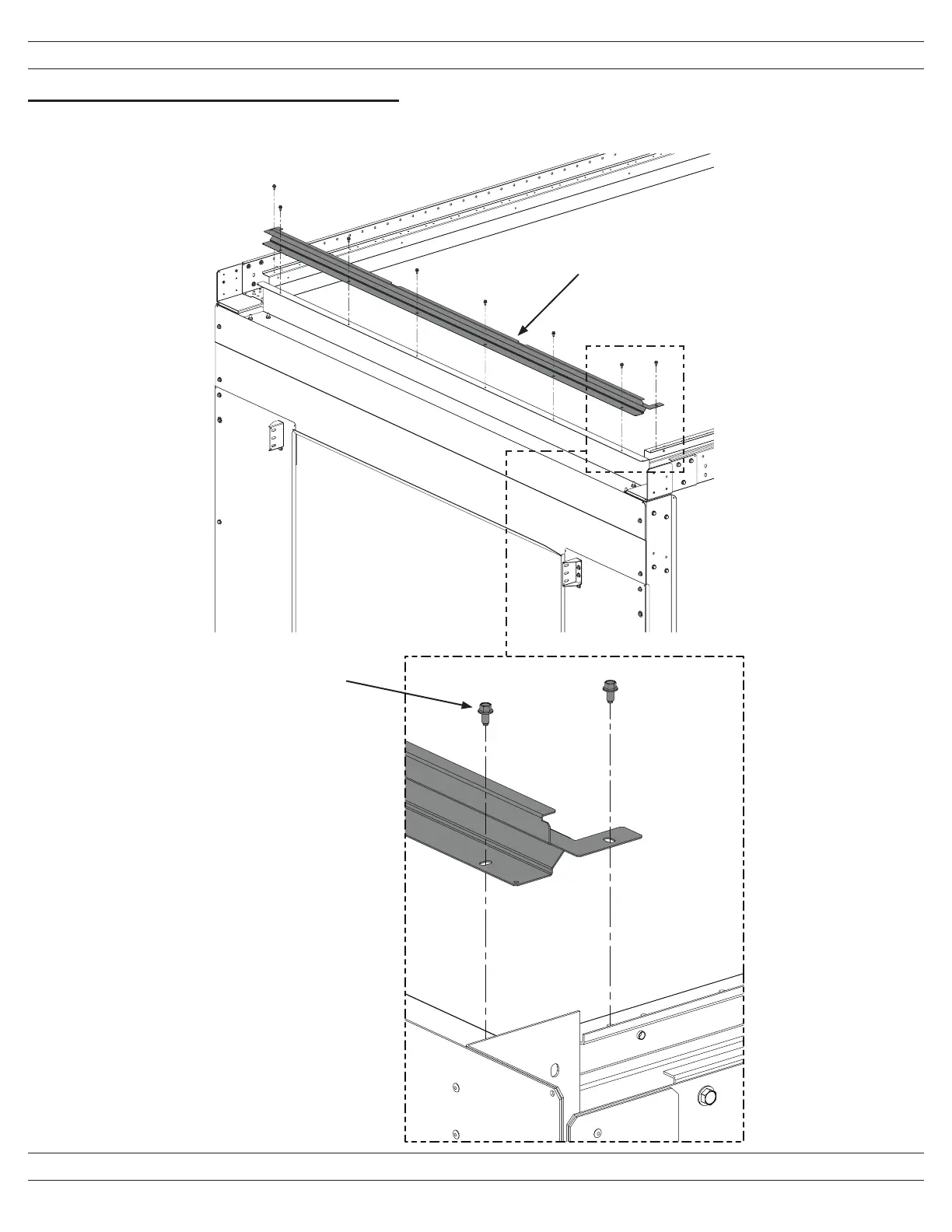

Installation of the End of Row Beam

• Install the End of Row Beam onto one end of the Pod. This is where the ceiling grid installation will begin.

• The Adjustable End of Row Beam and Slider Plate Assembly will be installed onto the opposite end of Pod. (see page 8)

M5x0.8 x 10mm

Hex Head Screw

8 places

End of Row Beam

Produkspesifikasjoner

Merke:	Panduit
Kategori:	Ikke kategorisert
Modell:	CUCGF06DPW1
Bredde:	617 mm
Dybde:	1881.6 mm
Antall per pakke:	1 stykker
Produktfarge:	Hvit
Bærekraftsertifikater:	RoHS
Modell/Type:	Takpanel for hyllerad
Kroppsmateriale:	Polyvinyl chloride (PVC), Vinyl
