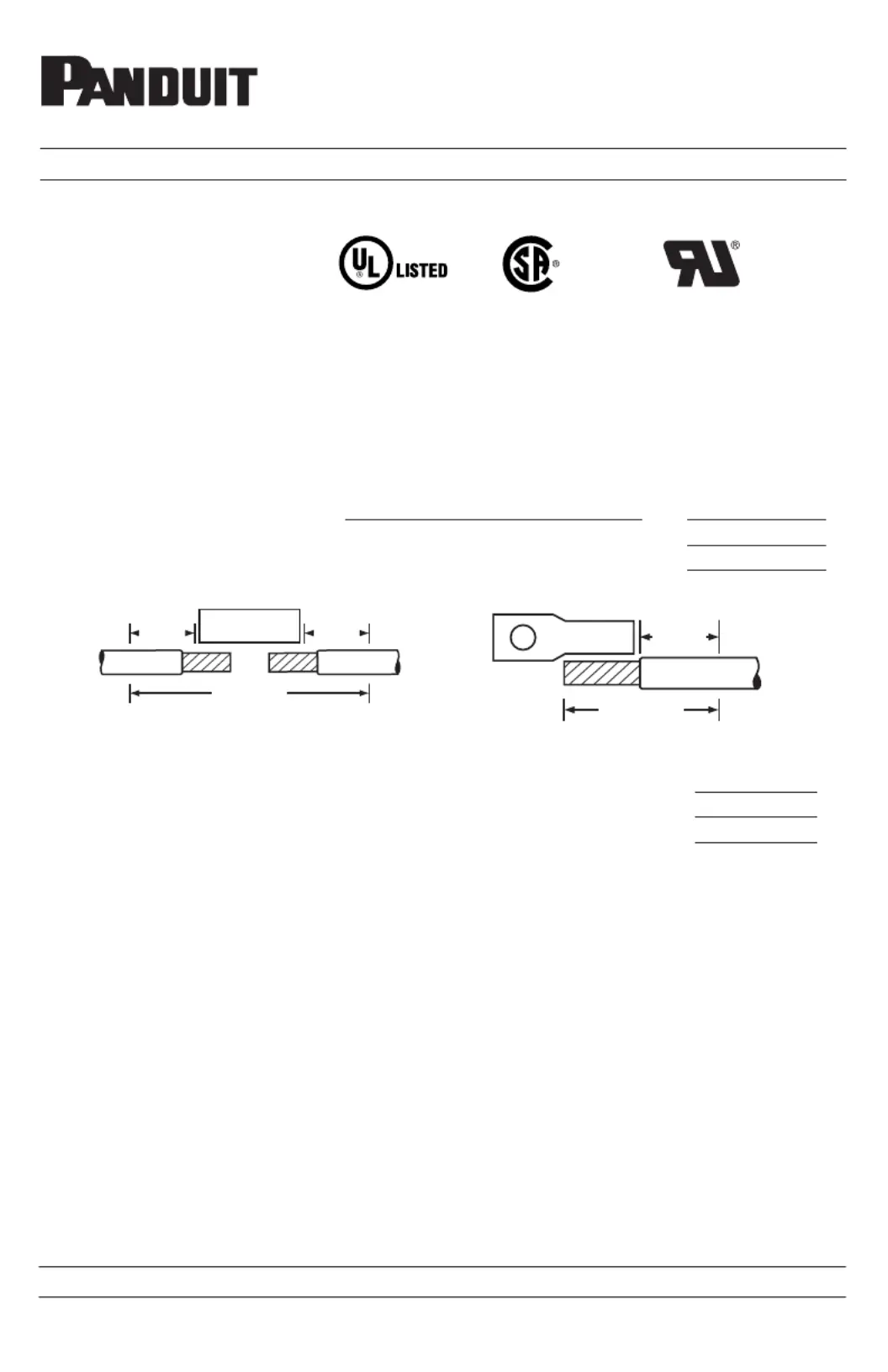

HST Thick Wall Heat Shrink

INSTALLATION INSTRUCTIONS IN003

6R72

(HST2.7 and smaller)

Black Only

(HST2.7 and smaller)

Sunlight Resistant

VW-1

WARNING:

1. Calculate the minimum tube length.

A. IN-LINE SPLICE CONNECTOR

minimum overlap length (2 Inches) __________________________________ x 2= ________________

splice length from manufacturer ......................................................................... = ________________

total minimum tube length (add) ......................................................................... = ________________

Splice

Overlap

Tube Length

Lug

Overlap

Tube Length

2. Clean the cable which will be covered by the tube. Lightly sanding the surface is recommended.

3. Remove the cable insulation length for the connector according to the manufacturer's instructions.

4. Place the tube over the cable.

5. Install the connector according to the manufacturer's instructions.

6. Preheat the cable insulation where it will contact the tube.

7. Center the tube over the splice, or position it against the lug tongue.

8. Starting in the center the tube using a broad soft flame and working your way out to the ends, shrink

which will cause the product to recover. Do not scorch the tube.

A. IN-LINE SPLICE CONNECTOR

Shrink from the center of the

tube t ard the ends.ow

B. LUG CONNECTOR

Shrink from the lug end t ard the opposite end.ow

The shrink is complete when adhesive oozes from between the tube and the cable and/or the lug.

Page 1 of 2

B. LUG CONNECTOR

minimum overlap length (2 inches) ..................................................................... = ______________

conductor strip length from manufacturer ........................................................... = ______________

total minimum tube length (add) ......................................................................... = ______________

For Technical Support: www.panduit.com/resources/install_maintain.asp

"2"2"2

244528

torch or hot air gun. Minimum recommended shrink temperature is 248° F (120° C). Use higher

temperatures to recover faster. Continually move the source around the diameter of the tube,heat

Follow installation instructions carefully to avoid charring or burning. Use adequate ventilation.

Consult Material Safety Data Sheet for further information.

Produkspesifikasjoner

Merke:	Panduit
Kategori:	Ikke kategorisert
Modell:	HST1.1-48-5Y
Antall per pakke:	5 stykker
Rørlengde:	1219.2 mm
Produktfarge:	Sort
Modell/Type:	Varmekrympeslange
Diameter før krymping:	27.9 mm
Diameter etter krymping:	9.5 mm
