Side 1/2

For Technical Support: www.panduit.com/resources/install_maintain.asp

Page 1 of 2

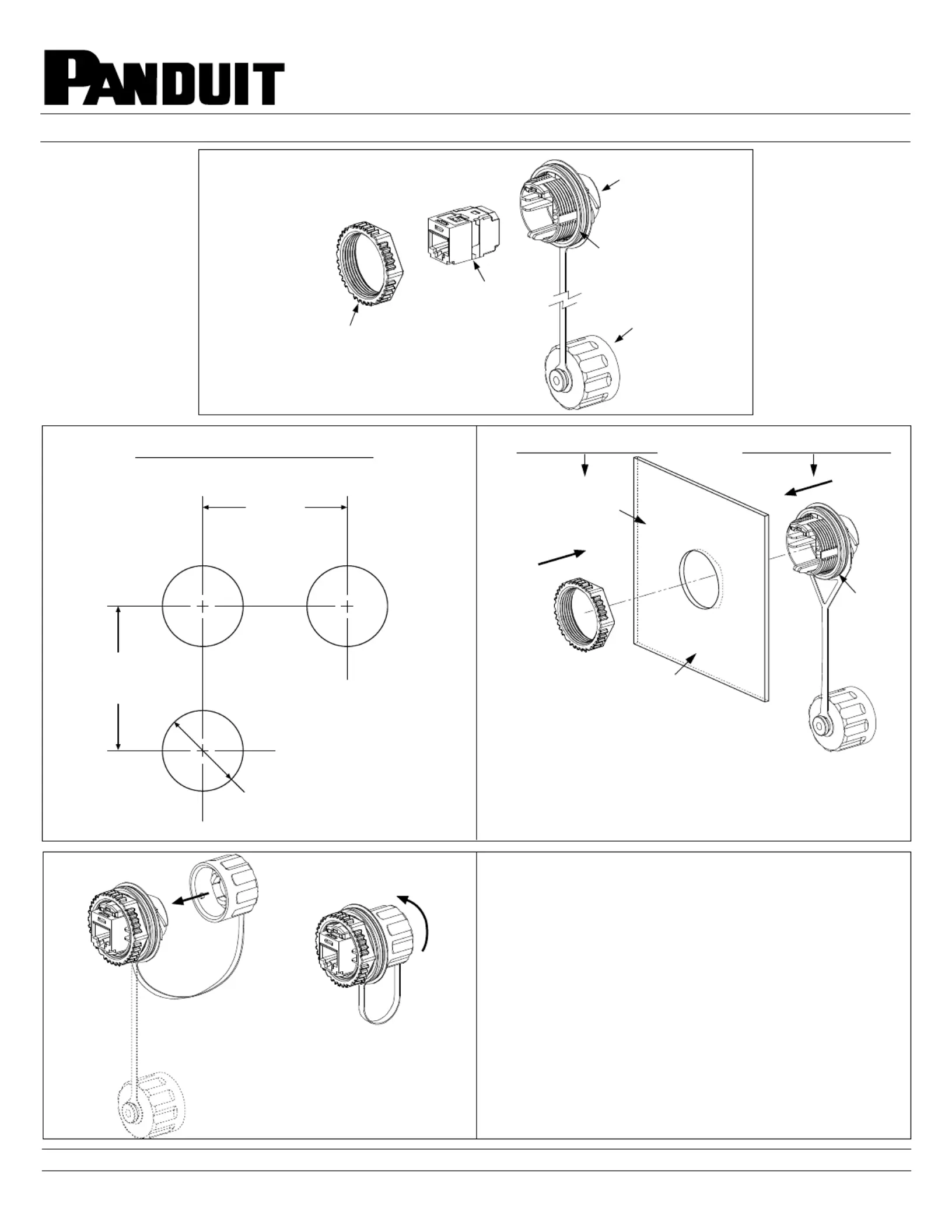

INSTALLATION INSTRUCTIONS

PN376E

Bulkhead w/

Nut

Coupler

Tether w/

Cap

Module

Face Seal

Bulkhead

Seal

IndustrialNet

Bulkhead Couplers

Part Number: IAEBHC6, IAEBHC6XS, IAEBHC5E, IAEBHC5ES

(Enclosure wall removed for clarity)

Bulkhead Opening Requirements

Ø 1-13/64"

(30.6mm)

1-7/8"

(47.6mm)

1-7/8"

(47.6mm)

Enclosure Wall

Insert Bulkhead into prepared opening from outside of

enclosure. While holding Bulkhead in place, secure with Nut on inside of

enclosure. Hand turn Nut 4-1/4 to 5 full turns. Be careful not to tighten to

the point the Bulkhead Seal is over compressed and displaced from the

enclosure wall and the Bulkhead.

Note: If using wrench, flats on Nut should be on the outside.

Inside of Enclosure Outside of Enclosure

or Outlet Plate

Min. thickness: 0.035" (20 gauge)

Max. thickness: 0.135" (10 gauge)

Bulkhead

Seal

{not to scale}

Produkspesifikasjoner

Merke:	Panduit
Kategori:	Ikke kategorisert
Modell:	IAEBHC5ES
Bredde:	37.8 mm
Dybde:	42.3 mm
Høyde:	135.5 mm
Tilkobling:	RJ-45
Antall per pakke:	1 stykker
Produktfarge:	Sort
Bærekraftsertifikater:	RoHS
Internasjonal beskyttelses (IP)-kode:	IP67
Pakkevolum:	0.016 cm³
Kontaktkjønn:	Hunkjønn
Kabelstandard:	Cat5e
AWG-ledningsstørrelse:	24
