Panduit IAEBHUSBAA Bruksanvisning

Les nedenfor 📖 manual på norsk for Panduit IAEBHUSBAA (2 sider) i kategorien Ikke kategorisert. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Side 1/2
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page 1 of 2
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2018
PN556B
Bulkhead with
Nut
USB
Tether with
Coupler
Face Seal
Bulkhead
Seal
Module
IndustrialNet
TM
USB Coupler Module
Part Number: IAEBHUSBAA
3
Rounded
Click
4
Edges
(Enclosure wall removed for clarity)
1
2

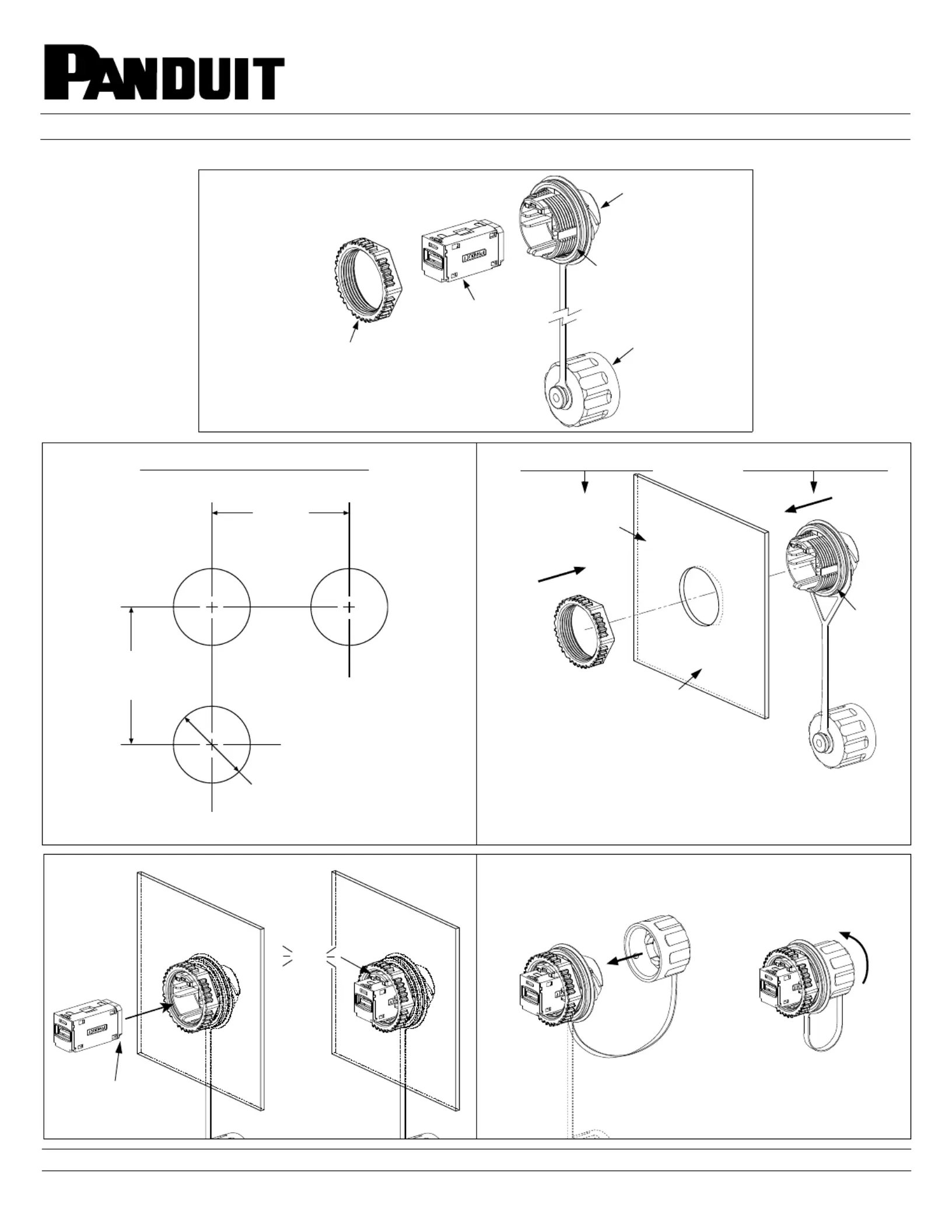

Bulkhead Opening Requirements
Ø 1-13/64"
(30.6mm)
1-7/8"
(47.6)
1-7/8"
(47.6)
Enclosure Wall
Insert Bulkhead into prepared opening from outside of
enclosure. While holding Bulkhead in place, secure with
Nut on inside of enclosure. Hand turn Nut 4-1/4 to 5 full turns. Be careful not
to tighten to the point the Bulkhead Seal is over compressed and displaced
from the enclosure wall and the Bulkhead.
Note: If using wrench, flats on Nut should be on the outside.
Inside of Enclosure Outside of Enclosure
or Outlet Plate
Min. thickness: 0.035" (20 gauge)
Max. thickness: 0.135" (10 gauge)
Bulkhead
Seal
{not to scale}
Note: Bulkhead combination must be used on a flat surface of a NEMA 4X Enclosure to maintain rating.
E-mail:
techsupport@panduit.com
Phone:
866-405-6654
For Instructions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp
Page 2 of 2
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2018
PN556B
www.panduit.com
3
1
2
Click
Coupler Module Removal Instructions

Produkspesifikasjoner

Merke: Panduit
Kategori: Ikke kategorisert
Modell: IAEBHUSBAA
Bredde: 37.77 mm
Dybde: 38.9 mm
Høyde: 135.5 mm
Tilkobling: USB A
Antall per pakke: 1 stykker
Produktfarge: Sort
Bærekraftsertifikater: RoHS
Internasjonal beskyttelses (IP)-kode: IP67
Strøm: - A
Antall poler: 2
