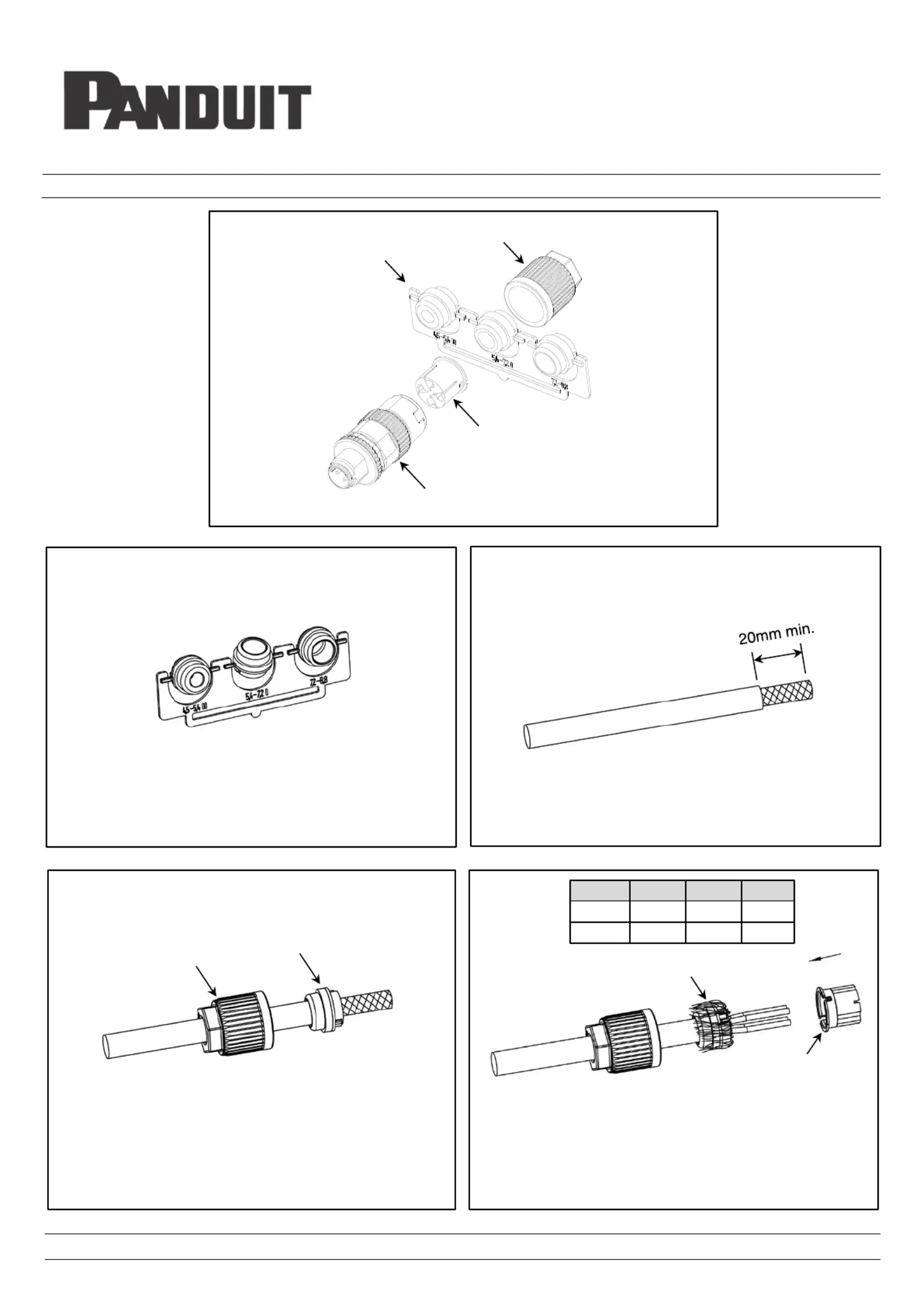

IndustrialNet M12 D- Code
Field Terminable Plug
Part Number: ISPS5E44MFA
© Panduit Corp. 2014
INSTALLATION INSTRUCTIONS
PN583A
For Technical Support: www.panduit.com/resources/install_maintain.asp
Page of 1 2
1
2
Remove cable jacket.
SF/UTP
Select appropriate seal according to the cable diameter.
3
Slide screw cap and seal onto the cable. The seal
should be flush with the end of the cable jacket.
Lock nut
Seal
4
Pull back braid as shown. Remove foil and any cable
fillers ires . Untwist w back as far as seal and straighten.
Insert wires into the according to the splice element
wiring . chart
Braid
Splice
element
Lock nut
Seal options
Splice element
Connector housing
1 2 3 4
WH/O WH/G O G
TXD+
RXD+
TXD-
RXD-
© Panduit Corp. 2014
INSTALLATION INSTRUCTIONS
PN583A
For Instructions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp
www.panduit.com
E- mail:
techsupport@panduit.com
Phone:
866 405 6654- -
2 2 Page of MA_21812811405_99_00

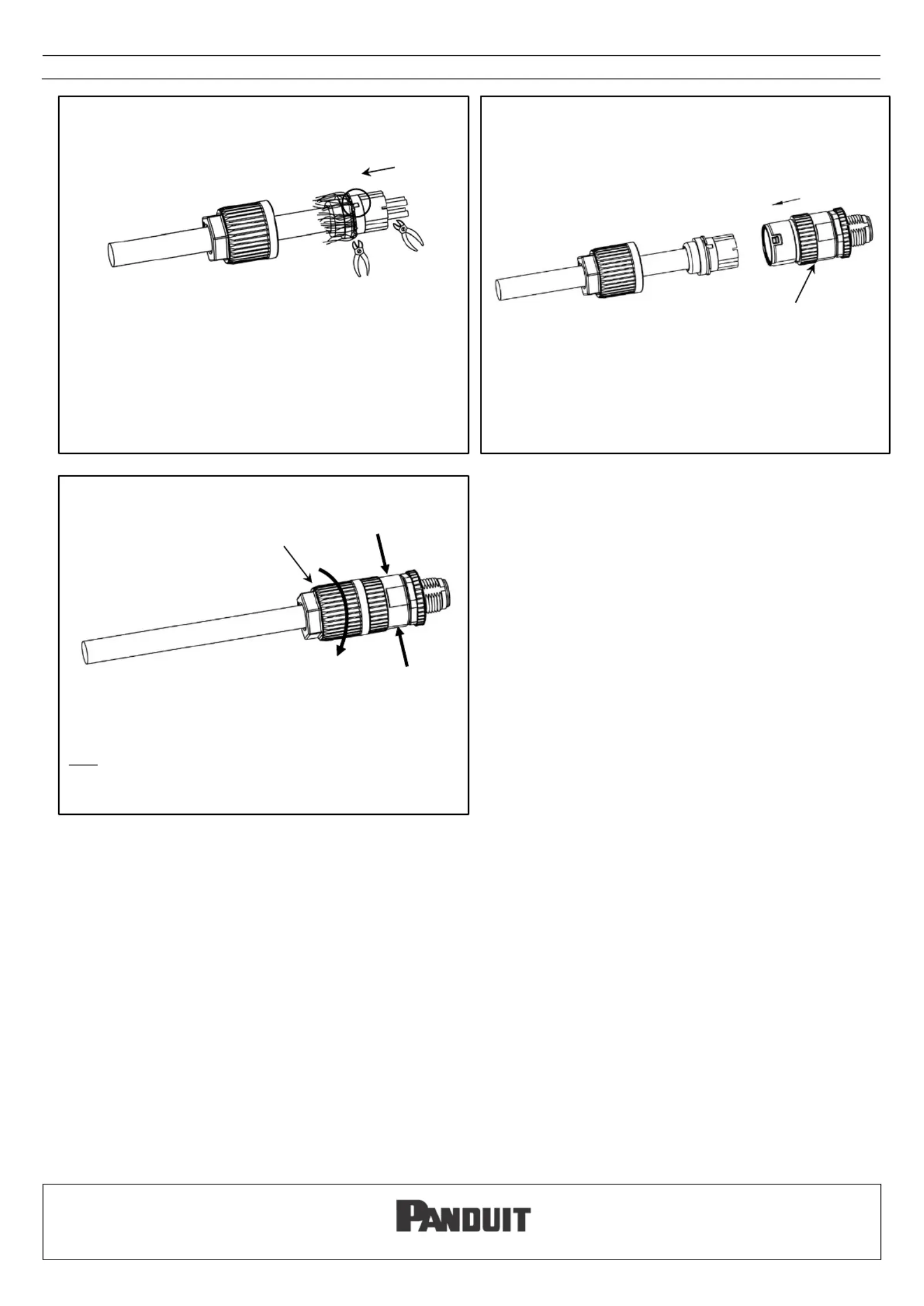

5
Push splice element onto braid and seal. Trim off excess
braid material and cut conductors flush with the splice
element.
ATTENTION: Ensure no braid material is caught
b etween the key of the seal and slot of splicing element.
6
7
NOTES :
1. For reconnection, cut off the used cable end and repeat steps 2- 7.
2. must The seal be replaced when worn.
3. Connector may be re terminated 10 times with the same or larger cable conductor diameter.-
Align connector properly and push onto the housing
splice element.
While holding the connecting housing end firmly, twist
only the tightened lock nut until fully . Use of 13mm and
17mm open end wrenches may be used to fully seat the
o- ring gasket.
Connector
housing
Lock nut
