Side 1/4

For Technical Support: www.panduit.com/resources/install_maintain.asp

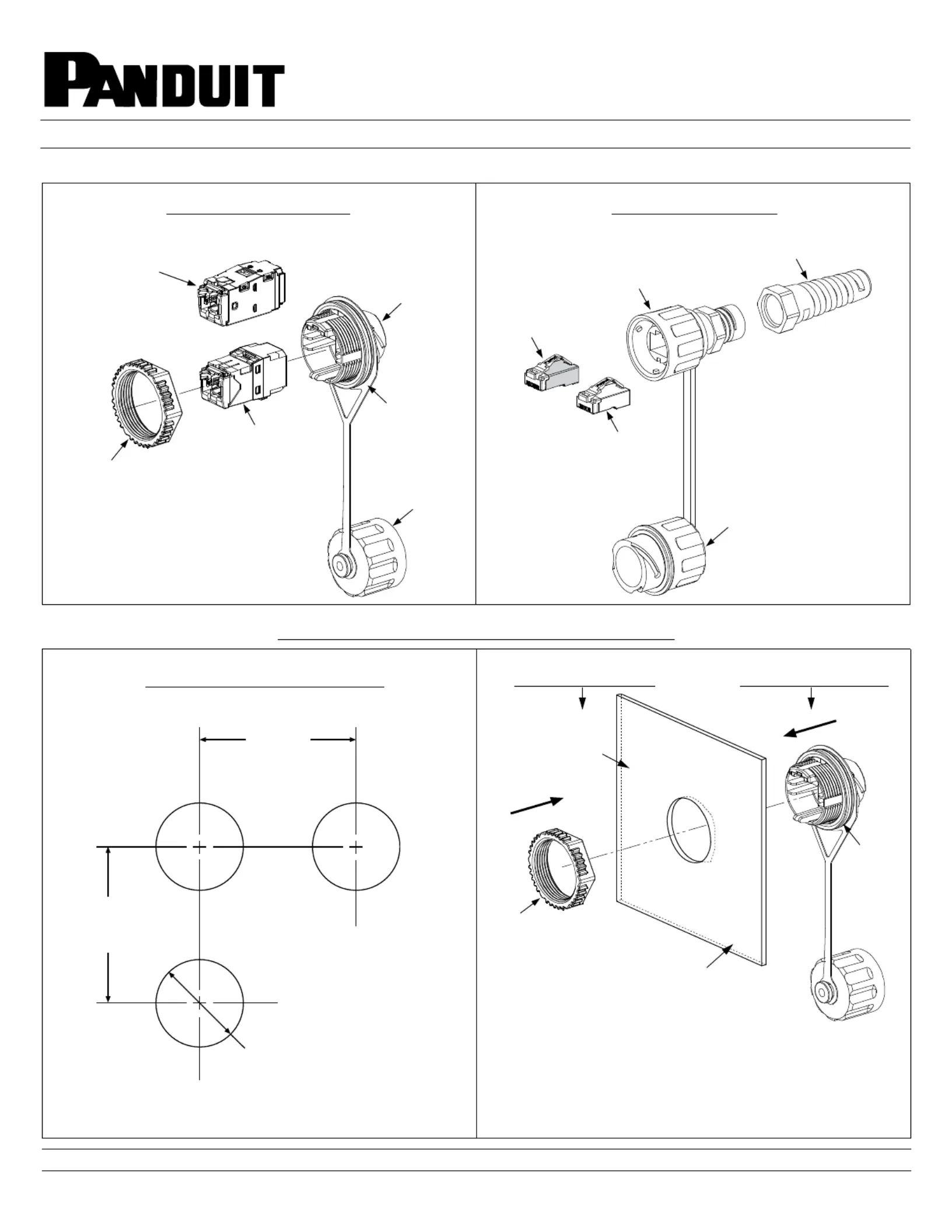

INSTALLATION INSTRUCTIONS

PN367E

Page 1 of 4

IAEBH5E / IAEBH6 / IAEBH6X / IAEBH5ES / IAEBH6S/

Shielded

Bulkhead w/

Nut

(For IAEBH5ES,

(For IAEBH5E,

UTP

Face Seal

Tether

Industrial Jack

Flex Tail

Shielded

(For MPSI588T)

(For MPI588T)

UTP

Plug Holder

Tether w/ Cap

(Optional)

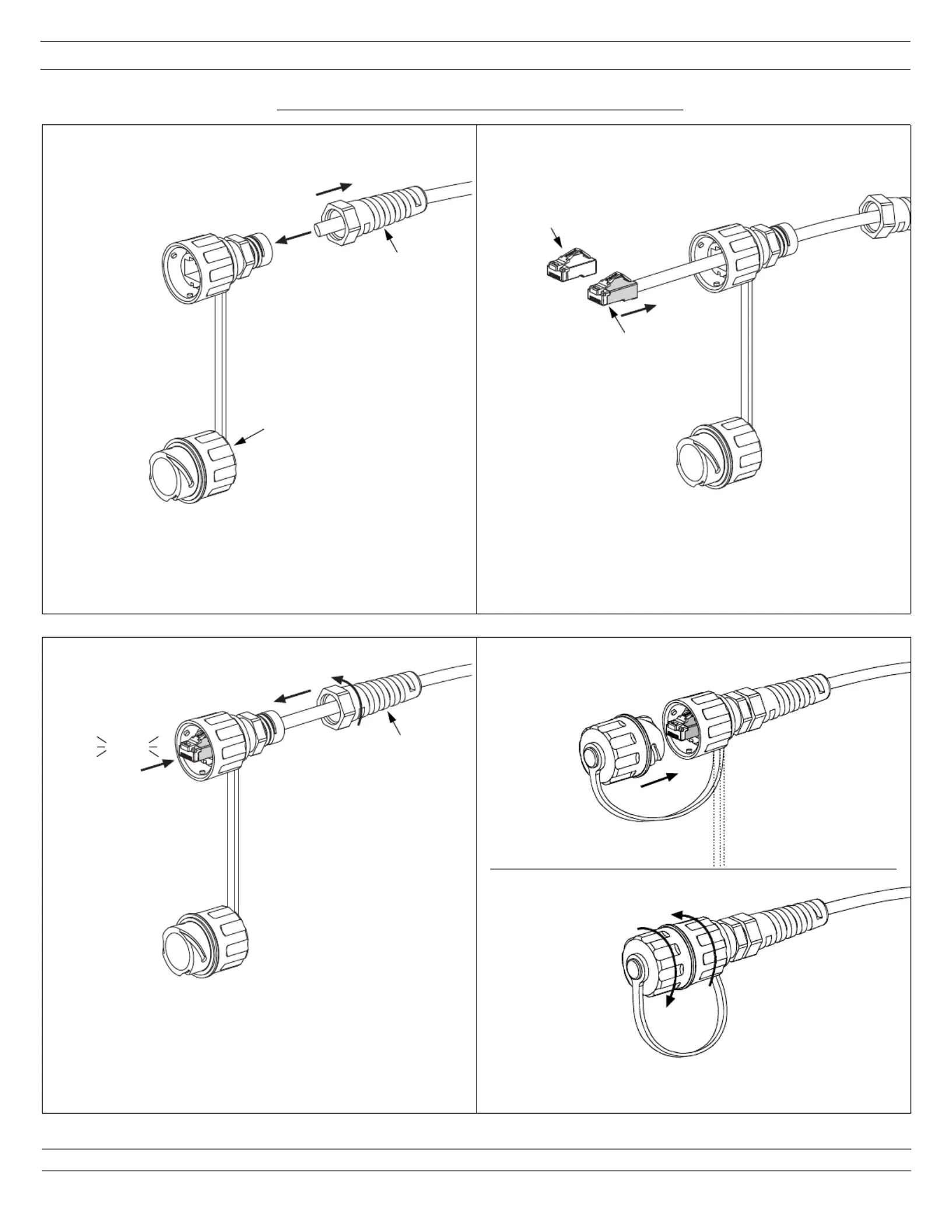

Industrial Plug

MPSI588T / MPI588T

IAEBH6

w/ Cap

IAEBH6S,

Bulkhead

Seal

IAEBH6XS/ IAEBH (jack module not included)

Jack Module

Modular Plug

and IAEBH6XS)

and IAEBH6X)

IndustrialNet

Bulkhead Connectors

Part Numbers: IAEBH5E, IAEBH5ES, IAEBH6, IAEBH6S, IAEBH,

MPSI588T, MPI588T, IAEBH6XS, IAEBH6X

{not to scale}

Ø 1-13/64"

(30.6mm)

1-7/8"

(47.6mm)

1-7/8"

(47.6mm)

Enclosure Wall

Insert Bulkhead into prepared opening from outside of enclosure.

While holding Bulkhead in place, secure with Nut on inside of

enclosure. Hand turn Nut 4-1/4 to 5 full turns. Be careful not to

tighten to the point the Bulkhead Seal is over compressed and

displaced from the enclosure wall and the Bulkhead.

Note: If using wrench, flats on Nut should be on the outside.

Inside of Enclosure Outside of Enclosure

or Outlet Plate

Min. thickness: 0.035" (20 gauge)

Max. thickness: 0.135" (10 gauge)

Bulkhead

Seal

Nut

Bulkhead Opening Requirements

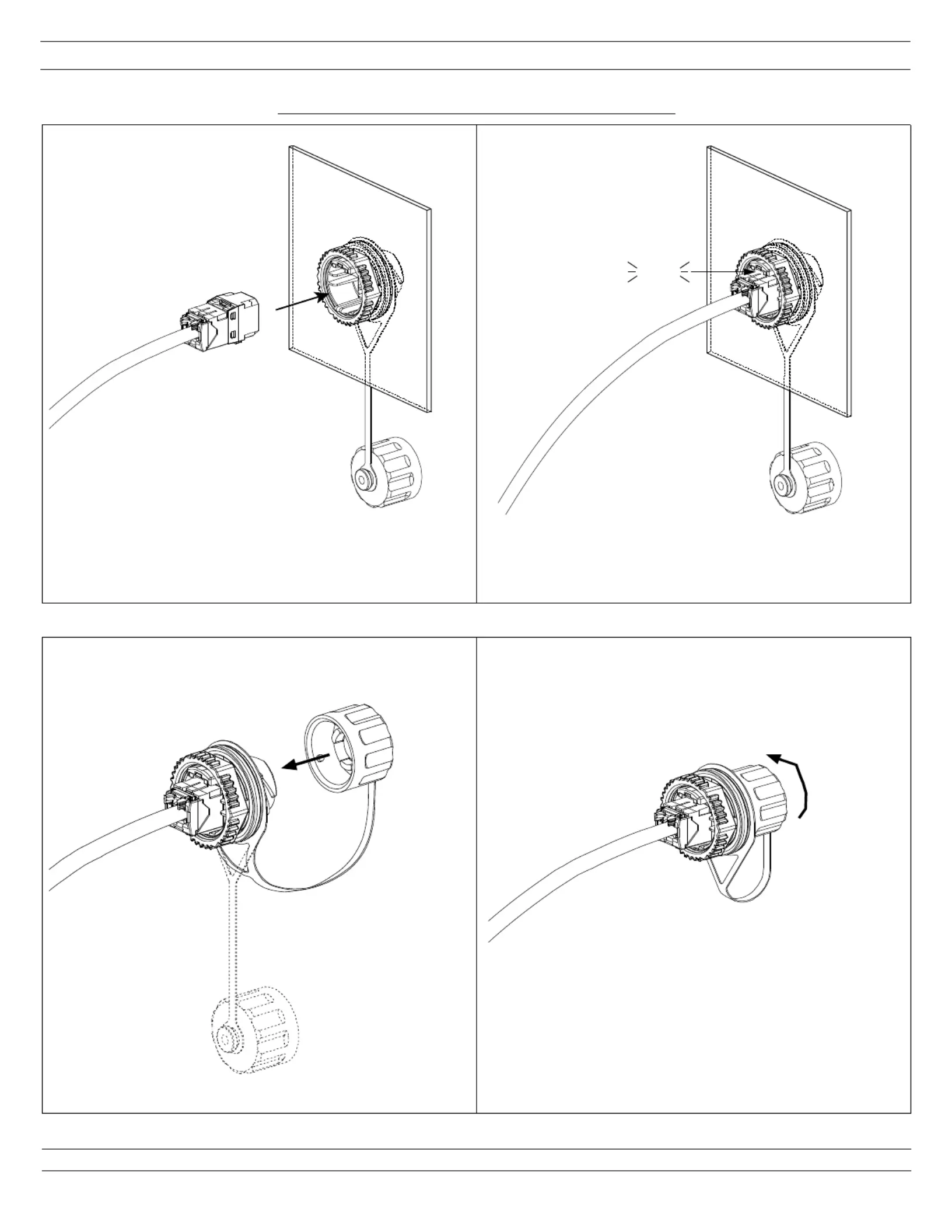

Installation for Industrial Jack Module

Note: Bulkhead combination must be used on a flat surface of a NEMA 4X Enclosure to maintain rating.

Produkspesifikasjoner

Merke:	Panduit
Kategori:	Ikke kategorisert
Modell:	MPSI588T
Bredde:	30 mm
Dybde:	95.6 mm
Høyde:	132.5 mm
Tilkobling:	RJ45
Antall per pakke:	1 stykker
Produktfarge:	Sort
Internasjonal beskyttelses (IP)-kode:	IP67
Kontaktplettering:	Bronse/gull
Kontaktkjønn:	Hankjønn
Kabelstandard:	Cat5e
AWG-ledningsstørrelse:	24
Connector-skjerming:	Ja
Kontaktformfaktor:	Rett
