RIFFMASTER Wireless Guitar Controller

Quick Start Guide

049-024

For:

Xbox Series X|S

Xbox One

Windows 10/11

English

Deutsch

Español – Mexico

Español

Français – Canada

Français

Italiano

Polski

English

IN THIS QUICK START GUIDE

• Items included with the RIFFMASTER Wireless Guitar Controller

• Getting Started

o Assembling the Guitar

o Connecting the Guitar

• Features

o Audio Settings

o Battery Charging

ITEMS INCLUDED

• A: RIFFMASTER Wireless Guitar Controller

• B: Shoulder Strap

• C: USB Wireless Dongle

• D: 1.2m USB-C Charging Cable

• E: QR Code insert

GETTING STARTED

1. Assembling the Guitar

To assemble the RIFFMASTER Wireless Guitar controller follow the below steps:

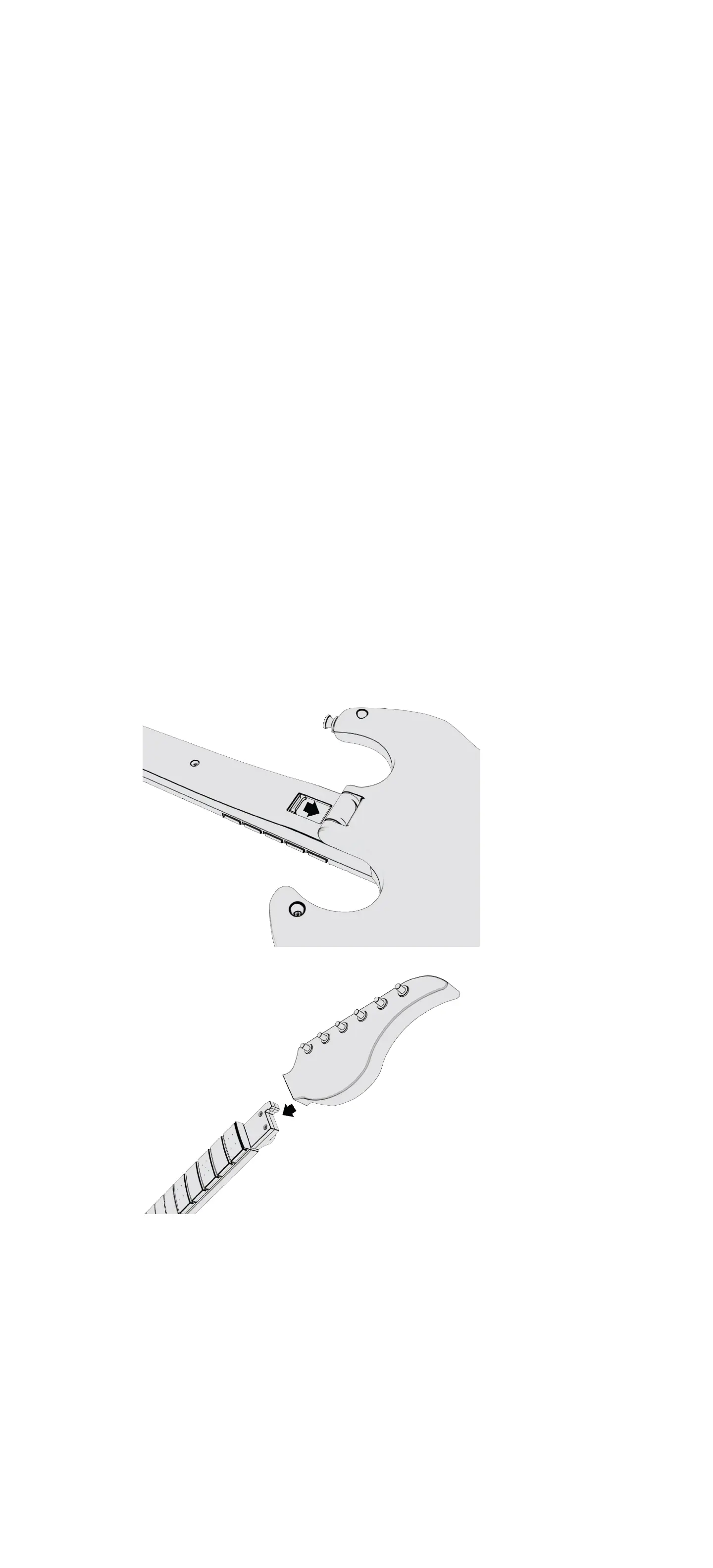

a) Unfold the neck of the guitar away from the body of the guitar until it is fully extended.

b) Push the locking tab down on the back of the guitar neck to lock it in place.

c) Align the headstock with the top of the guitar neck and push down to snap it in place.

d) The guitar comes ready to play for right-handed guitarists. To convert to left-handed, unscrew the top peg and screw it

in on the opposite side.

a. Note: You will also need to change to left-handed mode in the game software.

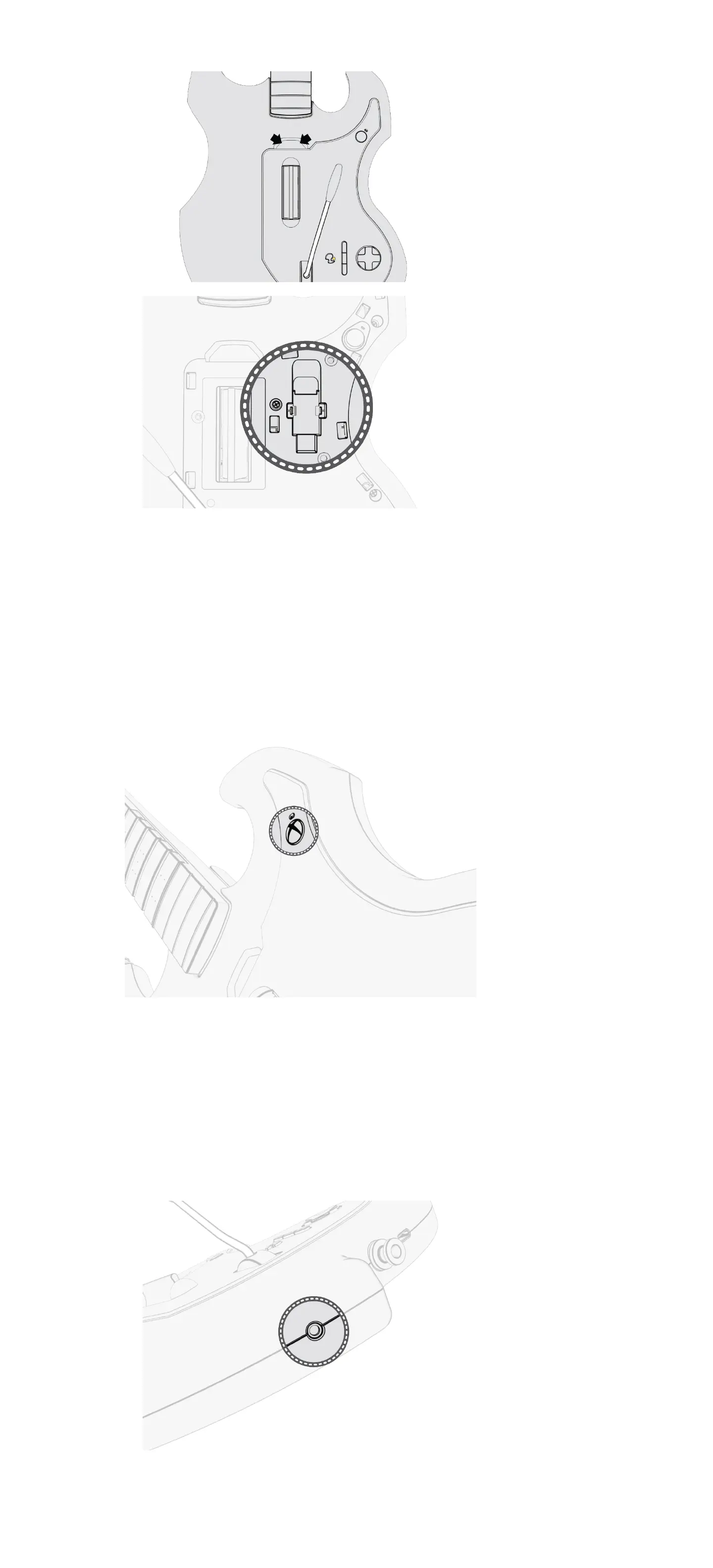

e) Attach the included adjustable shoulder strap to the top and bottom pegs of the guitar.

f) The RIFFMASTER Pick Guard, on the front of the guitar, can be removed by inserting your fingers into the finger-well and

pulling up. Once removed, you can place your Wireless USB Dongle in the designated storage area for safe keeping when

not in use.

2. Connecting the RIFFMASTER Wireless Guitar Controller

To connect your wireless guitar controller to your console follow the below steps:

a) Plug the included Wireless USB Dongle into your Xbox Series X|S or Xbox One console. The LED on the dongle will begin

flashing slowly.

b) Press and release the Xbox Button on the front of the RIFFMASTER Guitar.

c) Once the guitar is connected to the dongle, the white status LED on the guitar and LED on the dongle will be solid

illuminated.

d) To turn off the guitar, press and hold the Xbox button on the guitar for 6 seconds until the white status LED turns off.

i. Note: If the guitar becomes unresponsive and cannot be powered off normally, press and hold the Xbox button

for 12 seconds to force a hard reset.

FEATURES

1. Audio Settings

The RIFFMASTER Wireless Guitar Controller has a 3.5mm audio jack on the bottom to connect a wired headset for audio output

and microphone input.

a) To adjust the game volume, hold down the “Function” button and press Up/Down on the D-Pad.

b) To adjust the Game/Chat balance, hold down the “Function” button and press Left/Right on the D-Pad.

c) To mute your microphone, press the “Function” button twice; the LED will illuminate amber color when muted.

Produkspesifikasjoner

Merke:	PDP
Kategori:	Ikke kategorisert
Modell:	RiffMaster
Strømkilde:	Batteri
Tilkoblingsteknologi:	Trådløs
Oppladbart batteri:	Ja
Produktfarge:	Black, Grey
Batteriliv (maks.):	36 timer
Hodetelefon ut:	Ja
Pakketype:	Boks
Enhetstype:	Gitar
Støttede Windows operativsystemer:	Windows 10, Windows 11
Rekkevidde trådløs ruter:	9.14 m
Støttede spillplattformer:	PC, Xbox One, Xbox Series S, Xbox Series X
Spillkontrollerens funksjonstaster:	D-pute
Spillkontrollerteknologi:	Analog/digital
