2.4GHz 14dBi High Gain Dual Polarization Directional Antenna

ANT-FP14D

Installation Guide

1. Package Contents

 ANT-FP14D x 1 unit

 Accessory (including screws and brackets) x 1 set

2.Specications

Electrical Specications

Frequency Range 2.4 ~ 2.5GHz

Max. Gain 14dBi

Antenna Type Uni-directional, Flat Panel

V.S.W.R. <1.5

Polarization Horizontal and Vertical (Dual Polarization)

HPBW / Horizontal 30 degrees

HPBW / Vertical 30 degrees

Input Impedance 50Ω

Connector N-Type (Female) x 2

Environment & Mechanical Characteristics

Survival Wind Speed Greater than 150MPH

Radome Color Gray-white

Radome Material ABS, UV resistant

Dimensions (W x D x H) 228 x 15 x 228mm (Connector excluded)

Weight 562g

Weatherproof IP55

Mount Type Pole Mount

Outlook:

228

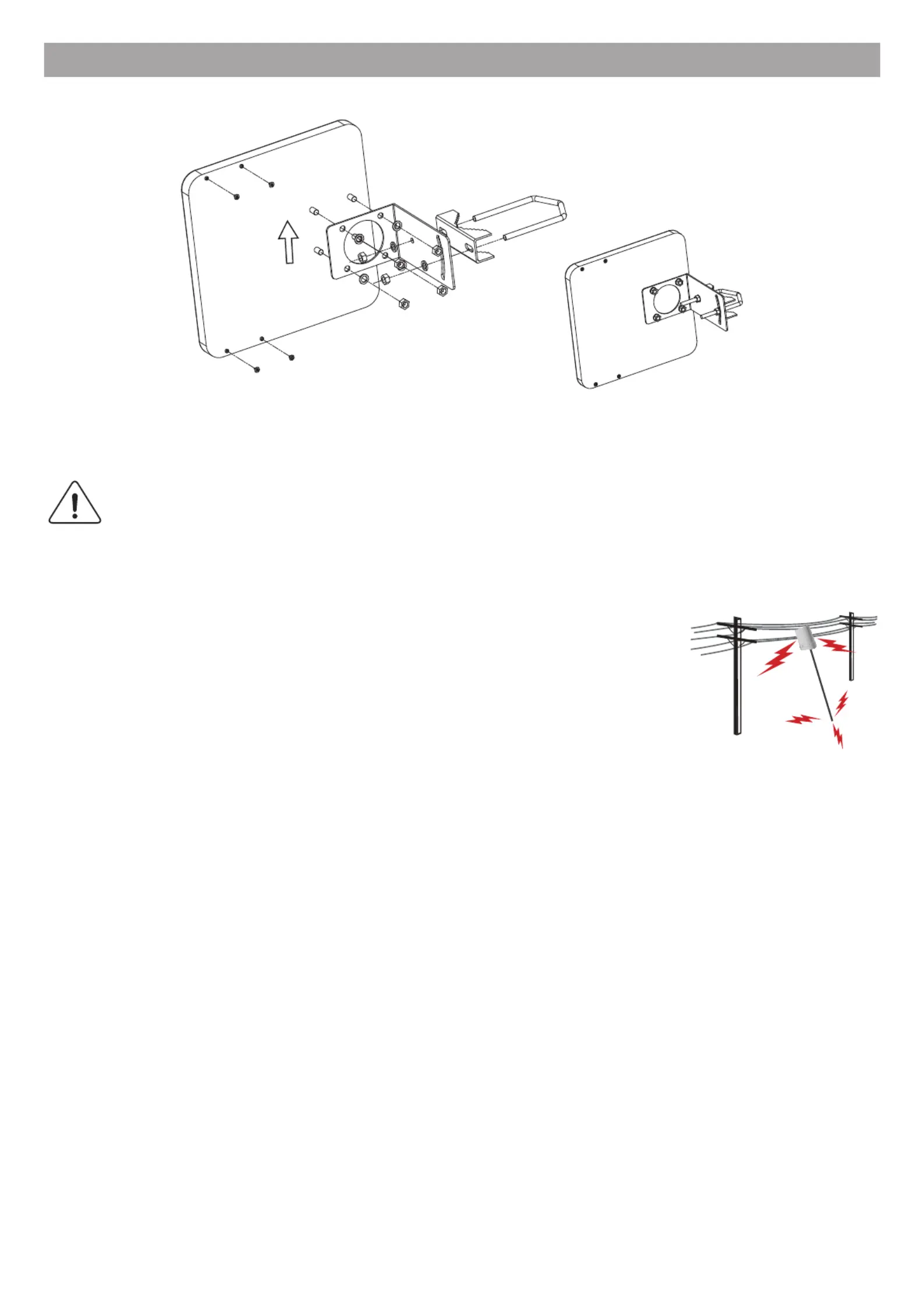

3.MountingConguration

OUTDOOR INSTALLATION WARNING

IMPORTANT SAFETY PRECAUTIONS:

LIVES MAY BE AT RISK! Carefully observe these instructions and any special instructions that are included with the

equipment you are installing.

CONTACTING POWER LINES CAN BE LETHAL.

Make sure no power lines are anywhere where possible contact can be made. Antennas, masts,

towers, guy wires or cables may lean or fall and contact these limes. People may be injured or

killed if they are touching or holding any part of equipment when it contacts electric lines. Make

sure there is NO possibility that equipment or personnel can come in contact directly or indirectly

with power lines.

Assume all overhead lines are power lines.

The horizontal distance from a tower, mast or antenna to the nearest power line should be at least

twice the total length of the mast/antenna combination. This will ensure that the mast will not

contact power if it falls either during installation or later.

TO AVOID FALLING, USE SAFE PROCEDURES WHEN WORKING AT HEIGHTS ABOVE GROUND.

Select equipment locations that will allow safe, simple equipment installation.

 Select equipment locations that will allow safe, simple equipment installation.

 Don’t work alone. A friend or co-worker can save your life if an accident happens.

 Use approved non-conducting lasers and other safety equipment. Make sure all equipment is in good repair.

 If a tower or mast begins falling, don’t attempt to catch it. Stand back and let it fall.

 If anything such as a wire or mast does come in contact with a power line, DON’T TOUCH IT OR ATTEMPT TO MOVE IT.

Instead, save your life by calling the power company.

 Don’t attempt to erect antennas or towers on windy days.

MAKE SURE ALL TOWERS AND MASTS ARE SECURELY GROUNDED, AND ELECTRICAL CABLES CONNECTED TO ANTENNAS

HAVE LIGHTNING ARRESTORS. This will help prevent re damage or human injury in case of lightning, static build-up, or short

circuit within equipment connected to the antenna.

 The base of the antenna mast or tower must be connected directly to the building protective ground or to one or more approved

grounding rods, using 1 OAWG ground wire and corrosion-resistant connectors.

 Refer to the National Electrical Code for grounding details.

IF A PERSON COMES IN CONTACT WITH ELECTRICAL POWER, AND CANNOT MOVE:

 DON’T TOUCH THAT PERSON, OR YOU MAY BE ELECTROCUTED.

 Use a non-conductive dry board, stick or rope to push or drag them so they no longer are in contact with electrical power.

 Once they are no longer contacting electrical power, administer CPR if you are certied, and make sure that emergency medical aid

has been requested.

Part No: 2011-E30300-000

Produkspesifikasjoner

Merke:	Planet
Kategori:	Ikke kategorisert
Modell:	ANT-FP14D
Vekt:	562 g
Bredde:	228 mm
Dybde:	15 mm
Høyde:	228 mm
Vanntett:	Ja
Antall per pakke:	1 stykker
Nettverksstandard:	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Impedans:	50 Ω
Polarisering:	Dobbel polarisering
Produktfarge:	Hvit
Monteringssett:	Ja
Driftstemperatur (T-T):	-40 - 70 °C
Kroppsmateriale:	Akrylonitril-butadien-styren (ABS)
Montering:	Stolpe
Relativ luftfuktighet under drift (H-H):	0 - 95
Antennetype:	Direksjonell antenne
Antenne forbedringsnivå (max):	14 dBi
Frekvensbånd og driftskanaler:	2.4 ~ 2.5 GHz
Kontaktkjønn:	Hunkjønn
Antennetilkoblingstype:	N-type
Horisontal strålingsbredde:	30 °
Vertikal strålingsbredde:	30 °
Voltage Standing Wave Ratio (VSWR):	1.5
Overlevelsesvindhastighet:	241.4 km/t
Ultraviolett (UV) bestandig:	Ja
