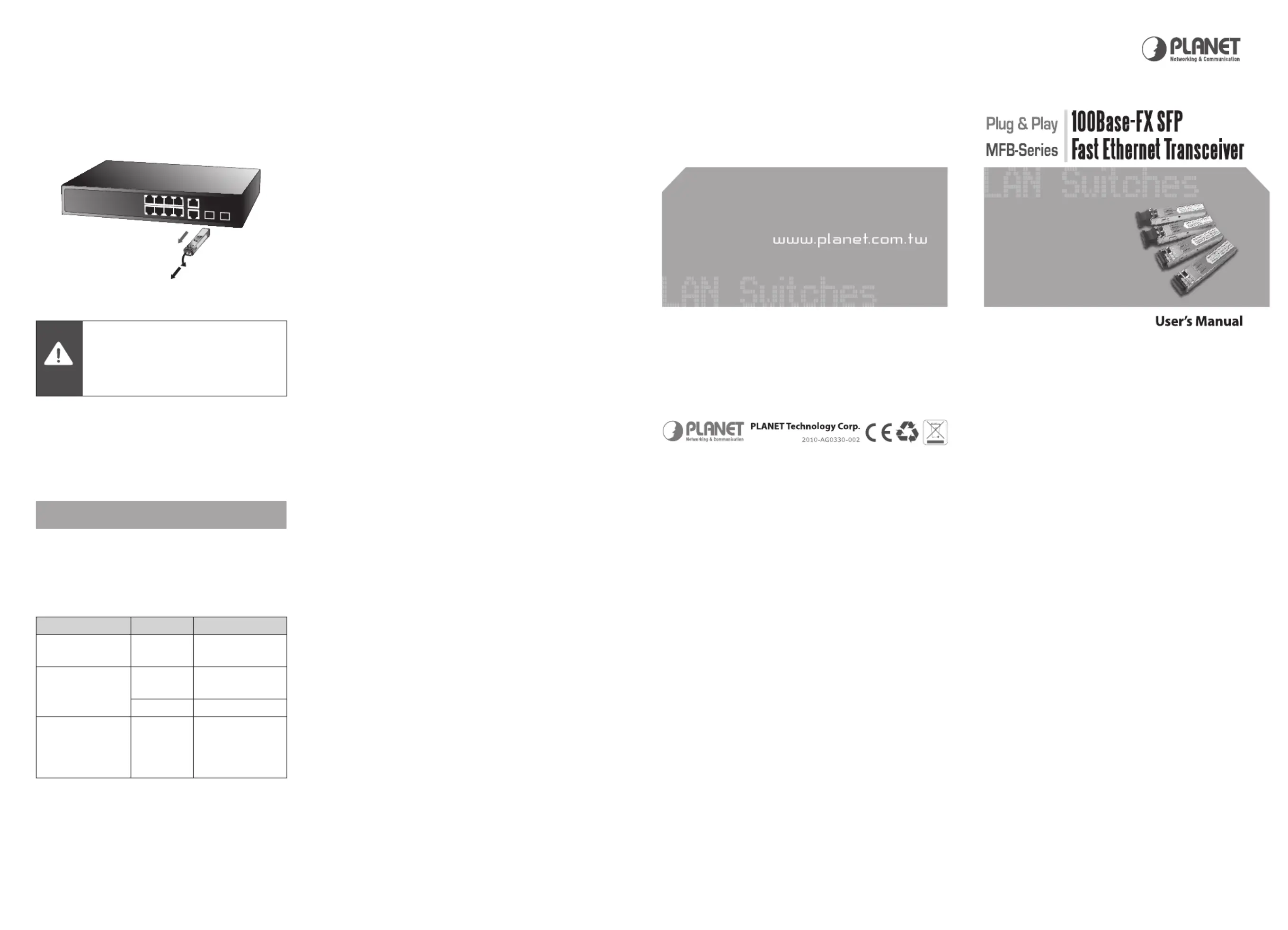

1. Overview

Thank you for purchasing PLANET MFB family SFP

100Base-FX Fast Ethernet module. The MFB family SFP

Fast Ethernet module can install into PLANET Switch

products with 100Base-FX SFP interface. The distance

can be extended from 2km (MM) up to 60 kilometers

(Single-mode, LC).

2. Model List

Your MFB family SFP Fast Ethernet module comes with

one of the following models.

Fast Ethernet SFP module List

Model Interface Fiber connector and distance

MFB-FX

SFP-Port

100Base-FX

Module

LC, Multi-Mode (1310nm)

-2km

MFB-F20

SFP-Port

100Base-FX

Module

LC, Single Mode (1310nm)

– 20km

MFB-F40

SFP-Port

100Base-FX

Module

LC, Single Mode (1310nm)

– 40km

MFB-F60

SFP-Port

100Base-FX

Module

LC, Single Mode (1310nm)

– 60km

MFB-FA20

SFP-Port

100Base-BX

Module

LC WDM, Single Mode

(TX:1310nm, RX:1550nm)

-20km

MFB-FB20

SFP-Port

100Base-BX

Module

LC WDM, Single Mode

(TX:1550nm, RX:1310nm)

-20km

* Models with last two numbered characters indicate the

maximum distance in km.

3. Check List

Your MFB carton should contain the following items:

The MFB family SFP Fast Ethernet module

This user’s manual

If any item is missing or damaged, please consult the

dealer from whom you purchased you MFB family SFP

Fast Ethernet module.

4. Introduction

4-1 1-Port 100Base-FX SFP Modules – MFB-

FX / MFB-F20 / MFB-F40 / MFB-F60

Features:

Comply with IEEE 802.3u Fast Ethernet standard

1 x 100Mbps ber port

Plug and Play Installation

MFB-FX provides distance up to 2km over 62.5/125μm

multi-mode ber cable

MFB-F20 provides distance up to 20km over 9/125μm

single mode ber cable

MFB-F40 provides distance up to 40km over 9/125μm

single mode ber cable

MFB-F60 provides distance up to 60km over 9/125μm

single mode ber cable

4-2 1-Port 100Base-BX WDM SFP Modules

– MFB-FA20 / MFB-FB20

Features:

Comply with IEEE 802.3u Fast Ethernet standard

1 x 100Mbps ber port (Single LC ber connectors)

Plug and Play Installation

MFB-FA20 provides distance up to 20km over

9/125μm single mode ber cable

MFB-FB20 provides distance up to 20km over

9/125μm single mode ber cable

Caution

The MFB series single mode SFP trans-

ceivers provide the optical power budget

from 15 dB to 30dB. When shorter

distance of single-mode fiber cables is

used, you might need to insert an in-

line optical attenuator in the link to avoid

overloading the receiver:

SFP Model

In-line

Optical

Attenuator

MFB-F20 MFB-F40 MFB-F60 MFB-FA20 MFB-FB20

Optical power

budget

15 dB 24 dB 30 dB 20 dB 20 dB

Fiber Cable Length

= 10 Km

5 dB 10 dB 15 dB 5 dB 5 dB

15Km ≤ Fiber

Cable Length <

60Km

2 dB 10 dB -- 2 dB 2 dB

5. Installing SFP Modules

5.1 Installing the SFP transceiver

The sections describe how to insert an SFP transceiver

into an SFP slot.

The SFP transceivers are hot-pluggable and hot-

swappable. You can plug-in and out the transceiver to/

from any SFP port without having to power down the

Switch/Media Converter. As the Figure -1 appears.

MFB MFB

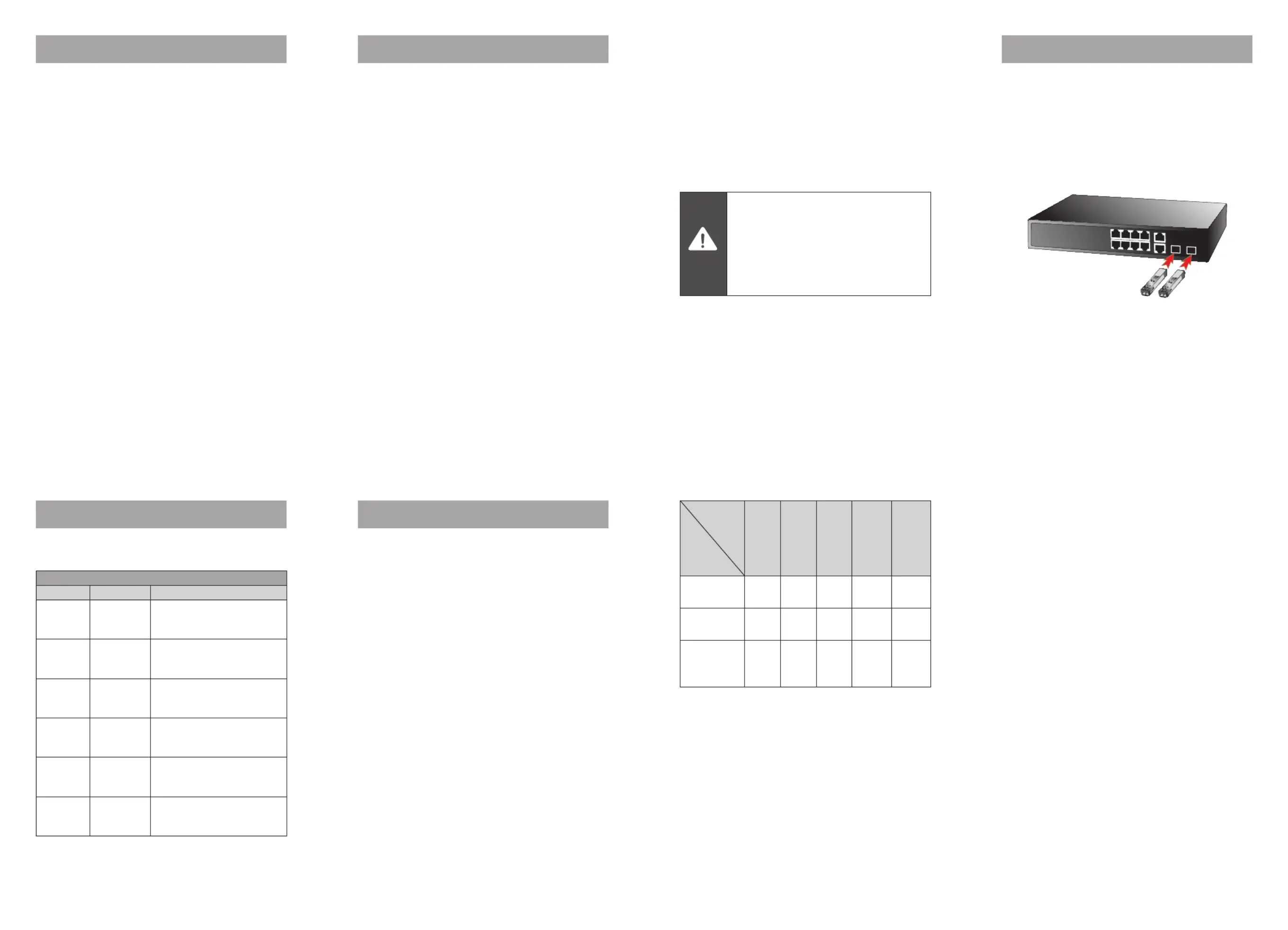

Figure 1 Plug-in the SFP transceiver

Before connect the other switches, workstation or Media

Converter.

1. Make sure both side of the SFP transceiver are with

the same media type or WDM pair, for example:

100Base-FX to 100Base-FX, 100Base-BX20-U to

100Base-BX20-D.

2. Check the ber-optic cable type match the SFP trans

ceiver model.

To connect to MFB-FX SFP transceiver, use the

multi-mode ber cable- with one side must be male

duplex LC connector type.

To connect to MFB-F20/F40/F60/FA20/FB20 SFP

transceiver, use the single-mode ber cable-with

one side must be male duplex LC connector type.

Connect the ber cable

1. Attach the duplex LC connector on the network cable

into the SFP transceiver.

2. Connect the other end of the cable to a device –

switches with SFP installed, ber NIC on a worksta-

tion or a Media Converter.

3. Check the LNK/ACT LED of the SFP slot of the switch

/ converter. Ensure that the SFP transceiver is oper-

ating correctly.

4. Check the Link mode of the SFP port if the link failed.

Co works with some ber-NICs or Media Converters,

set the Link mode to “100 Force” is needed.

Produkspesifikasjoner

Merke:	Planet
Kategori:	Ikke kategorisert
Modell:	MFB-TFA40
Kablingsteknologi:	100Base-BX
Nettverksstandard:	IEEE 802.3, IEEE 802.3u
Bølgelengde:	1310 nm
Maksimal dataoverføringshastighet:	100 Mbit/s
Fiberoptisk kontakt:	LC
Driftstemperatur (T-T):	-40 - 75 °C
Harmonisert system (HS)-kode:	85369010
Maksimal overføring avstand:	40000 m
Type grensesnitt:	SFP
SFP-transceivertype:	Fiber optisk
Multi-mode fiber (MMF) støttes:	Nei
